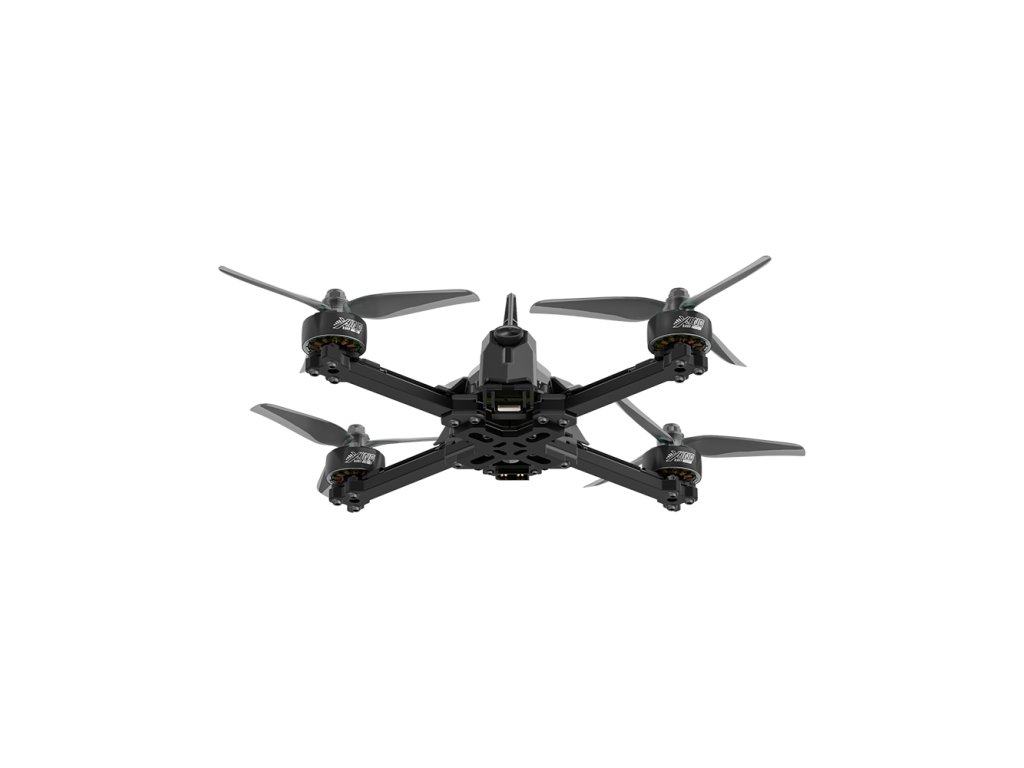

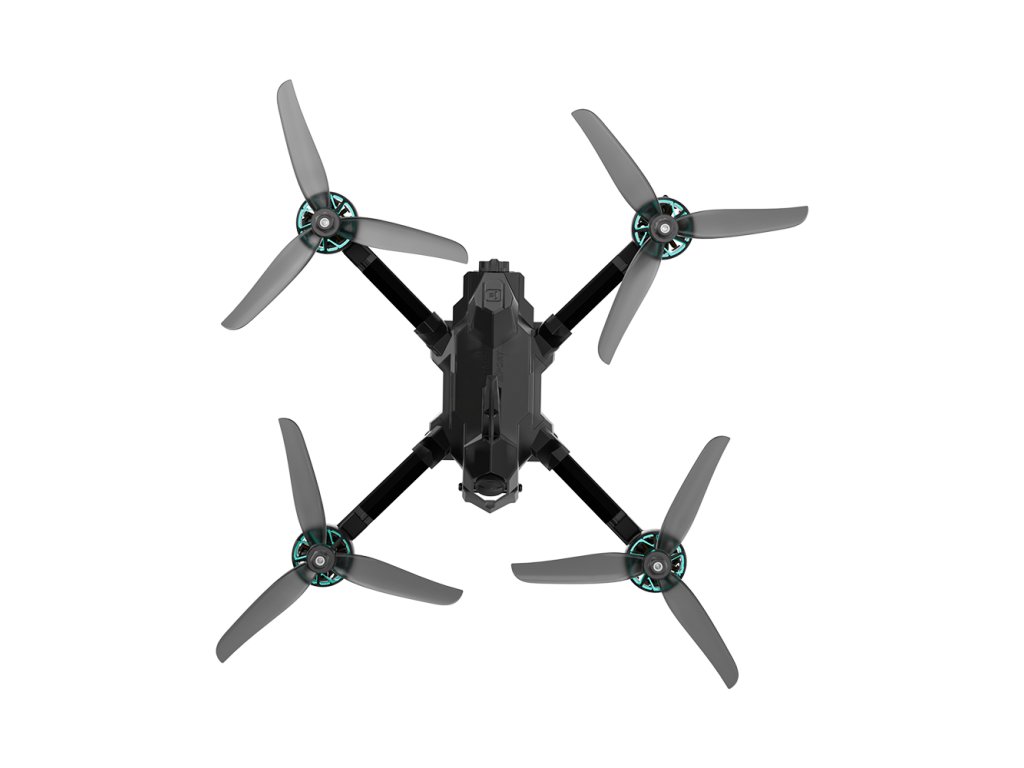

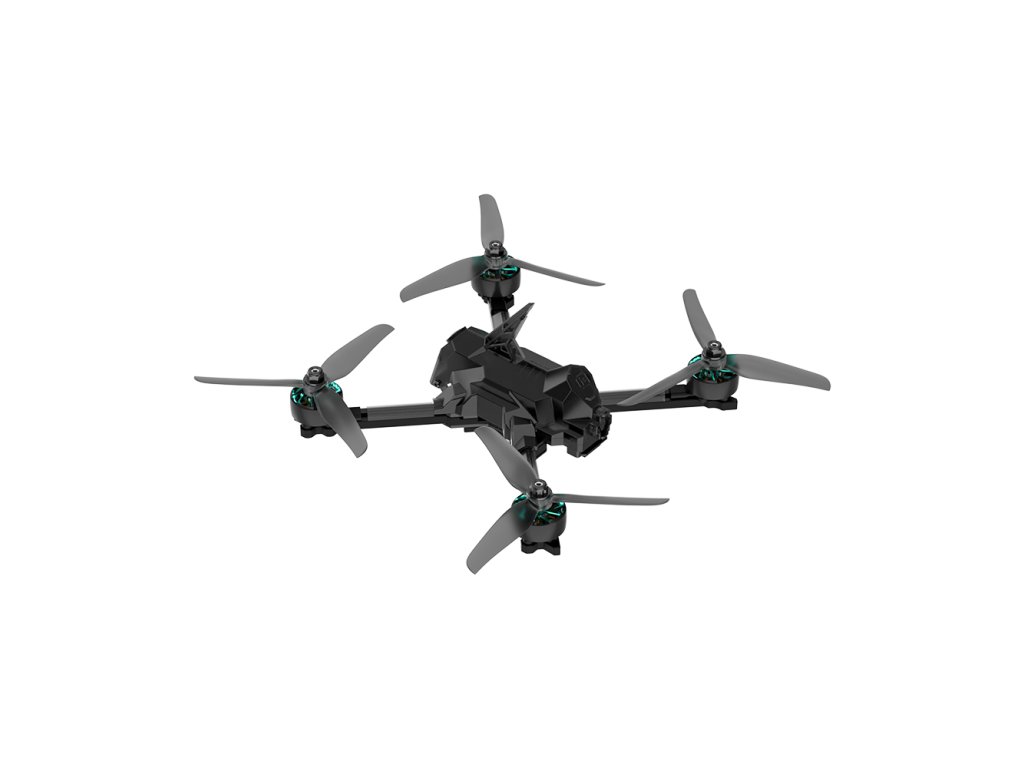

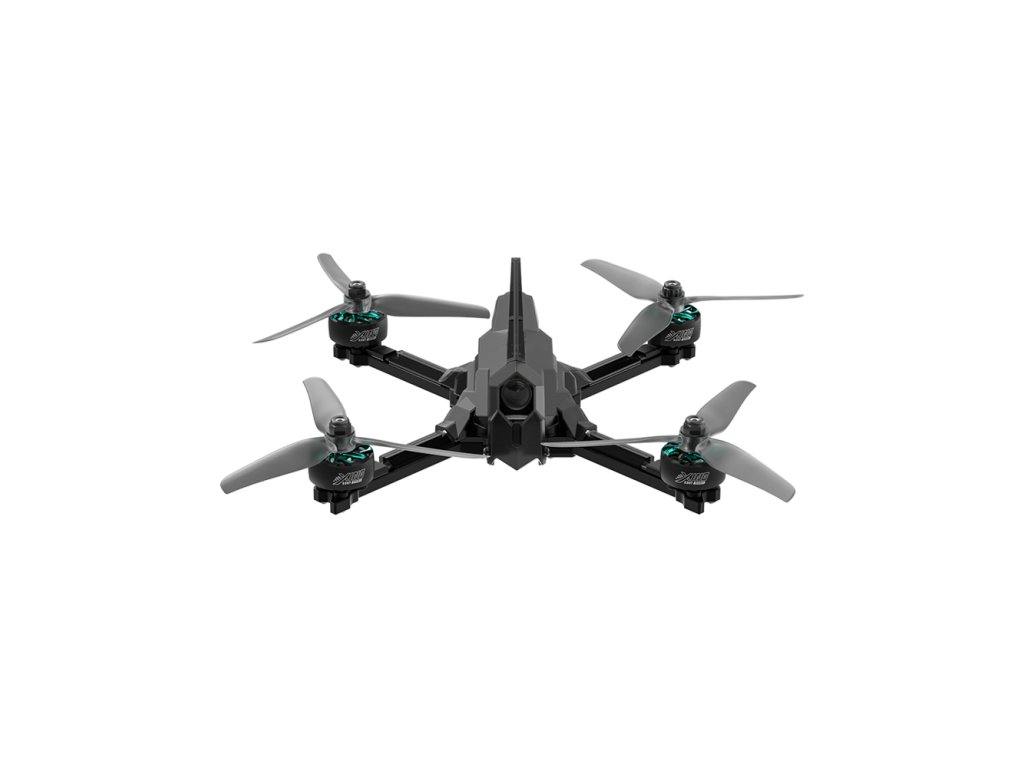

FPV Drone iFlight Mach R5 Sport HD Zero 6S BNF 6S PNP
Kod: RD16169Opis szczegółowy produktu
FPV Drone iFlight Mach R5 Sport HD Zero 6S BNF 6S PNP
Lightweight and Compact
As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.
Innovative Quick-Release Aero Shell
The unique canopy is not only engineered with aerodynamics but also features quick-release buckle for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.
Convenient User Experience
Secured battery plug to prevent the power cable from being hit by the propellers, and with a built-in antenna to keep everything well protected and enhance the overall appearance.
The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.
DIY customized space
Standard 20*20 mounting holes, compatible with HDZERO and other VTX.
Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.
The canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.
Specifications:
Product Name: Mach R5 Sport 6S HDZero
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
Video Transmission: HDZero Race V3 VTX
Camera: HDZero Nano 90 CAM
Frame: 210mm wheelbase
Motor: R5 2207 2050KV motors
Prop: Nazgul R5 V2 propellers
Weight: 300g
Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)
Dimensions (L×W): 148*148*51 mm
Max Speed: 208km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 12 mins (With 6S 1400mAh no load)
Max Wind Speed Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: N/A
Video Transmission:
Product Name: HDZero Race V3 VTX
Antenna Interface: IPEX
Input Volts: 4~12V
Output Power: 25mW、200mW
Frequency: 5.725~5.850GHz
FC protocol: Smart Audio/MSP
Weight: 5.5g
Mounting pattern: 20*20mm M4
Dimensions: 32*28*5mm
Packing List:
1 x Mach R5 Sport 6S HDZero BNF
1 x Battery strap
2 x R5 Prop(Pairs)
1 x Battery pad
