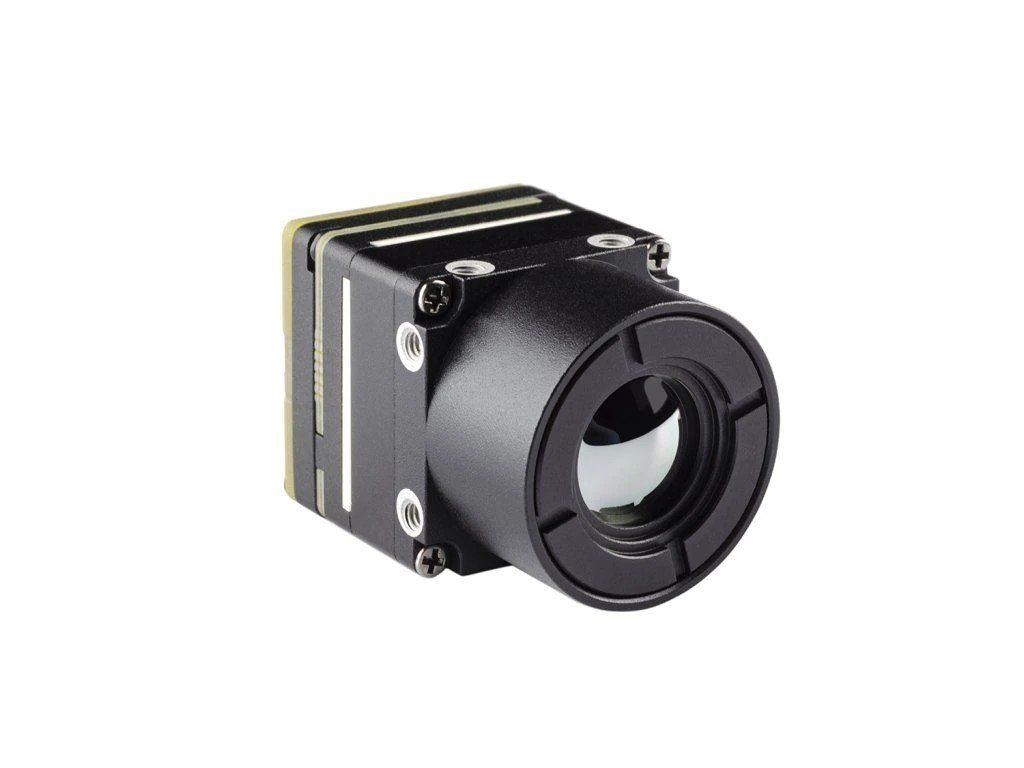

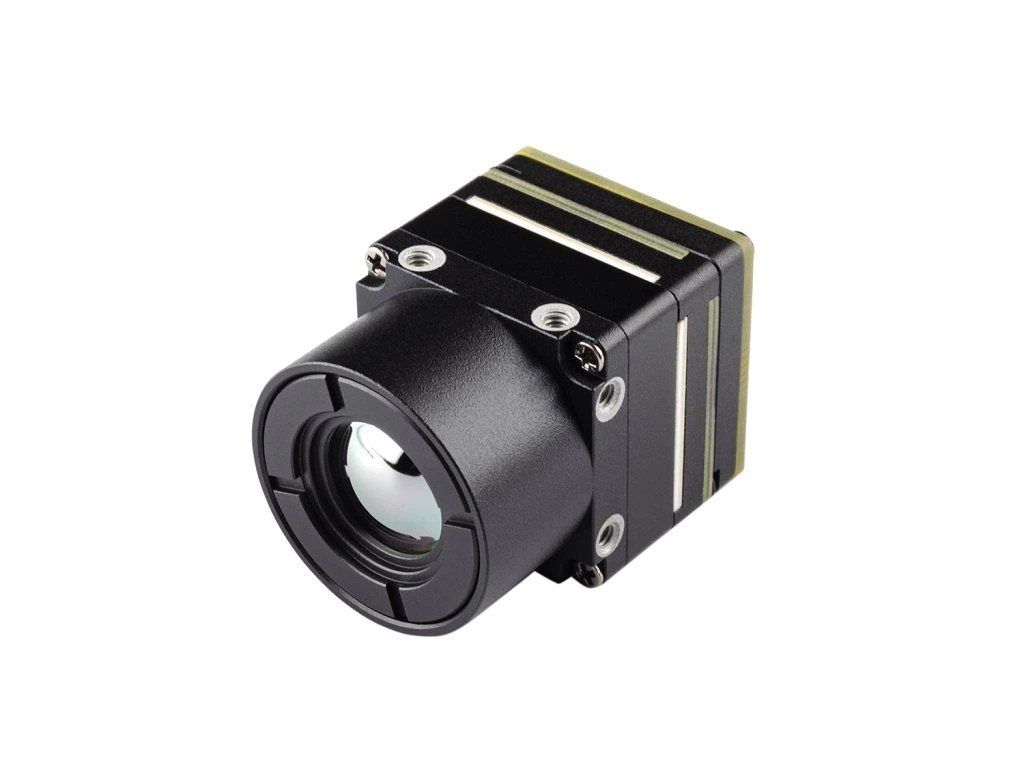

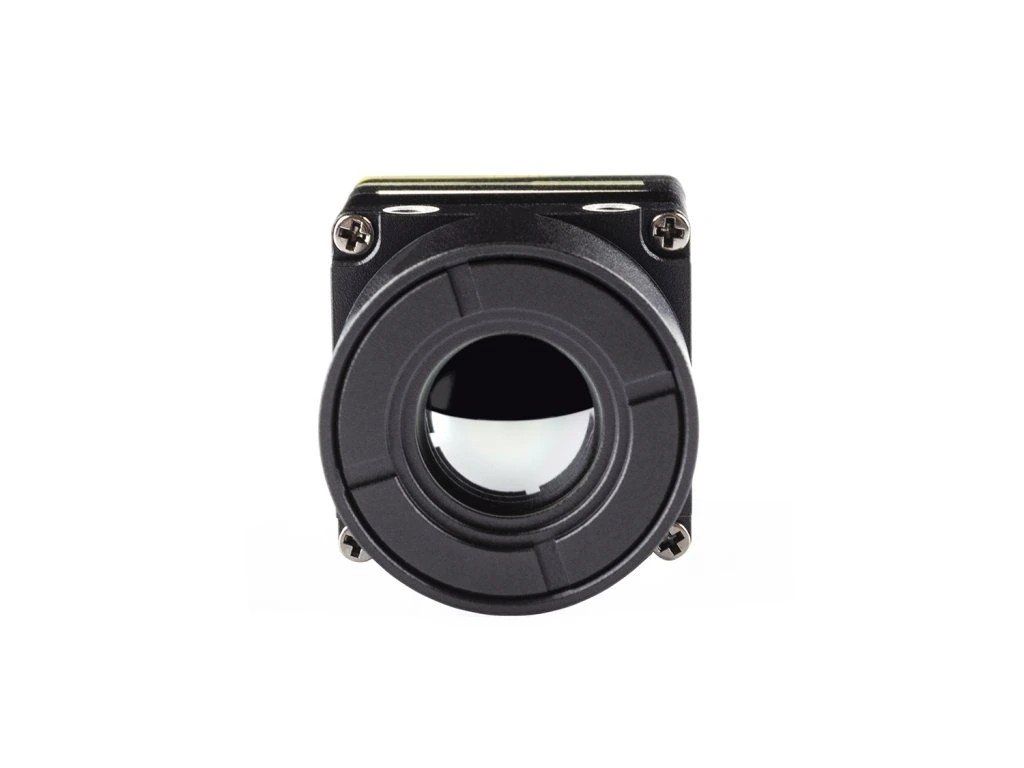

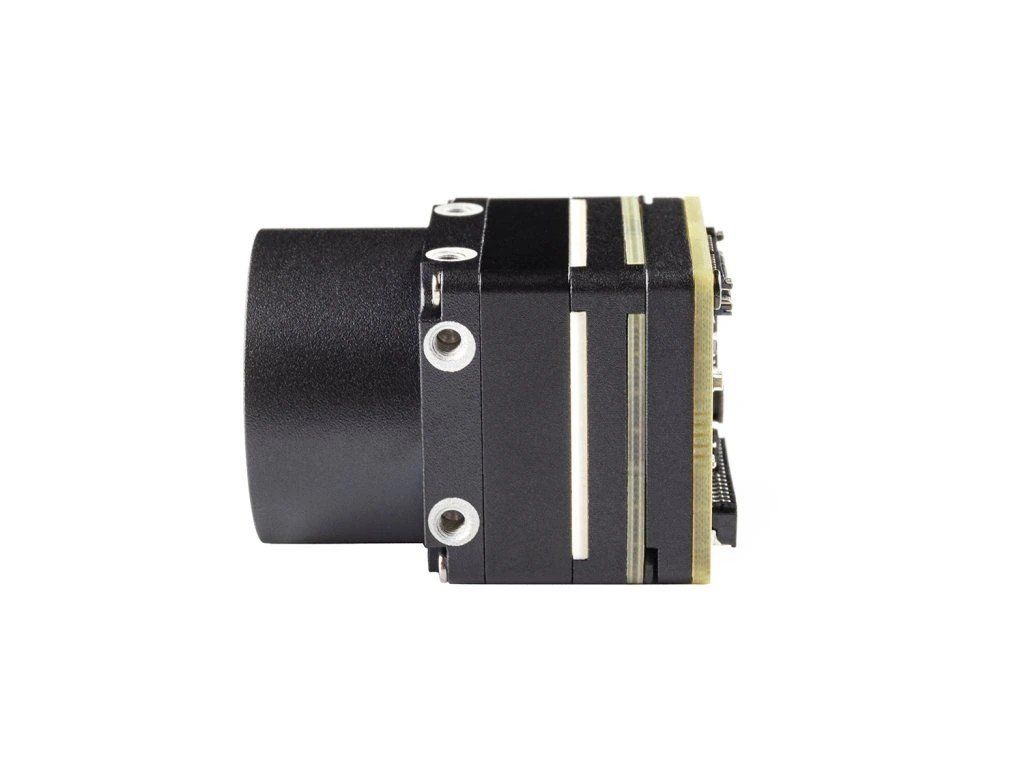

FPV camera Partizan Thermal T640

Opis szczegółowy produktu

The Partizan Thermal T640 FPV Camera is a cutting-edge thermal imaging solution specifically designed for drone applications. The camera is equipped with a 9mm lens and operates in a wavelength range of 8 to 14μm ensuring precise heat signature detection. With its resolution of 640×512, it delivers clear and accurate thermal images. The camera's robust design allows it to operate effectively in extreme temperatures, from -40℃ to +80℃, and its lightweight construction (only 20 g) ensures minimal impact on drone flight dynamics.

Technical Specifications:

• Sensor Type: Vanadium oxide (VOx) microcalorimeter
• Maximum Image Size: 640x512 pixels
• Pixel Size: 12μm
• Response Wave Band: 8~14 μm
• NETD (Noise Equivalent Temperature Difference): ≤40mK (@25°C, F#1.0)
• Viewing Angle: 48.3°(H) x 38.6°(V), 62.4°(D)
• Lens: 9.1mm
• Storage Temperature: -45°C to +75°C
• Storage Humidity: <90% RH
• Operation Temperature: -40°C to +60°C
• Operation Humidity: <90% RH
• Weight: 23g
• Dimensions: 21mm x 21mm x 34mm
• Power Consumption: ≤0.8W
• DC Input: 5~12V

Package includes:
1x FPV camera Partizan Thermal T640
