FPV camera Foxeer Mini V3

Opis szczegółowy produktu

FPV camera Foxeer Mini V3

Sony 1/3" CMOS Sensor Analog FPV Camera

This compact and high-resolution FPV camera with a Sony 1/3" CMOS sensor is designed for seamless video performance in various lighting conditions. It offers crisp analog video output and advanced imaging features, making it an excellent choice for drone racing, freestyle FPV, or general aerial applications.

Key Features:

• Sensor: Sony 1/3" CMOS for superior image quality.
• Resolution: 1200TVL for sharp and detailed video.
• Aspect Ratio: 4:3 scale optimized for FPV displays.
• FOV:
  • Horizontal Field of View (FOV-H): 98° for a wide perspective.

Imaging Capabilities:

• Shutter Speed:
  • PAL: 1/25–1/10000 sec (Auto mode supported).
• Low Light Performance: Minimum illumination of 0.01 Lux for enhanced visibility in darker environments.
• Dynamic Range: 90dB Wide Dynamic Range (WDR) to handle challenging lighting transitions.
• Image Enhancements:
  • 3DNR (Digital Noise Reduction) for cleaner visuals.
  • Day/Night Modes: EXT/Auto/Color/B&W for customizable image output.

Build and Functionality:

• Power Input: 5V–25V for flexible compatibility.
• Power Consumption:
  • 140mA @ 5V
  • 64mA @ 12V
• Languages: Multiple language support, including English, Chinese, Russian, Spanish, French, and more.

Durability and Design:

• Operating Conditions:
  • Temperature: -10° to 50°C, with up to 90% relative humidity.
  • Storage: -20° to 70°C.

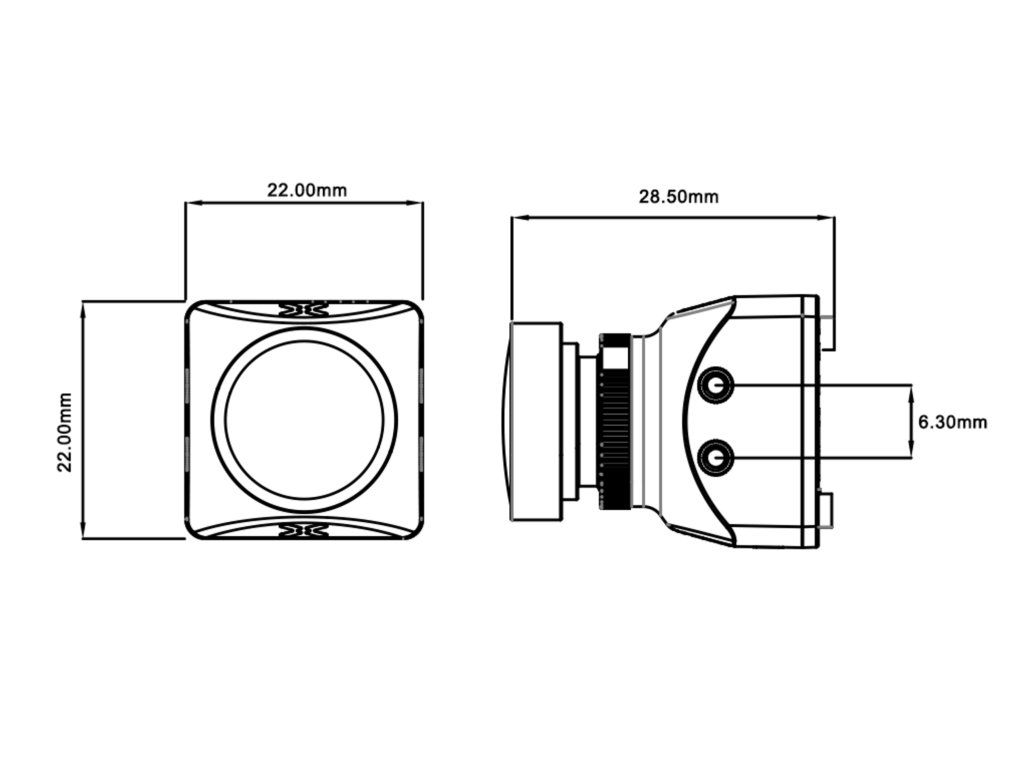

• Compact Size: Measures only 22 × 22mm, ideal for tight spaces.
• Weight: 12g (excluding cable).

Package Contents:

• 1 × Camera
• 1 × Silicone Cable
• M2 × 4mm Screws
