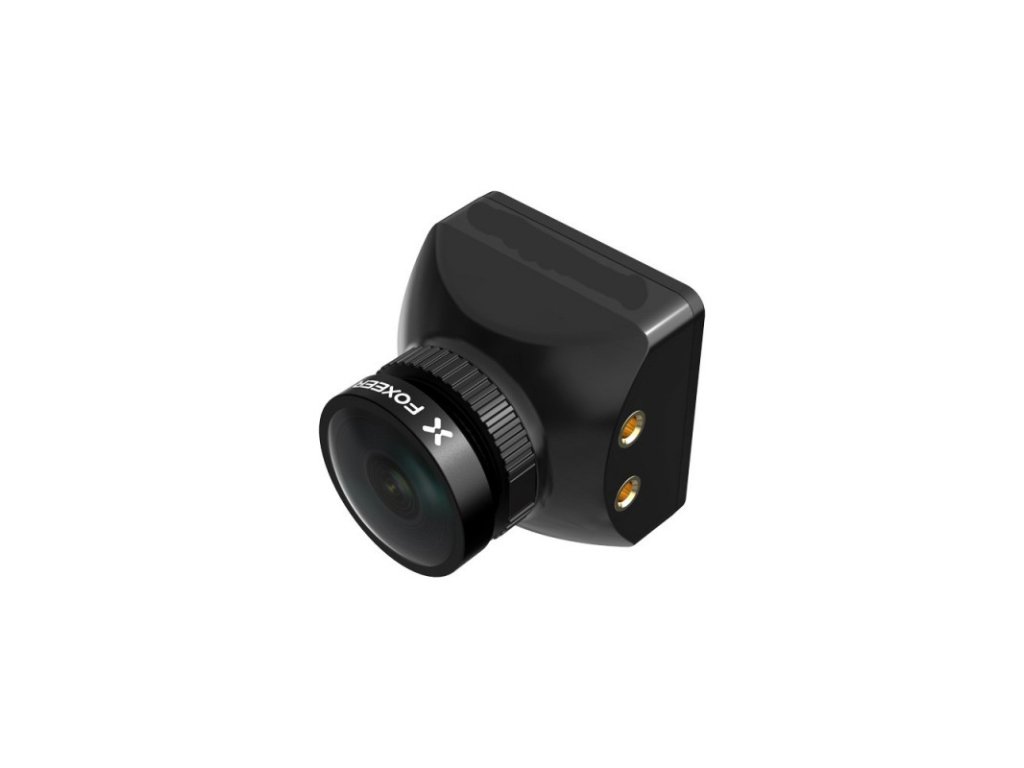

FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light

Opis szczegółowy produktu

FPV camera Foxeer Mini Night Cat 3 1200TVL 0.00001Lux IR Sensitive Night Vision Camera 850nm IR Light

Camera Specifications

• Sensor Type: Sony 1/3" CMOS Sensor
• IR Light Compatibility: Works with 850nm IR Light
• Image Scale: 4:3 (Default) / 16:9 Switchable
• TV System: PAL (Default) / NTSC Switchable
• Resolution: 1200TVL
• Lens: M12 2.1mm F1.4 Low Light Lens
• Filter: Without filter

Field of View (FOV)

• 4:3 Aspect Ratio:
  • FOV-H: 100°
  • FOV-D: 125°
• 16:9 Aspect Ratio:
  • FOV-H: 100°
  • FOV-D: 115°

Shutter Speed

• PAL: 1/25~1/10000 sec
• NTSC: 1/30~1/10000 sec

Video Output

• Output Type: CVBS Analog Signal

Imaging Capabilities

• Minimum Illumination: 0.00001 Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• Day/Night Mode: EXT / Auto / Color / B&W

On-Screen Display (OSD)

• Flight OSD: Displays Voltage, Camera Title, and Time

Power and Environmental Specifications

• Input Voltage: 4.6V ~ 20V
• Power Consumption: 95mA ±15% @ DC12V
• Working Temperature: -10° ~ 50°C (RH90% MAX)
• Working Humidity: 20% ~ 80%
• Storage Temperature: -20° ~ 70°C

Physical Dimensions

• Dimension: 22x22mm
• Weight: 12.2g (Excluding cable)

Additional Features

• Language Support: English, 中文, Pусский, Español, Italiano, Français, Polski, Português, 日本语, Ελληνικά
• ODM/OEM: Support Available
