AIO FC Foxeer Reaper AIO V3

Opis szczegółowy produktu

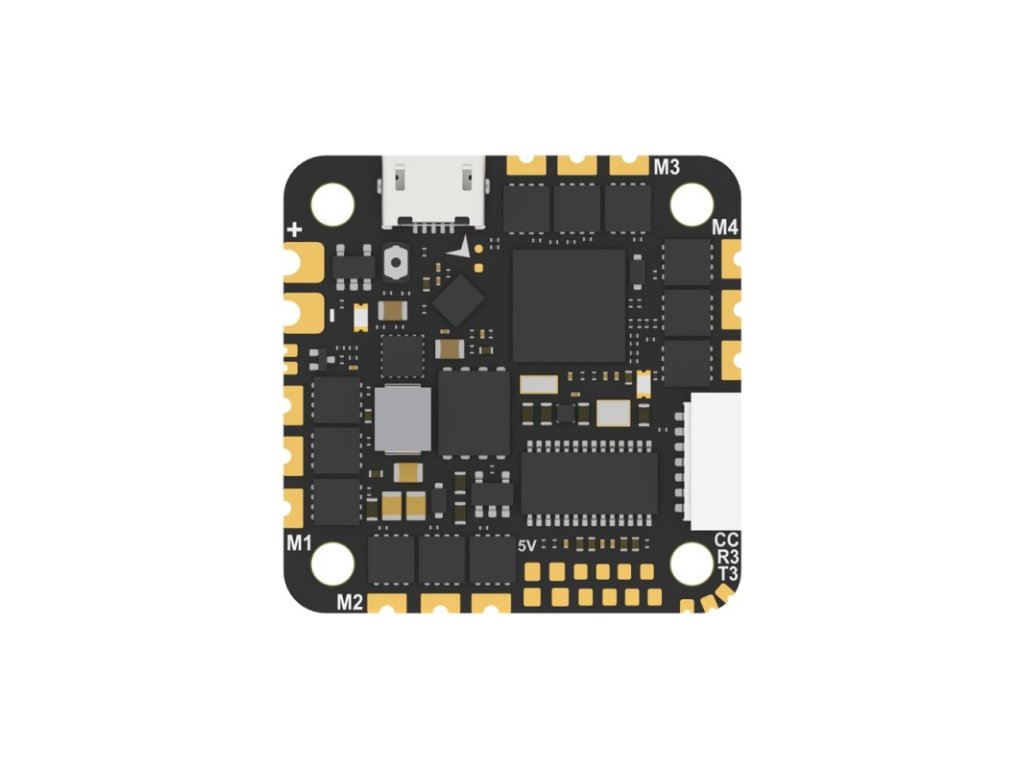

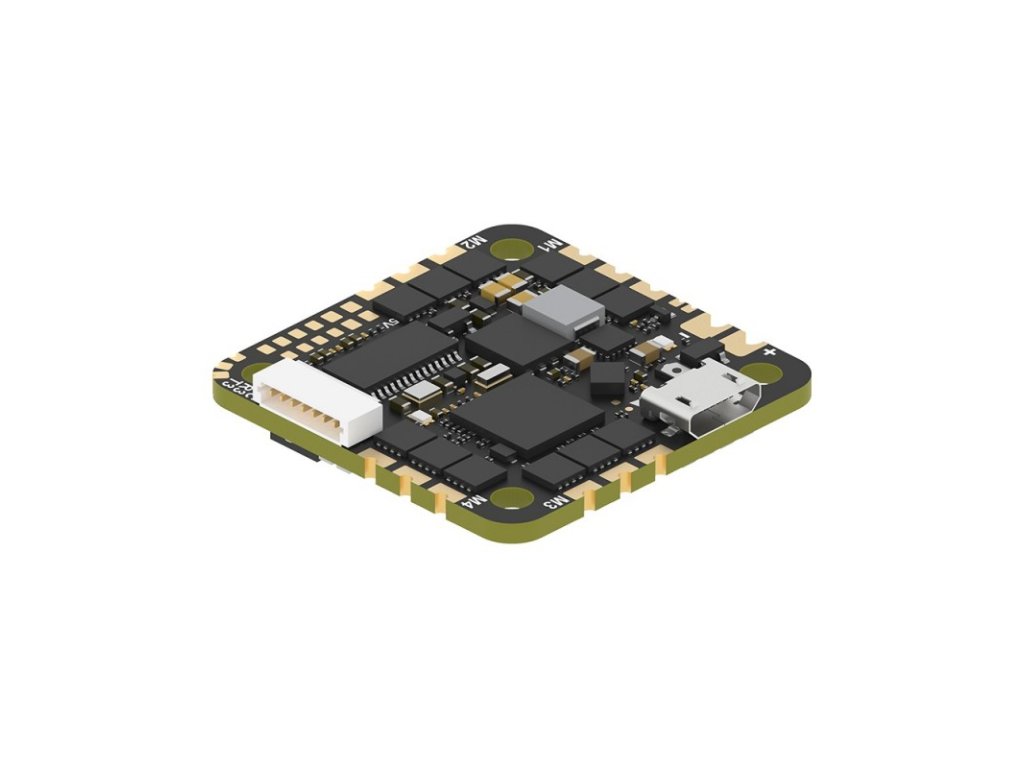

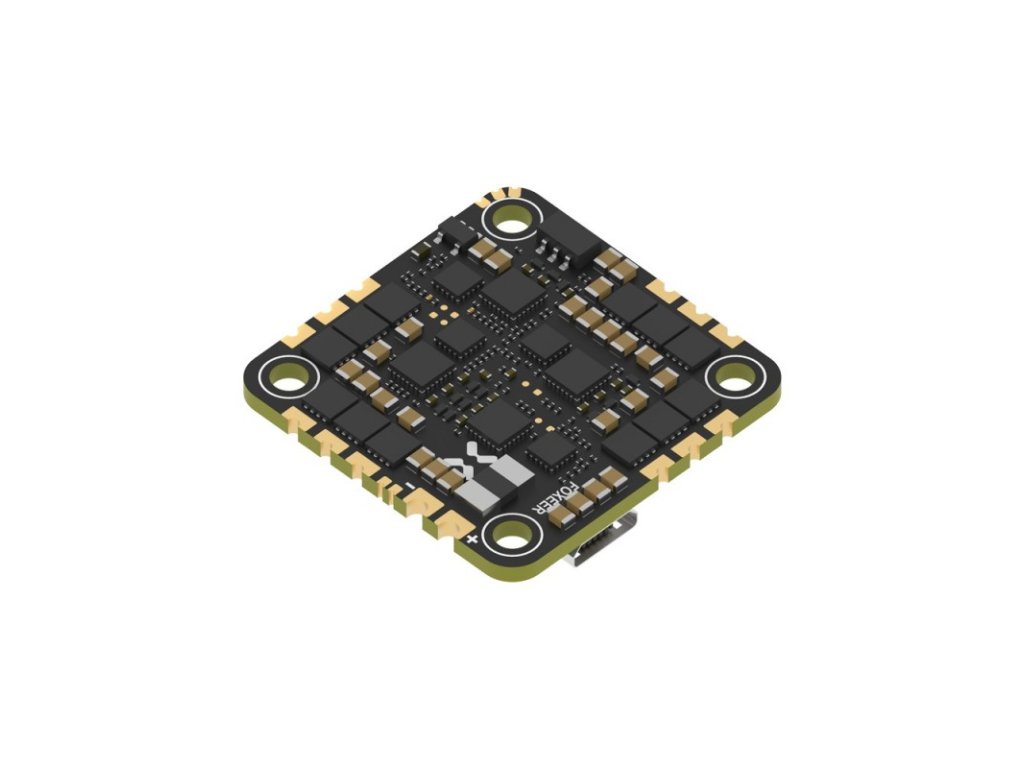

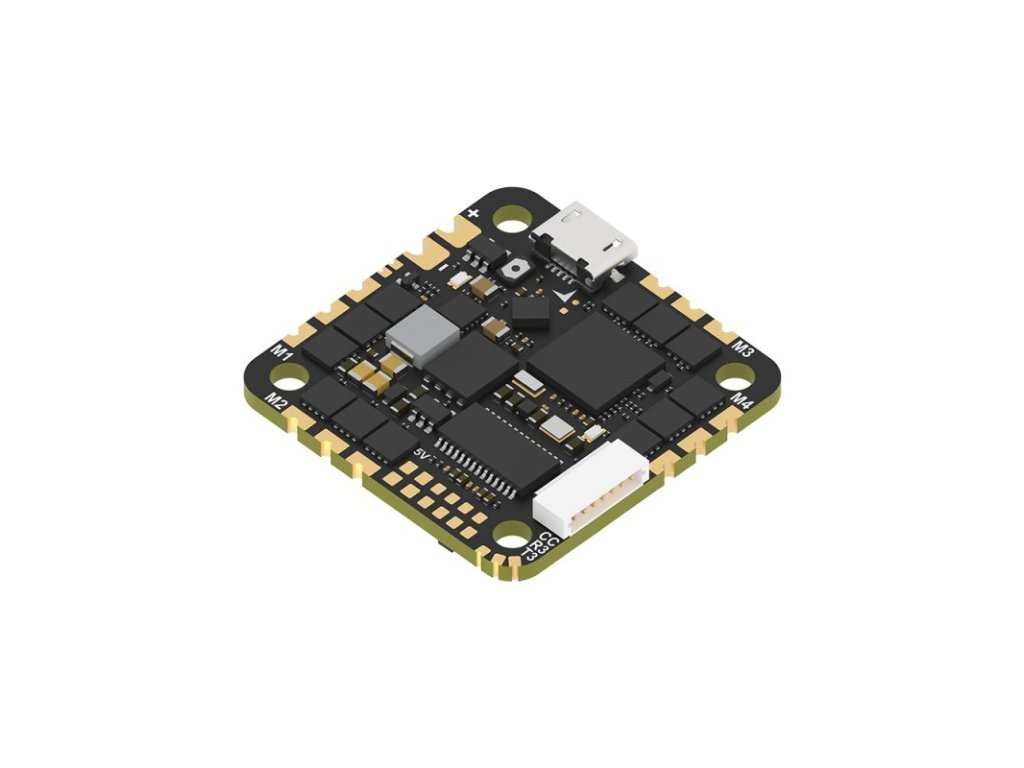

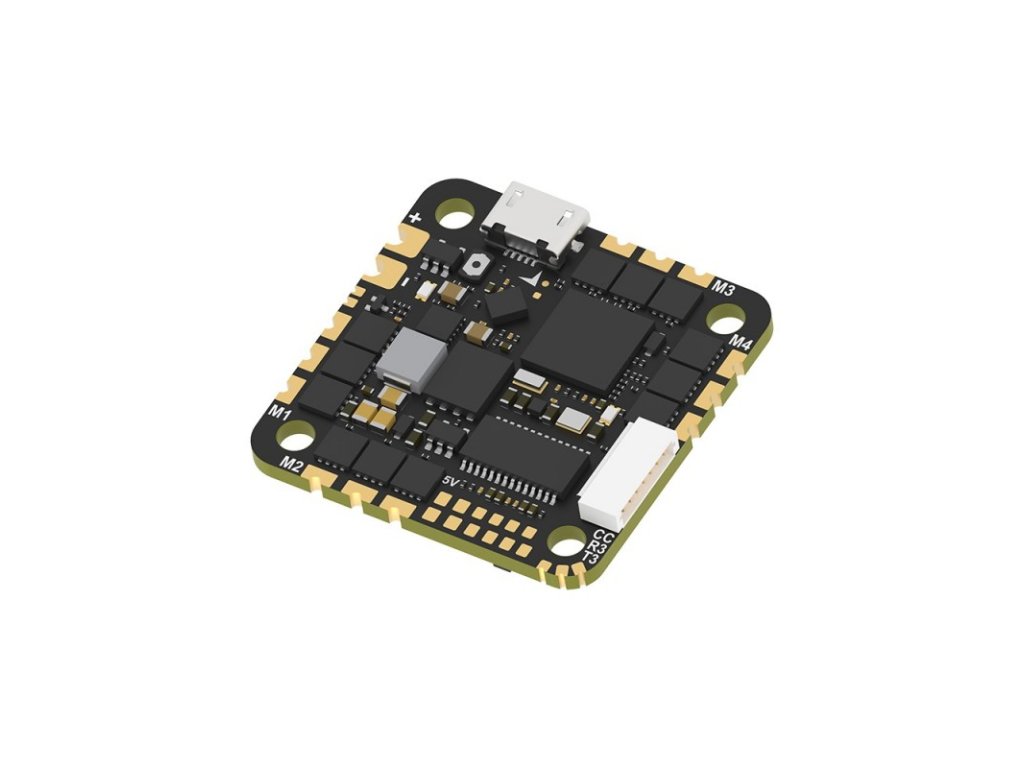

Foxeer Reaper AIO V3 F745 45A BLS Bluejay 2-6S

The Foxeer Reaper AIO V3 F745 is an all-in-one flight controller designed for high-performance FPV drones. This flight controller can handle voltages from 2 to 6S LiPo batteries, providing exceptional power and reliability. It has bigger soldering pads and a more powerful power supply, it offers flexibility and convenience for your FPV flying experience.

Specifications:

Model: FOXEER Reaper AIO V3
CPU: STM32F745
Power Supply: 2-6S Lipo (8.4-25.2V)
BEC Output: DC5V/2.5A
OSD: BF OSD
Black Box: 16M Flash Memory
UART: 5 Set
USB: Micro USB
Fireware: BF:FOXE-FOXEERF745V3_AIO; Inav: FOXEERF745AIO V3
DJI/Vista Connector: Supported, 7pin
Size: 32.5x32.5mm
Mounting Hole: 25.5x25.5mm,Φ3mm/M2
Weight(g): 8.9g
Working Temperature: -20°C - +55°C
Working Humidity: 20-95%
Storage Temperature: -20°C - +70°C

ESC Programming: Bluejay(default)/BLHeli-S optional
Stick Programming: Supported
Current sensor: Supported
Current scale: 100
Input signal: Dshot300/600
Firmware: Bluejay: G-H-30-96-v0.16/ BLS:G-H-30 16.7
Continuous /Burst Current: 45A x 4/ 50A x 4
Input Voltage: 2-6S Lipo(8.4-25.2V)
Telemetry: No

Package Includes:
1x Foxeer Reaper AIO V3
