ExpressLRS Recovery Dongle BETAFPV

Opis szczegółowy produktu

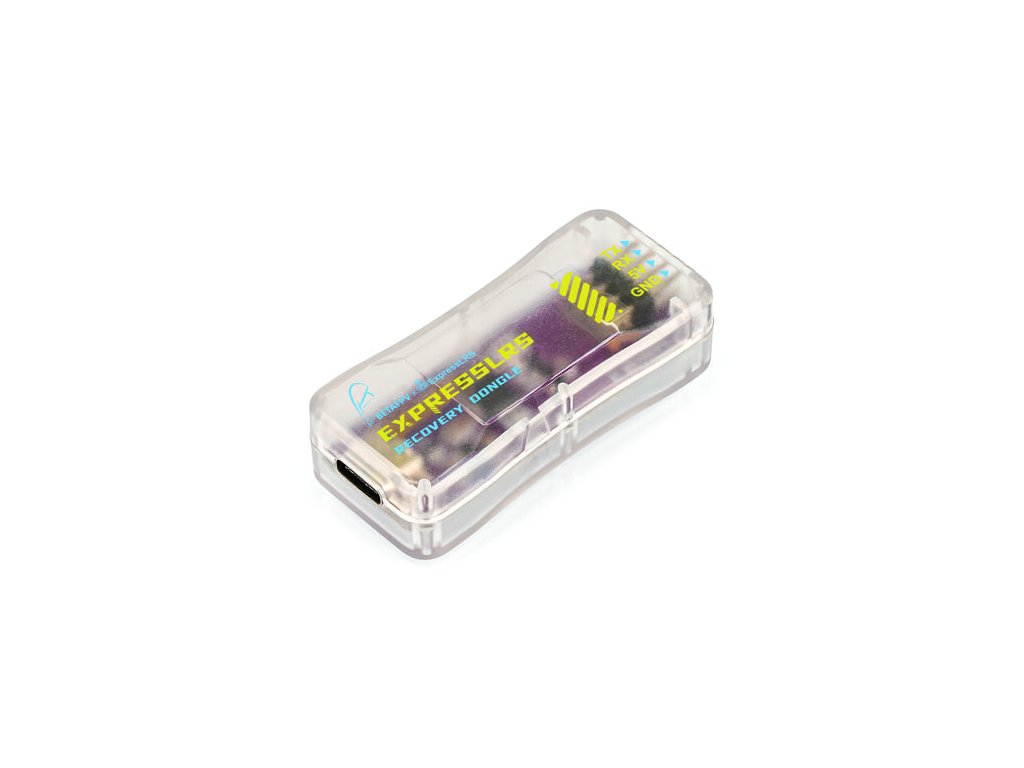

ExpressLRS Recovery Dongle

ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ESP8XX chip. It will be useful to unbrick the ELRS receiver when an update or flashing firmware by UART fails.

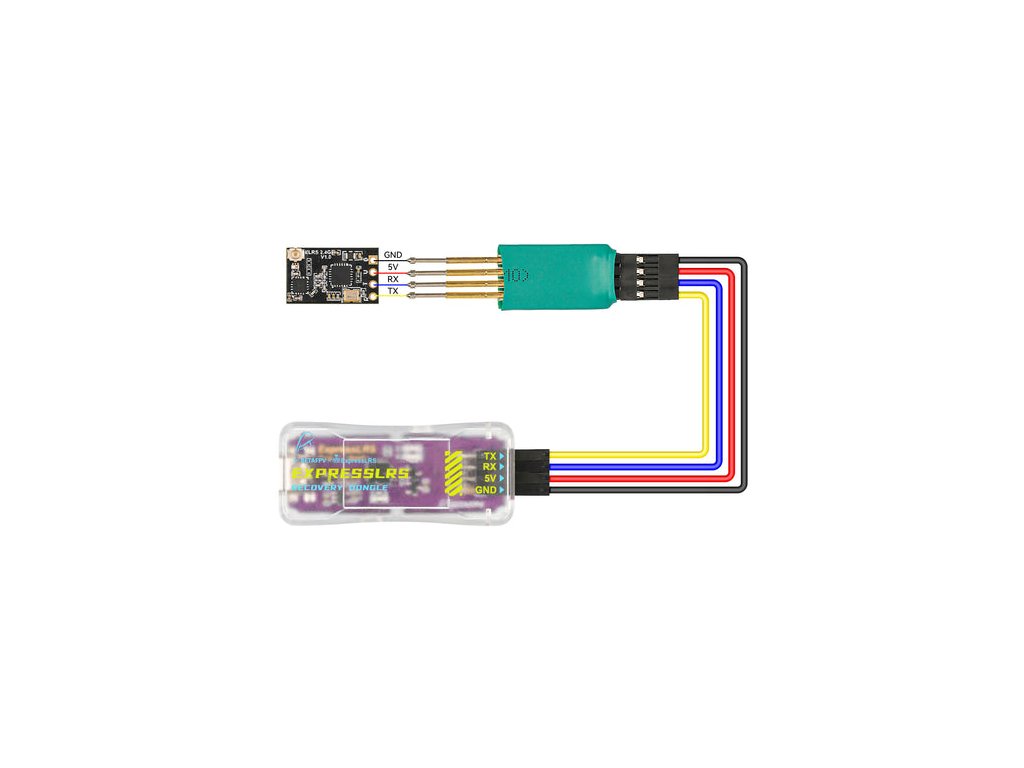

- It features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder.
- ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
- Support Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.

Specifications:
USB Interface: Type-C USB male connector
Operating Voltage: 5V.
Logic Voltage: 5V.
3.3V power supply output current: 400mA

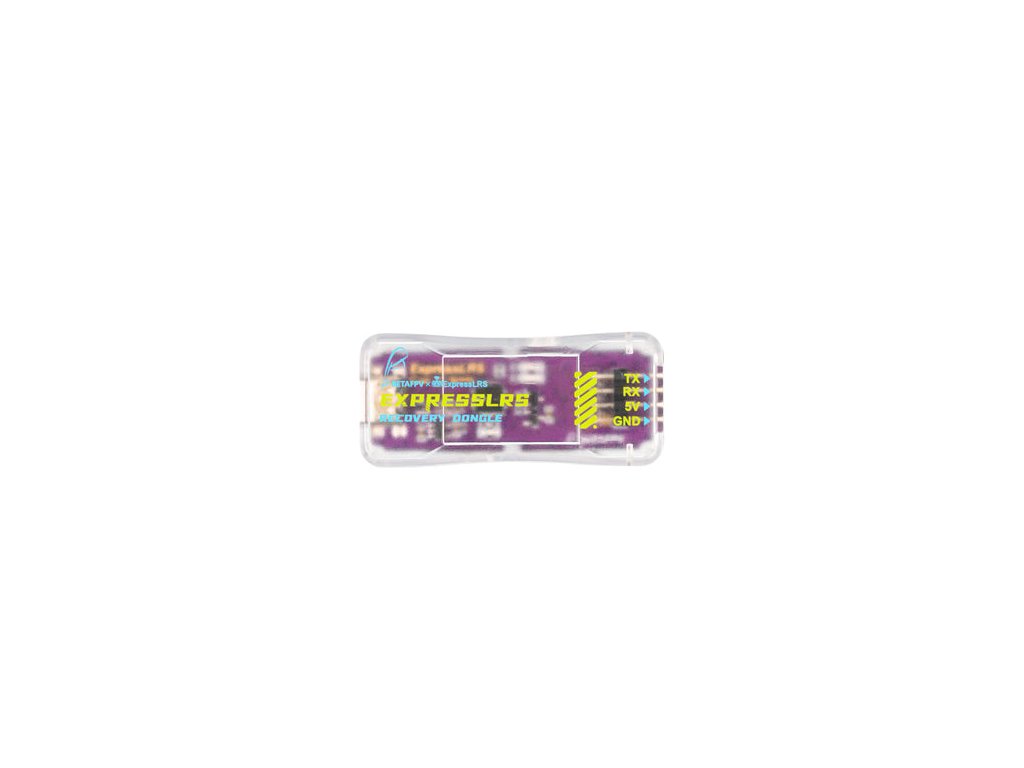

Pins output method: 2x4P-2.54mm pin header
Serial baud rate: Up to 921600bps.
Support USB1.1, USB2.0
USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Compatible Receivers:
ELRS Lite Receiver
ELRS Nano Receiver
ELRS Micro Receiver
Other ELRS receivers with ESP32&ESP8XX chip.

Package:
1 x ExpressLRS Recovery Dongle
1 x 4 Pin Cable
1 x Probe Converter Board
