Receiver iFlight True Diversity ELRS 2.4G RX + 2 x 70mm Mini Antenna

Opis szczegółowy produktu

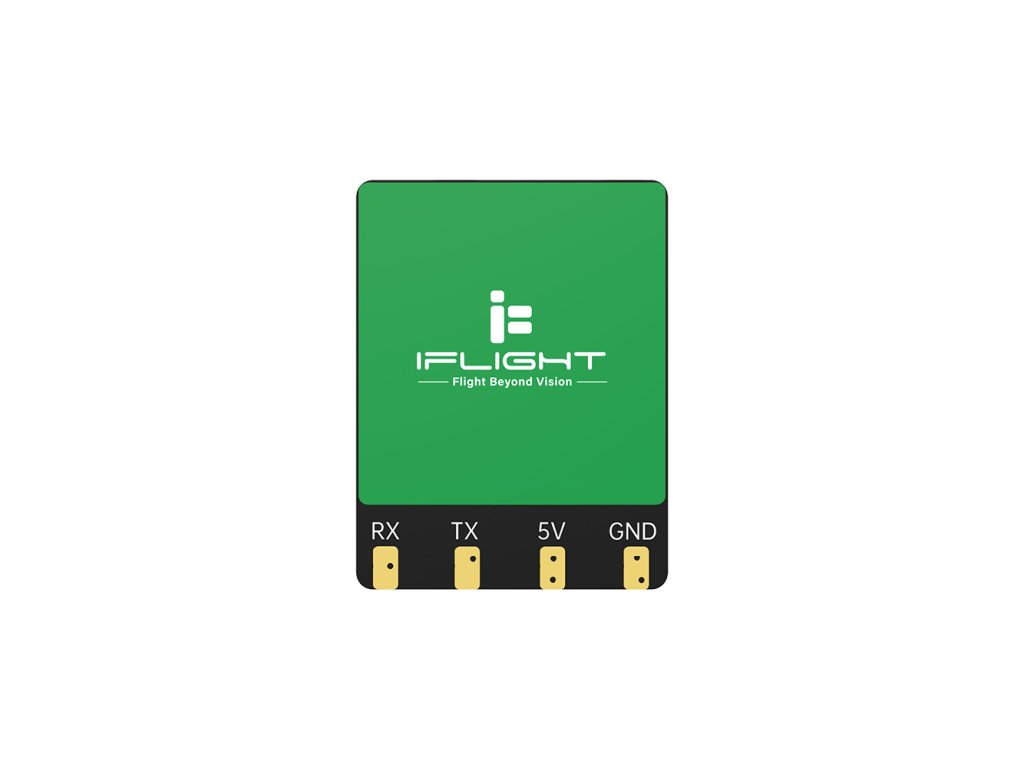

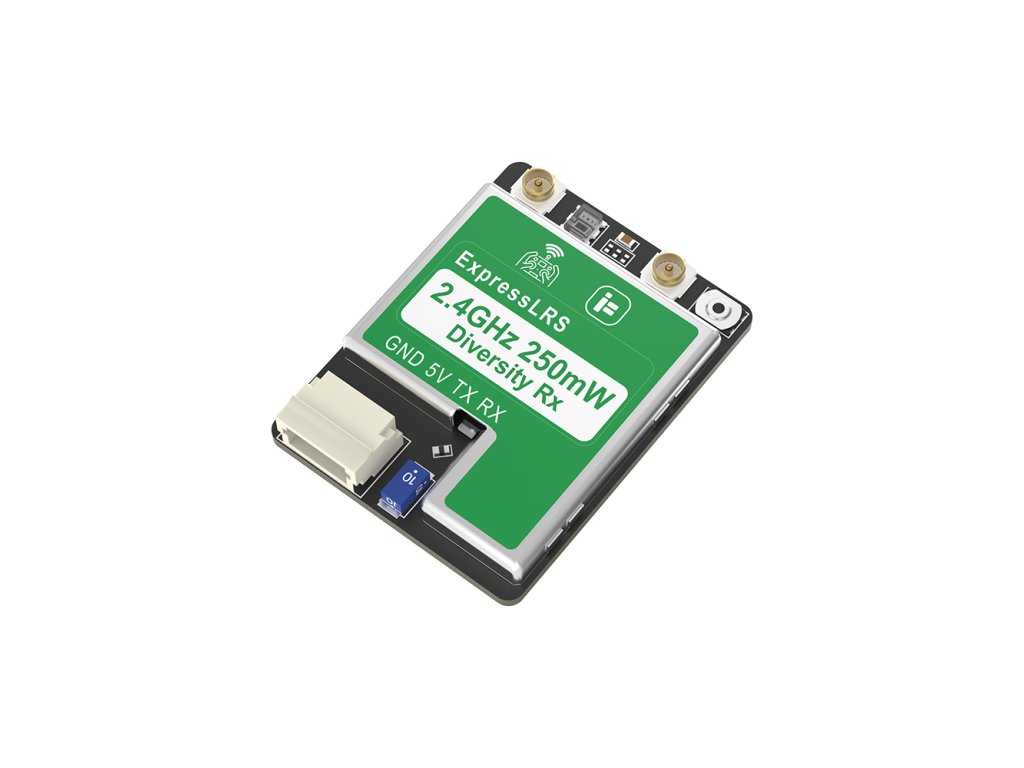

ExpressLRS ELRS True Diversity Receiver (ELRS 2.4G RX+2x 70mm Mini Antenna)

iFlight ELRS diversity receiver is a true dual-antenna diversity receiver developed in close cooperation with the ExpressLRS Team. ExpressLRS is known for its long-range operation, low latency, and high-power telemetry feedback capabilities. The ELRS diversity receiver features well-placed dual antennas with shielding covers, enhancing its resistance to interference, widening signal reception, and ensuring a more stable connection compared to conventional single-antenna receiver systems. It incorporates a TCXO temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.

Features:
- Gemini mode and True Diversity mode are compatible, with better reception effects.
- Integrated shields can protect electronic components and enhance anti-interference capabilities.
- Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high-frequency stability
- Up to power 500mW(868MHz/915MHz)/250mW(2.4G) telemetry transmission, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss.
- High-performance at 2400MHz or 900MHz (915 / 868 bands available)

Performance and Compatibility:
- Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
- Flash the latest firmware and follow the ELRS Community for updates, tutorials, or contributions.
- Use iFlight ELRS receivers coupled with the iFlight transmitter for maximum performance.

Note: If you want to use Gemini mode, you need to use a TX that supports Gemini mode.

Specifications:
MCU: ESP32-Pico D4
Receiver Type: Gemini/True Diversity
Firmware: iFlight 2.4GHz 250mW Diversity RX
Lua Script: iF 2G4 250mW GRX
Frequency bands: 2.4GHz ISM
Telemetry Power: 50-250mW (17-24dBm)
Dimension: 24.5*18.6*6.3mm
Protocol: CRSF
LNA: YES
Weight: 3.3g
Antenna Length: 70mm

Package Includes:
1 x ExpressLRS Diversity Receiver
2 x Antenna
