TX Module BETAFPV ELRS Nano V2(2.4GHz)

Opis szczegółowy produktu

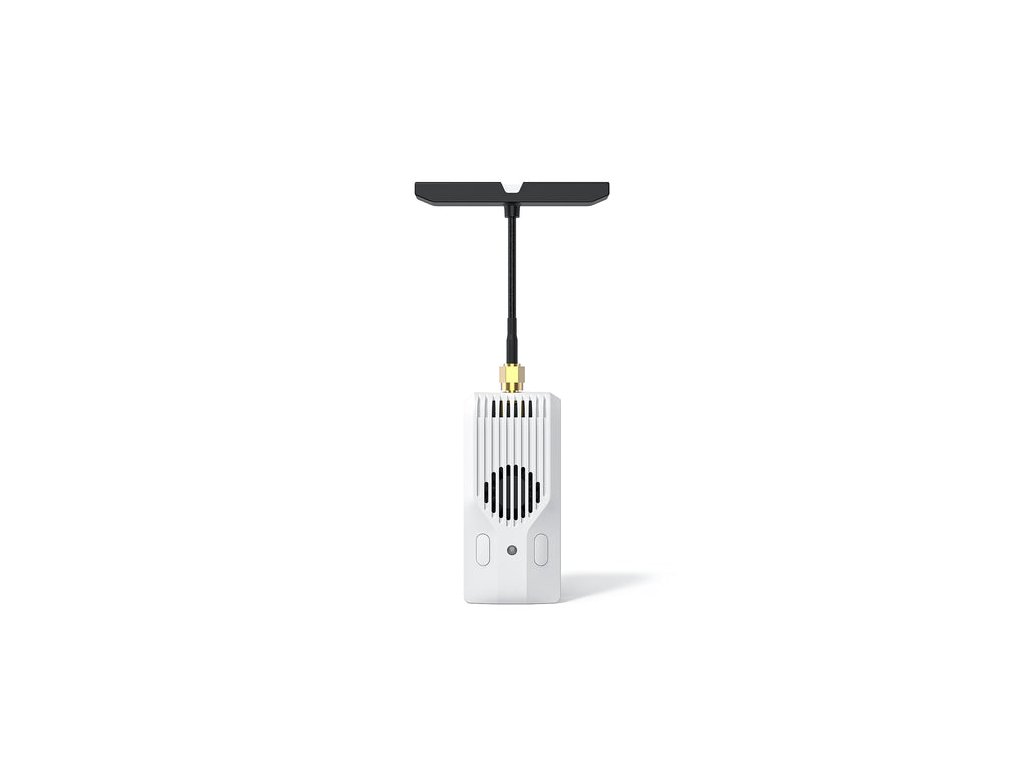

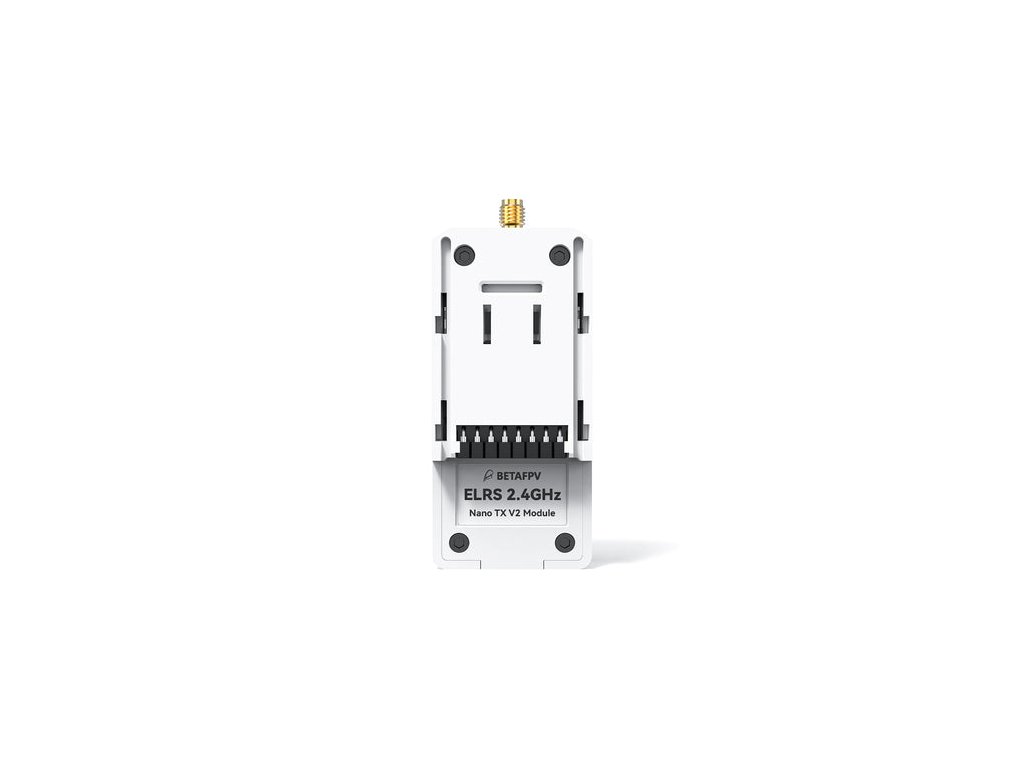

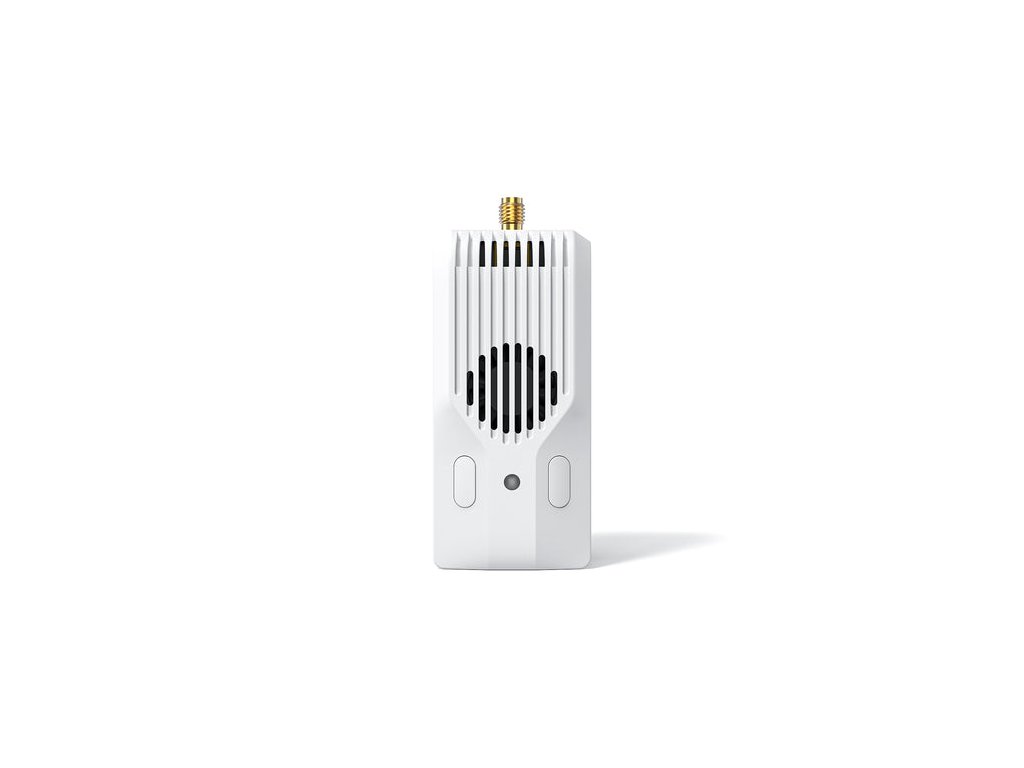

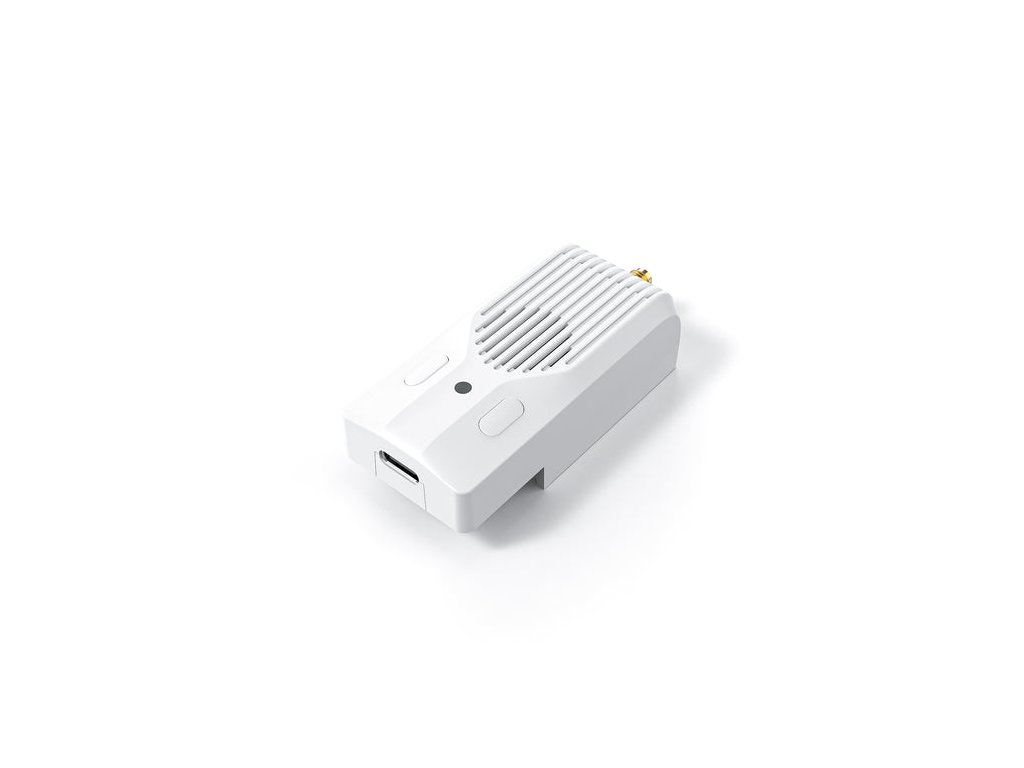

ELRS Nano TX V2 Module (2.4GHz)

The Nano TX V2 Module is packed with upgrades for an unrivaled pilot experience. Featuring the innovative T-LED antenna with its flicker frequency indicating signal transmitting and module connection statute. With up to 1W/2W power, it empowers stable links for FPV racing, long-range flight, and professional photography. Seamlessly integrate with Backpack and customize buttons. Enjoy fluently flying with the 1804 cooling fan. Unleash your full potential with the Nano TX V2 Module.

Features:

- The First T-LED antenna with built-in LED display functionality, allowing pilots to effortlessly monitor the signal transmitting and receiving while using the radio transmitter.
- It offers 3 versions: 2.4GHz with a maximum output power of 1W, and 915/868MHz with a maximum output power of 2W. The max packet rate is F1000/200Hz.
- Featuring an integrated TCXO, it minimizes frequency deviation for stable performance, eliminating signal interference.
- With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance.
- Support backpack and custom button functions based on ELRS V3.3, empowering pilots to connect external devices and set buttons according to personal usage habits.

Specifications:

Item: BETAFPV Nano TX V2 Module (2.4GHz)
Weight: 28g
Color: White

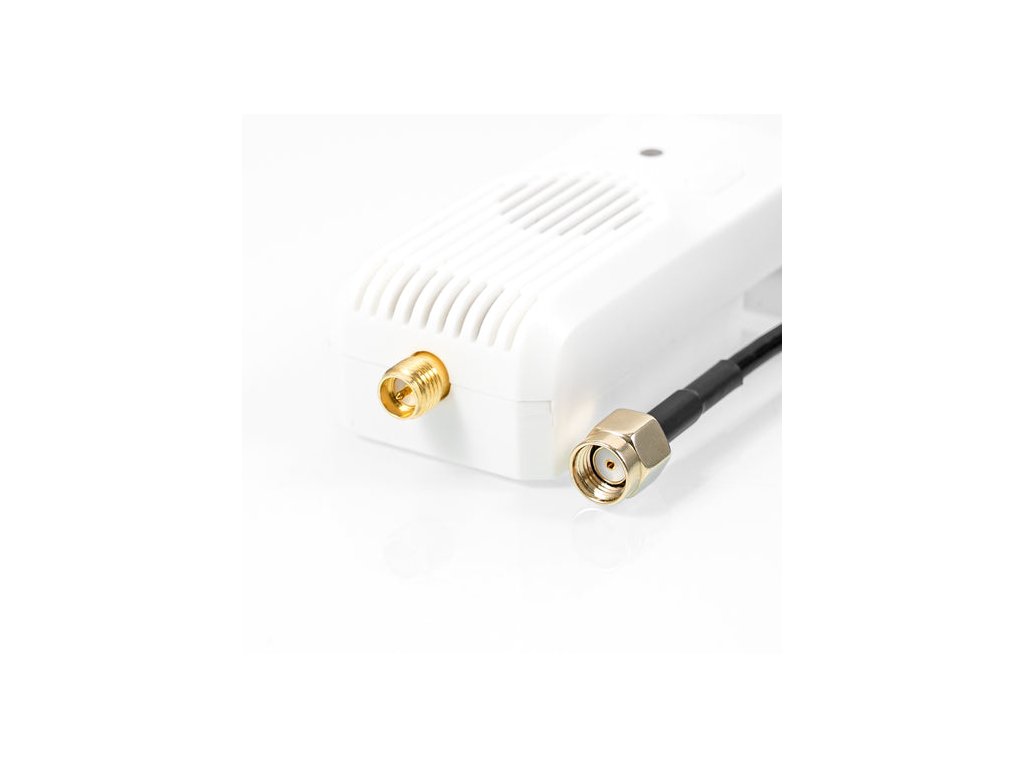

Antenna Connector: RP-SMA
RF Power: 25mW/50mW/100mW/250mW/500mW/1000mW
Packet Rate: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Frequency Band: 2.4GHz
Backpack: Support
Input Voltage: 7V~13V DC
Power Consumption: 8V,1000mA@1000mW, 150Hz, 1:128
USB Port: Type-C
Fan Voltage: 5V
Default Firmware Version: ExpressLRS V3.3.0

Package Includes:

1 * Nano TX V2 Module (2.4GHz)

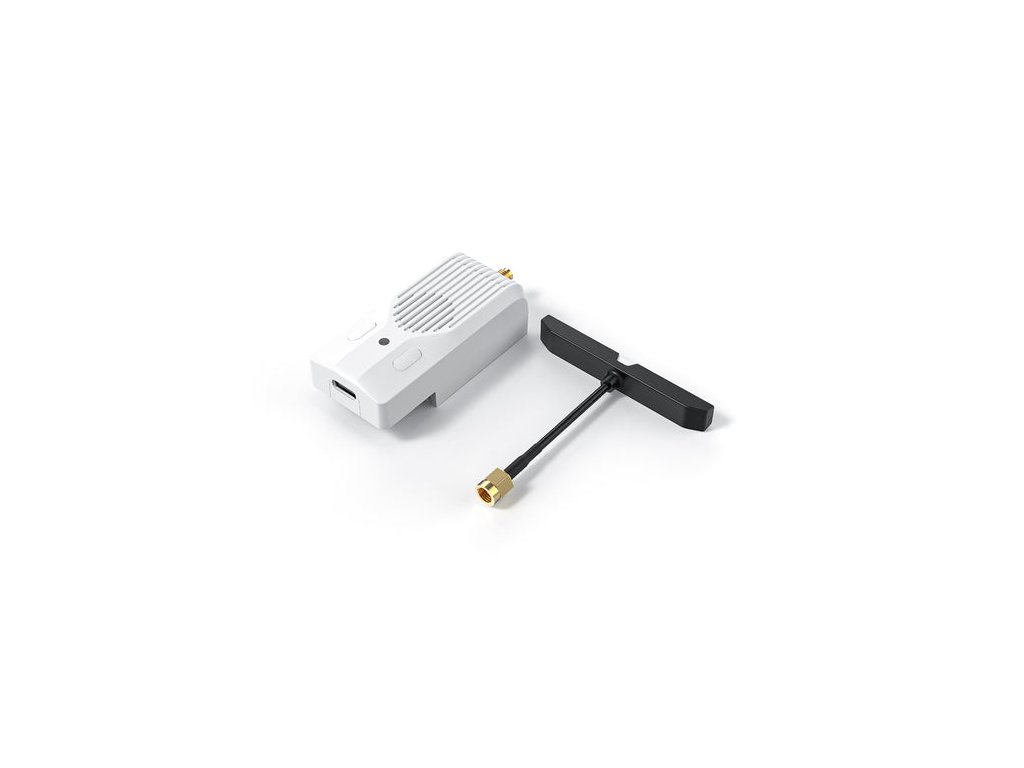

1 * T-LED Antenna
1 * USB to Type-C Data Cable
1 * Type-C Male to XT30U Male Power Cable
1 * Instruction Manual
1 * Service Card
