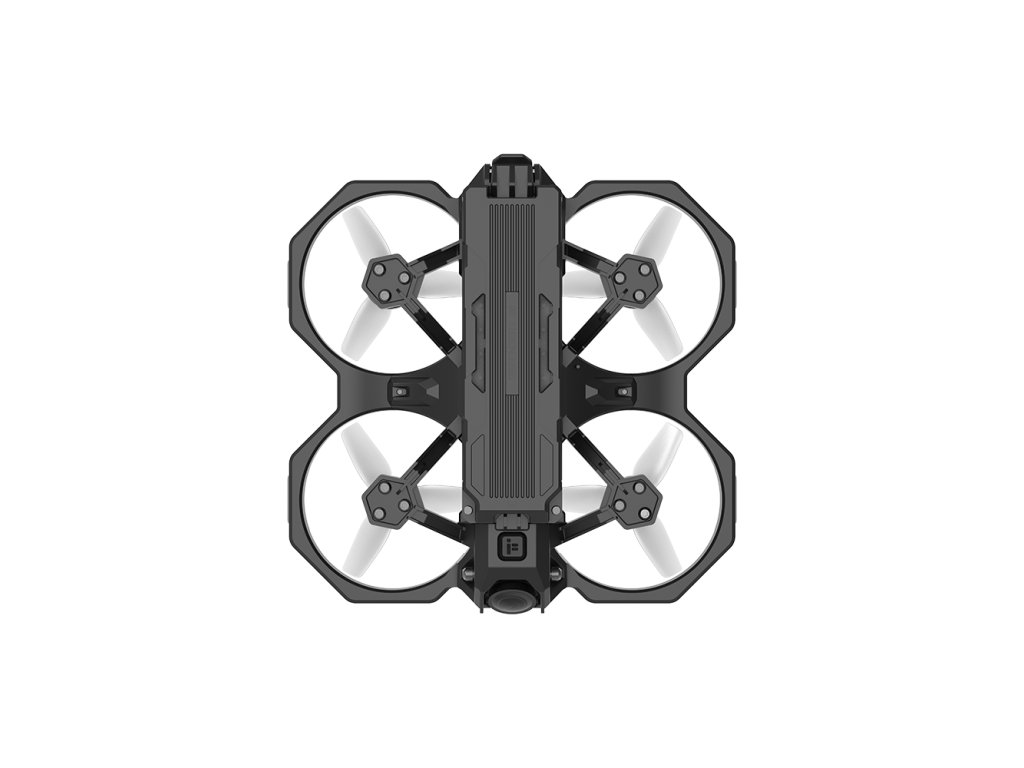

FPV Drone iFlight Defender 20 HD 3S BNF (No receiver)

Opis szczegółowy produktu

Defender 20 HD 3S BNF (No receiver)

Features:

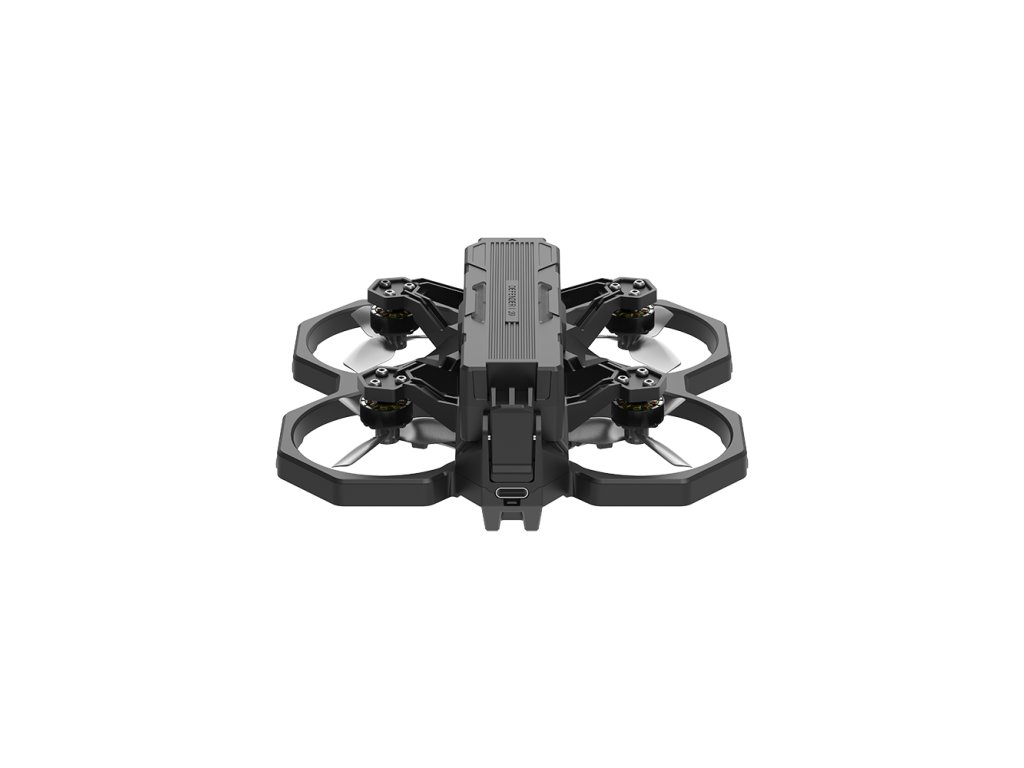

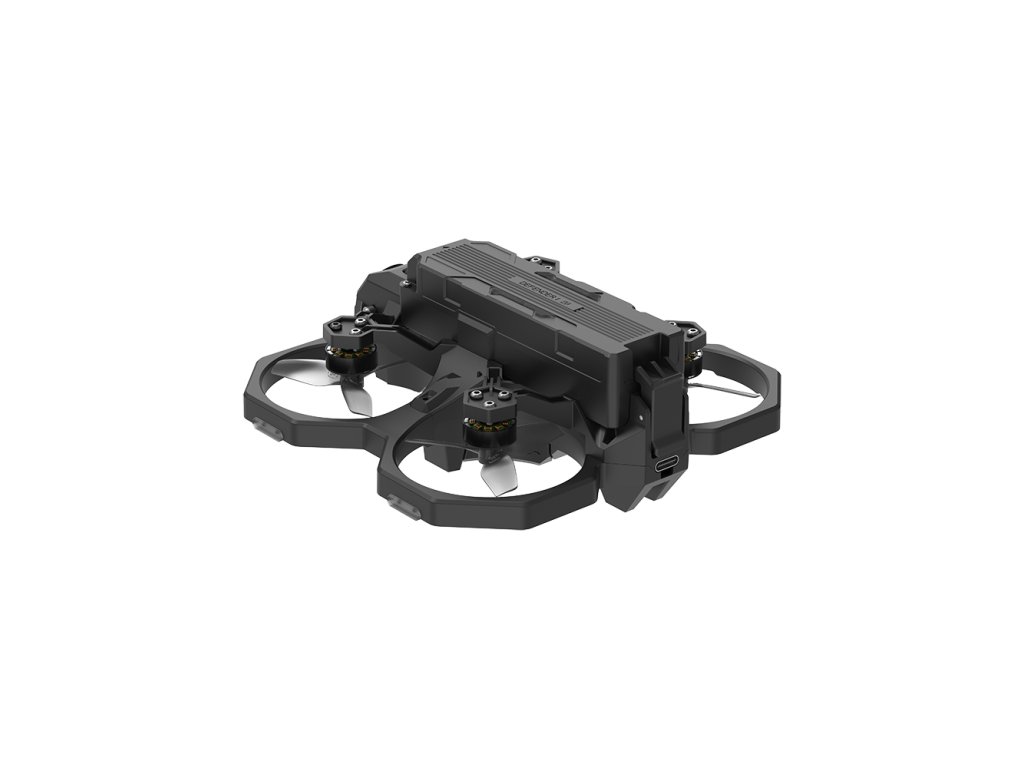

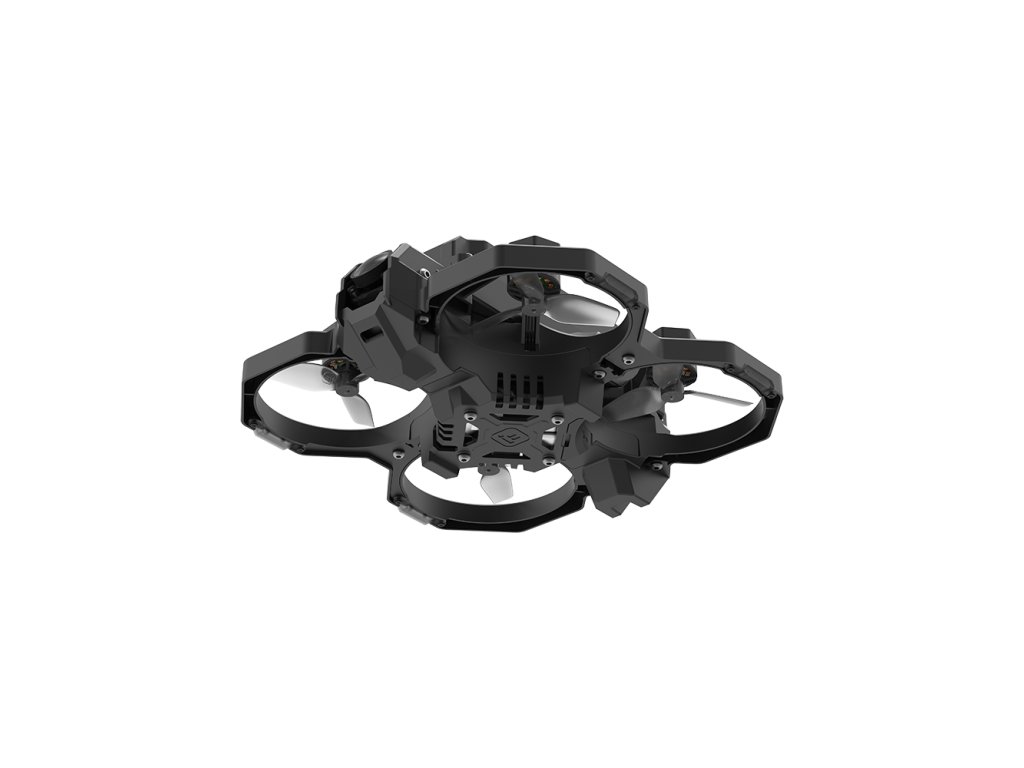

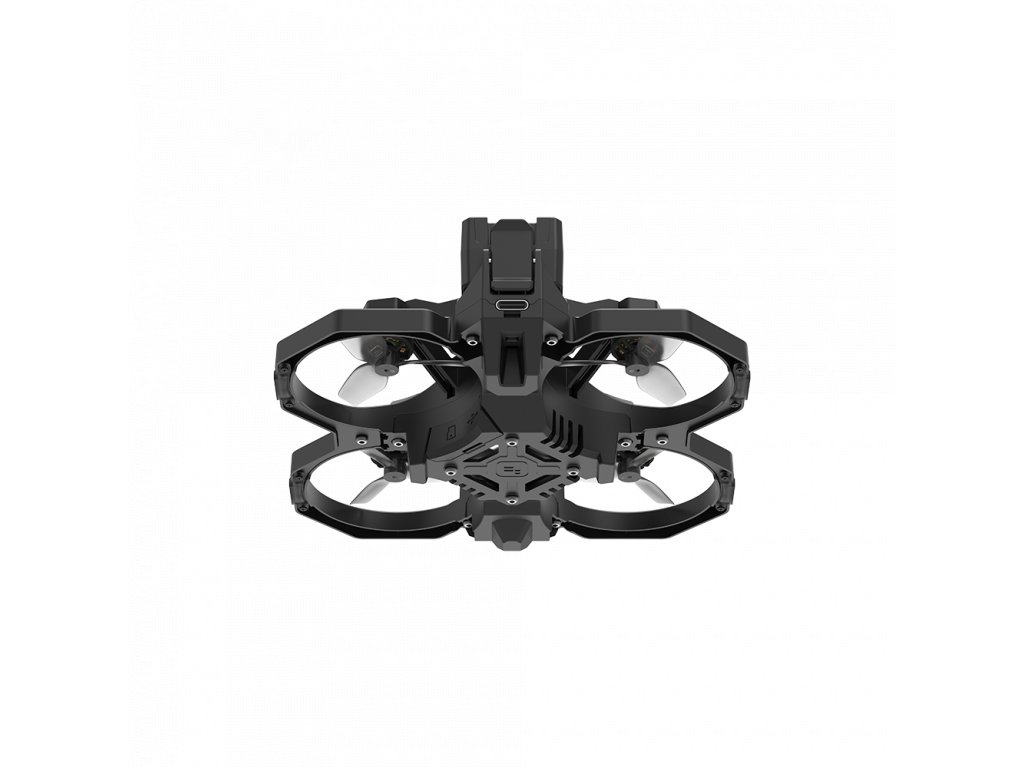

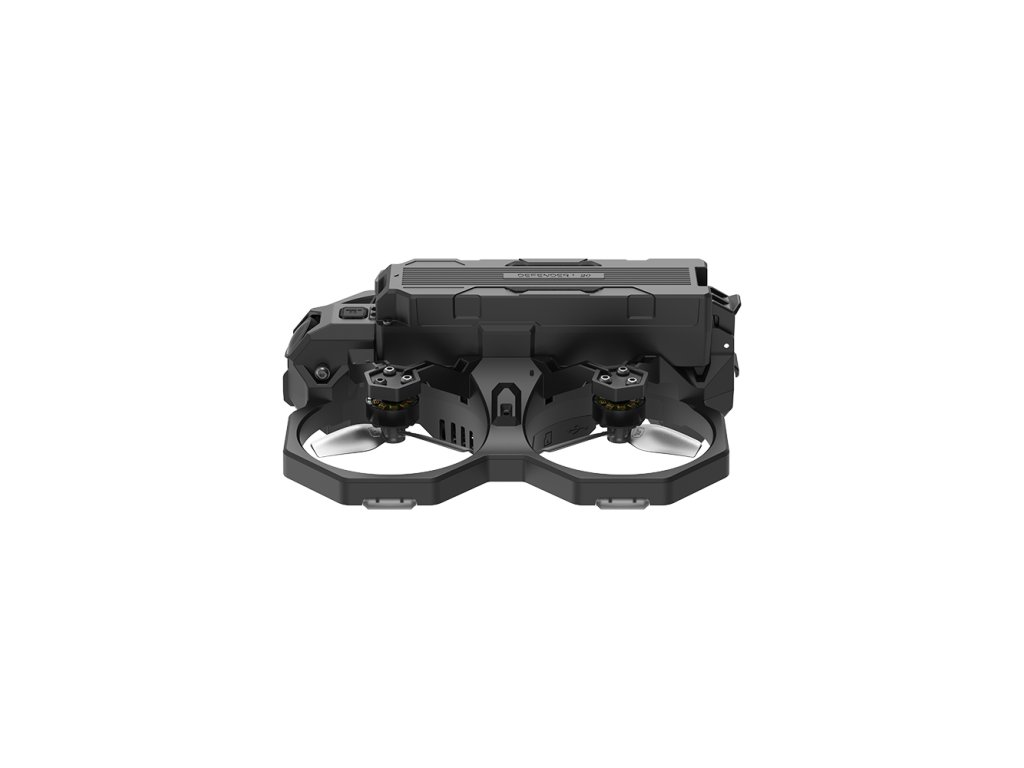

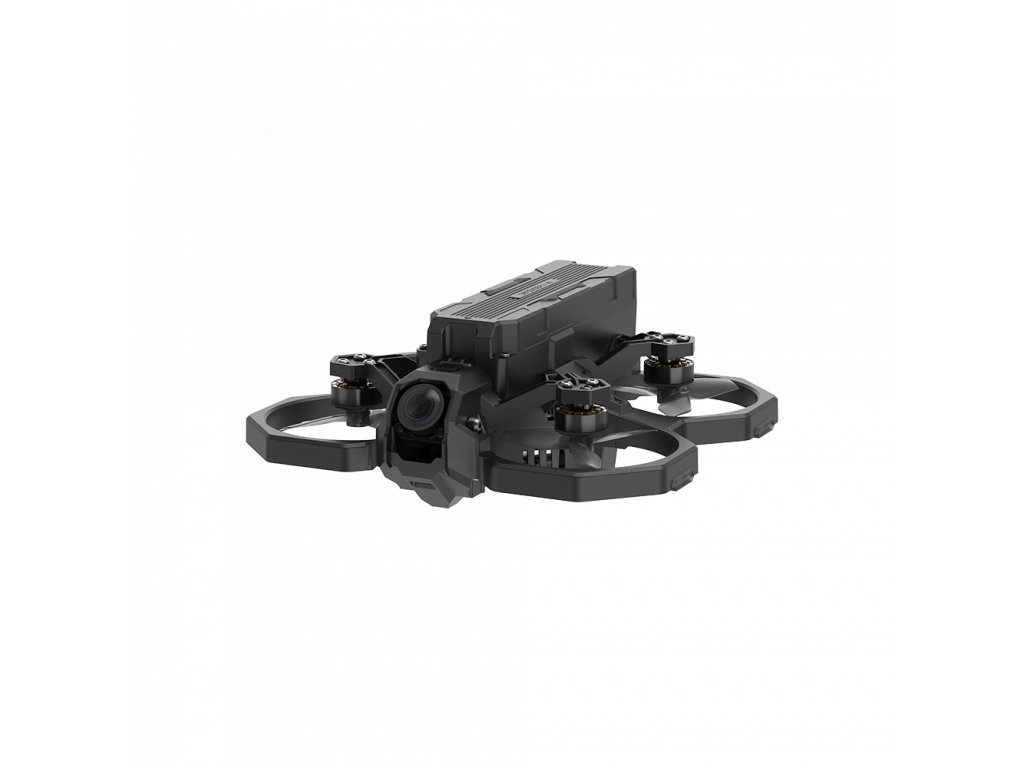

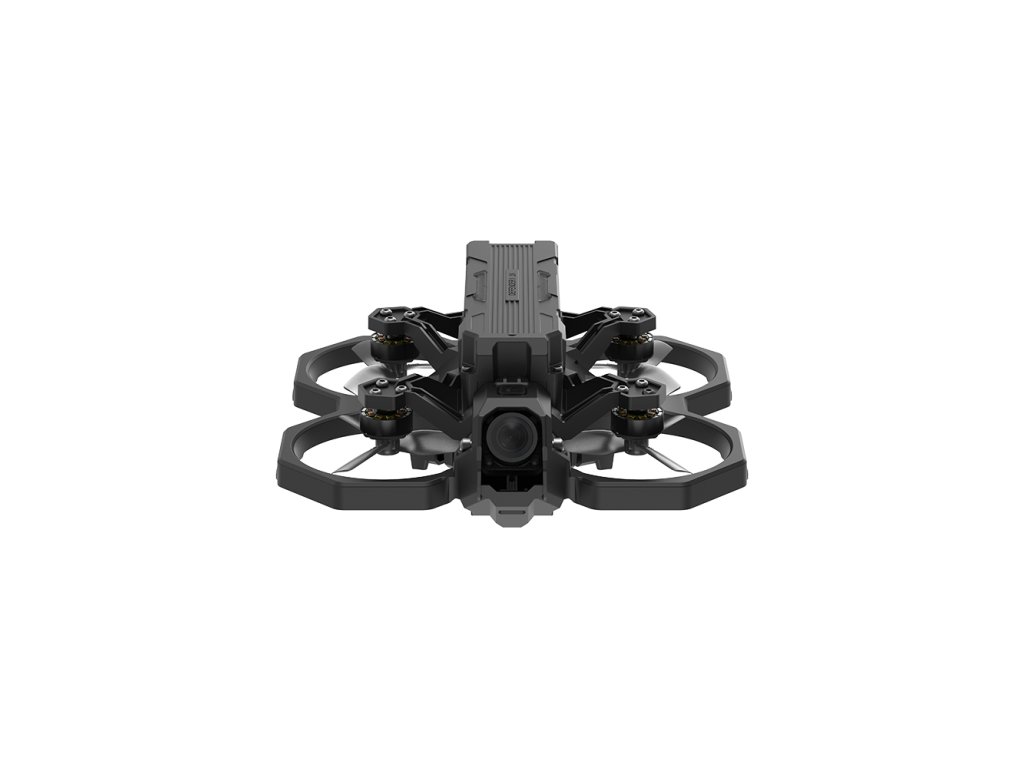

- Palm Size Micro FPV drone. The compact Defender 20 is just as portable as it can be. The whole frame is injection molded for durability and is lightweight, equipped with a naked DJI O3 air unit (Supplied by DJI).

- One-button Functional Power Switch. Better operation through one physical button, not only just power on and off but also inbuilt programmable RGB light colors and modes to visually display the battery power.

- Innovative Quick-Release Battery with Type-C Charger. The Defender 20 comes with a stock 3S 900mAh providing up to 7min flight time. Crash-protected battery shell and innovative quick-release structure for easy replacement. The battery has an inbuilt auto-discharge module, it will discharge itself when not in use, making it safe and worry-free.

- Extremely Convenient User Experience. Dustproof port plugs to isolate the interface from the outside, ensure function properly. The drone can be disassembled with only 6 screws, making it much more convenient for maintenance and repair. Full plug-and-play high-performance AIO, 30% increase in redundancy to cope with extreme operations. Integrated beeper for quick retrieval of accidental loss. All ports and buttons are easy to access.

Specifications:

Product Name: Defender 20 O3 3S HD
Receiver Option: No receiver (for use with DJI FPV Remote Controller 2)
Flight Electronics: Defender 16/20 F411 AIO
Video Transmission: DJI O3 Air Unit (Naked version)
Frame wheelbase: 97mm
Motor: Defender20 1204 motors
Prop: Defender20 2020-3 props
Takeoff Weight incl. 900mAh battery: 178g
Dimensions (L×W×H)：135x136x52mm
Max Speed: 75Km/H (Manual Mode)
Maximum Takeoff Altitude: 2000 m
Max Hover Time: Approx. 7.5 mins(with 3S 900mAh battery)
Max Wind Speed Resistance: Level 3
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: N/A

Video Transmission
Product Name: Naked DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only)；5.725-5.850 GHz(RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Recommended Charger:
- Charger not included in combos, and sold separately.
- To ensure charging speed, it is recommended to use Flight PD 100W Charger or PD 30W Charger, or other USB chargers that support USB PD and QC fast charging protocols.

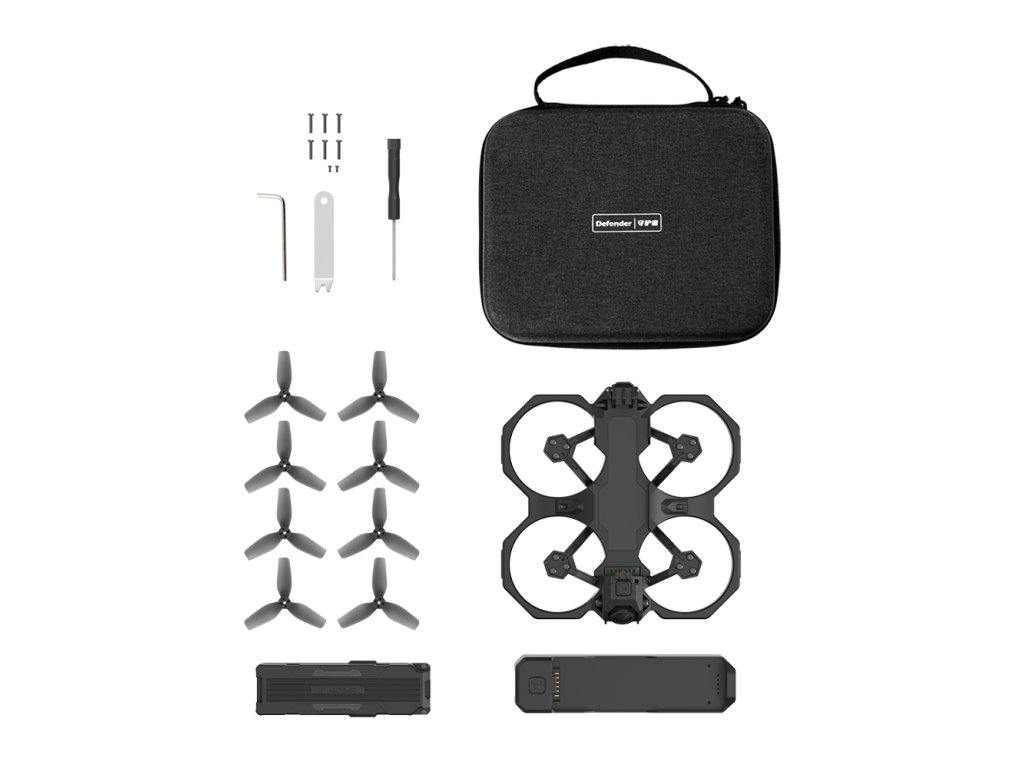

Package Includes:
1 x Defender 20 O3 HD BNF (No Receiver)
1 x Defender 20 3S 900mAh Battery
1 x Charging Adapter
4 x Defender 2020-3 Props (pairs)
1 x Propeller Removal Tool
1 x Defender 20 Carrying Case
