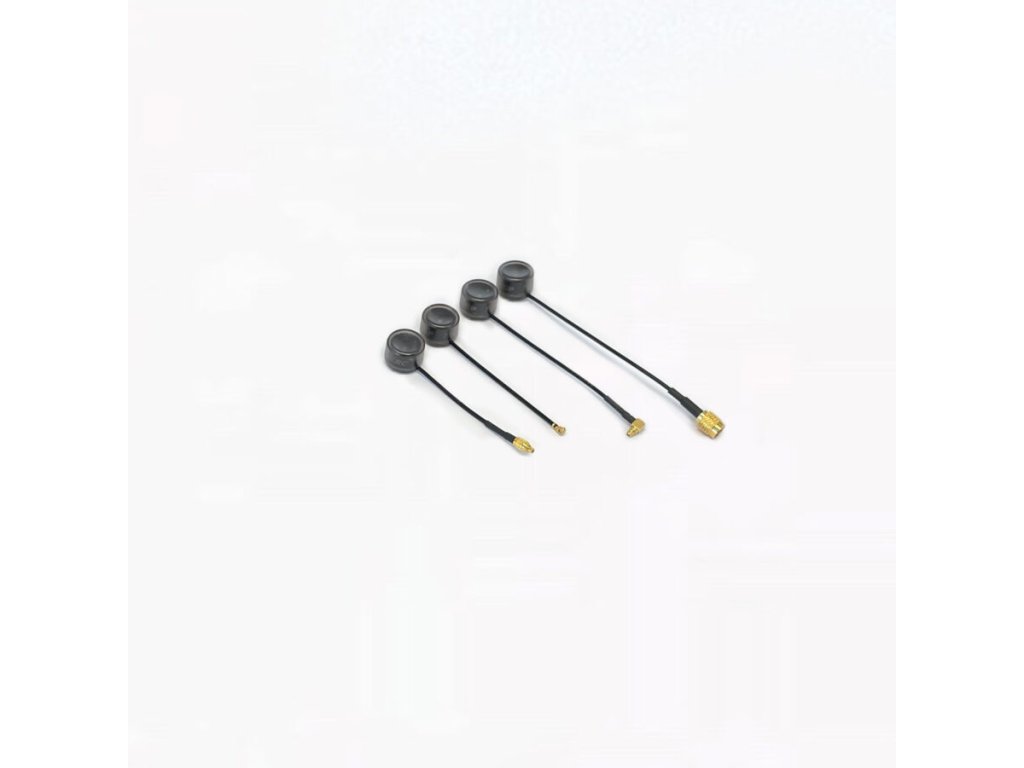

Antenna TrueRC CORE SMA (RHCP, side-feed)
Kod: 0608597255553Opis szczegółowy produktu
CORE SMA (RHCP, side-feed) This is a special version of the CORE 5.8 omnidirectional antenna with side exit cable, great to bury inside an airplane’s wing or fuselage. Features: - Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing - Clear indication of polarization direction - Smooth radiation pattern with even gain in all directions - Excellent axial ratio and efficiency - Side exit cable for novel mounting options - Exclusive knurled True-SMA for easy tightening Specifications: Gain: 1.9dBic Connector&Cable Length: SMA side feed 100mm Polarization: RHCP Cross-Polar Rejection: -10 to -20dB, (3.2%) Bandwidth: 5.5GHz-6.1GHz Radiation Efficiency: 98% SWR: <=1.2:1 Weight: Vary with connector/cable option Dimensions(head): 16.9mm dia. x 13.1mm height. Cable: TrueRC RG178 coax
Parametry dodatkowe
Kategoria: | VTX Antennas |
---|---|
Connector Type: | SMA |
Frequency: | 5.8GHz |
Length: | 100mm |
Polarization: | RHCP |
Pozycja została wyprzedana… |
