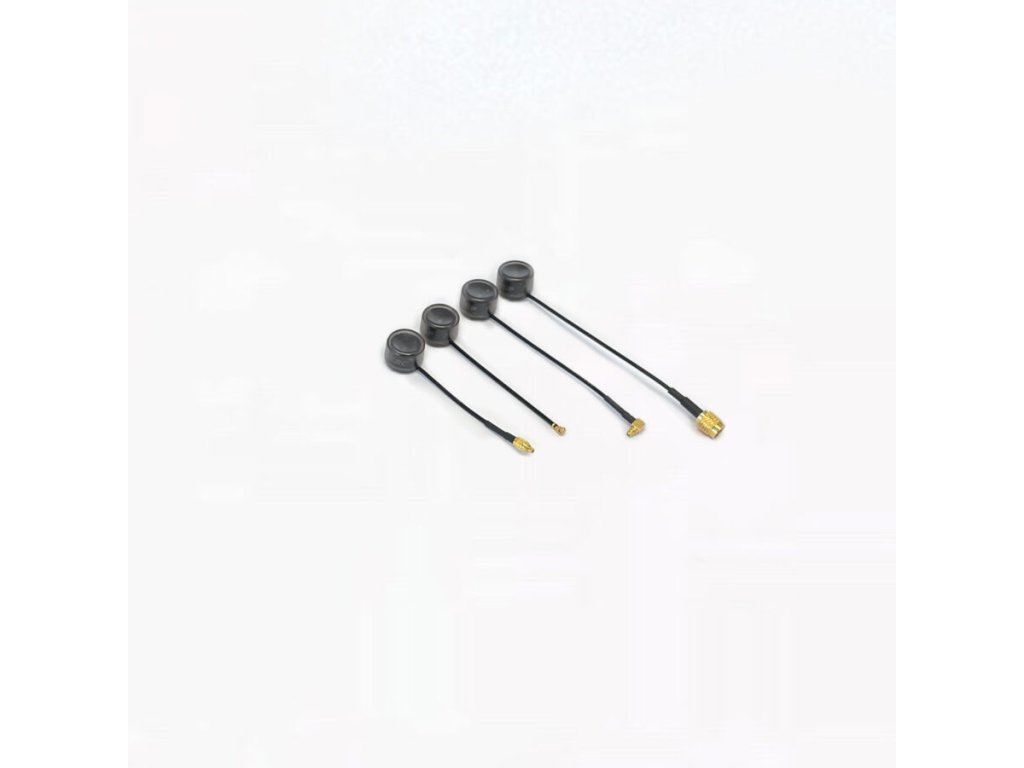

Antenna TrueRC CORE MMCX (RHCP, side feed)

Opis szczegółowy produktu

CORE MMCX (RHCP, side feed)

This is a special version of the CORE 5.8 omnidirectional antenna with side exit cable, great to bury inside an airplane’s wing or fuselage.

Features:
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Side exit cable for novel mounting options
- Exclusive knurled True-SMA for easy tightening

Specifications:
Model: CORE 5.8 SIDE FEED
Gain: 1.9dBic
Connector&Cable Length: MMCX 85mm
Polarization: RHCP
Cross-Polar Rejection: -10 to -20dB, (3.2%)
Bandwidth: 5.5GHz-6.1GHz
Radiation Efficiency: 98%
SWR: <=1.2:1
Weight: Vary with connector/cable option
Dimensions(head): 16.9mm dia. x 13.1mm height.
Cable: TrueRC RG178 coax
