Controller iFlight Commando 8 Radio Transmitter ELRS V2 (868/915MHz)

Opis szczegółowy produktu

Commando 8 Radio Transmitter ELRS V2 (868/915MHz)

The upgraded iFlight Commando 8 is here, equipped with fully integrated iFlight ExpressLRS hardware, a Temperature Compensated Crystal Oscillator, and an upgraded cooling system. These enhancements not only improve the performance and reliability but also provide a more enjoyable and seamless flight experience for drone enthusiasts.

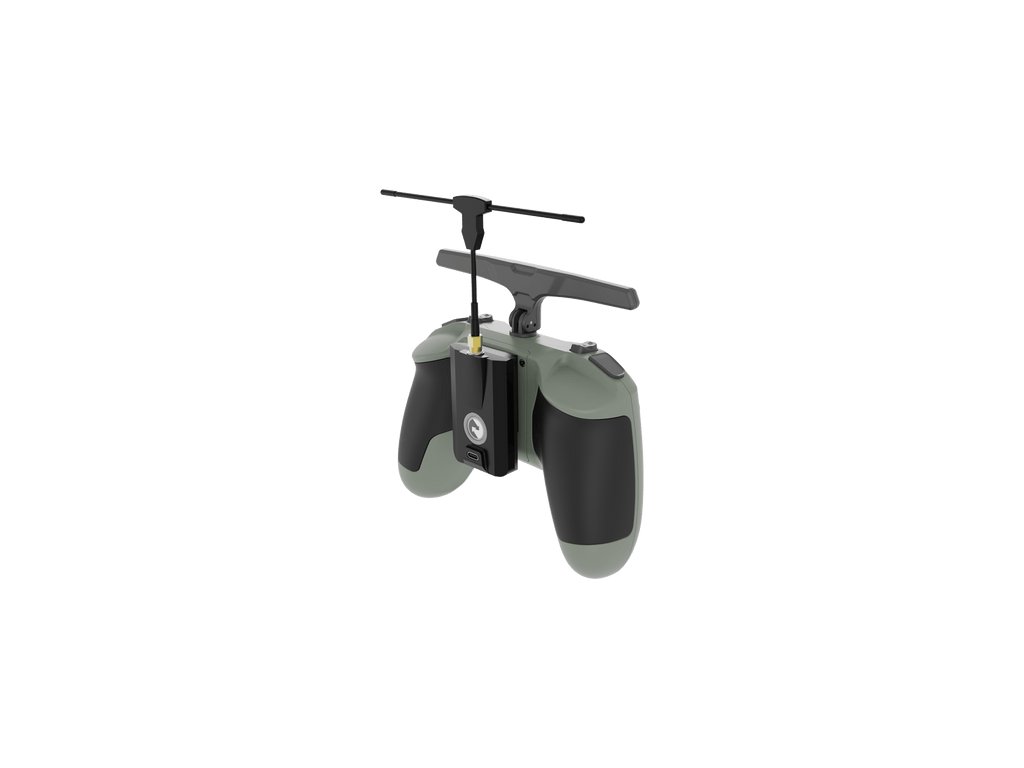

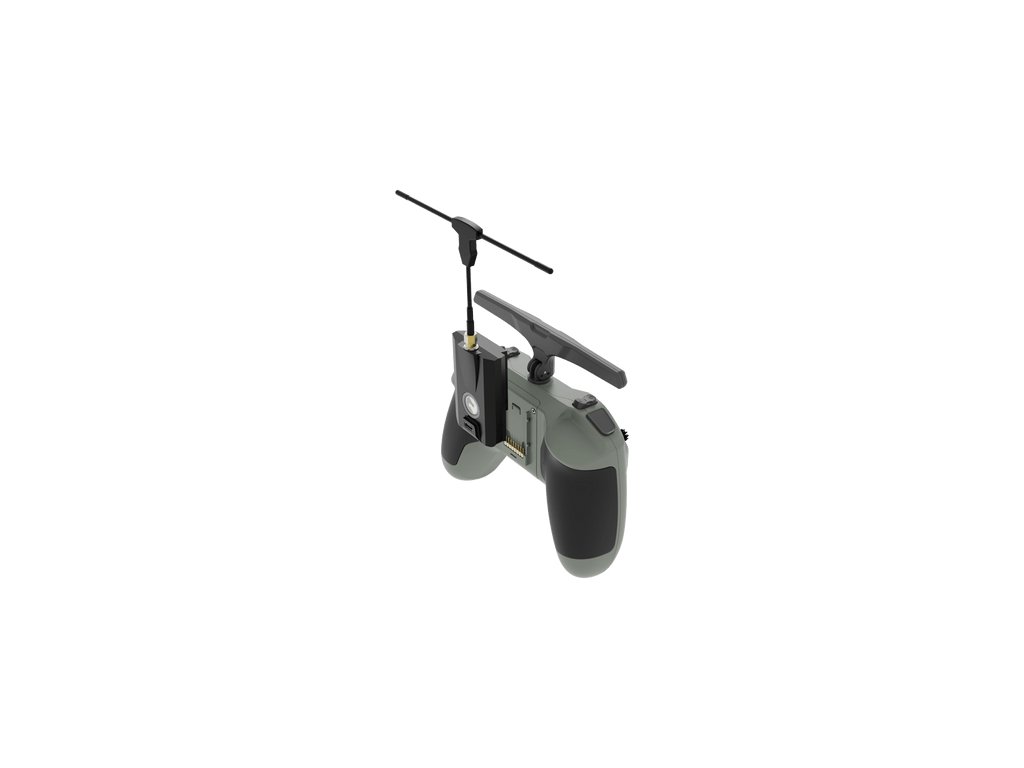

No additional external module is necessary to run ELRS. If you're planning to run another TX module, please check out the optional add-on external module bay.

ExpressLRS TX modules were developed in close cooperation with the ExpressLRS Team with firmware targets already released.

Features
- Internal iFlight ExpressLRS (ELRS) transmitter (additional fan and aluminum sheet for cooling).
- Backpack Function.
- Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high-frequency stability).
- Highest-quality digital hall sensor gimbals for maximum precision.
- High-performance PCB Single Band (900/2400MHz) radio antennas.
- Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries).
- Stock EdgeTX firmware with pre-installed Lua scripts.
- Several Gimbal Stick Ends available (stock 18mm).

Performance and Compatibility
Please use iFlight ELRS receivers coupled with this transmitter for maximum performance.

ELRS Only Option (Single TX)
Single ELRS option includes 1x 915MHz V2 TX module (please select band) pre-installed in the back of the radio Cooling fan is inside the flat back cover.

Antenna Options
Single-Band (868/915MHz)

Button Functionality:
2x 5-axis menu buttons for full OpenTX or EdgeTX control
2x 2-position switches (can be used for arming; not momentary)
2x 3-position switches

RF Power:
868/915MHz system: SX1276
ExpressLRS 868/915MHz // Max Output 1000mW
Radio Channels: 8
Input: Mini High Precision Digital Hall Gimbals with NMB bearings
Gimbal Stick Ends: Stock length 18mm
Charging: Type-C 20W Quick Charge
Battery: Built-in 4000mAh 1S2P 18650 Battery
Charging Connector: Type-C
Weight: 310g

Packing List
1 x Commando8 Radio Transmitter ELRS V2
2 x 18650 Li-Ion batteries included (pre-installed)
