Frame iFlight Chimera9 FPV LR

Opis szczegółowy produktu

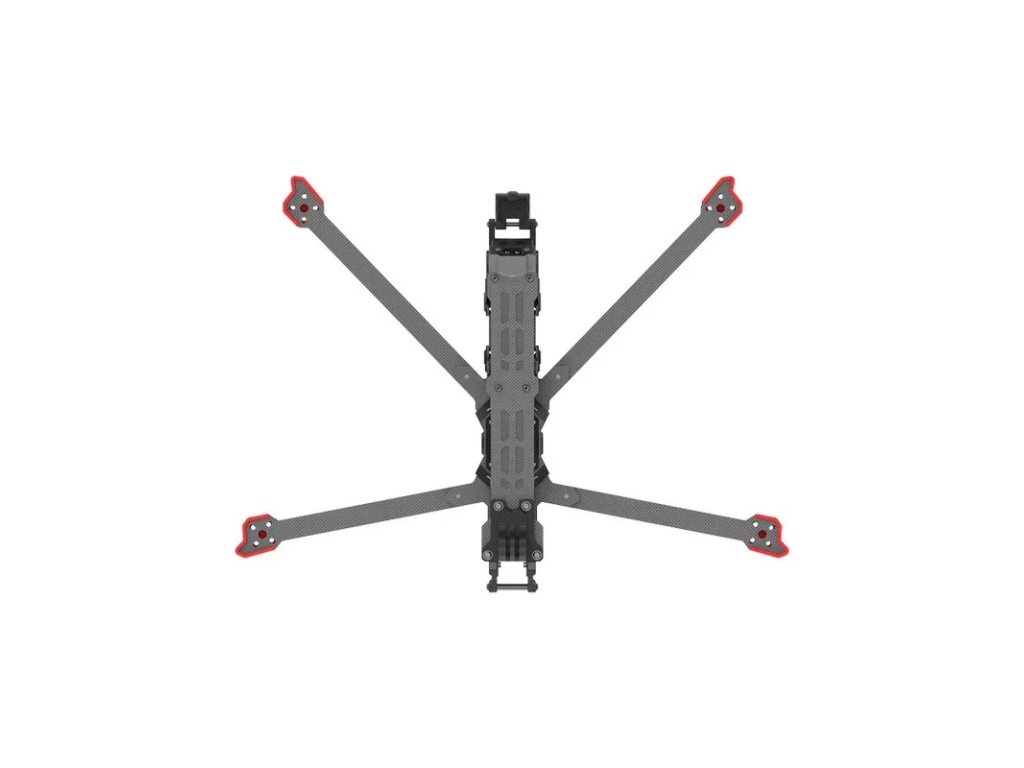

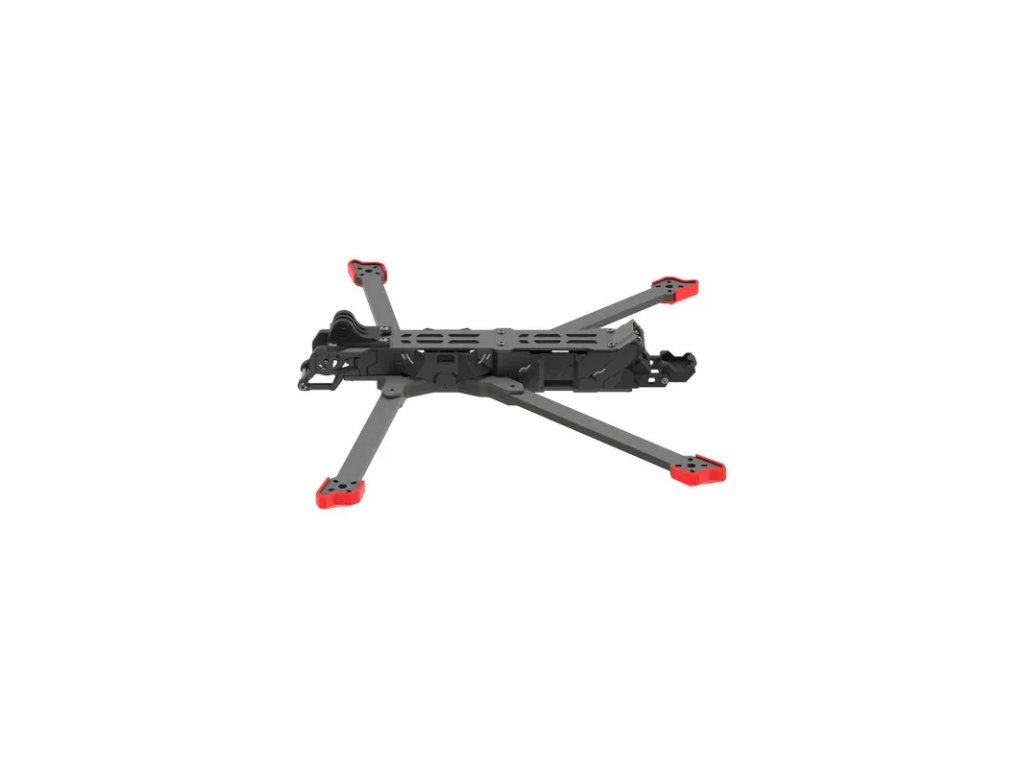

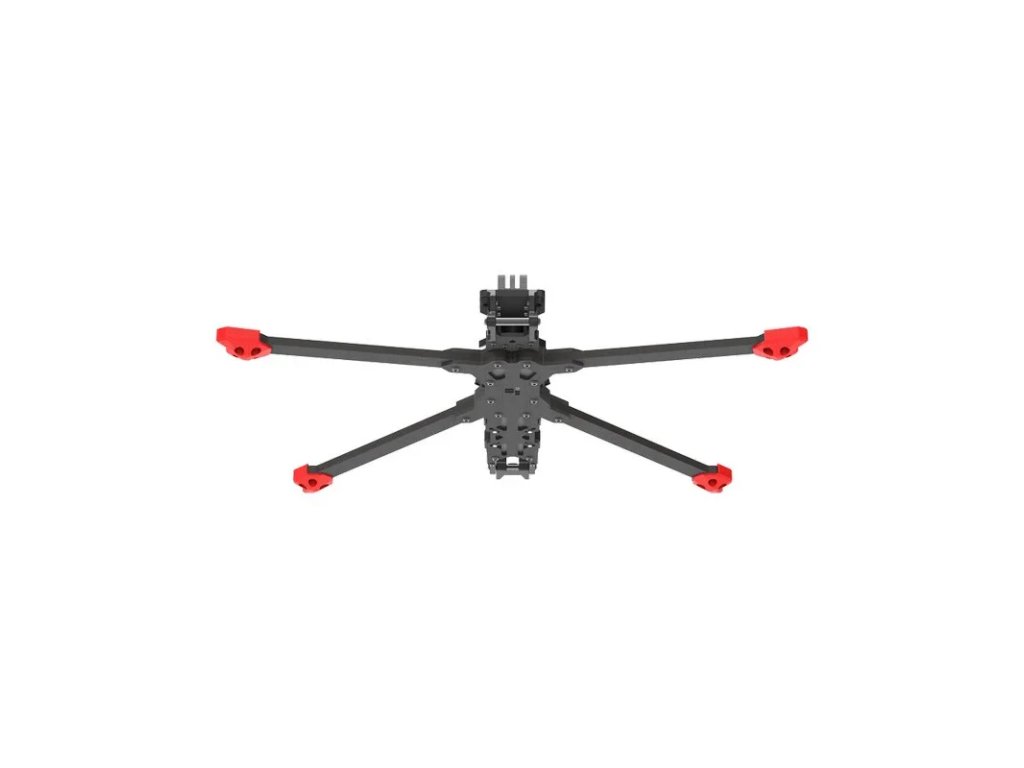

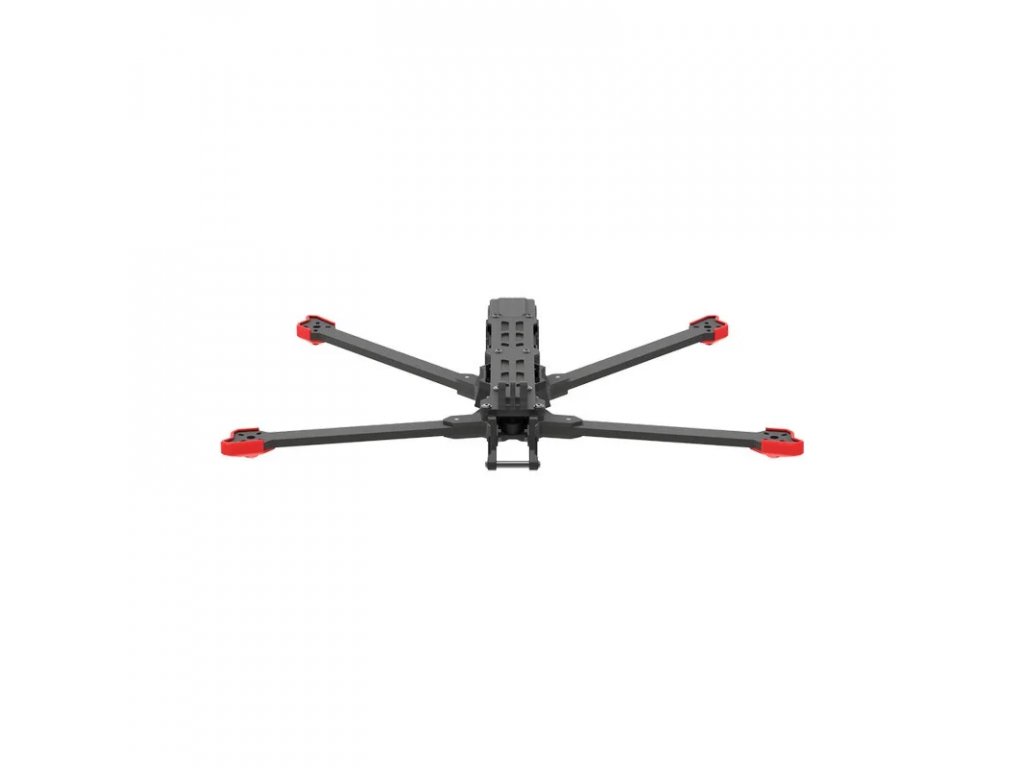

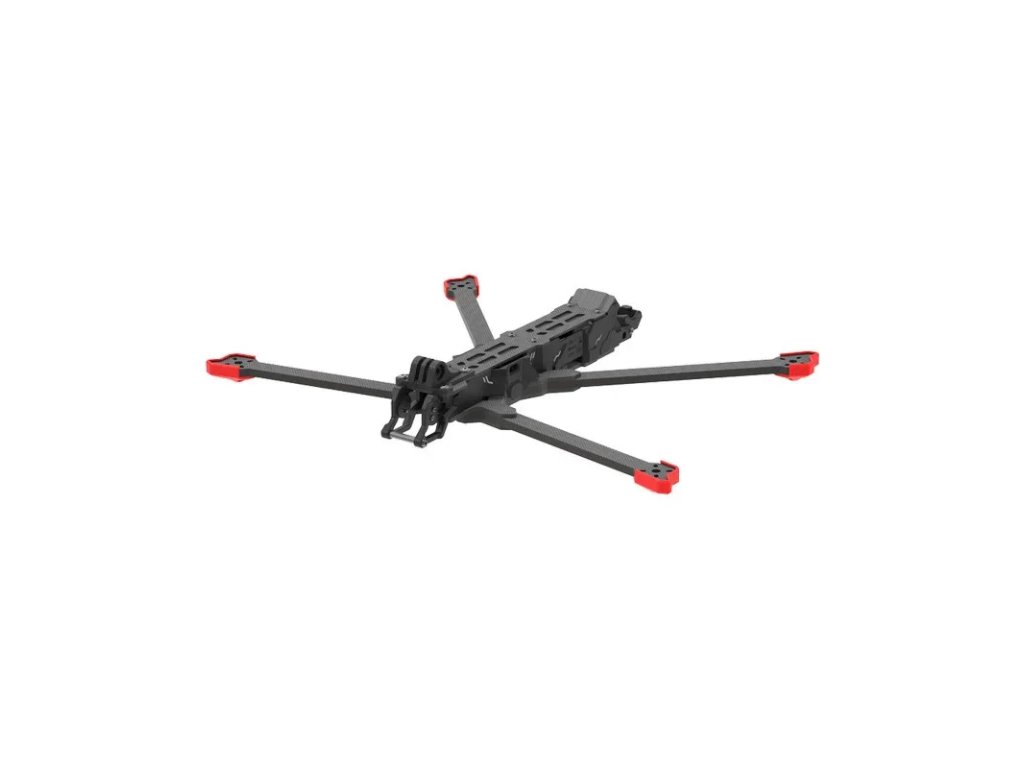

Chimera9 FPV LR Frame Kit

The iFlight Chimera9 is a 9" long range frame designed to give maximum stability and flight time during your cinematic shoots. Made from super-stiff carbon for minimum resonance and recommended 2809 motors for maximum 9" prop control.

Features:
- Specially Designed Heatsink for DJI O3 Air Unit
- New Camera Mount for a wider camera FOV with TPU damping inserts
- New Side Panels to perfectly fit the O3 Air Unit in the back
- New Dual 5.8G VTX Antenna TPU mount
- Latest Chimera9 Frame Upgrades for Maximum Protection

Specifications:

Product Name: Chimera9 Frame Kit
Geometry: DeadCat(DC)
Wheelbase: 405mm
Frame Dimension: L360*W235*H34 mm
Frame Body Dimension: 34mm
Arm Thickness: 6mm
Bottom Plate Thickness: 3mm
Top Plate Thickness: 2mm
Upper Plate Thickness: 3mm
Motor Mounting: 16x16mm / 19*19mm
VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
Weight: 385.5grams

Package Includes:
1 x Chimera9 Frame Kit
1x O3 Air Unit Heatsink
1x O3 MIPI Digital Video Cable 215mm
2x O3 IPEX to RP-SMA Antenna Pigtails
1 x O3 Dual Antenna TPU
1 x Screw Bag
1 x TPU Set
2 x Anti-Slip Battery Pad
2 x Battery Strap (20*300mm)
