FPV Drone iFlight Chimera CX10 ECO Analog 6S (PNP)

Opis szczegółowy produktu

Chimera CX10 ECO Analog 6S (PNP)

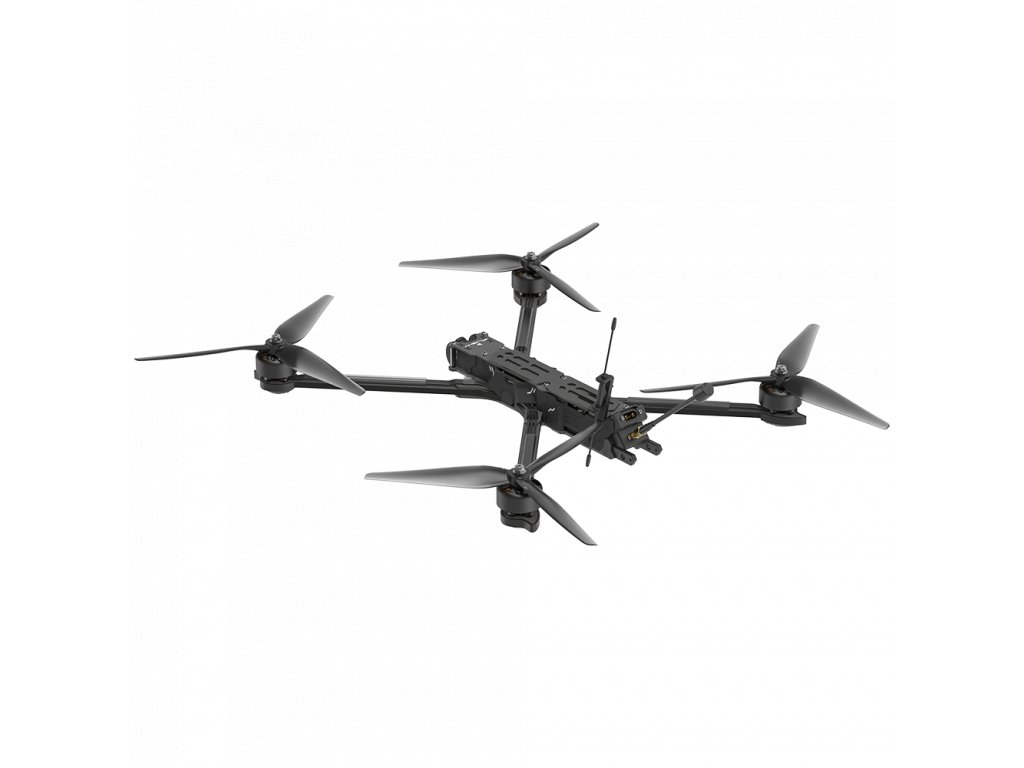

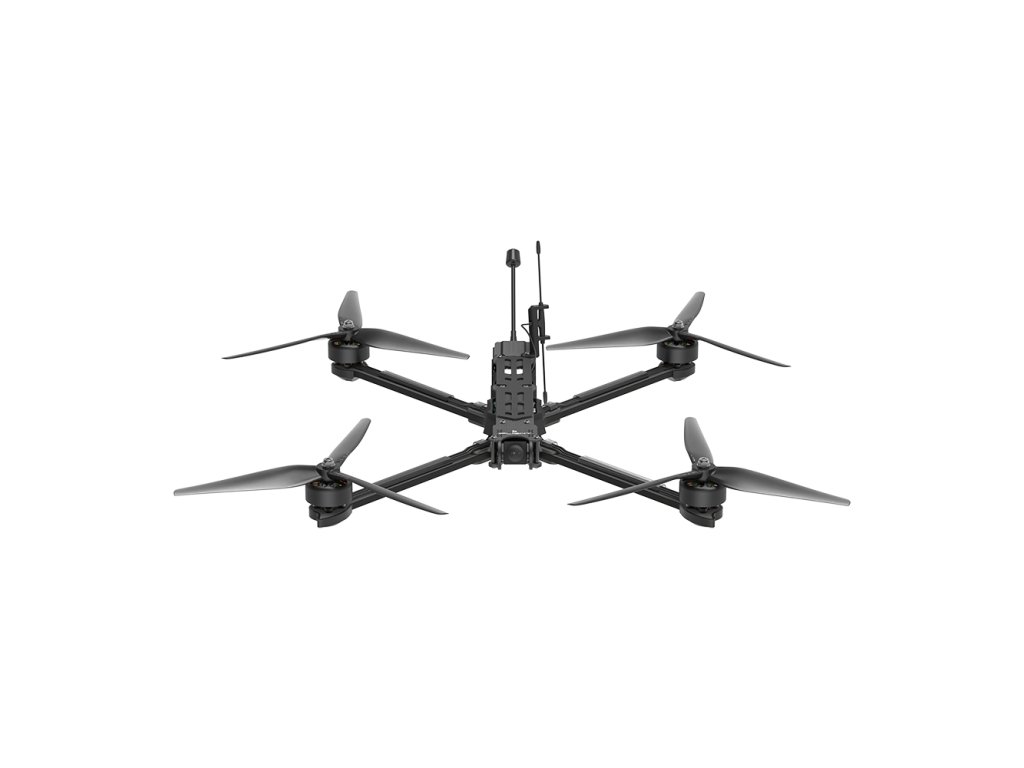

The Chimera CX10 ECO Analog is a 10" quadcopter that comes with the BLITZ Whoop 1.6W VTX Video Transmission System, and HQ 10" 3-Blade  propellers. The CX10 has been pre-tuned. Loaded with lots of power, it comes with the XING-E 3110motors, BLITZ ATF435 Flight Controller, and the BLITZ E55S 4-IN-1 ESC.

Features:

- Full 3K Carbon Fiber airframe
- Big size XING-E 3110 with extreme lift and flight performance
- Latest Lightweight Side Panels for Maximum Protection

Not included in the BNF Lite version:
- Heatsink for DJI O3 Air Unit
- Dual 5.8G VTX Antenna TPU mount
- Anti-Spark Filter
- TPU Set (GPS mount/ Buzzer mount/GoPro mount, etc.)
- LED Board with LED Strips

Specifications:

Product Name: Chimera CX10 ECO Analog
Camera:  RaceCam R1 Mini 1200TVL 2.5mm
Receiver Option: Without RX (PNP)
FC: BLITZ ATF435 Flight Controller
ESC: BLITZ E55S 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame: 452mm wheelbase
Motor: XING-E 3314 900KV motors
Prop: 10X4.5X3 propellers
Weight: 826g (Without Battery)
Dimensions (L×W×H)：338x299x34mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 6000 m
Max Hover Time: Approx. 40 mins (with 6S2P 8000mAh no load)
Payload: 1.5-2.5kg
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (Optional)

Video Transmission
Product Name: BLITZ Whoop 5.8G 1.6W VTX
Output Power: 0-25-400-800-1600mw
Input Volts: 12V
Working Current: ≤pit @40mA，≤25mw@150mA，≤400mw@330mA，≤800mw@460mA，≤1600mw@660mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: IPEX
Mounting Hole: 25*25/φ1.6mm
Weight: 16.5g (Antenna not included)
Dimensions: 37*31.5*10mm

Package Includes:
1 x Chimera CX10 ECO 6S Analog (PNP)
1 x Battery pad
1 x Antenna
2 x Propellers(Pair)
2 x Battery strap
