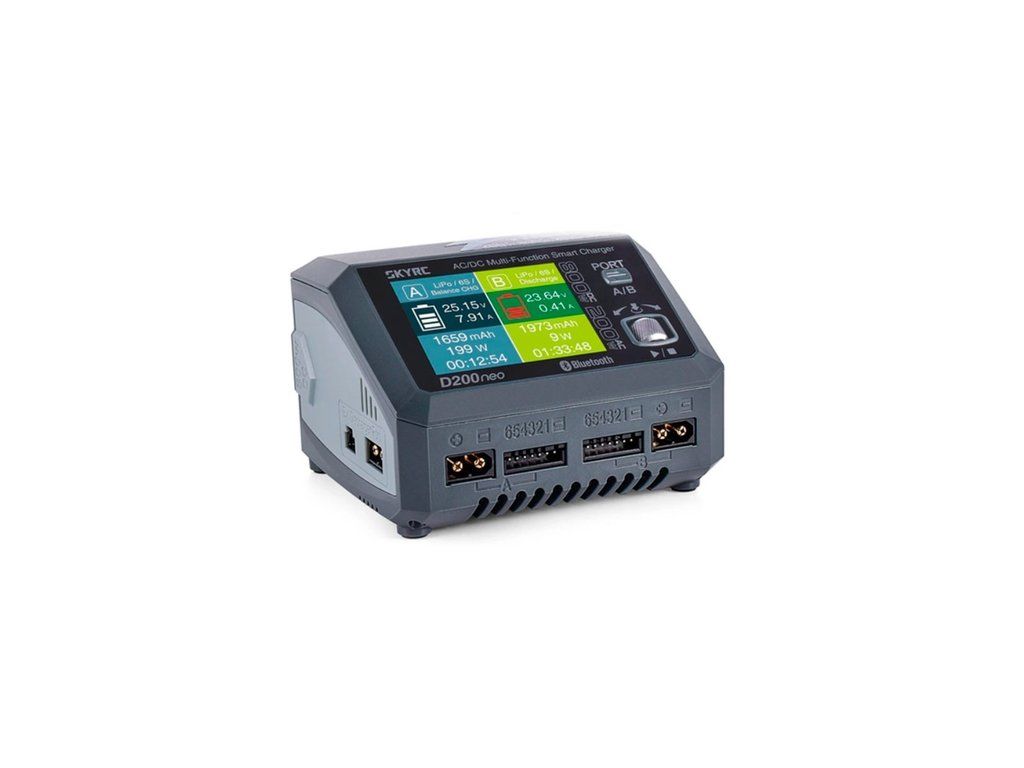

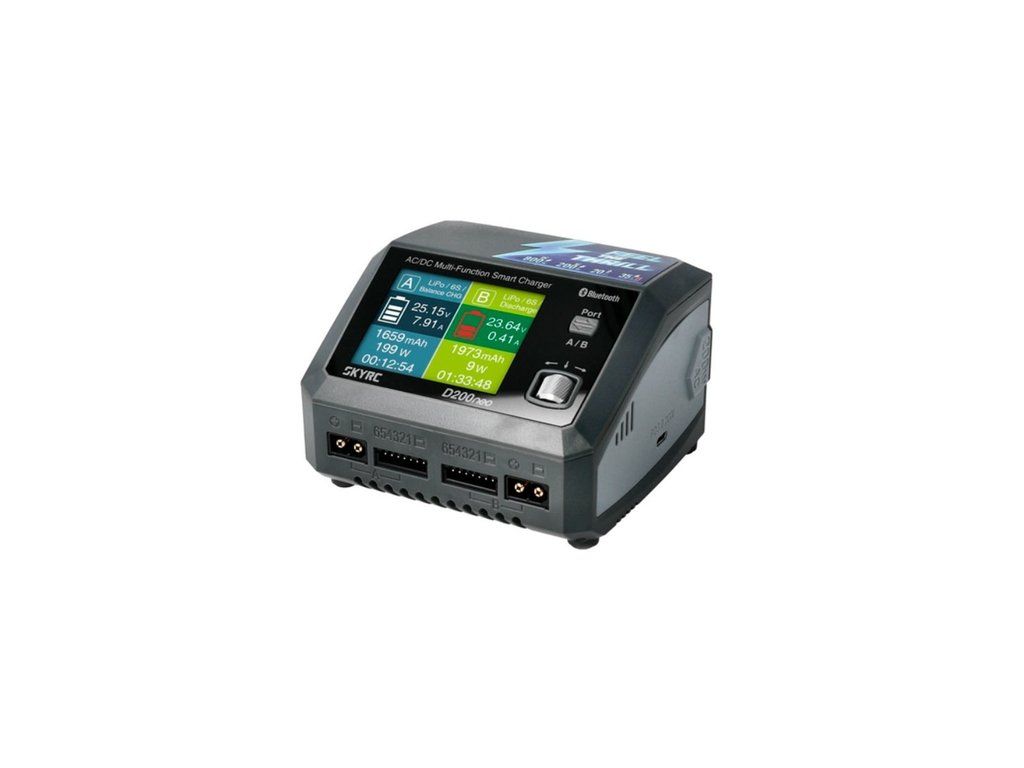

Charger SkyRC D200neo AC 2*100W DC 2*400W

Opis szczegółowy produktu

The SkyRC D200neo Charger is a high-performance charging solution designed for RC hobbyists, featuring advanced technology and a dual-port system for efficient charging. Below is a detailed overview of its specifications and features:

Key Features:

• Processor:

  • Powered by an ARM Cortex-M4 microcontroller, which includes a built-in DSP instruction for enhanced processing.
  • Floating Point Unit (FPU) accelerates single precision floating point math operations.

• Proprietary HyperBoost Technology:

  • 200 MHz ARM microcontroller improves ADC resolution to 16-bit through oversampling technology.
  • Efficient PID mechanism fine-tunes current to enhance response speed and accuracy.

• Dual Input Modes:

  • AC Mode: Up to 200W charging power per port.
  • DC Mode: Up to 800W charging power per port.
  • Simultaneous Charging: Charge two battery packs independently at the same time, with power intelligently distributed.

• Parallel Charging:

  • Fast charge current of up to 35A, allowing for quick charging while users engage in other activities.

• Smart Power Distribution:

  • Dynamically adjusts power distribution between the two ports, ensuring efficient use of total power.

Specifications:

• Case Material: Plastic
• Dimensions: 116 mm x 110 mm x 79 mm
• Weight: 602 g

Display:

• Type: TN Display
• Size: 2.8 inches
• Active Area: 43.20 mm x 57.60 mm
• Resolution: 240 x 320 pixels
• Color Depth: 262K colors

Power Specifications:

• DC Input Voltage: 10-30V
• AC Input Voltage: 100-240V
• Charger Power:
  • AC: 100W max per port (200W total)
  • DC: 400W max per port (800W total)
• Discharge Power:
  • Main Port: 10W
  • Balance Port: 37W max
  • External Discharge: 350W max
• USB-C Power Delivery:
  • QC3.0: 5V⎓3A, 9V⎓2A, 12V⎓1.5A (18W)
  • PD: 5V⎓3A, 9V⎓2.2A, 12V⎓1.67A (20W)

Supported Battery Types:

• LiPo/LiHV/LiFe/LiIon: 1-6 cells
• NiMH/NiCd: 4-15 cells
• Lead Acid (Pb): 3S/6S/12S

Charge and Discharge Specifications:

• Charge Current:
  • 0.1 - 20.0A for all types
  • Parallel: 20.0 - 35.0A
• Discharge Current:
  • 0.1 - 2.0A for all types
  • External Discharge: 0.1 - 40.0A
• Balance Current:
  • 1.5A max for LiPo/LiFe/LiIon/LiHV

Operational Modes:

• LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel
• NiMH/NiCd: Charge, Cycle, Re-peak, Discharge
• Pb: Normal, AGM Charge, Cold Charge, Discharge
