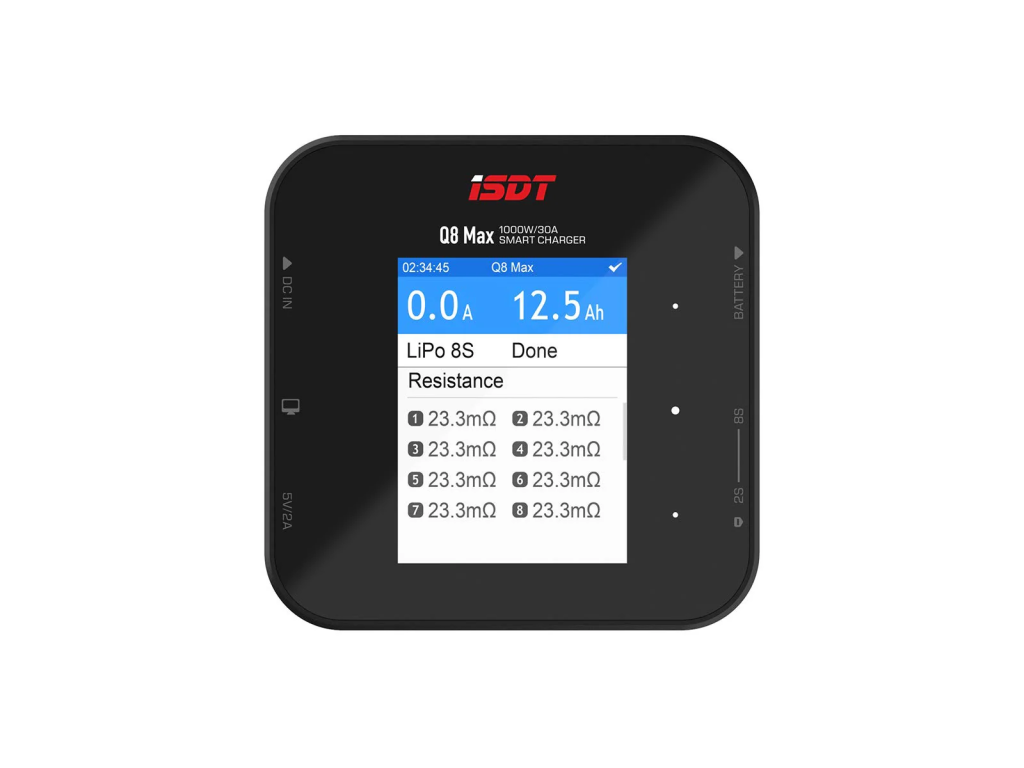

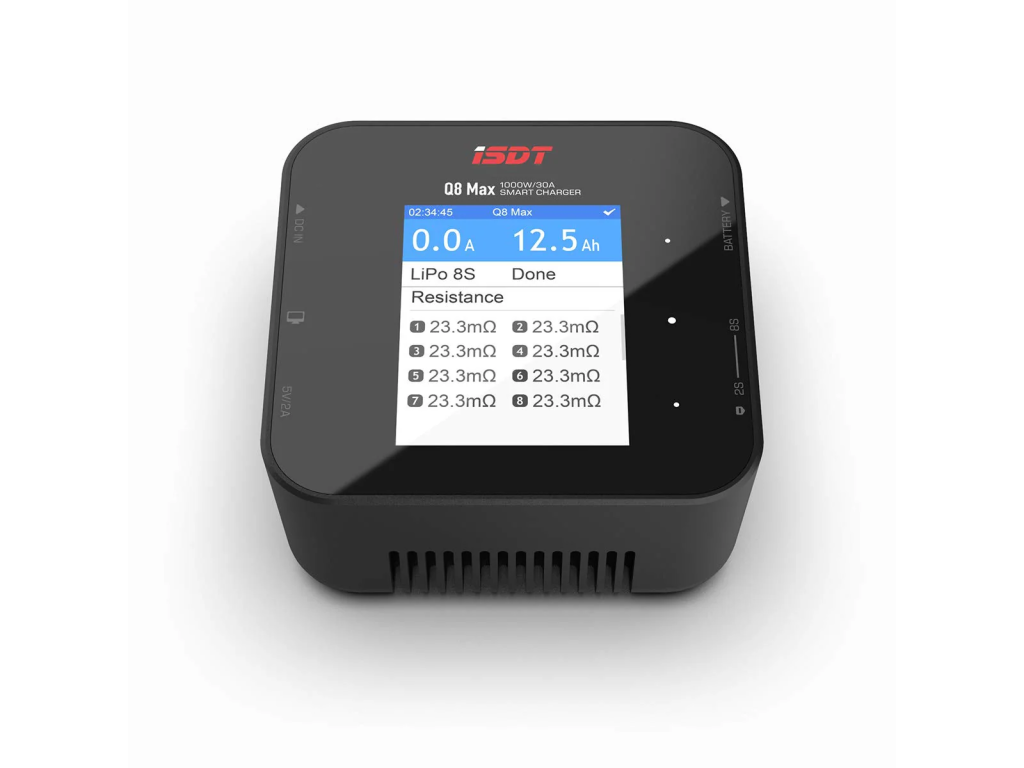

Charger ISDT Q8 MAX 1000W 30A 1-34V High Power Battery

Opis szczegółowy produktu

The ISDT Q8 Max charger offers a substantial power boost and advanced features for handling a wide variety of batteries, making it an ideal tool for professionals and enthusiasts alike. Here's an overview of its main characteristics:

Key Features:

1. High Power Output:

   • Delivers up to 1000W charging power, with a maximum charging current of 33A, supporting 2-8S and 1-16S batteries. This high power makes it suitable for rapid and efficient charging of larger batteries.

2. Dark Mode (scOS 2.0):

   • Dark mode feature introduced in scOS 2.0 for low-light environments, reducing eye strain by adjusting the display to a darker tone while maintaining the user-friendly interface.

3. USB Output for Mobile Charging:

   • Equipped with a 5V/2A USB output port, allowing you to charge mobile devices directly from the charger, adding an extra level of convenience.

4. 2.8-inch IPS Screen:

   • IPS display with auto-brightness adjustment and a 178° viewing angle, ensuring a clear and distinct display even in challenging environments such as bright sunlight or awkward angles.

5. Advanced Cooling System:

   • Features an active cross-flow cooling air duct design with a ball bearing cooling fan, aluminum alloy fins, and a silicon heat conduction pad. This creates a highly efficient heat dissipation system, keeping the charger cool during high-power operation.

Specifications:

• Input voltage: DC 10-34V

• Maximum input current: 33A

• Output voltage: 1-34V

• Charging current: 0.2A - 30.0A

• Discharge current: 0.2A - 3.0A

• Maximum load capacity: 1000W

• Max. discharge capacity: 30W

• Compensation current: 1.5A / cell

• Balance cells: 2-8S

• Battery types supported:

  • LiFe, Lilon, LiPo (1-8S), LiHV (1-7S)
  • NiMH, Cd (1-16S)
  • Pb (1-12S)

• Display: 2.8-inch IPS LCD, 320 x 240 resolution

• Operating temperature: 0-40°C

• Storage temperature: -20 - 60°C

• Dimensions: 95 x 95 x 45 mm

• Weight: 288g

Package Includes:

• 1 x ISDT Q8 Max balance charger
• 1 x Manual
