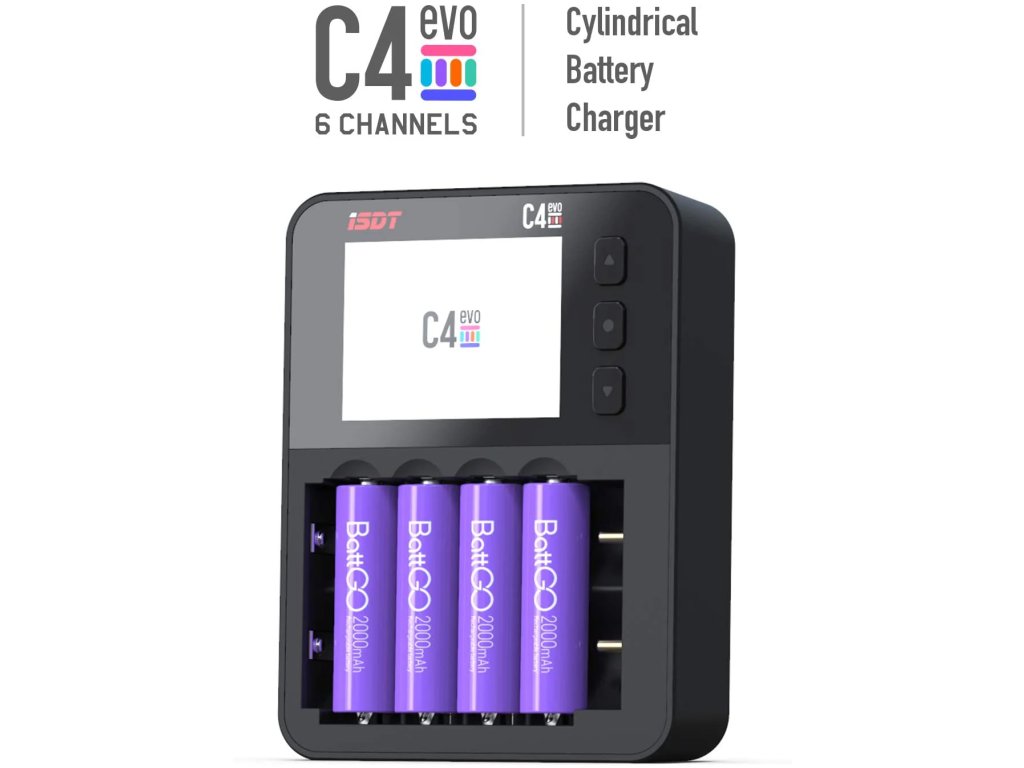

Charger ISDT C4 EVO 36W 6-Channel Smart

Opis szczegółowy produktu

The C4 EVO Smart Battery Charger is a highly versatile and advanced charger that offers six independent charging slots with a variety of functions, supporting multiple battery types. Here's a detailed breakdown of its features and specifications:

Key Features:

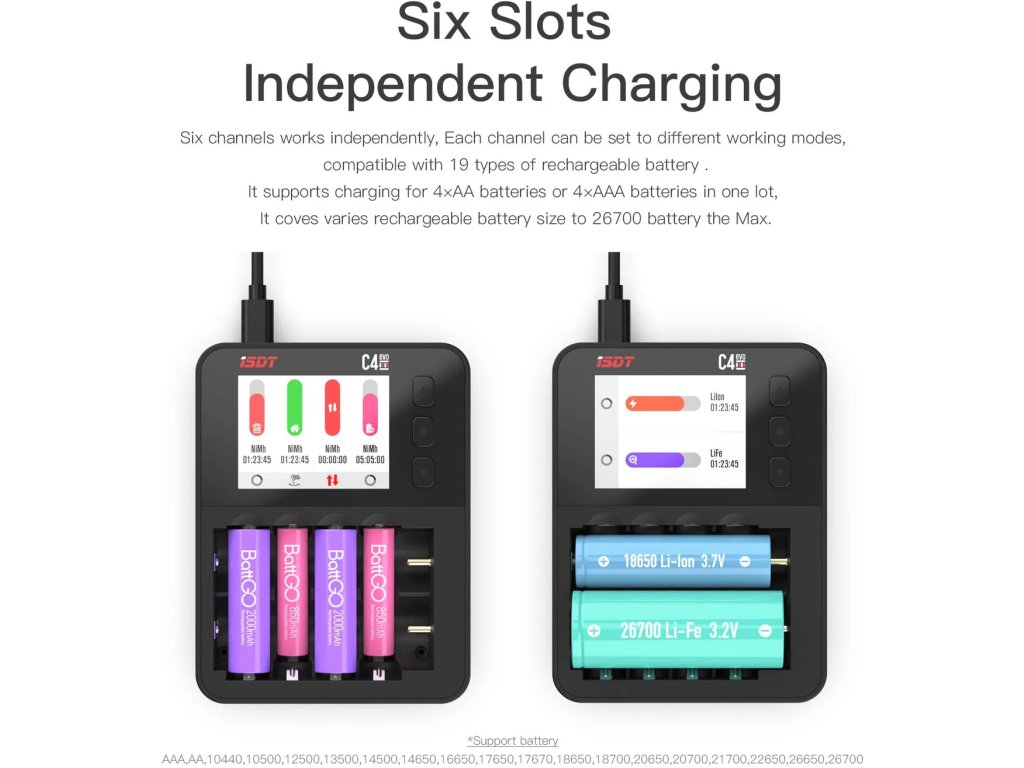

1. Six Independent Charging Slots:

   • Each of the 6 channels operates independently, allowing users to charge different types of batteries simultaneously. It is compatible with 19 types of rechargeable batteries, including popular sizes like AAA, AA, 18650, 21700, and many more, ranging up to the larger 26700 batteries.
   • Supports charging for 4 AA or 4 AAA batteries in a single session.

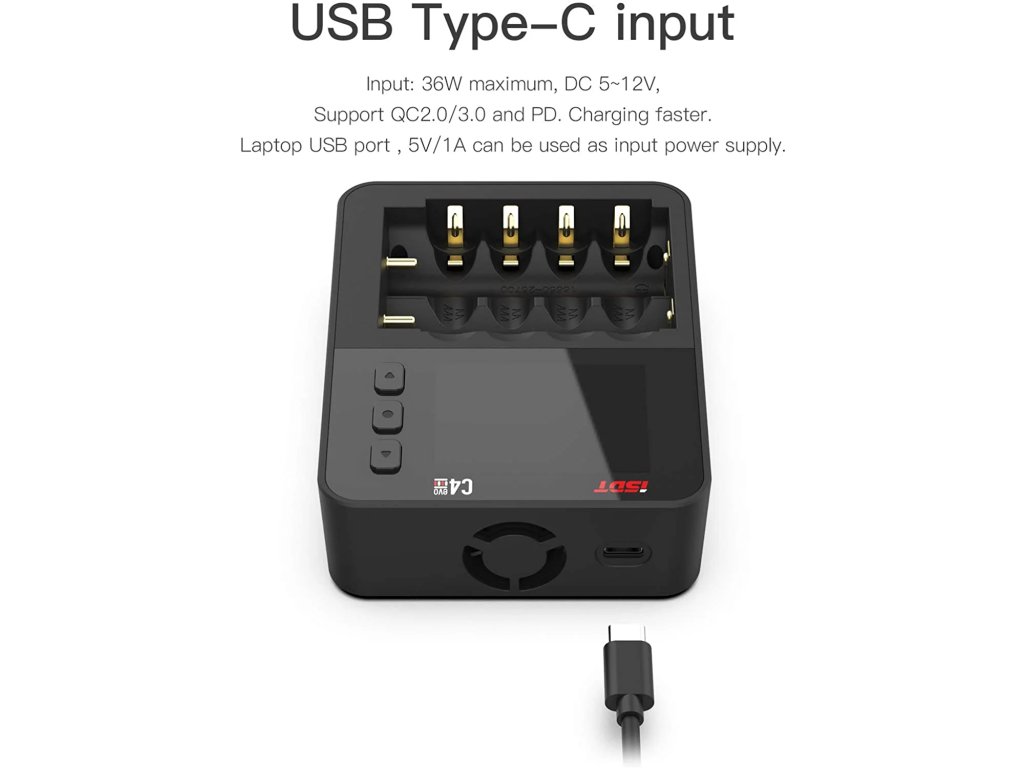

2. USB Type-C Input with Fast Charging:

   • The charger supports USB Type-C input with a maximum power of 36W. It operates within the voltage range of DC 5~12V and supports QC 2.0/3.0 and PD (Power Delivery) protocols, enabling faster charging.
   • You can even use a laptop USB port (5V 1A) as a power supply for the charger.

3. Real-Time Monitoring:

   • The C4 EVO continuously monitors charging and discharging processes, providing detailed data such as:
     • Charging/discharging percentage
     • Battery type
     • Charging time
     • Battery internal resistance (IR)
     • Real-time temperature
     • Voltage, current, and capacity variation curve
   • This ensures accurate and efficient charging while keeping users informed of the status of each battery.

4. Comprehensive Battery Protection:

   • The charger automatically adjusts charging parameters for optimal performance and includes multiple safety features to protect the batteries, such as:
     • Overheating protection
     • Overcapacity protection
     • Reverse polarity protection (both vertical and horizontal configurations)
   • These protections not only enhance safety but also extend the lifespan of your batteries by ensuring proper charging and discharging behavior.

5. Mute Fan & Gilding Spring:

   • The mute fan feature addresses noise issues present in earlier models, ensuring quiet operation.
   • The gilding spring enhances the durability of the C4 EVO, extending its service life through improved contact reliability and corrosion resistance.

Operating Modes:

• Charge: Standard charging mode.
• Discharge: Removes stored energy from the battery.
• Store: Prepares the battery for long-term storage.
• Destroy: For securely depleting and disposing of batteries.
• Cycle: Automatically charges and discharges the battery to enhance performance and longevity.
• Activate: Revives batteries that have been over-discharged.
• Analyze: Provides an in-depth analysis of the battery's performance metrics.

Specifications:

• Supported Battery Types:
  • Li-Ion, LiFe, LiHv, NiMH, NiZn, Eneloop
• Charge Current Range:
  • Horizontal slots: 0.1 – 3.0A
  • Vertical slots: 0.1 – 1.5A
• Discharge Current Range:
  • Horizontal slots: 0.1 – 1.5A
  • Vertical slots: 0.1 – 1.0A
• Display:

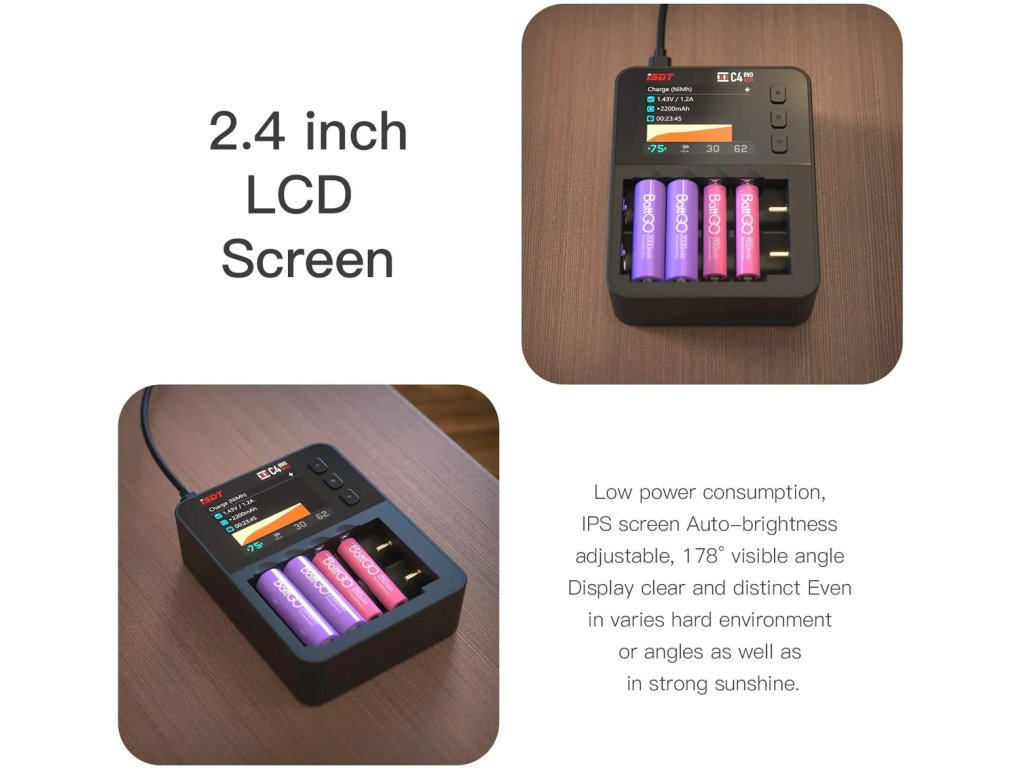

  • 320×240 IPS LCD screen, providing clear and detailed battery status information.
• Temperature Sensors:
  • Equipped with 6 internal sensors to monitor heat levels.
• External Ports:
  • USB power output via Type-C.
• Firmware Update:
  • Firmware can be updated, ensuring future features and improvements.
• Standby Current Drain:
  • Less than 0.05mA/battery, ensuring minimal power consumption when not in use.

Safety Features:

• Reverse Polarity Protection:
  • Ensures batteries are inserted correctly with both vertical physical and horizontal hardware protection.
• Overheating Protection:
  • Automatically adjusts the operation to prevent overheating.
• Overcapacity Protection:
  • Prevents batteries from being overcharged, ensuring their longevity and safety.
