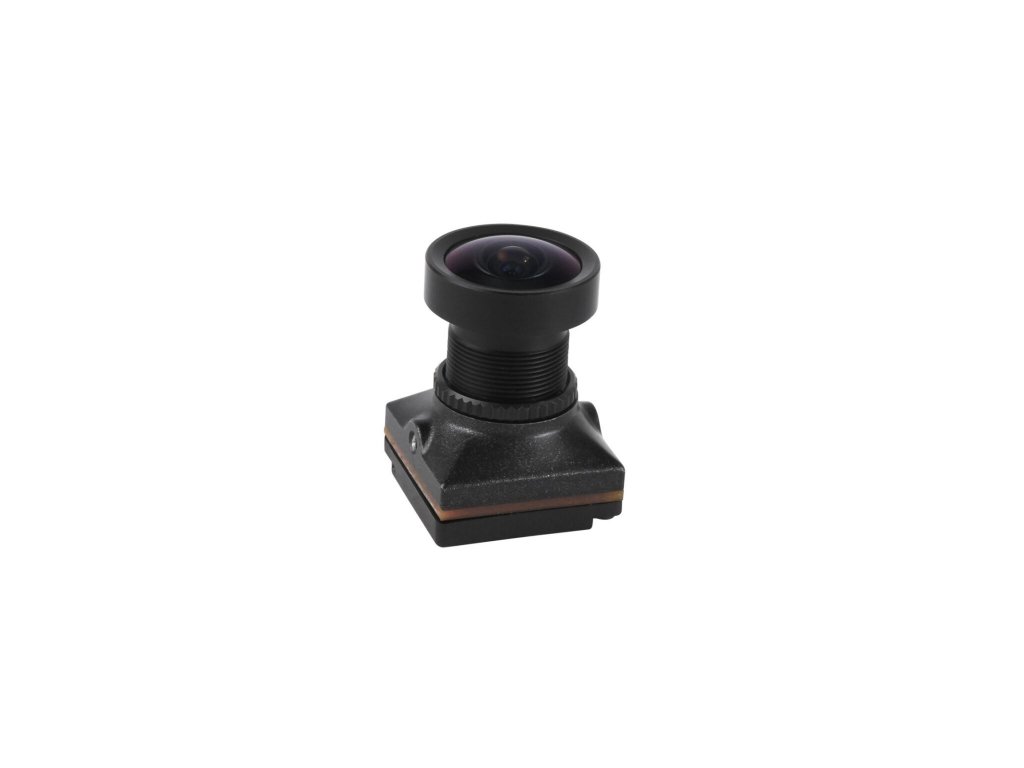

FPV camera Caddx Ratel 2 (Night Version)

Opis szczegółowy produktu

FPV camera Caddx Ratel 2 (Night Version)

CaddxFPV took as a basis the popular and time-tested Ratel 2, designed in the Micro form factor with dimensions of 19x19mm and improved its characteristics. In particular, the Ratel 2 Night Version has a higher resolution of 1500TVL, HDR with a wider dynamic range of the image. This model also performs better in low-light conditions, thanks to Starlight, 0.0001LUX and updated lenses that give a clearer image and a better night vision effect.

Features:
- Higher resolution 1500TVL (compared to 1200TVL in the normal Ratel 2 camera)
- Super WDR (HDR): enhanced HDR for wider dynamic range
- Starlight, 0.0001LUX: better visibility in low light conditions
- Better 8Mega /F1.2 lens, clearer image and better night vision effects

Specifications:

Matrix: 1/1.8″ Starlight HDR
Horizontal resolution: 1500TVL
Lens: 8Mega /F1.2
Aspect ratio: 16:9 / 4:3 (variable)
TV system: NTSC & PAL (variable)
WDR: Super WDR (HDR)
DNR: 3-DNR
Min. lighting: Starlight, 0.0001LUX
Synchronization: internal
Electronic shutter speed: PAL: 1/50 ~ 100,000; NTSC: 1/60 ~ 100,000
Signal to noise ratio: > 60dB (AGC OFF)
OSD: Yes
Day/Night mode: Auto / Color / B&W / EXT
Video output: CVBS
Power supply: DC 5-40V
Dimensions: 19 x 19 x 26.5 mm
Weight: 5.9 g

Package includes:
1 x Caddx Ratel 2 Night camera
1 x 5D-OSD menu control board
1 x FPV silicone cable A (3-pin two-way)
1 x FPV silicone cable B (2-pin bilateral)
1 x hex key
1 x warranty card
