FC iFlight BLITZ Mini F7 V1.1

Opis szczegółowy produktu

BLITZ Mini F7 V1.1 Flight Controller

Features:
- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter

Specifications:
MCU:STM32F722 (216MHz)
Gyro: BMI270
Baro: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
SmartAudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mounting Pattern: 20x20mm / 4mm PCB hole diameter
Dimensions: 30.5x27 mm
Weight: 5g

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

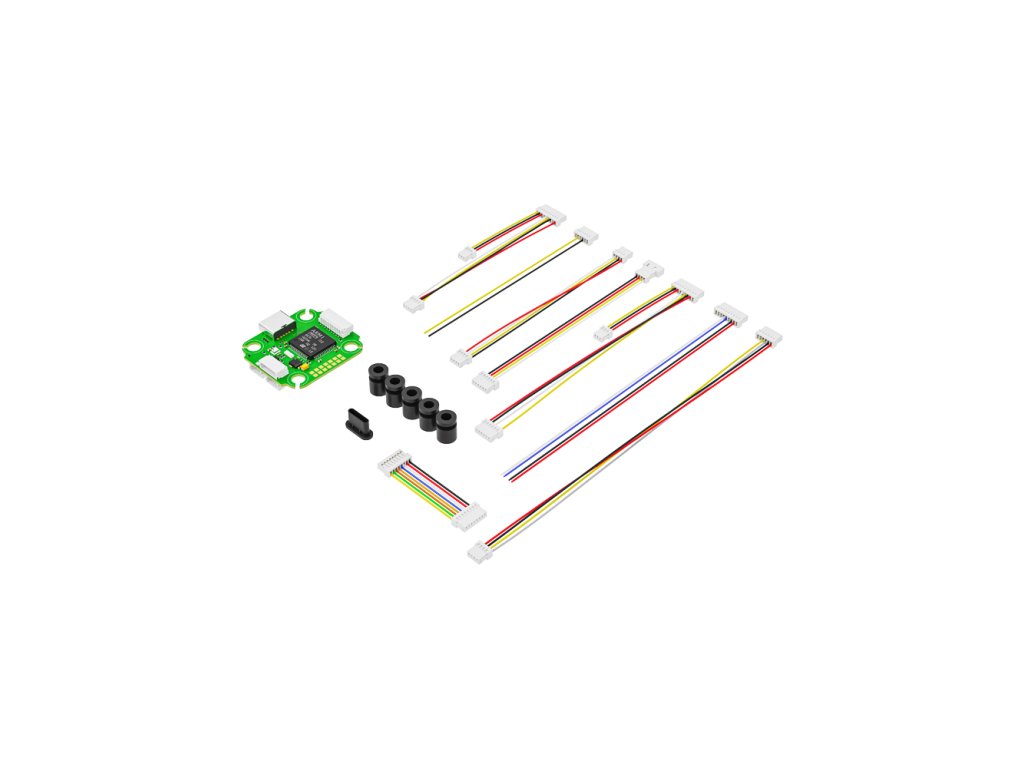

Package Includes
1 x BLITZ F7 V1.2 Flight Controller
1 x FC connectors set
1 x silicon grommets
