Stack iFlight BLITZ Mini F7 E55 4-IN-1 Flight Tower System

Opis szczegółowy produktu

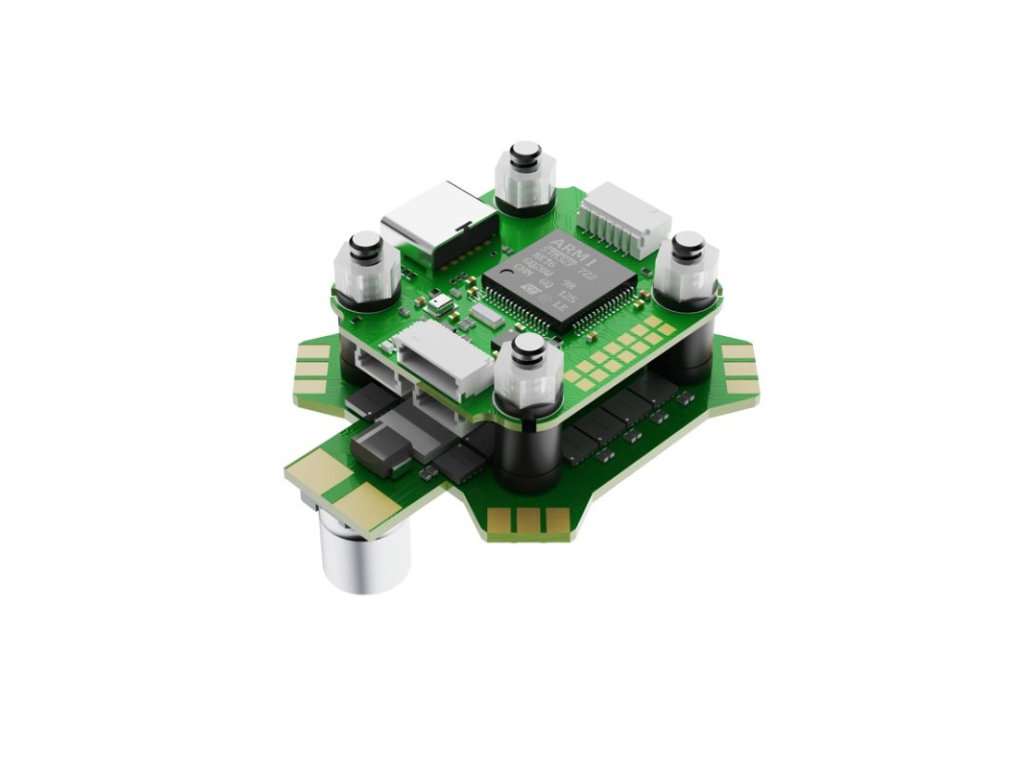

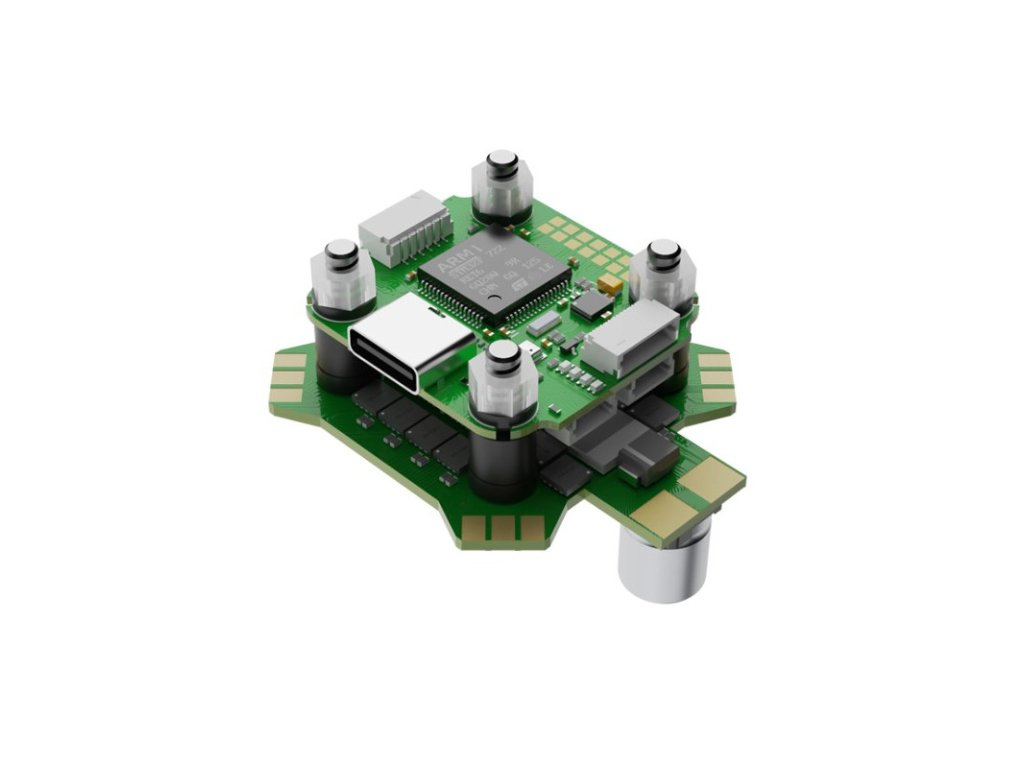

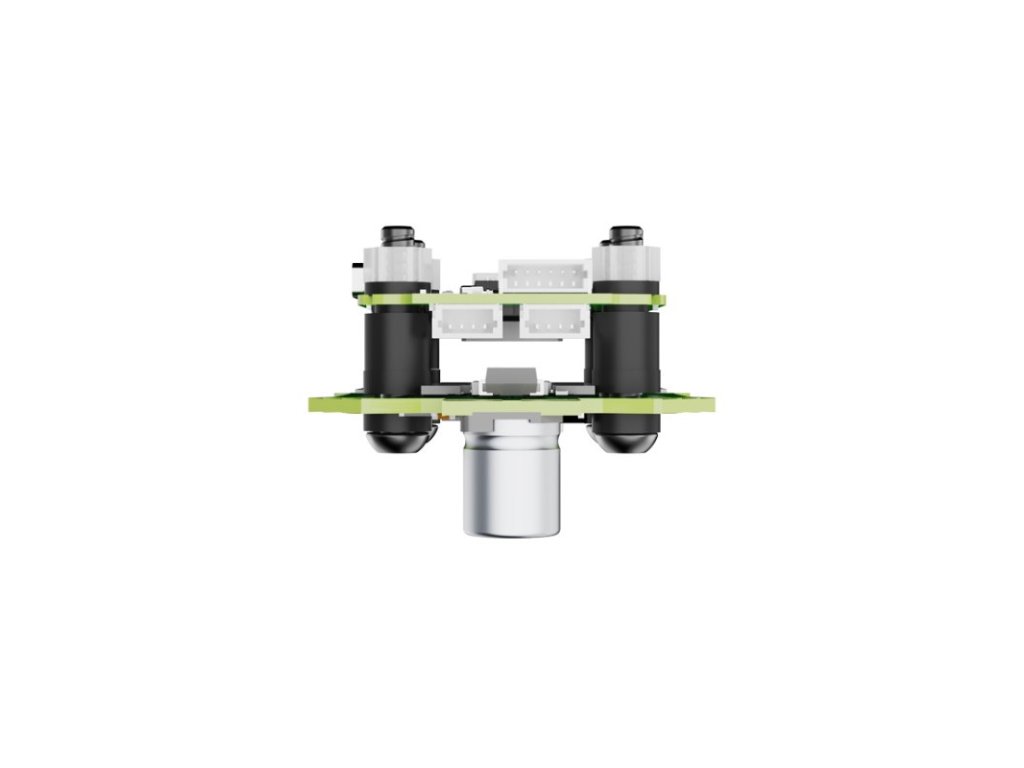

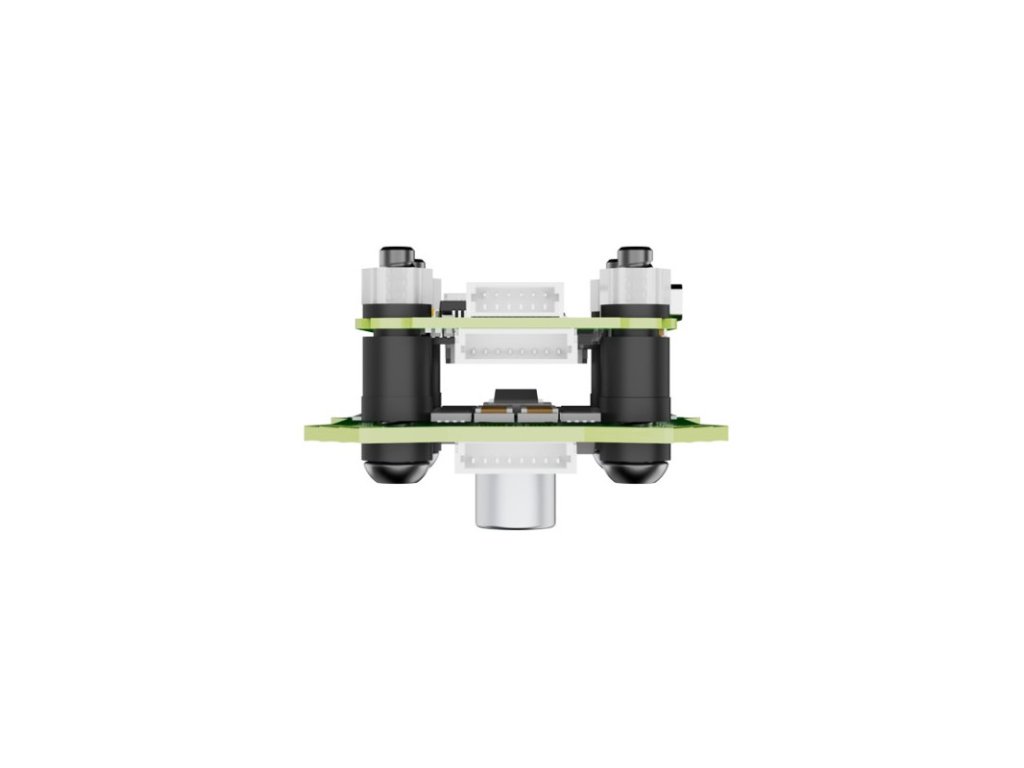

BLITZ Mini F7 E55 4-IN-1 Flight Tower System

Features

- Improved circuit design, better components and lower electrical noise
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging

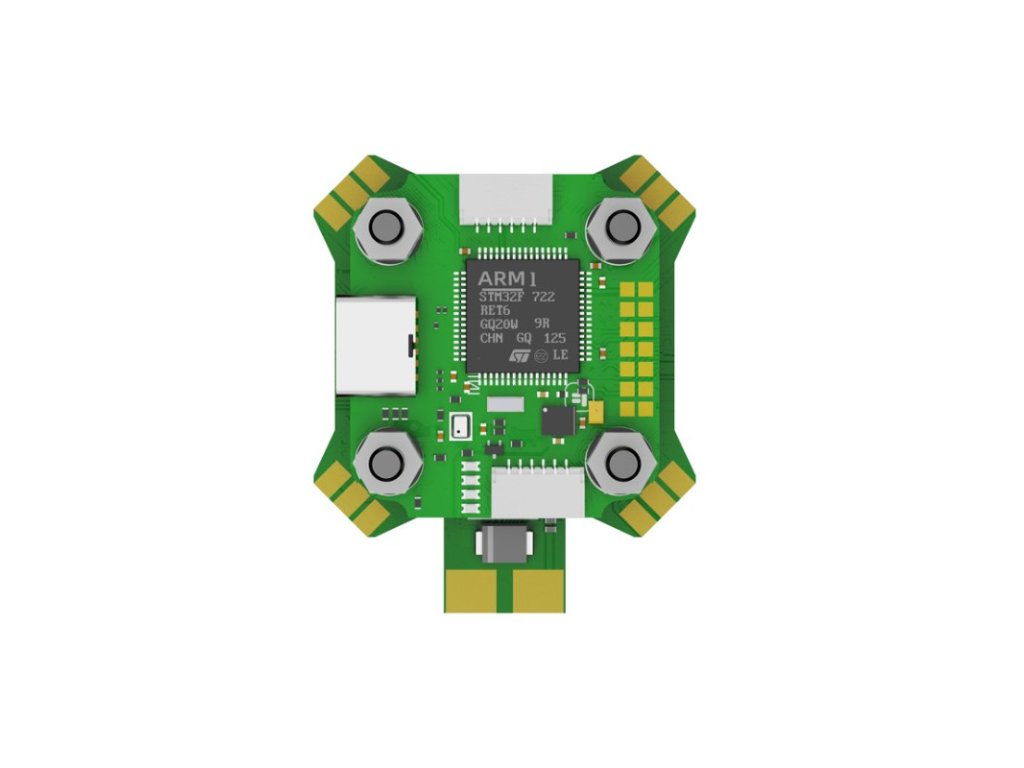

FC Specifications

MCU: STM32 F722
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456
Flash: 8MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

ESC Specifications

Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU: G071
Constant: 55 Amps
Burst: 60 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9

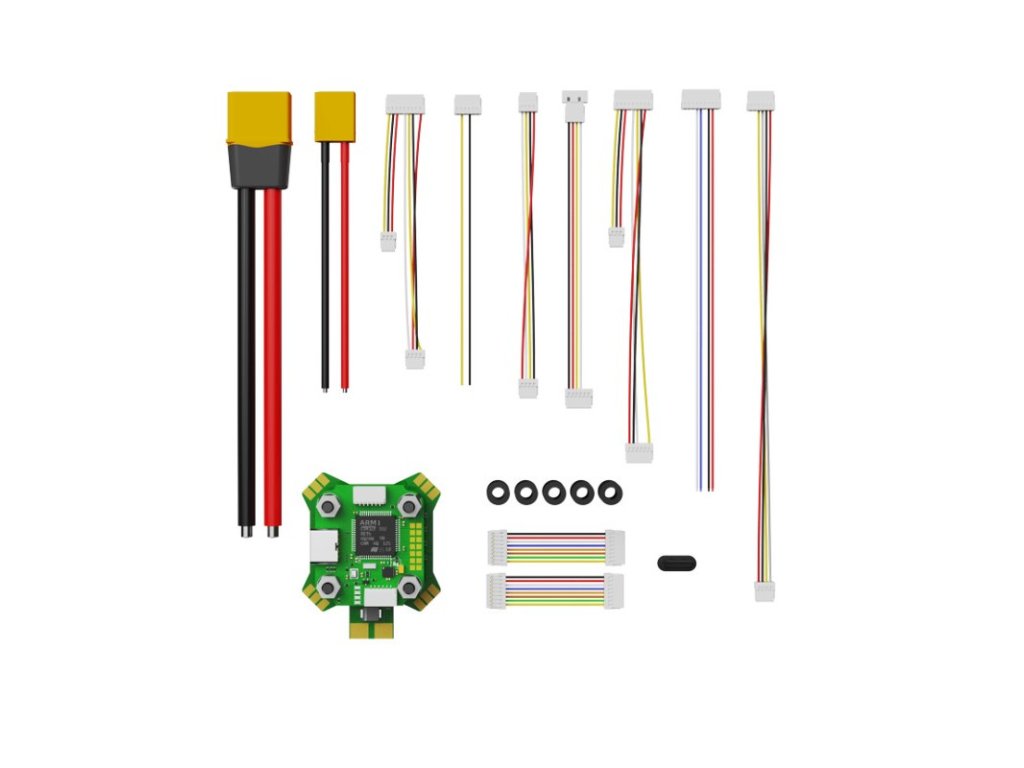

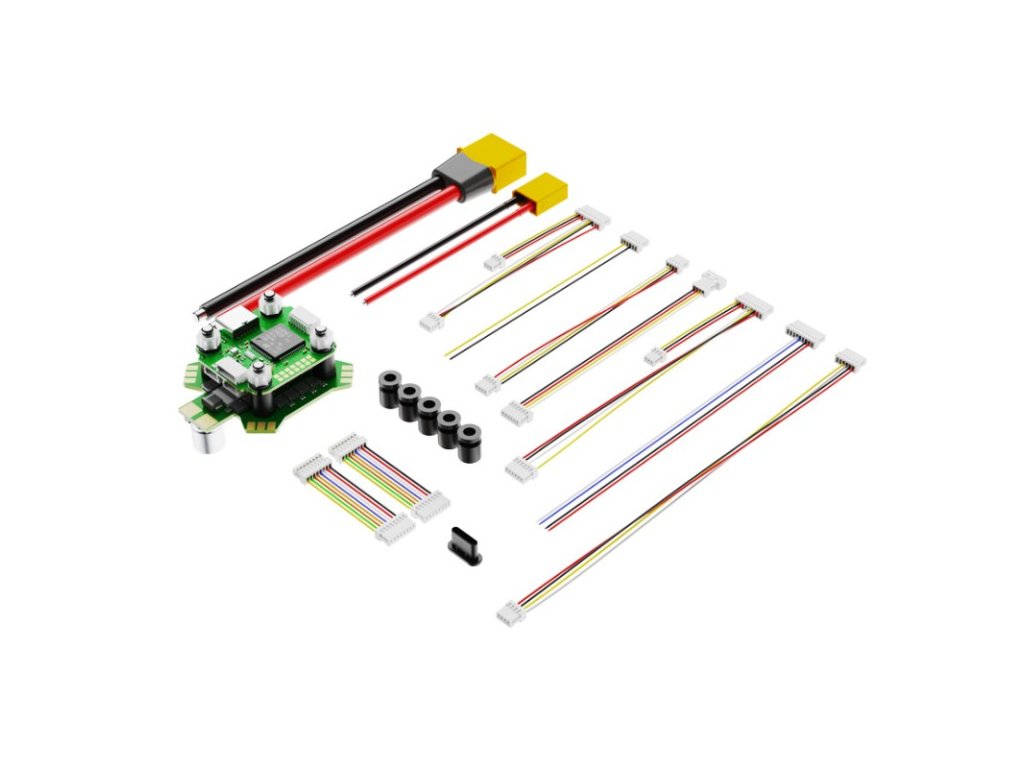

Package Includes:
1 x BLITZ Mini F7 V1.2 Flight Controller
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x silicon grommets
1 x wire harness for F7 Flight controller

Note:
If you need to use the ESC in the iH3 O3 Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.
