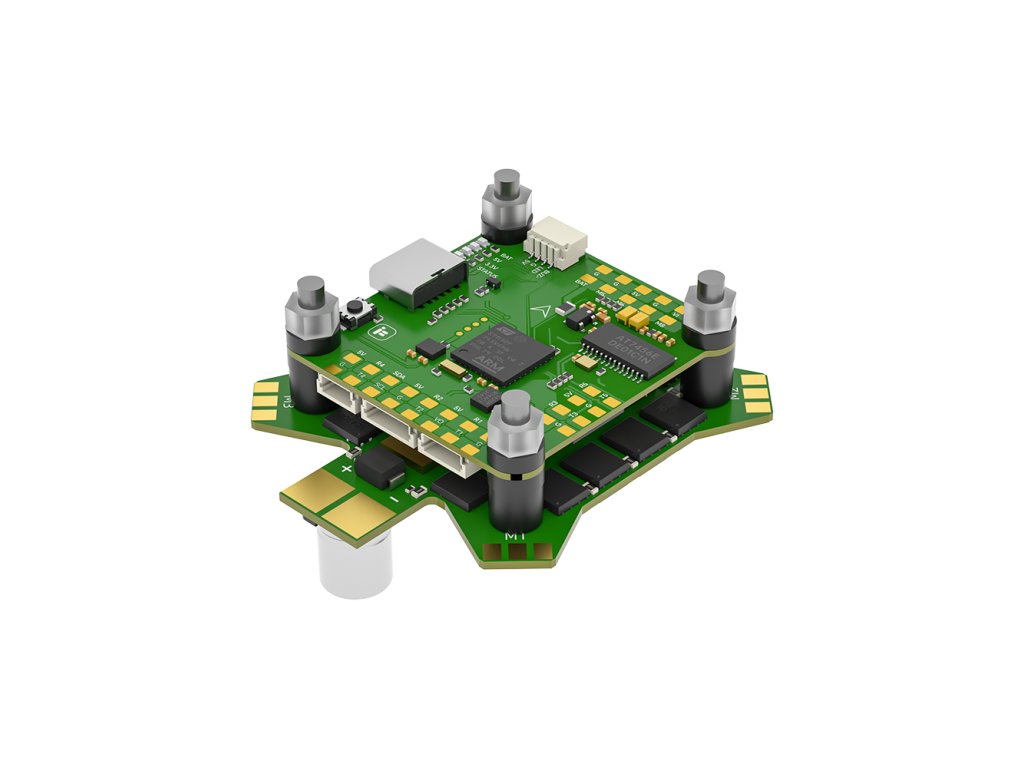

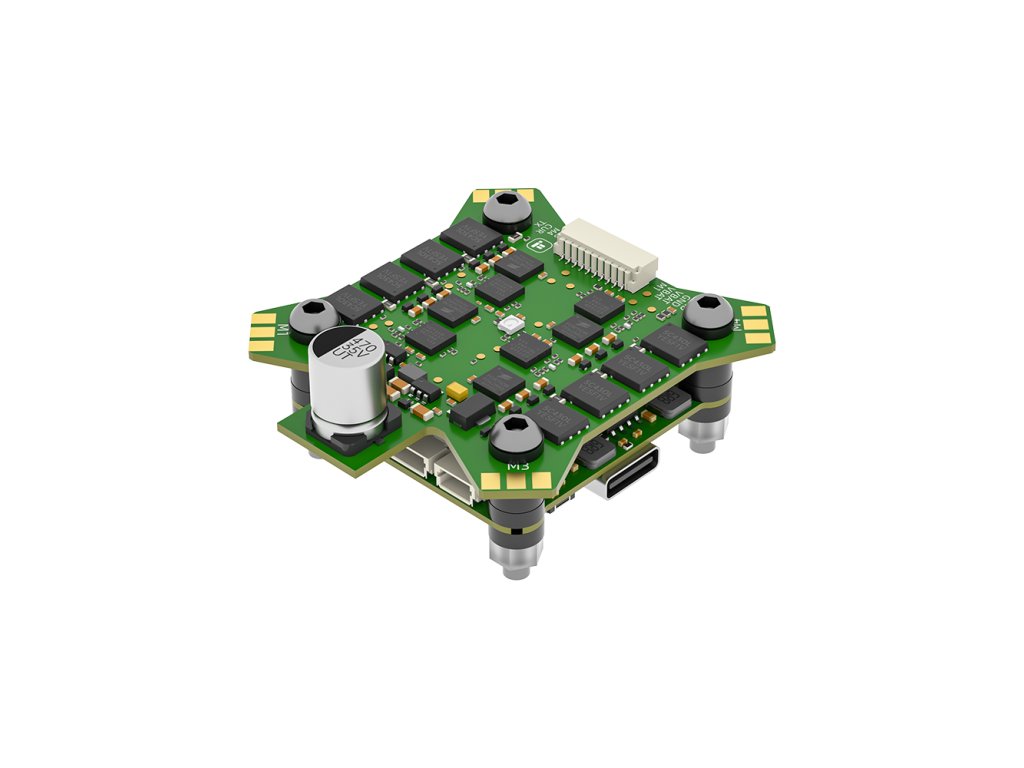

Stack iFlight BLITZ F745 (E55 4-IN-1 ESC)

Opis szczegółowy produktu

BLITZ F745 Stack (E55 4-IN-1 ESC)

Features:

- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- Support Betaflight, INAV, Ardupilot firmware

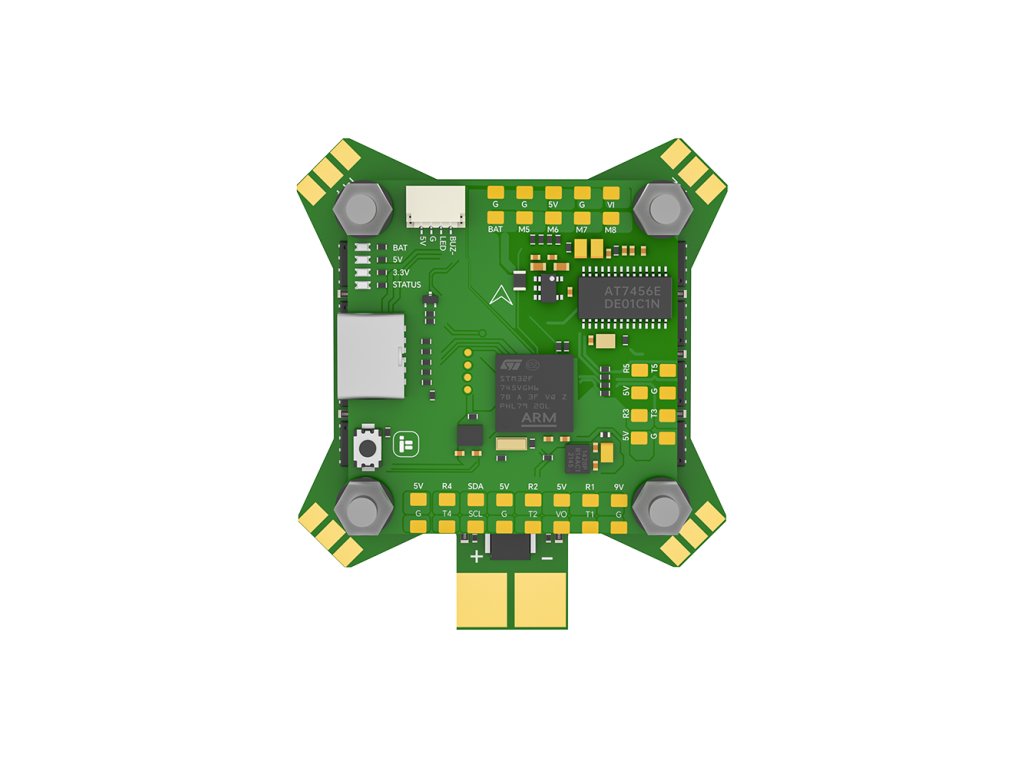

FC Specifications
MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes

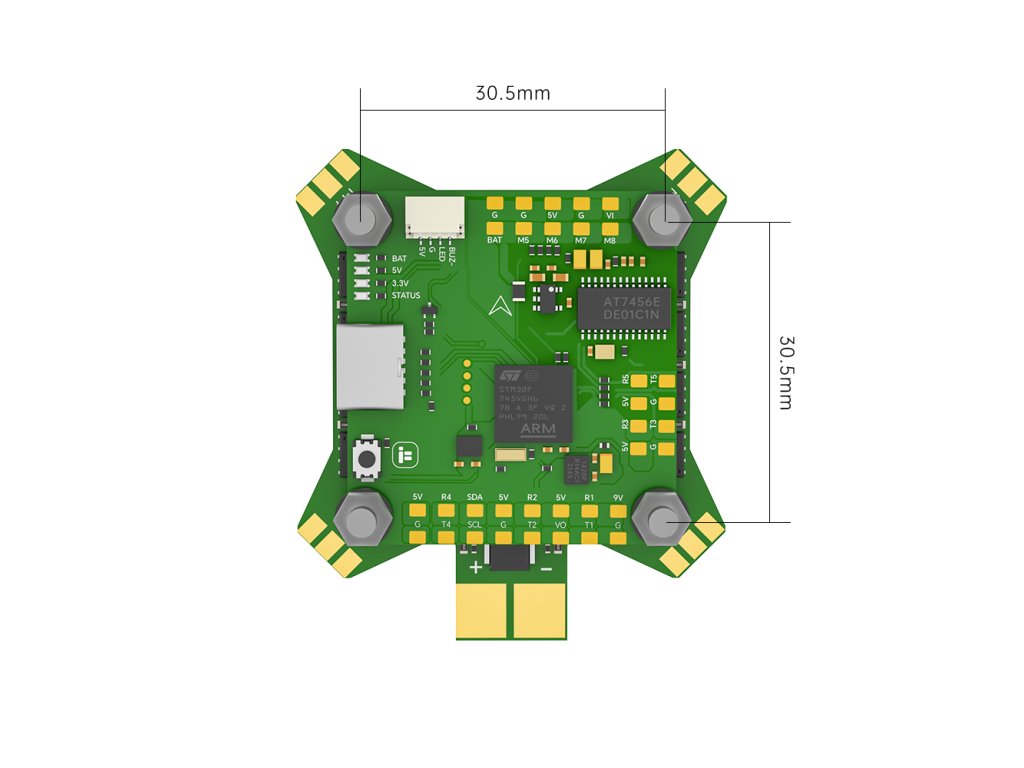

Mount pattern: 30.5*30.5mm
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware: arduplane_with_bl

Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

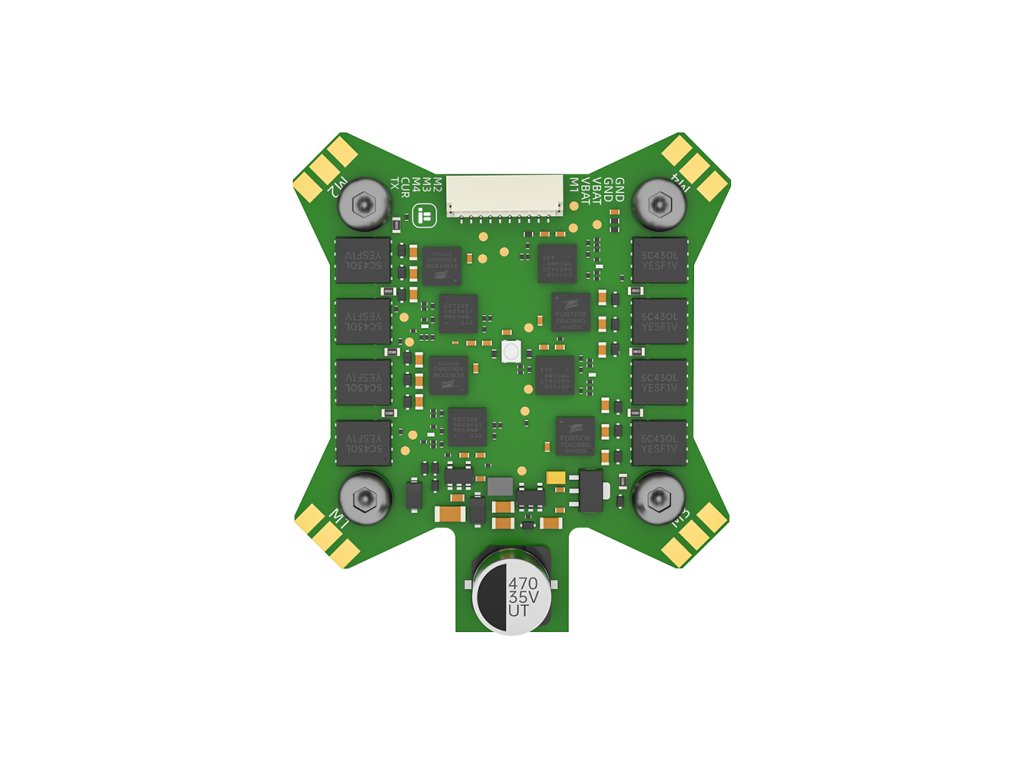

ESC Specifications
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 15.3g
Supports 2-6S lipo input
MCU: G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: IFLIGHT_BLITZ_G3 32.9

Package includes:
1 x BLITZ F745 V1.2 Flight Controller
1 x BLITZ E55S 4-IN-1 2-6S ESC
1 x silicon grommets
1 x wire harness for F7 Flight controller
