FC iFlight BLITZ F7 V1.2 ICM42688

Opis szczegółowy produktu

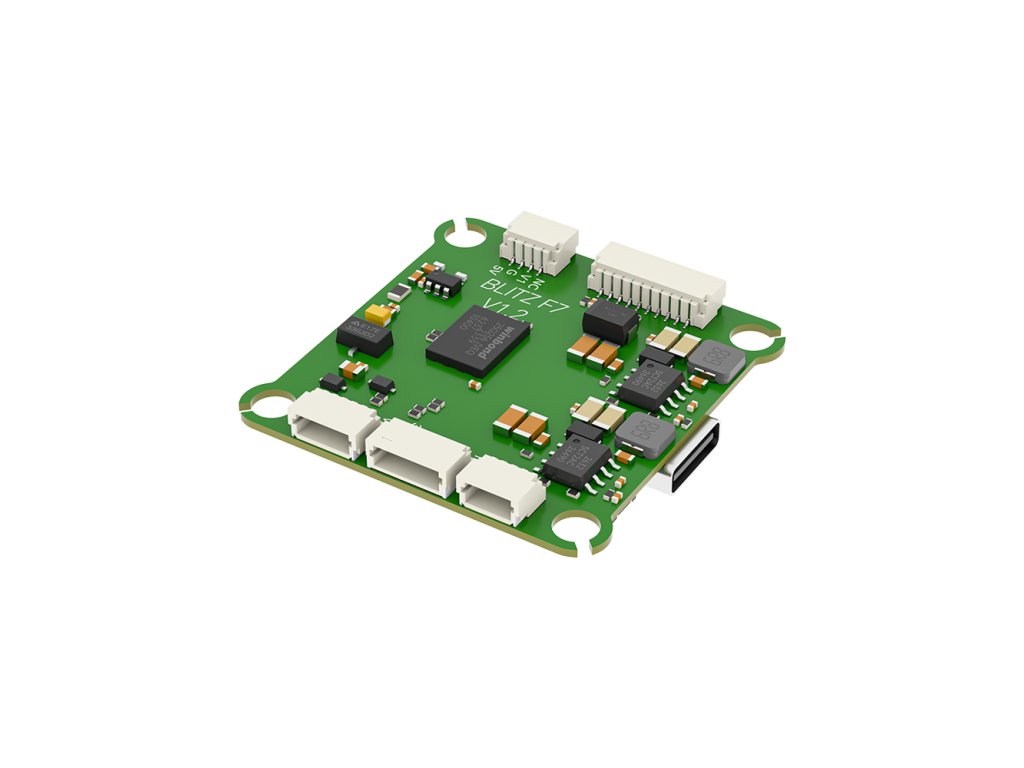

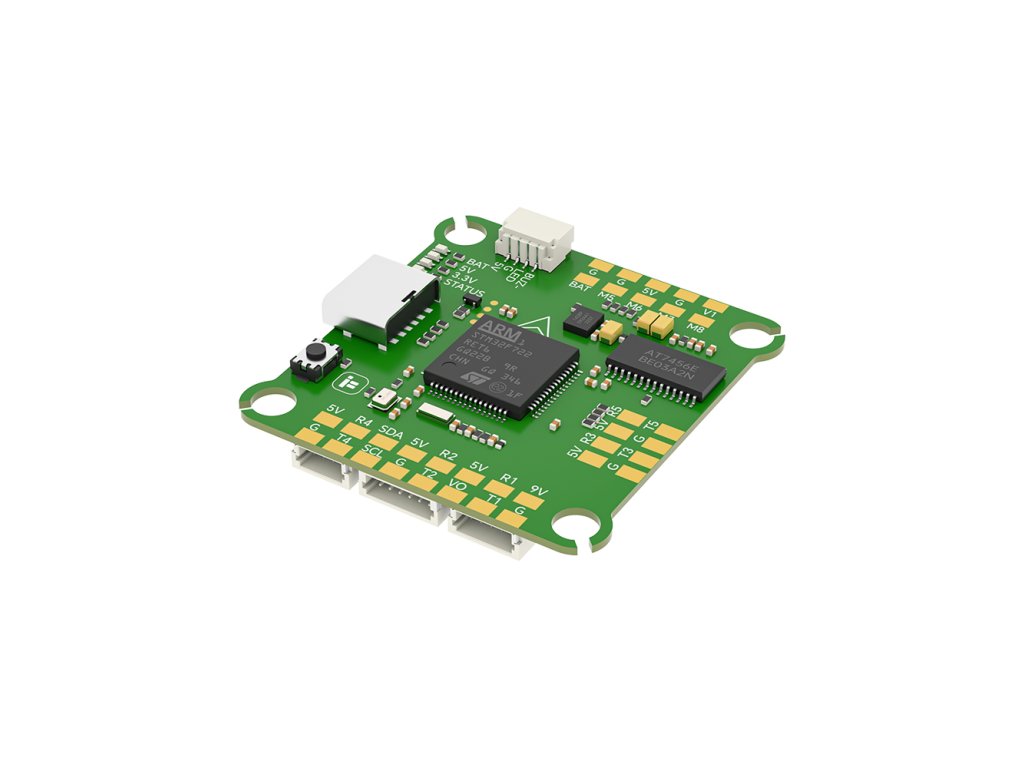

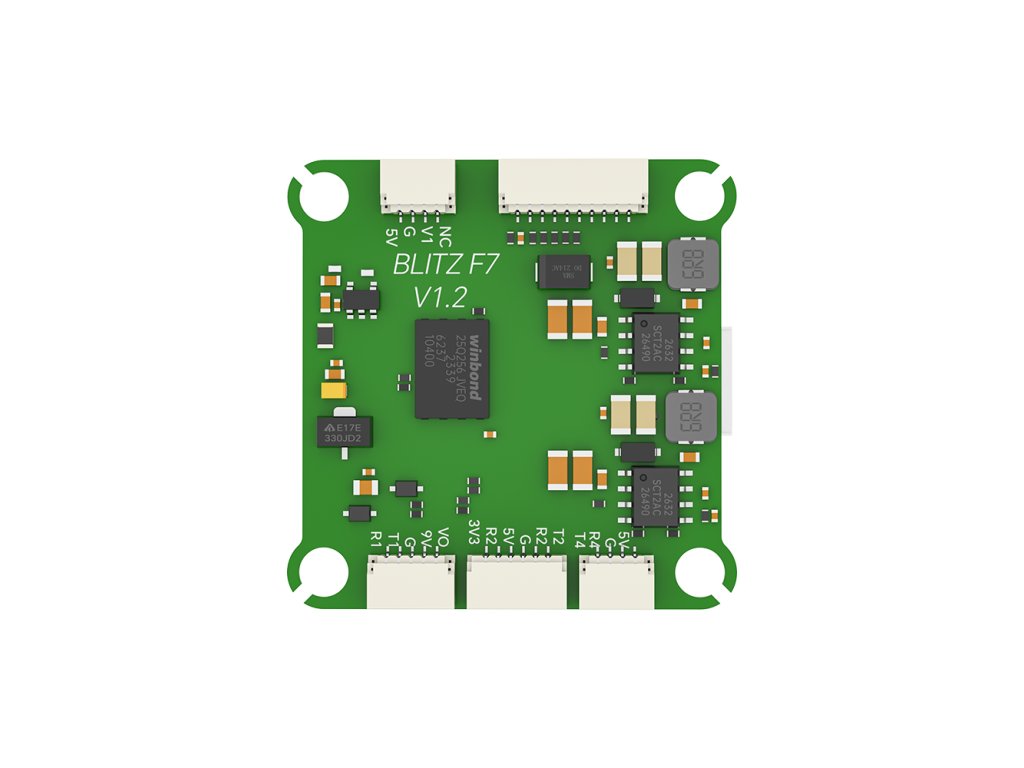

BLITZ F7 V1.2 Flight controller ICM42688

The iFlight BLITZ F7 V1.2 Flight Controller now has a new gyro, improved circuit design, better components, and lower noise level.

Features:
- (Jan 2024) Version updated to V1.2 / Gyro changed to ICM42688.
- Improved circuit design, better components, and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter

Specifications:

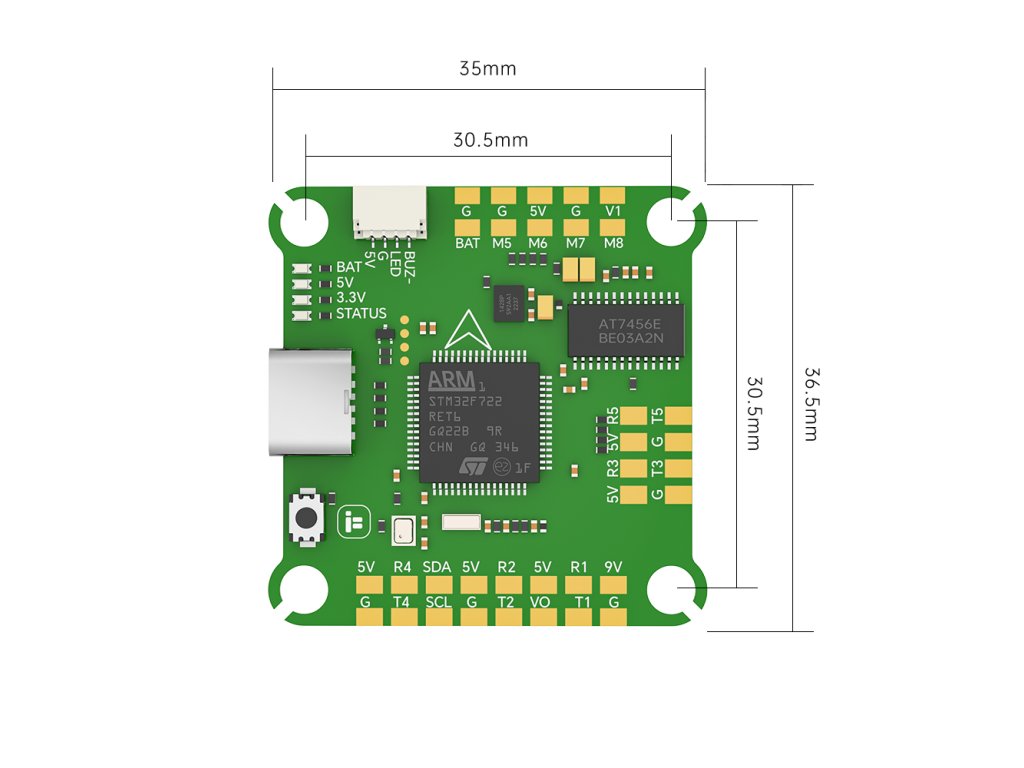

Mounting Pattern: 30.5*30.5mm / 4mm PCB hole diameter
Model: BLITZ F722 V1.2 FLIGHT CONTROLLER
SmartAudio / IRC Tramp VTX protocol supported
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Motor outputs: 4x (SH1.0 connector)
Flash: 32MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 36.5*35 mm
OSD Chip: AT7456E
Barometer: DPS310
MCU: STM32 F722
LED controller: Yes
Beeper pad: Yes
Gyro: ICM42688
Weight: 7.8g
UARTS: 6
BEC: 5V 2.5A / 9V 2A

Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

Package Includes
1 x BLITZ F7 V1.2 Flight Controller
1 x FC connectors set
1 x silicon grommets
