ESC iFlight BLITZ E80 4-IN-1 Pro With CNC

Opis szczegółowy produktu

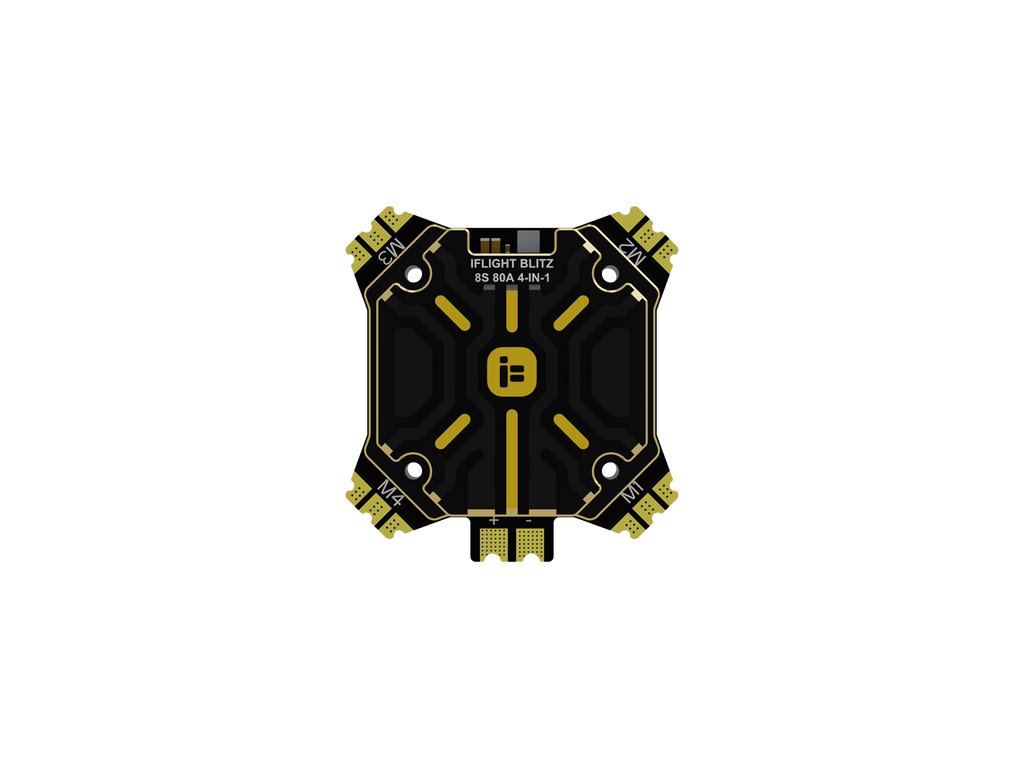

BLITZ E80 4-IN-1 Pro With CNC

The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V. The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed.

Features:
- Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
- G071 MCU, 48mHz maximum clock speed;
- TDK MLCC Low ESR ceramic capacitors;
- Top grade PSMN1R0-40YLD MOSFET;
- 8 layers double-sided PCB board

Specifications:
Product Name: BLITZ E80 4-IN-1 ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Mounting Dimensions: 35x35mm/Φ3mm
Dimensions: 35x42mm
Weight: 65g(±10)
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc

Package Includes:
1 x BLITZ E80 4-IN-1 Pro ESC (G2)
1 x Wiring set
