Antenna TrueRC X2-AIR 5.8 MK II pair for HDzero goggles RHCP, X2-air pair only

Kod: 0608597254549
Brak oceny
Marka: TrueRC
€107,57 €88,90 bez VAT
In stock (2 szt)
Możemy doręczyć do:
26.11.2024
Opcje dostawy

Informacje szczegółowe

Opis szczegółowy produktu

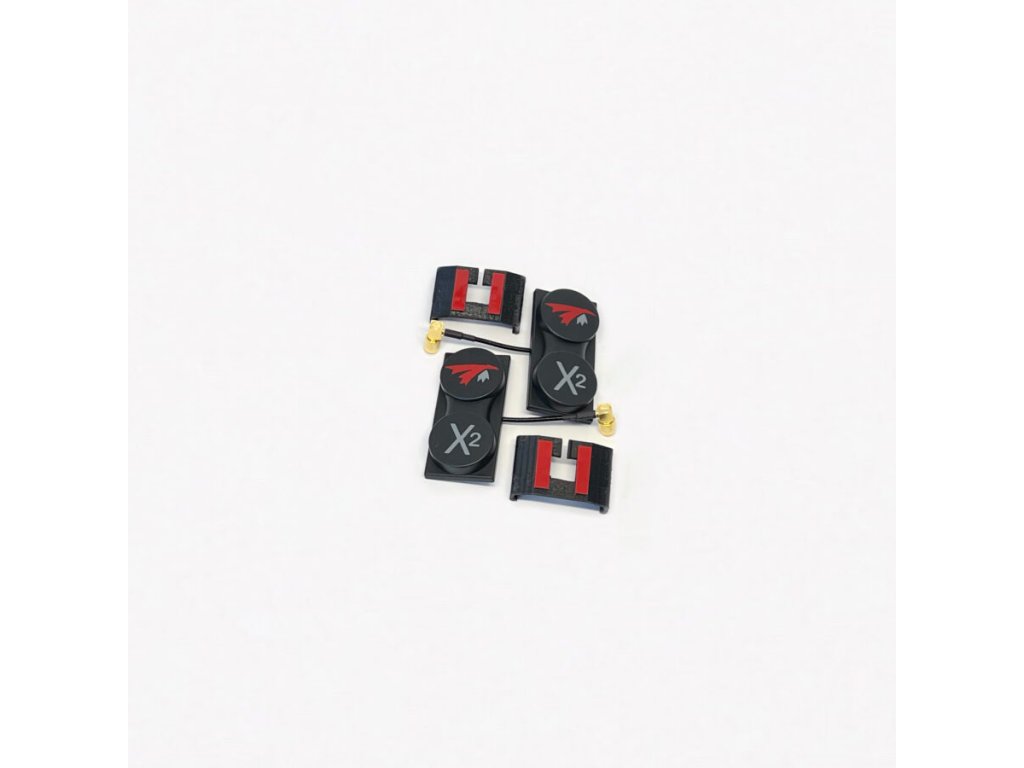

Antenna TrueRC X2-AIR 5.8 MK II pair for HDzero goggles RHCP, X2-air pair only

The TrueRC X2-AIR 5.8 MK II pair is a high-performance antenna system designed specifically for HDzero goggles, providing advanced signal reception for long-range flights. With enhanced gain, wide beam width, and a low-profile design, this antenna set is ideal for pilots seeking superior signal coverage in challenging conditions.

Key Features:

  • High Gain and Wide Beam Width: The X2-AIR MK II offers 13 dBic gain and a wide 165° beam width, enabling exceptional signal range and penetration, even in demanding environments. The sector-shaped beam optimizes horizontal coverage, making it well-suited for long-range flights.
  • Circular Polarization (RHCP): Right-hand circular polarization helps minimize signal degradation due to reflections and interference, enhancing overall signal quality.
  • Dual-Element Array: The antenna features a dual-element design, providing a 75° circular polarized beam for improved horizontal coverage and optimized signal reception across a broader area.
  • Compact and Low-Profile Design: With a thickness of just 15mm, these antennas are designed to be lightweight, easy to transport, and durable, reducing the risk of damage during use or storage.
  • Easy Installation: The antennas come with slide-on mounts that fit directly onto the HDzero goggles' module, ensuring secure and hassle-free attachment. The custom knurled SMA connectors ensure efficient RF power transfer and prevent loosening during use.
  • Broad Frequency Range: Operating across a wide 5.1GHz to 7.0GHz range, the antennas maintain performance even outside the 5.8GHz band, offering greater flexibility for various flying environments.

Specifications:

  • Bandwidth: 5.1GHz - 7.0GHz
  • Gain: 13 dBic
  • Polarization: RHCP
  • Horizontal Beam Width: 150°
  • Vertical Beam Width: 62°
  • Horizontal Beam @-3dB: 75°
  • Vertical Beam @-3dB: 34°
  • Connector: Custom knurled SMA
  • Dimensions: 72mm x 34mm x 15mm
  • Weight: 20g per antenna

Package Includes:

  • 2x X2-AIR MK II antennas (one for each side)
  • 2x Slide-on mounts for installation onto HDzero goggles

Parametry dodatkowe

Kategoria: Goggle Antennas
Connector Type: SMA
Frequency: 5.8GHz
Length: 72mm
Polarization: RHCP
