Antenna TrueRC X2-AIR 5.8 MK II pair for DJI FPV (pair) LHCP

Opis szczegółowy produktu

Antenna TrueRC X2-AIR 5.8 MK II pair for DJI FPV (pair) LHCP

The TrueRC X2-AIR 5.8 MK II antenna pair, designed for DJI FPV goggles, delivers enhanced 13dBic gain and a wide 180° beam width for superior flight performance in challenging conditions. With a slim 15mm low-profile design, the antennas are compact and durable, allowing for continuous use without risk of damage. The dual-element array provides a 75° circular polarized beam, optimizing horizontal coverage. Installation is quick with adhesive backing, and custom RP-SMA connectors ensure secure attachment and efficient RF power transfer.

Features:
- Circularly Polarized
- Sector type beam shape (widest on horizontal)

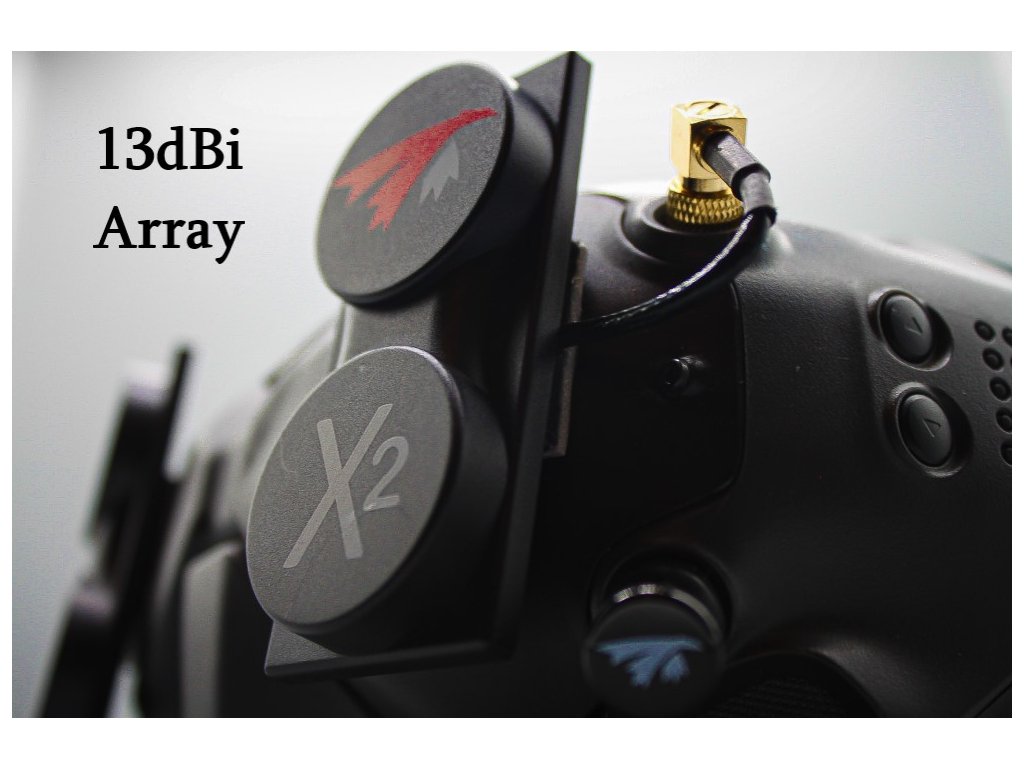

- Mount direct on DJI faceplate with included adhesive backing
- Compact low-profile design on your goggles, easy to store and transport
- High 13 dBic for unsurpassed long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 150 degree beam for each antenna combining to 180deg beam width

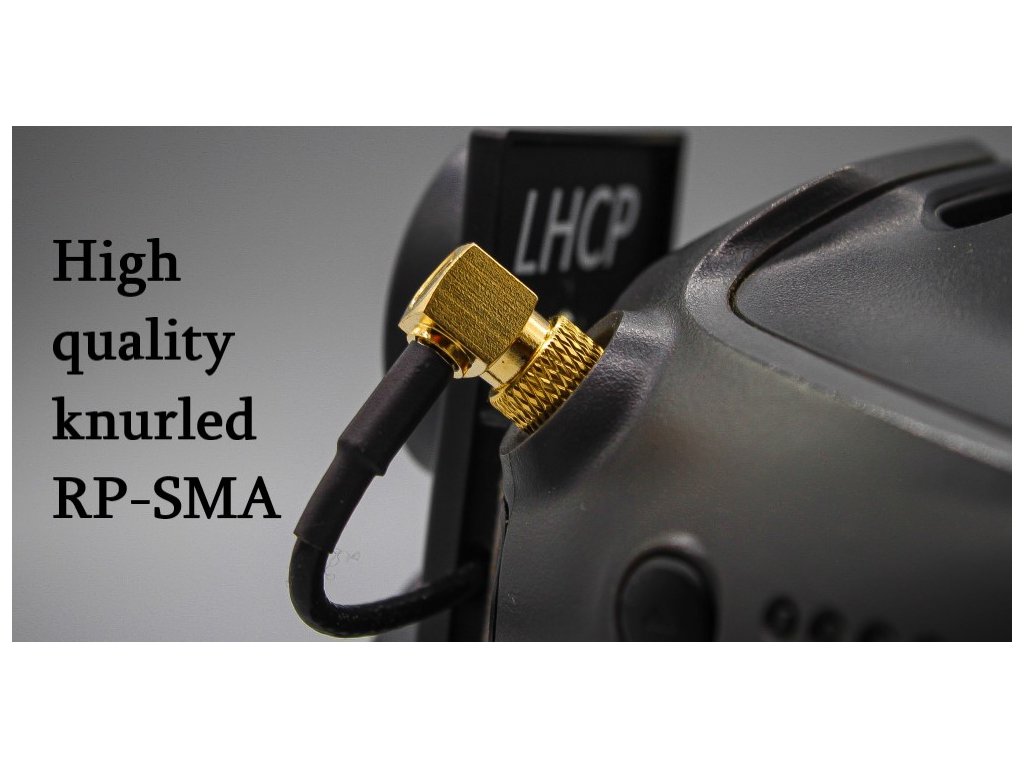

- Custom knurled RP-SMA connectors

Specifications:

Bandwidth: 5.1GHz-7.0GHz
Gain: 13 dBic
Polarization: LHCP
Beam-width Horizontal*: 150deg
Beam-width Vertical*: 62deg
Hor. beam @-3dB**: 75deg.
Vert. beam @-3dB**: 34deg.
Connector: Custom knurled RP-SMA
Dimension: 72mm x 34mm x 15mm
Weight: 20g each
Include adhesive mount for installation onto DJI FPV goggles.

*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

Package Includes:

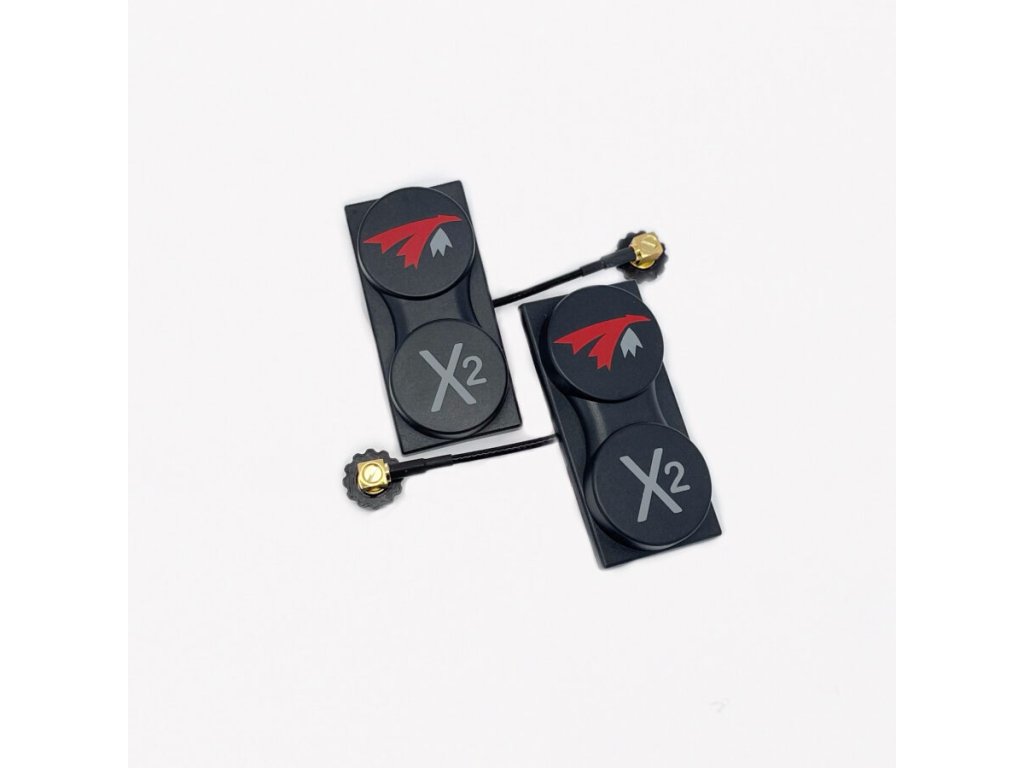

2x X²-air MKII antennas (one for each sides)
