Antenna TrueRC X-AIR 5.8G MK II pair for HDzero VRX4 - RHCP, X-air pair only

Kod: 0608597254341
Brak oceny
Marka: TrueRC
€57,98 €47,92 bez VAT
In stock (2 szt)
Możemy doręczyć do:
26.11.2024
Opcje dostawy

Informacje szczegółowe

Opis szczegółowy produktu

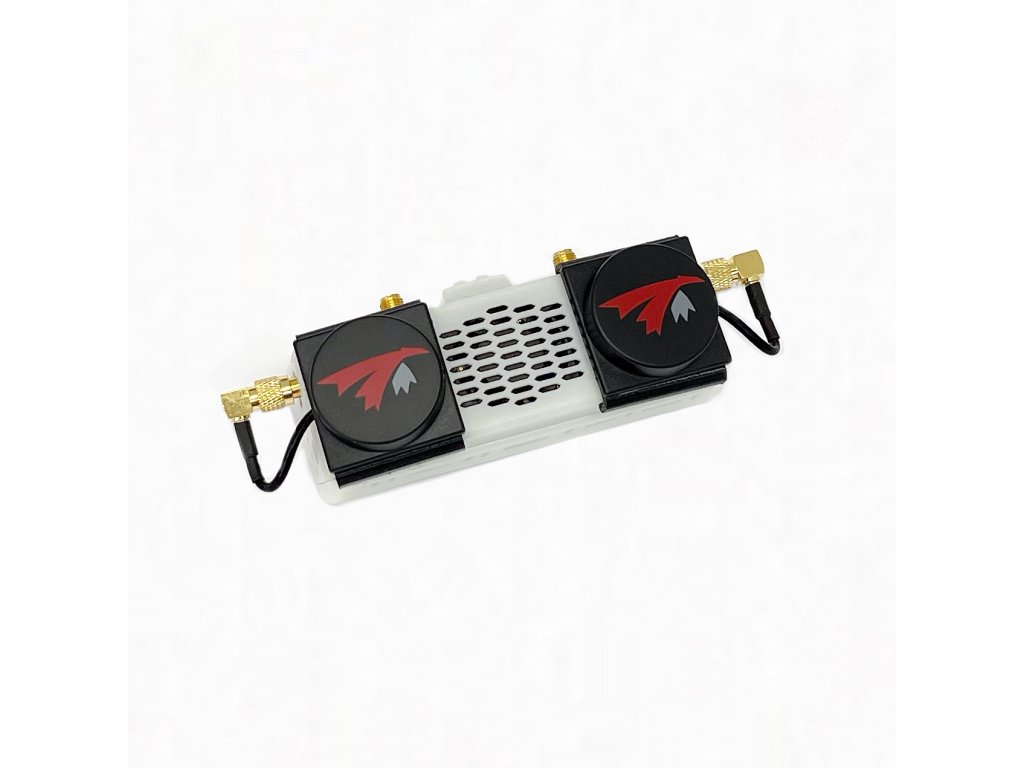

Antenna TrueRC X-AIR 5.8G MK II pair for HDzero VRX4 - RHCP (X-air pair only)

The X-AIR MK II antenna, designed for the HDzero VRX4 module, offers 10dBic gain and a 120° beam width for an exceptional flight experience. Its slim, 15mm low-profile design ensures durability, allowing you to leave the antennas on without risk of damage. Installation is easy with slide-on mounts that fit natively on the HDzero VRX4 module. Custom knurled SMA connectors ensure secure attachment and optimal RF power transfer.

Features:
- Circularly Polarized
- Mount direct on HDzero module with included slide-on mounts.
- Compact low-profile design, easy to store and transport
- High 10 dBic for long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 120 degree beam for each antenna combining to 135deg beam width
- Custom knurled SMA connectors

Specifications:

Bandwidth: 5.1GHz-6.7GHz
Gain: 9.5-10.5 dBic
Polarization: RHCP
Beam-width*: 120deg
Beam-width @-3dB**: 68deg.
Connector: SMA male
Dimension: 32 x 32 x 15mm
Include mounts for installation onto HDzero module.

*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

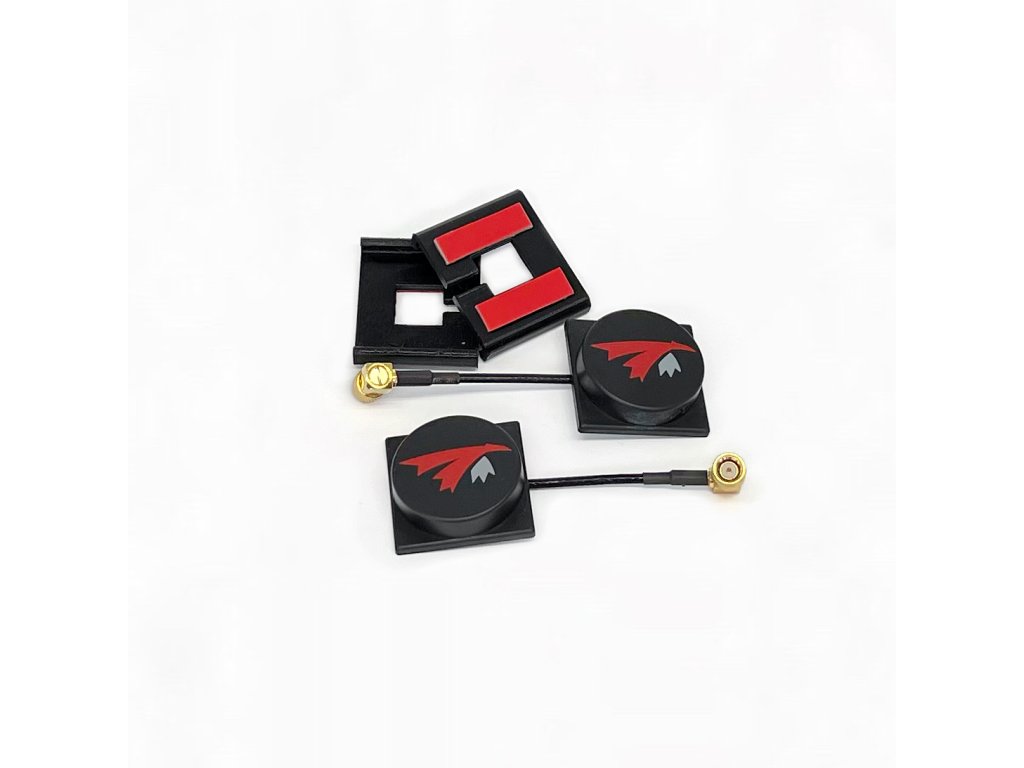

Package Includes:
2x X-air MKII antennas (one for each side).
2x slide-on mounts.

Parametry dodatkowe

Kategoria: Goggle Antennas
Connector Type: SMA Male
Frequency: 5.8GHz
Length: 32mm
Polarization: RHCP
