AIO Pilotix with camera

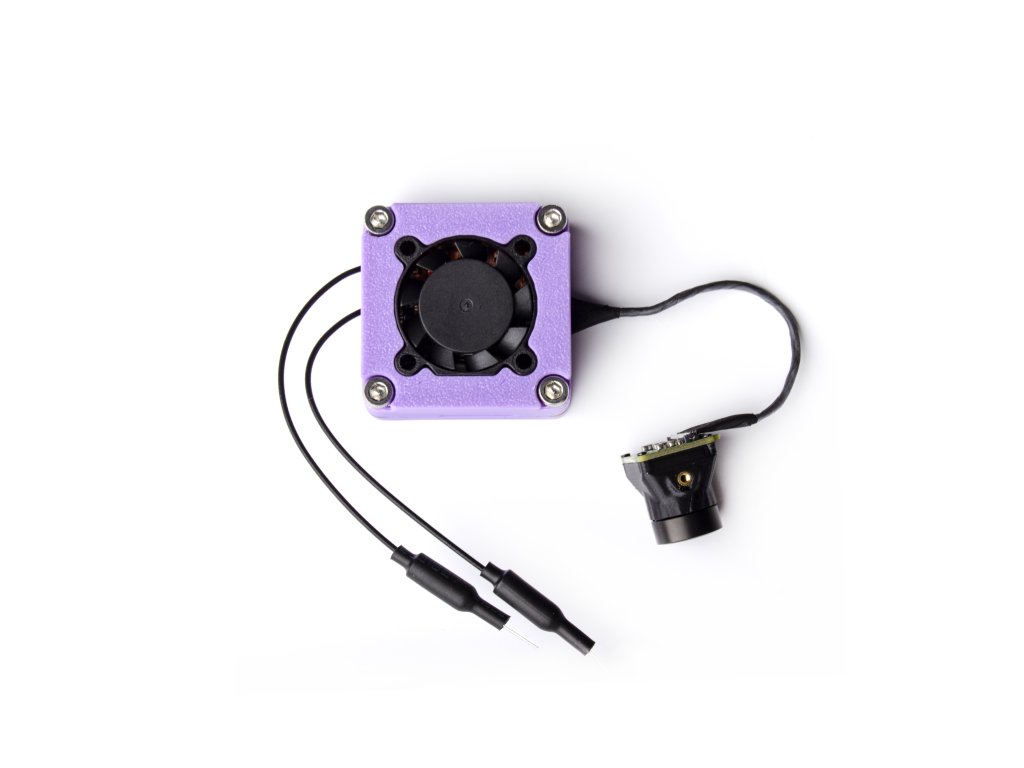

The AIO Pilotix Digital Video Kit with camera is an innovative solution based on the versatile Open IPC protocol. This all-in-one digital system includes everything you need for seamless, high-quality video transmission during your drone flights.

Key features:

• Complete digital setup. Includes a high-performance Sony IMX camera, a reliable VTX (Air Unit) and two antennas for robust and uninterrupted video transmission.
• Exceptional video quality. Equipped with a Sony IMX CMOS sensor that delivers sharp, clear images with an ultra-wide 147° field of view, perfect for precision flying and capturing every detail.
• Powerful VTX. The Air Unit provides high stability and maximum 2W output power, operating over a wide frequency range (5.18-5.845GHz) for interference-free communication.
• Ready to use design. Designed for easy integration, just connect it to your drone setup and experience immediate results.
• Open IPC Protocol. Built to harness the power of open source protocols, this kit ensures compatibility and scalability for advanced FPV pilots and developers alike.

Specifications:

Camera:
CMOS Sensor: Sony IMX 415 / Sony IMX 335 (optional)
Sensor Size: 1/2.8
Lens: Aperture f/2.8, Viewing Angle: 147°
Weight: 5.4g (with coaxial cable)
Dimensions: 14mm (L) x 14mm (W) x 18.5mm (H)

Sky Module:
Weight: 6.1g (bare)
Total Weight: 22g (with cable, antenna, camera, and heatsink)
Dimensions:
Without heatsink: 32mm x 32mm x 17.1mm
With heatsink and fan: 36.5mm x 36.5mm x 15mm
Fixing Hole Spacing: 30.5mm x 30.5mm

Cables:
Cable: 10cm
Antenna: 10cm
Coaxial Cable: 8cm

Power Input and Consumption:
Voltage Range: 7.4V – 25.2V
Power Consumption:
20MHz Mcs1 (4Mb): 10–12W
20MHz Mcs2 (4Mb): 9.5–11W

Communication:
Frequency: 5.18 – 5.845GHz
Transmit Power: MAX 33dBm / 2W
Default Channel: 60

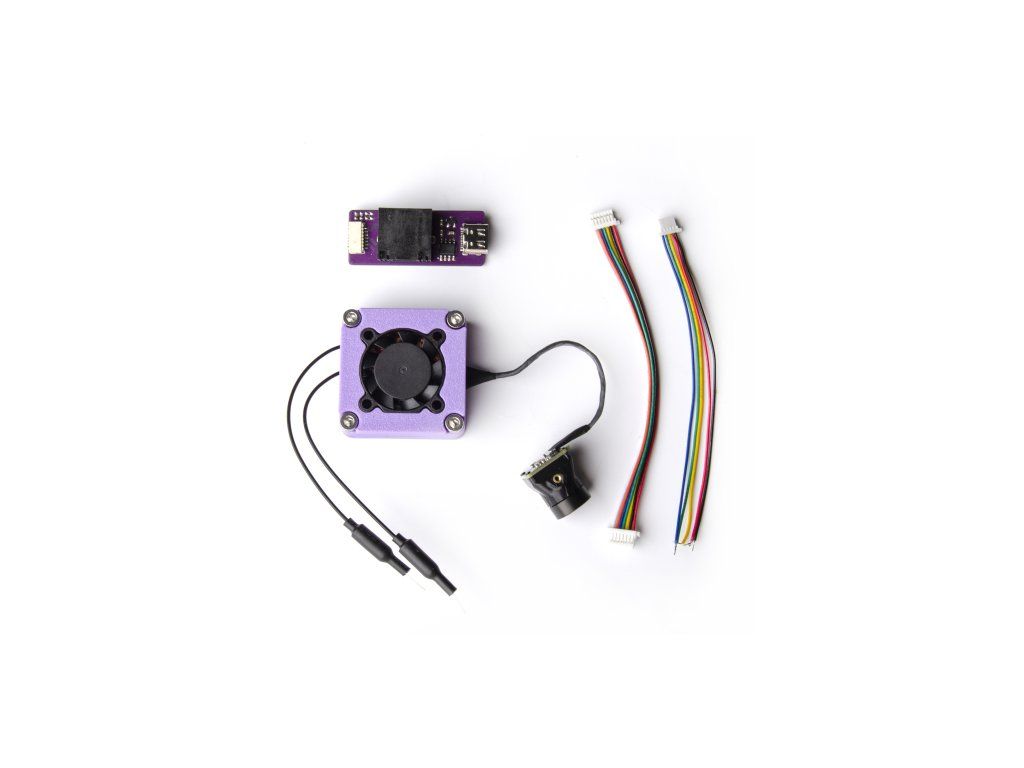

Package Includes:
1x Sky-End Module
1x Camera
2x M1.6 hex screws
2x Antenna
1x Coaxial Cable
1x 5-Pin Cable
1x 7-Pin Cable

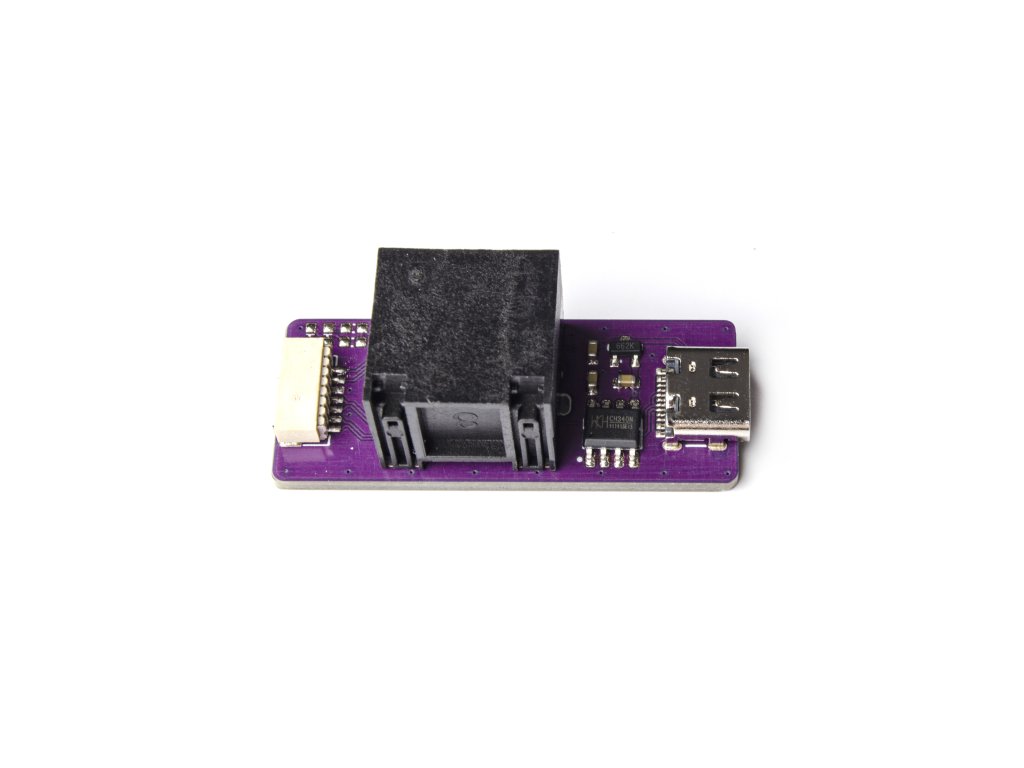

1x Debug serial port, network port adapter module
