VRX iFlight 4.9G/5.8G Goggle Receiver Module Set (For FatShark)

Opis szczegółowy produktu

4.9G/5.8G Goggle Receiver Module Set (For FatShark)

The cutting-edge 4.9-5.8G VRX Goggle Receiver Module is designed specifically for FATSHARK Goggles.

Specifications:
Receiving Frequency: 56CH (4990MHz to 5945MHz)
RX Sensitivity: -95dBm
Input: 5V/2.54 9 PIN socket, compatible with FATSHARK Goggles
Current Consumption: 0.3A @5V
Channel LED: 8LED
Band LED: 7LED
Video Format: NTSC/PLA
Video Output Impedance: 75Ω, Typ.
Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
ANT. Input Impedance: 50Ω, Typ.
RF Connector: SMA

Button control: Short press to change frequency, Long press for 2 seconds to change frequency band

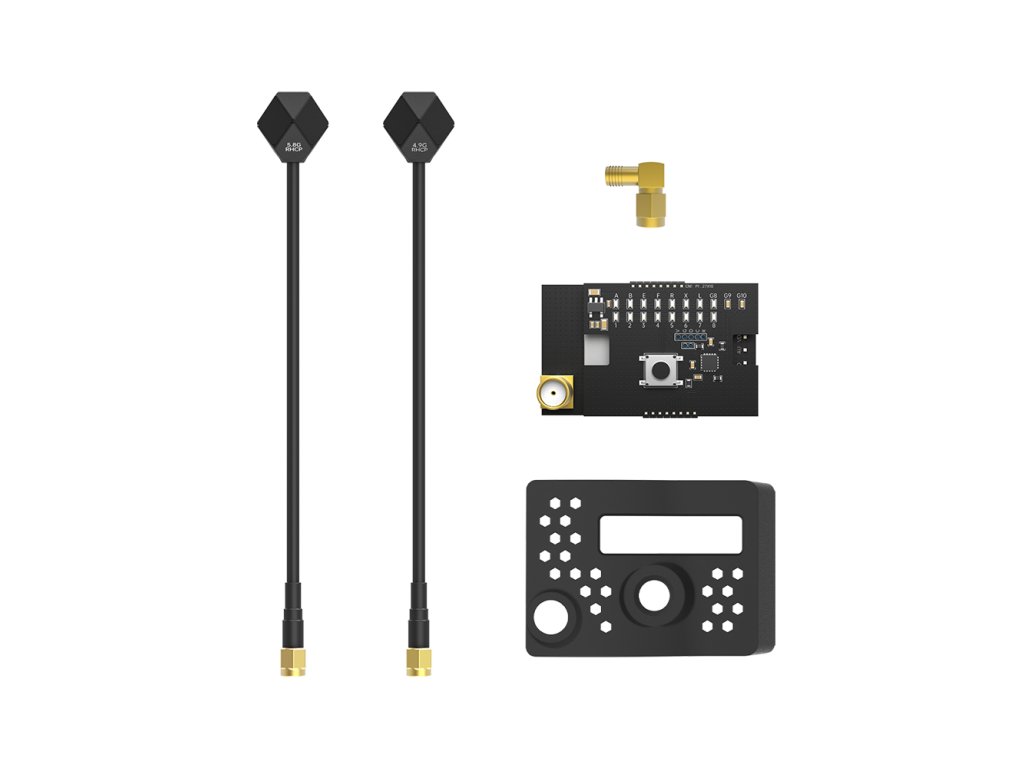

Package includes:
1 x iFlight 4.9-5.8G VRX
1 x iFlight 4.9-5.8G VRX shell
2 x 4.9G / 5.8G Albatross SMA Antennas
1 x SMA Male to SMA Female Adapter
