Motor BETAFPV 0702SE 25000KV(4PCS)

Opis szczegółowy produktu

0702SE 25000KV Brushless Motors (4PCS)

Features

- The 0702SE motors are designed for lightweight 65mm whoop drones

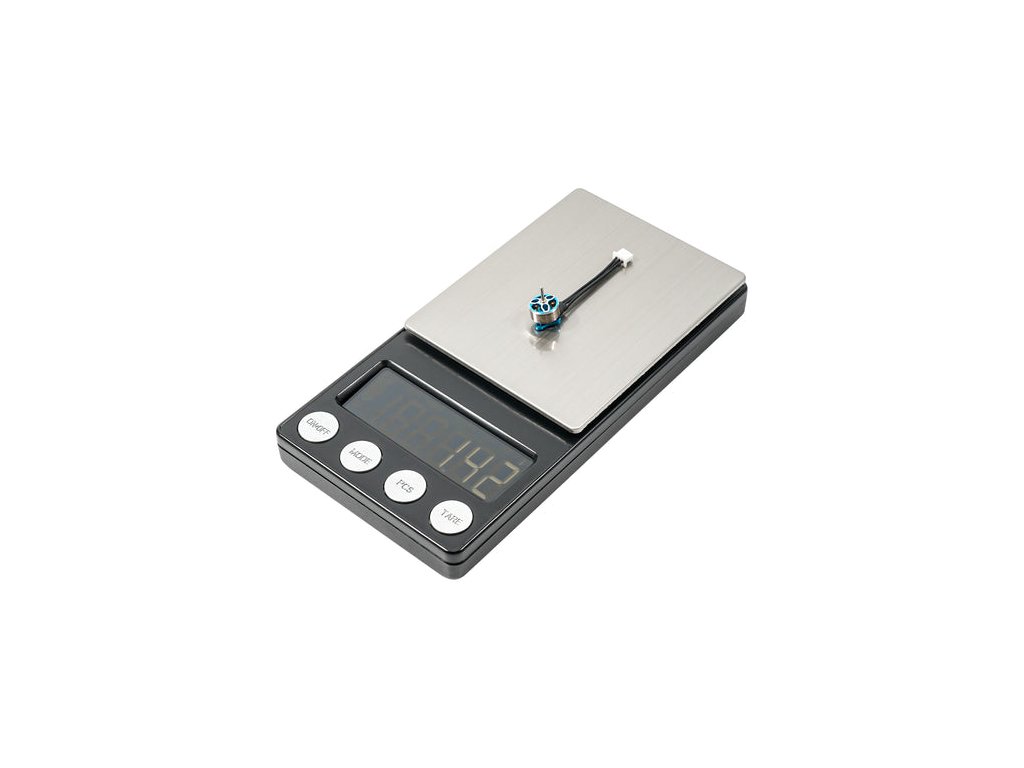

- Weighing just 1.42g, making them the lightest motors available.

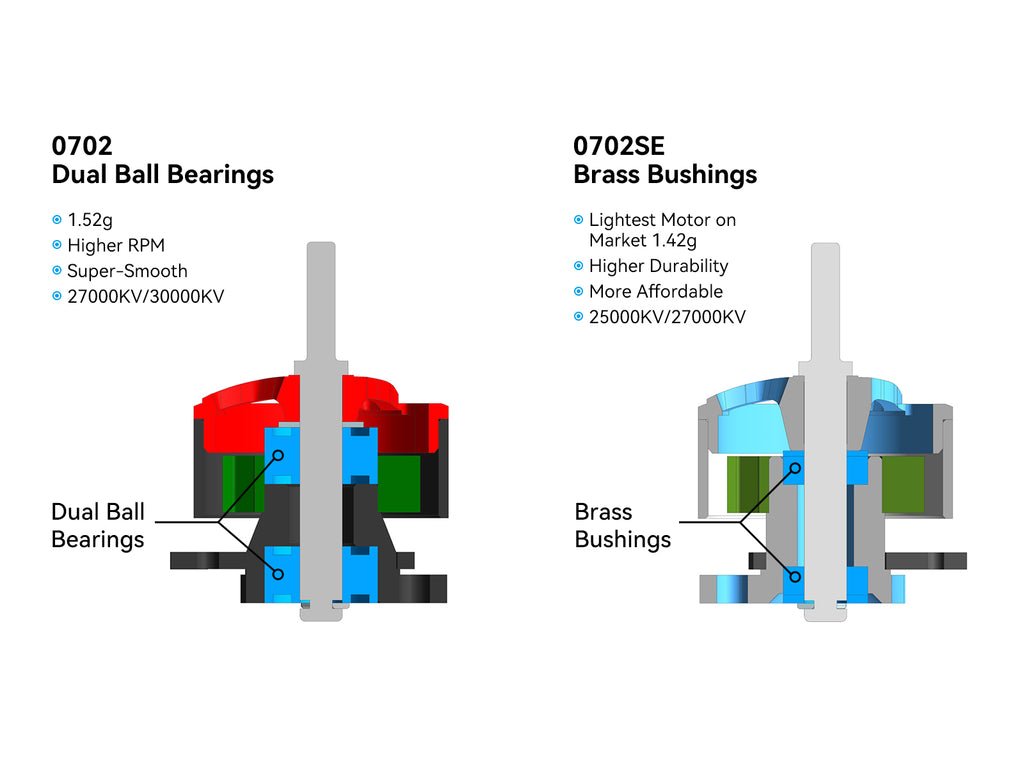

- The 0702SE motor with brass bushings is more affordable and durable.
- Despite the availability of larger motors achieving similar thrust, the 0702 motors are preferred for their ability to reduce weight away from the center of gravity, enhancing agility.
- PEEK screws, weighing only 0.10 grams/12pcs, contribute to weight savings and offer heat resistance, anti-friction, anti-shock, and anti-fatigue properties.
- Combined with Gemfan 1210 2-blade or 1208 3-blade propellers, these motors deliver robust power and responsiveness, meeting the demands of lightweight whoop drone installations.

Specifications

Item: 0702SE Brushless Motors
Bearing: Brass Bushings
KV: 25000KV
Weight: 1.42g±0.03g
Weight Without Connector: 1.35g
Color: Ice Blue
Shaft Diameter: 1mm
Shaft Length: 4.2mm
Hole Distance: 6.6mm
Motor Mount Holes: M1.4
Input Voltage: 1S
Cables: 35mm including connector, 30AWG cables
Dimensions: 12.75*φ9mm

Recommended Parts

Propellers: GF 1210 2B Props, GF 1208 3B Props
Frame: Meteor65 frame, Meteor65 Pro frame
FC: F4 1S 5A AIO Brushless Flight Controller
Battery: BT2.0 300mAh 1S 30C Battery (8PCS)
Screws: Meteor Series Motor Fixing Screws Pack

Package

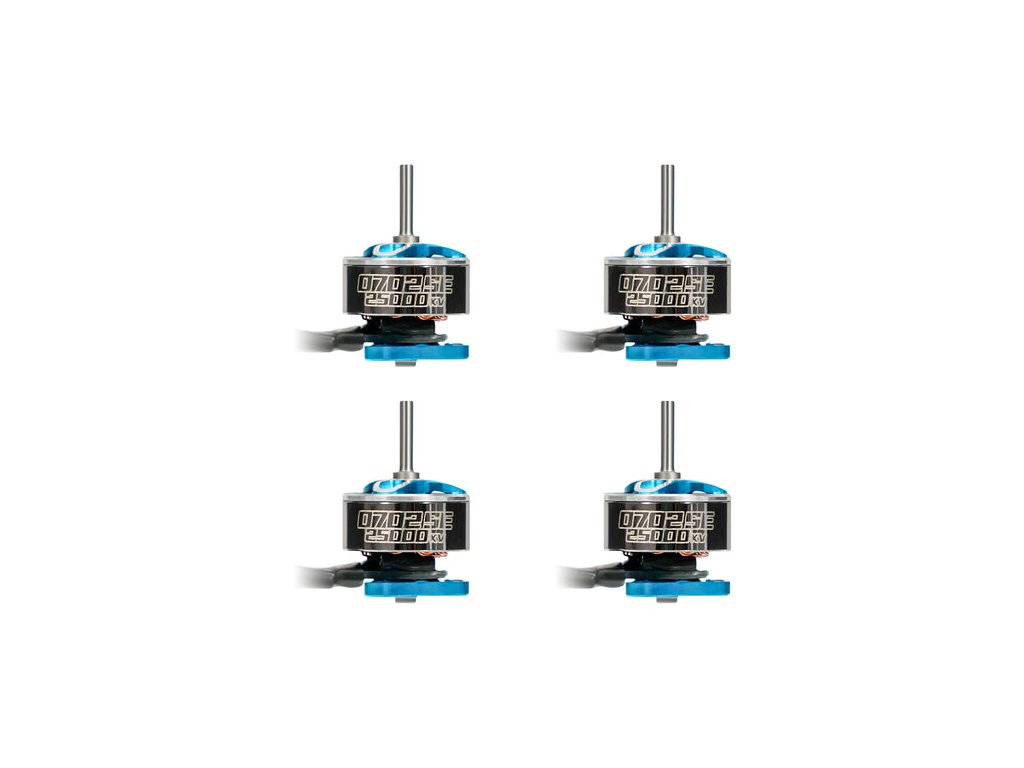

4 * 0702SE brushless motor 25000KV
15 * M1.4*3 PEEK screws
12 * M1.4*3 metal screws
