HD system SIYI MK32 Air Unit Dual

Product detailed description

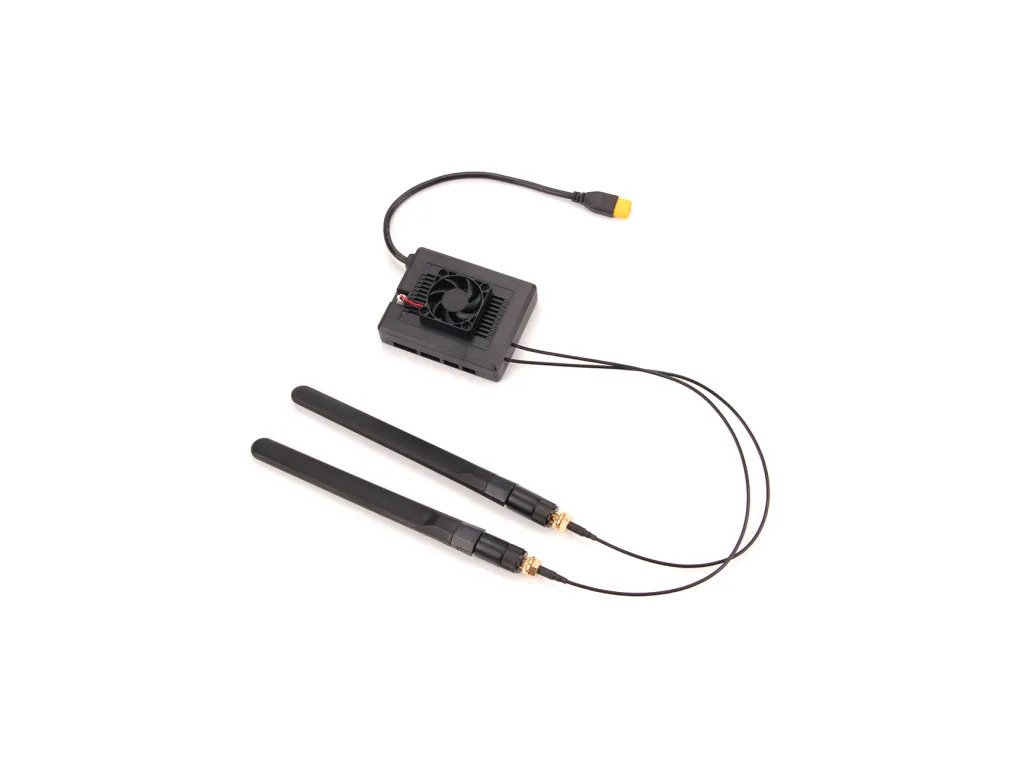

SIYI MK32 Dual Air Unit is a high-tech module for unmanned aerial systems, designed to ensure reliable long-range video and telemetry transmission. Fully compatible with the MK32, HM30, and MK15 systems, it offers a versatile solution for a wide range of professional applications. Ideal for advanced UAV systems used in aerial photography, monitoring, inspections, and other scenarios where stable long-distance video and data transmission is critical.

Key Features:

Flight Controller Compatibility: Supports PIX-type flight controllers
Antennas: Standard omnidirectional antenna with 5 dBi gain
Transmission Security: Supports encryption for data protection
Interference Resistance: Maintains a stable connection even in high-interference environments

Specifications:

Transmission Range: Up to 30 km
Video Quality: Full HD 1080p
Latency: Approx. 150 ms
Output Signals: 16 S.BUS channels, 5 PWM channels
Interfaces:
- S.BUS: 3-pin
- Datalink to FC: 4-pin UART
- PWM Channels 1–5: 6-pin
- Video Input: 8-pin Ethernet
- Firmware Update: USB Type-C
Power Supply: 11–16.8 V (expandable to 4S–18S via BEC)
Dimensions: 70 × 55 × 16 mm (without antenna, with fan)
Weight: 74 g (without antenna)
Operating Temperature: -10°C to +50°C

Package Includes:

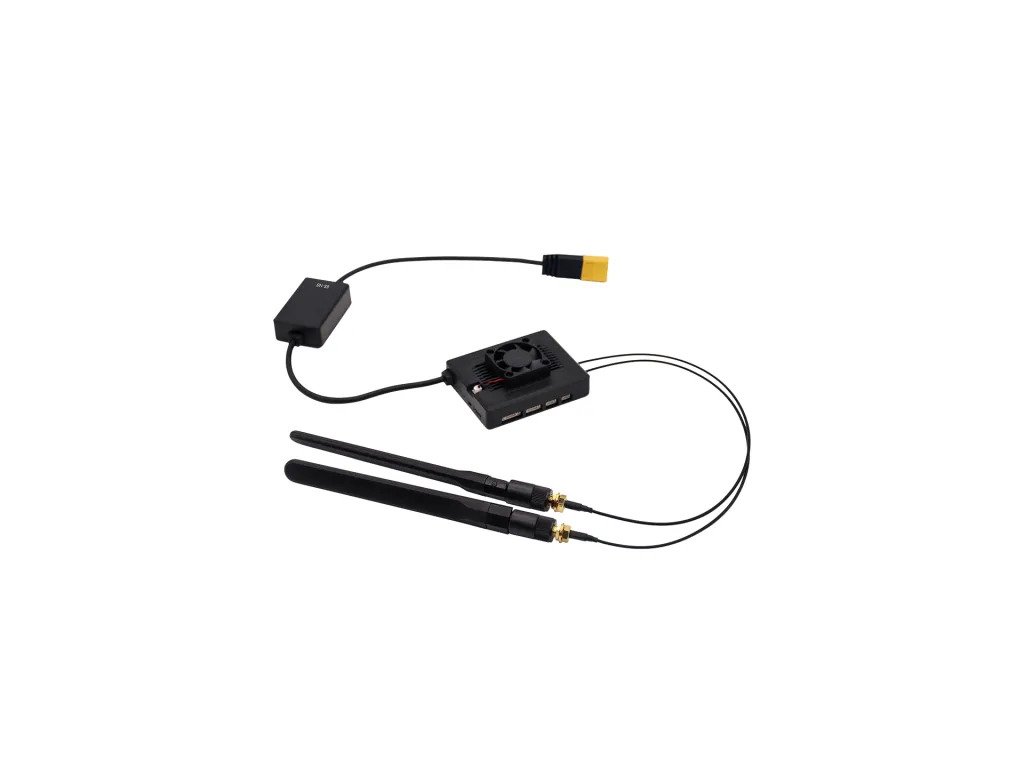

1× Dual Air Unit
1× 4S–18S BEC Module
