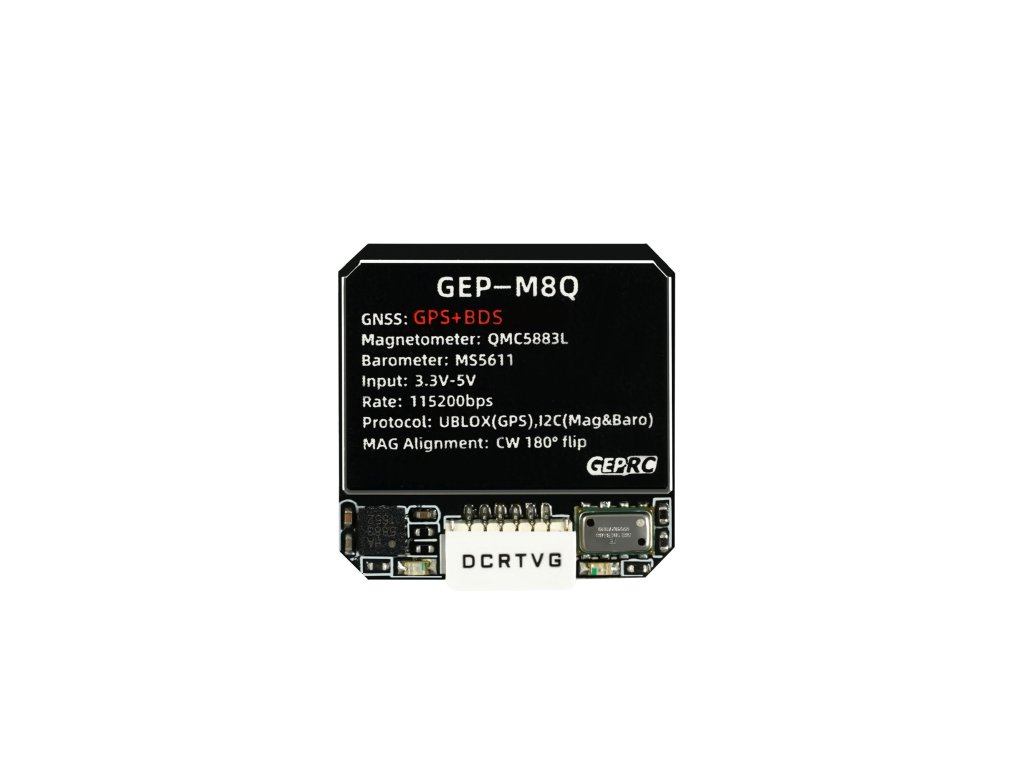

GPS Module GEPRC GEP-M8Q (+ BDS)
Code: GP105784Product detailed description

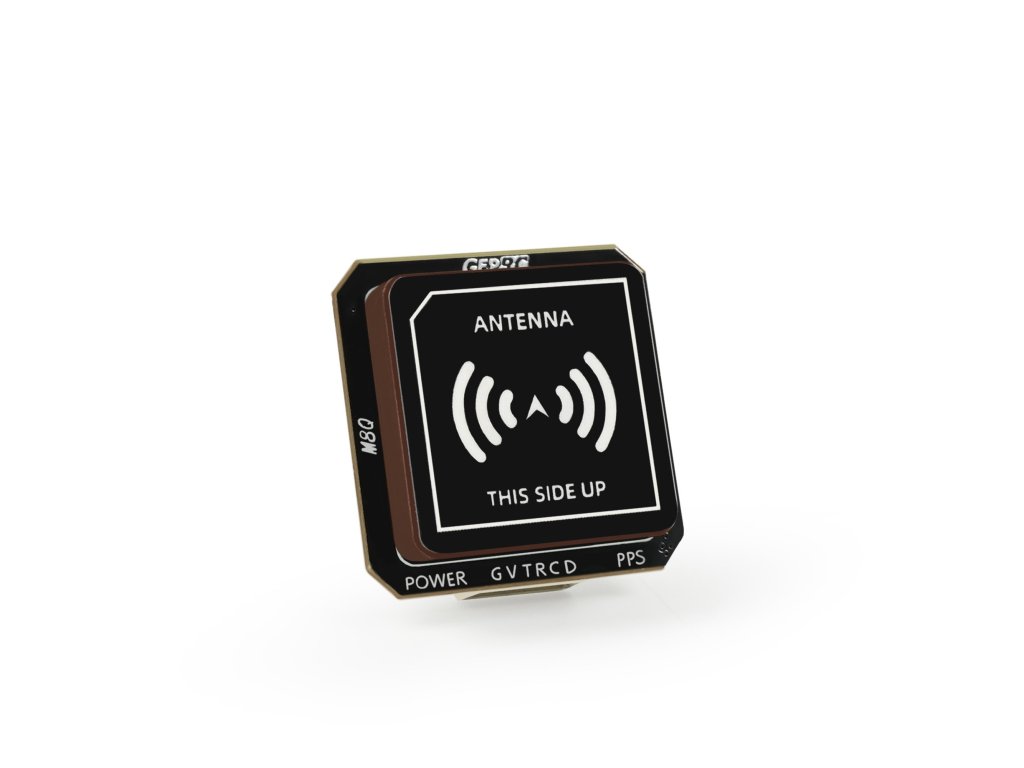

GEPRC GEP-M8Q GPS Module (+ BDS) Integrated multi-functional GPS positioning module GEP-M8Q based on the GEP-M8U. Has a small size, fast positioning, stable connection, and is easy to use. The right circularly polarized patch antenna provides excellent reception capability. Built-in QMC5883L high-precision magnetometer provides accurate azimuth pointing. Integrated MS5611 high precision barometer, subtle altitude changes are not to be missed, more stable flight. Ideal for use on FPV drones, multi-rotor, fixed-wing, and other model products. Specifications Model: GEP-M8Q GPS module Input Voltage: 3.3V-5V Receiving Format: GPS + BDS Channel: 72ch Compass: QMC5883L Barometer: MS5611 Baud Rate: 115200bps Output Connector: SH1.0-6P Communication Protocol: UBLOX(GPS), I2C(Mag&Baro) Output Frequency: 10Hz MAG Alignment: CW 180° flip Speed Accuracy: 0.05 m/s Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M Timing Accuracy: 30 ns Receiving Sensitivity: Trace -162dBm, Capture-160dBm Dynamic Characteristics: Max Height: 50000m, Max Speed: 500m/s Max Acceleration: 4G Size: 22mm x 22mm x 8.5mm Weight: 8g
