FPV camera NewBeeDrone + CADDX NANO ANT1200TVL for BLV5

Detailní popis produktu

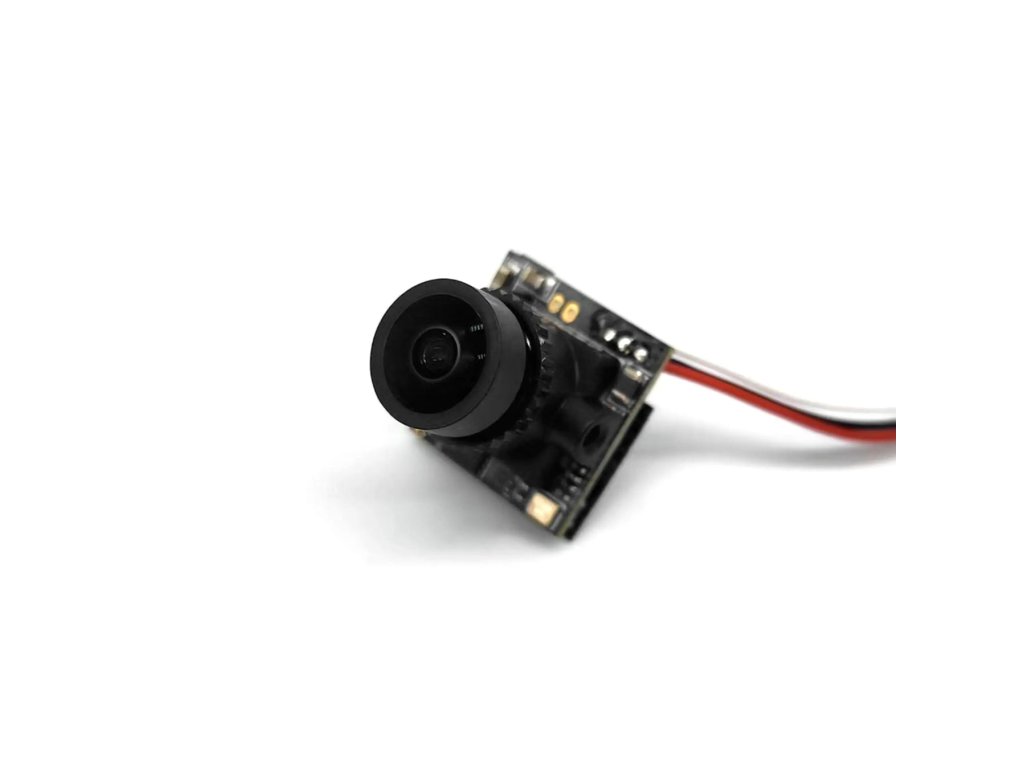

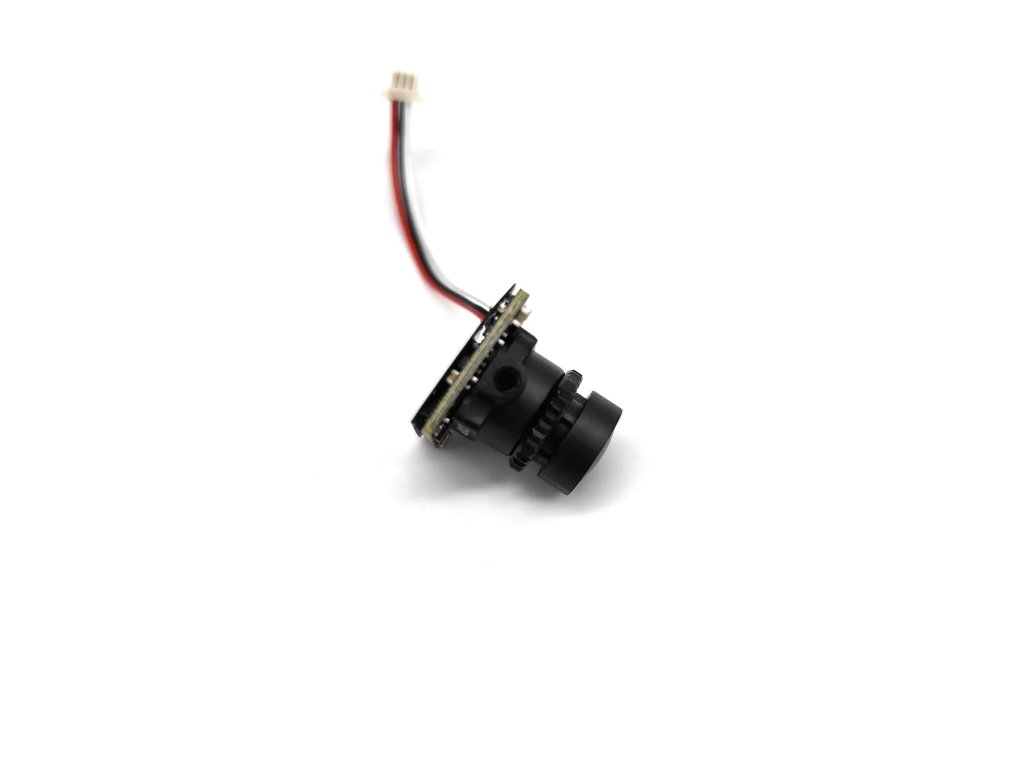

FPV camera NewBeeDrone + CADDX NANO ANT1200TVL for BLV5 - Plug-and-Play Replacement

The NewBeeDrone + CADDX Nano ANT Camera is the ultimate replacement camera for AcroBee BLV5 BNF drones, offering enhanced image quality and seamless integration. Designed specifically for the BeeBrain BLV5 AIO flight controllers, this camera comes with a pre-installed JST0.8 3-pin connector for effortless plug-and-play installation.

Upgraded from the Runcam Nano 4, the CADDX Nano ANT Camera delivers sharper visuals with its 1200 TVL resolution. Featuring a 1/3” CMOS sensor, global WDR, and 3D DNR, it excels in both bright and low-light conditions, ensuring clear and vibrant FPV footage. Lightweight at just 2g and compatible with 16:9 or 4:3 aspect ratios, this camera is perfect for all AcroBee BLV5 pilots.

Specifications:

Model: Caddx Ant
Image Sensor: 1/3” CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
Menu Control: Supported
Aspect Ratio: 16:9 or 4:3 (Switchable)
Synchronization: Internal
Electronic Shutter: PAL: 1/50100,000; NTSC: 1/60100,000
Signal-to-Noise Ratio (S/N): >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Minimum Illumination: 0.001Lux@F1.2
Auto Gain Control (AGC): Yes
Backlight Compensation (BLC): Yes
Wide Dynamic Range (WDR): Global WDR
Digital Noise Reduction (DNR): 3D DNR
Dimensions: 14mm x 14mm (with bracket: 19mm x 19mm)
Power Input: DC 3.7V-18V
Operating Temperature: -20°C to 60°C
Operating Humidity: 20%~80%
Weight: 2g
Connector: JST0.8 3-Pin (Pre-installed for plug-and-play with BeeBrain BLV5 AIO flight controllers)

Package includes:
1x FPV camera NewBeeDrone + CADDX NANO ANT1200TVL for BLV5 - Plug-and-Play Replacement
