Motor iFlight XING2 2207 Unibell 2755KV

Product detailed description

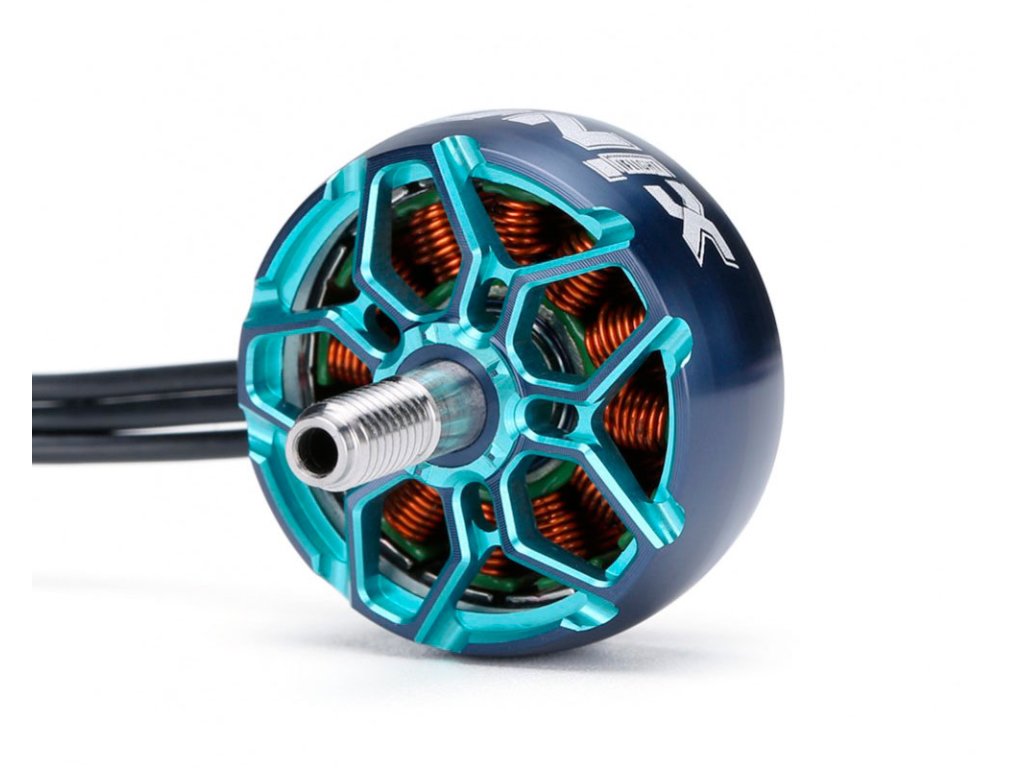

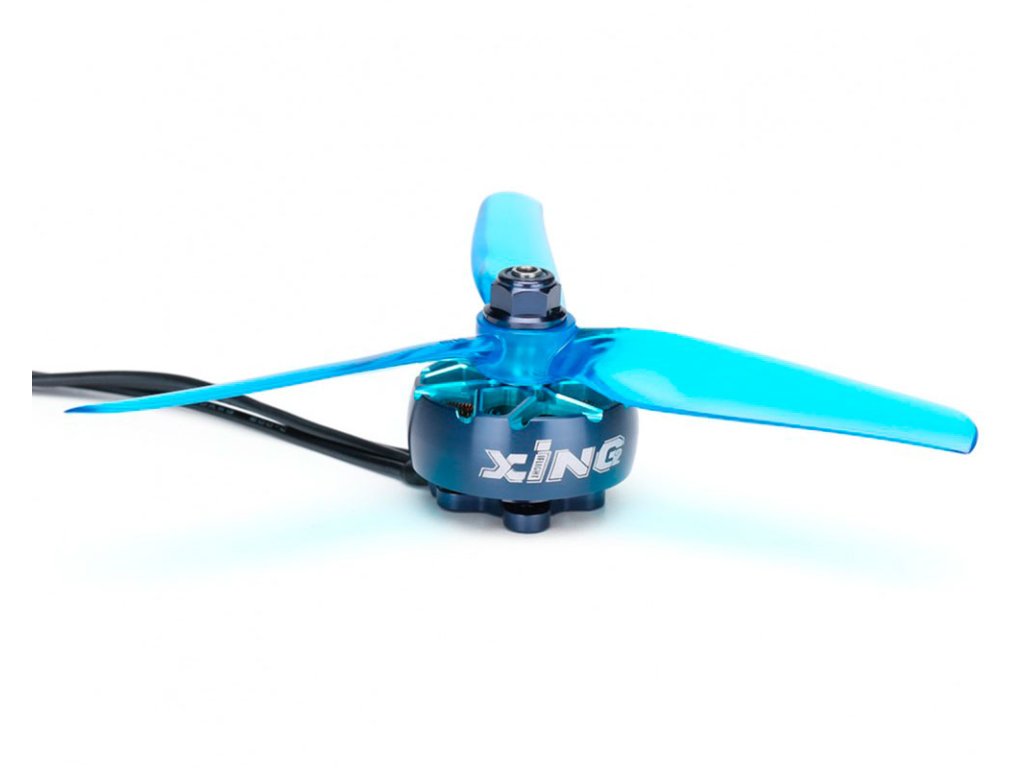

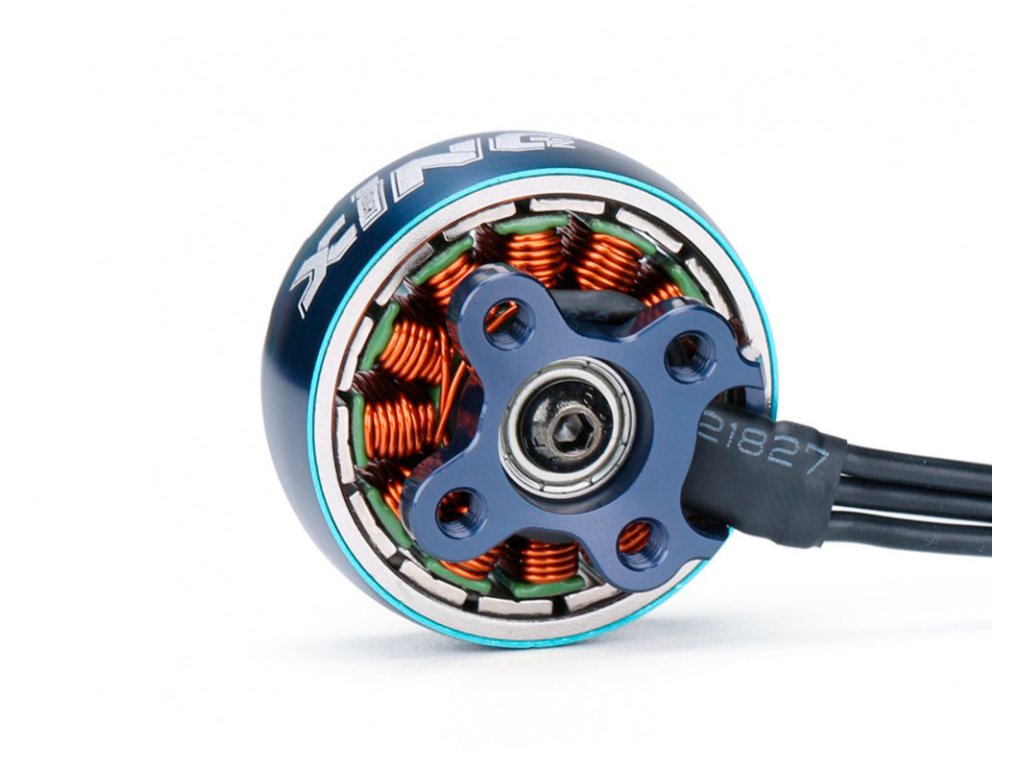

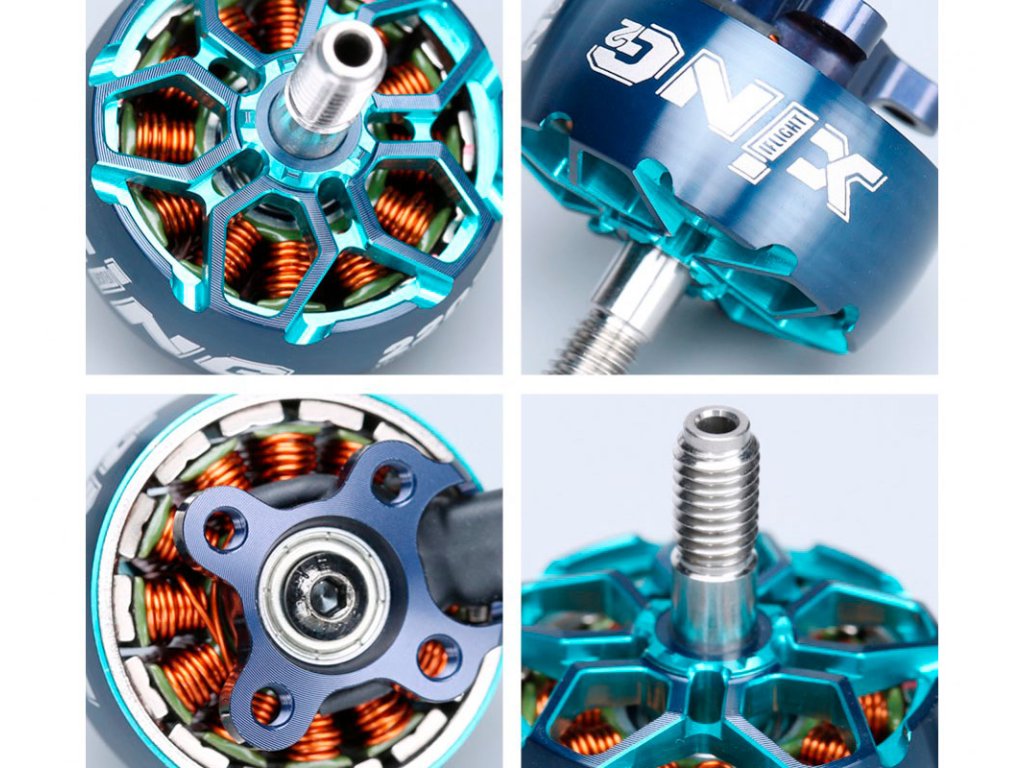

XING2 2207 FPV Motor Unibell 2755KV

Features:

- 5mm titanium alloy shaft
- Crash-resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center-slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wire protector
- Dynamically balanced

Specifications

KV: 2755KV

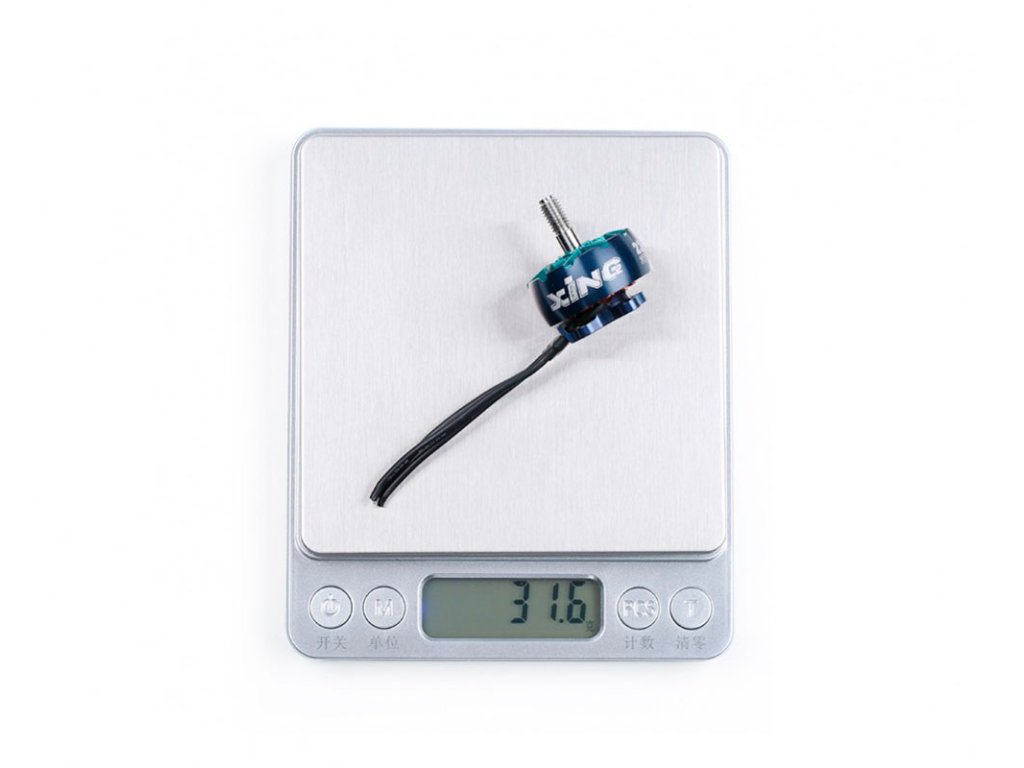

Weight (included wire): 31.6g
Dimension: φ29.08*19.1mm
Interphase Resistance: 41.5mΩ
Input Voltage: 4S Lipo, 16V
Peak Current: 40.35A
Max Watt: 645.60W
Mounting Holes: 16*16 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding

Package includes:
1 x XING2 2207 2755KV Brushless Motor
4 x M3*7 screws
1 x M5 Flanged Nylon Insert Lock Nut
