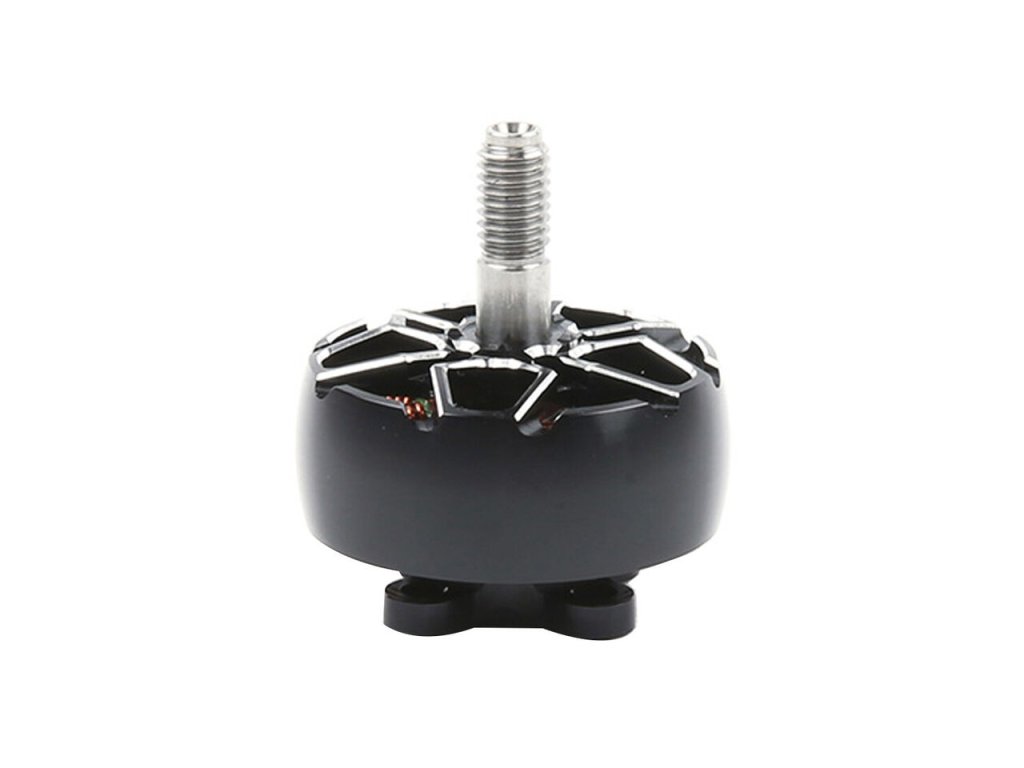

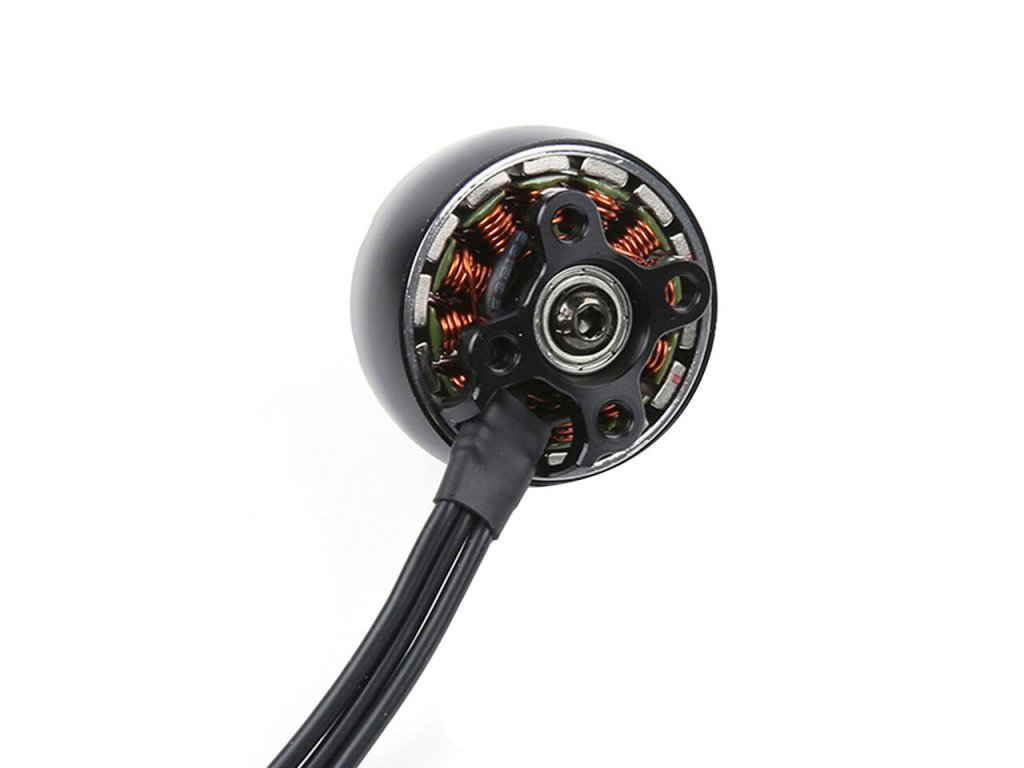

Motor iFlight XING2 2207 Unibell 2750KV (4S)

Product detailed description

XING2 2207 FPV Motor Unibell 2750KV (4S)

Features

- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

Specifications:
KV: 2750KV
Weight(included wire): 30.5g
Dimension: φ29*19.25mm
Interphase Resistance: 74.23mΩ
Input Volts: 16.8V
Peak Current: 46.05A
Max Watt: 706.9W
Mounting Holes: 16*16 φ3mm
Rotor Specifications:  Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding

Package includes:
1 x XING2 2207 Black Brushless Motor
4 x M3*7 screws
1 x M5 Flanged Nylon Insert Lock Nut
