Motor iFlight XING2 1404 Unibell 3000KV

Product detailed description

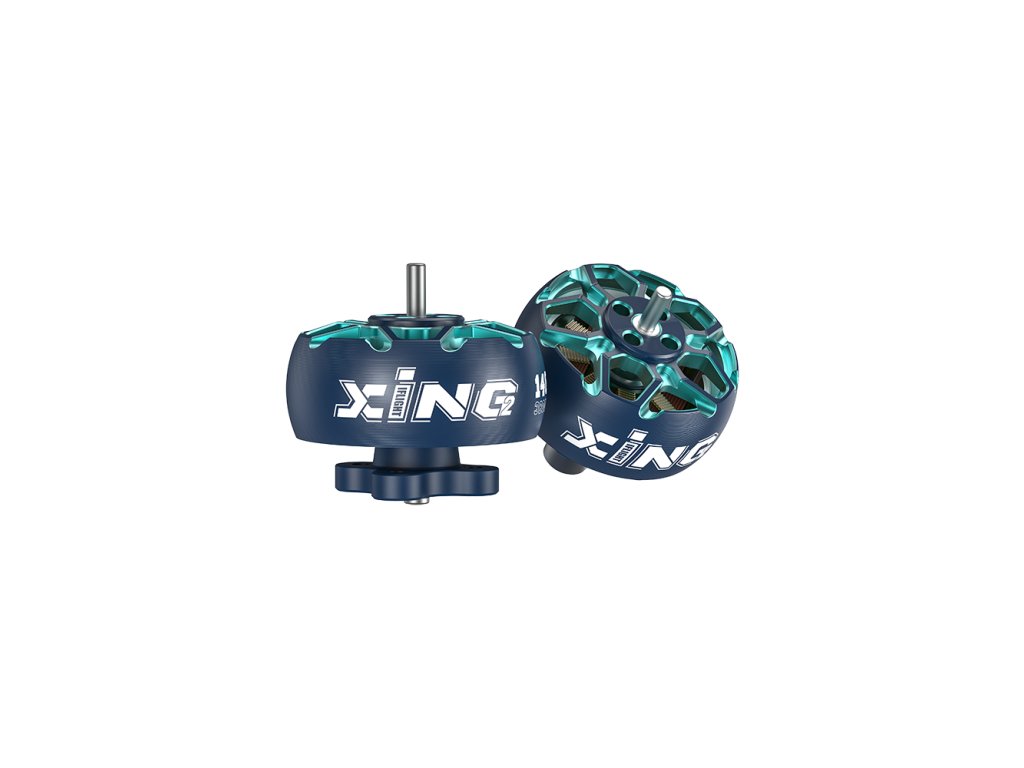

XING2 1404 FPV Motor Unibell 3000KV

The new MOTOR XIN2 X1404 is designed for ultralight toothpick drones. Featuring center-slotted N52H curved arc magnets, these motors deliver faster response times, reducing translation delay during braking and acceleration. This enhancement ensures a quicker PID loop translation, providing a more locked-in feeling for FPV pilots. Additionally, with high-quality materials and a durable bell and shaft joint, we've minimized magnet air gap and stator lamination, resulting in increased efficiency and power output.

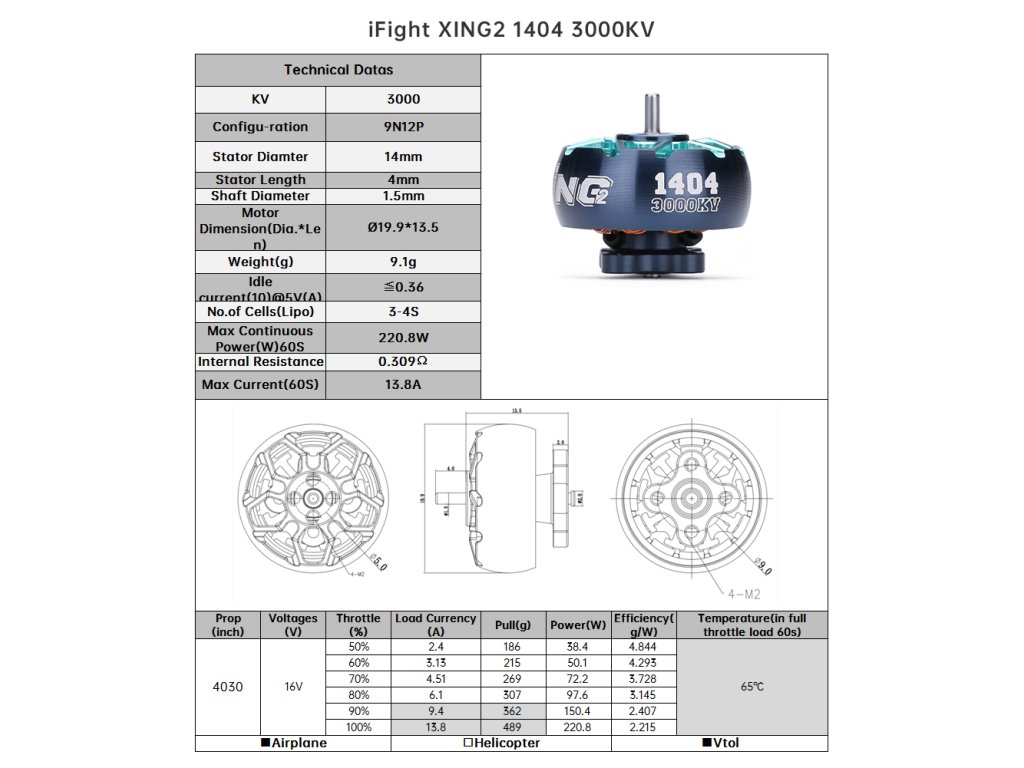

Specifications:

KV: 3000KV
Weight(included wire): 9.1g
Dimension: φ19.9*13.5mm
Interphase Resistance: 0.309Ω
Input Volts: 3S-4S
Peak Current:  13.8A
Max Watt: 220.8W
Mounting Holes: 9*9 φ2mm
Rotor Specifications:  Unibell
Lead: 120mm/26AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NSK
Winding: Single Strand copper winding

Package includes:
1 x XING2 1404 Motor Unibell
4 x M2x7 mounting screws
