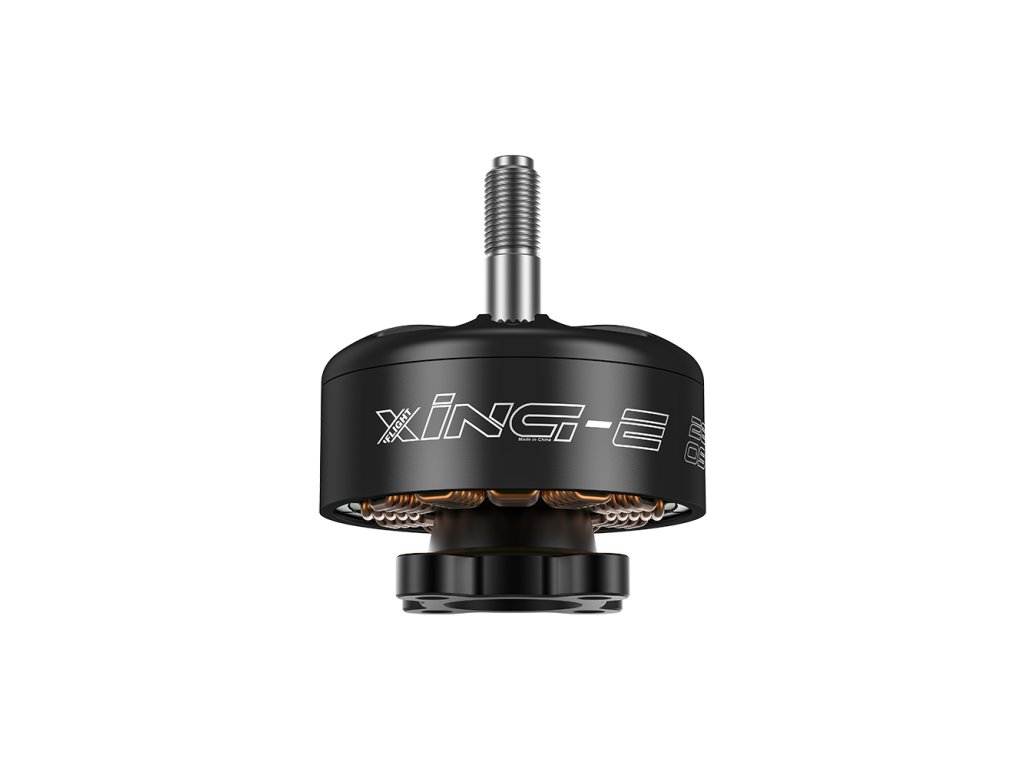

Motor iFlight XING-E 2809 Cinelifter Motor 1250KV

Code: XE14992
Not rated
Brand: iFlight
€35,20 €29,09 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

XING-E 2809 Cinelifter Motor 1250KV

Features
- High-strength 5mm Steel shaft
- N52H High-temperature magnets
- 19x19mm hole pattern
- Single strand copper winding

Specifications:

Model: XING-E 2809 Motor
KV: 1250KV
Weight(included wire): 60.4g
Dimension: φ33.2*23.8mm
Interphase Resistance: 65mΩ
Input Volts: 24V
Peak Current: 42.23A
Max Watt: 1147.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding

Package Includes:
1 x XING-E 2809 Brushless Motor
4 x M3x10 screws
1 x M5 Flange Nut

Additional parameters

Category: FPV Drone Motors
Motor KV: 1250KV
Motor Size: 2809
Power Supply: 6S
Shaft Diameter: 5mm
Type: Brushless
