Antenna TrueRC X2-AIR 5.8 MK II pair for DJI FPV (combo) LHCP

Product detailed description

X2-AIR 5.8 MK II pair for DJI FPV (combo) LHCP

Improved 13dBic gain and massive combined beam width of 180deg, yield an amazing flight experience in the toughest conditions. Most compact antennas of this gain level at only 15mm thickness, letting you leave them on at all the time without fear of breaking them. The included double-sided foam tape give a solid bound to your goggles’s face plate and install in minutes. Custom made RP-SMA connectors, fit the DJI FPV goggles perfectly.

Features:
- Circularly Polarized
- Sector type beam shape (widest on horizontal)

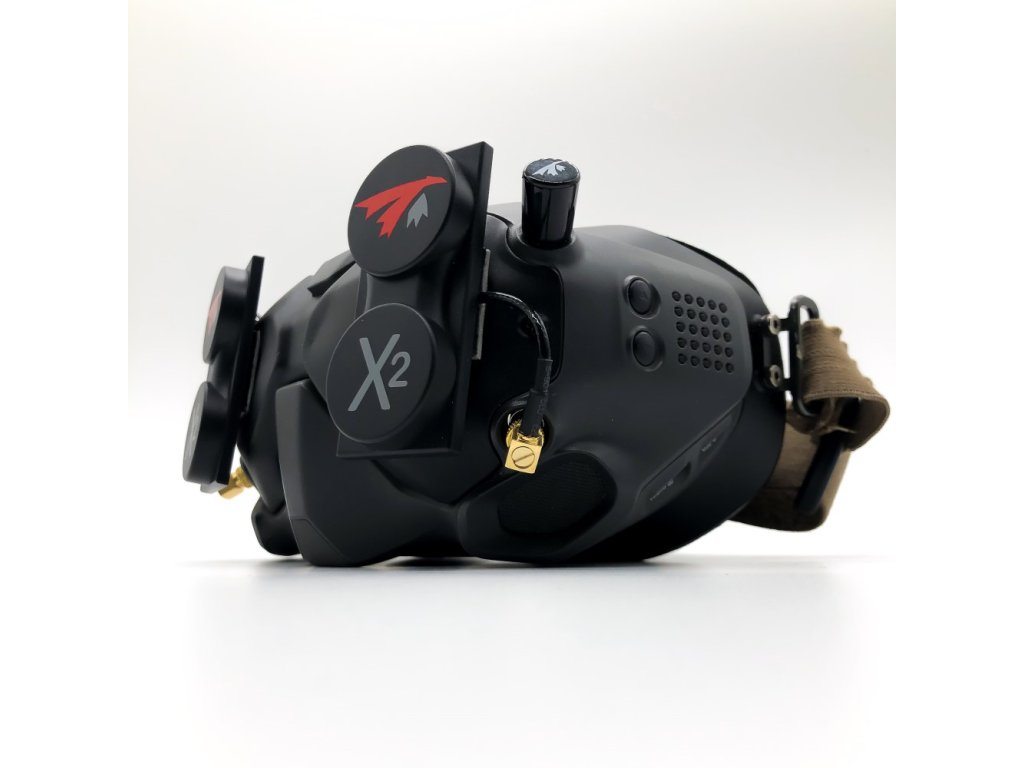

- Mount direct on DJI faceplate with included adhesive backing
- Compact low-profile design on your goggles, easy to store and transport
- High 13 dBic for unsurpassed long range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHzband
- Super wide 150 degree beam for each antenna combining to 180deg beam width
- Custom knurled RP-SMA connectors
- Highly compact included stubby antennas for combined directional and omnidirectional coverage

Specs (X²-air):
Bandwidth: 5.1GHz-7.0GHz
Gain: 13 dBic
Polarization: LHCP
Beam-width Horizontal*: 150deg
Beam-width Vertical*: 62deg
Hor. beam @-3dB**: 75deg.
Vert. beam @-3dB**: 34deg.
Connector: Custom knurled RP-SMA
Dimension: 72mm x 34mm x 15mm
Weight: 20g each

Include adhesive mount for installation onto DJI FPV goggles.
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.

Specs (stubby):
Gain: 1.9dbic
Polarization: LHCP
Cross-Polar Rejection: -15 to -30dB (1.9%)
Bandwidth: 5.6GHz-6.0GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Weight: 3.7 g
Size: 12.7mm x 20mm
Connector: RP-SMA

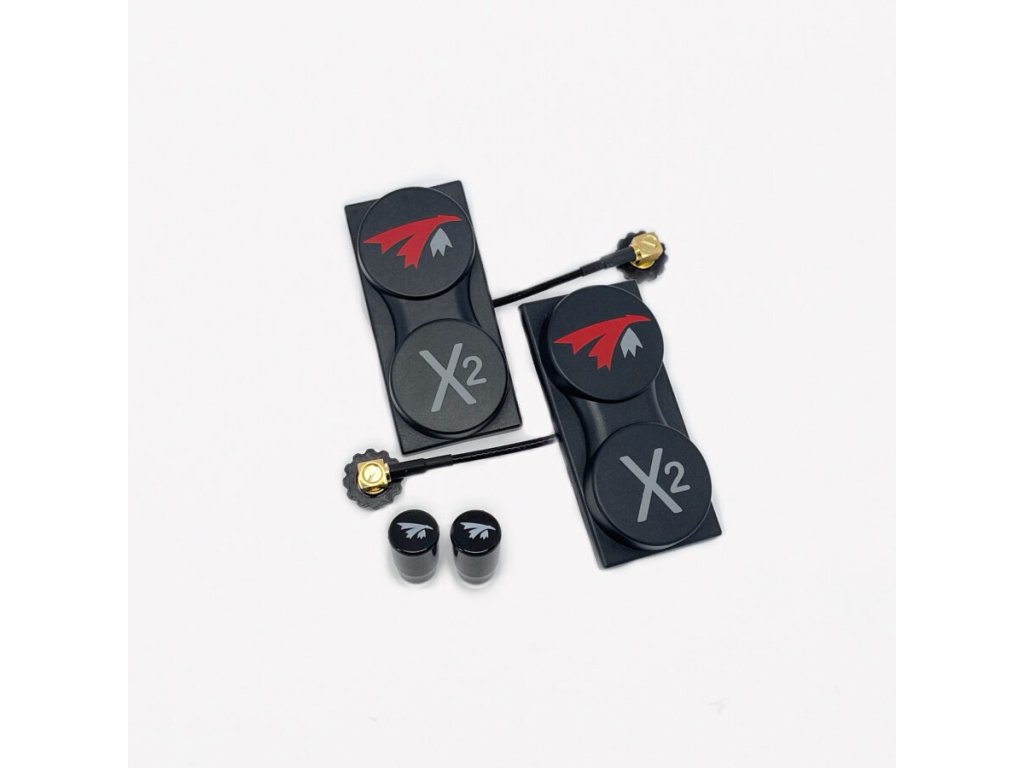

Includes:
Two X²-air MKII antennas (one for each sides).
Two Singularity stubby antennas
