Frame BETAFPV X-Knight 360

Product detailed description

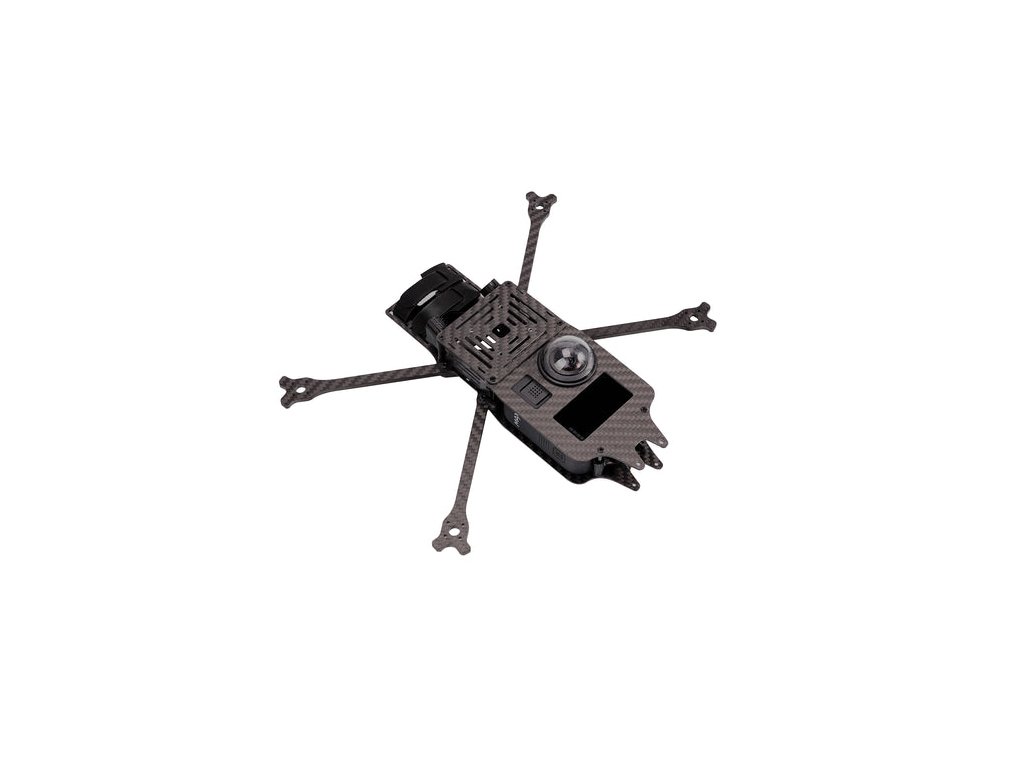

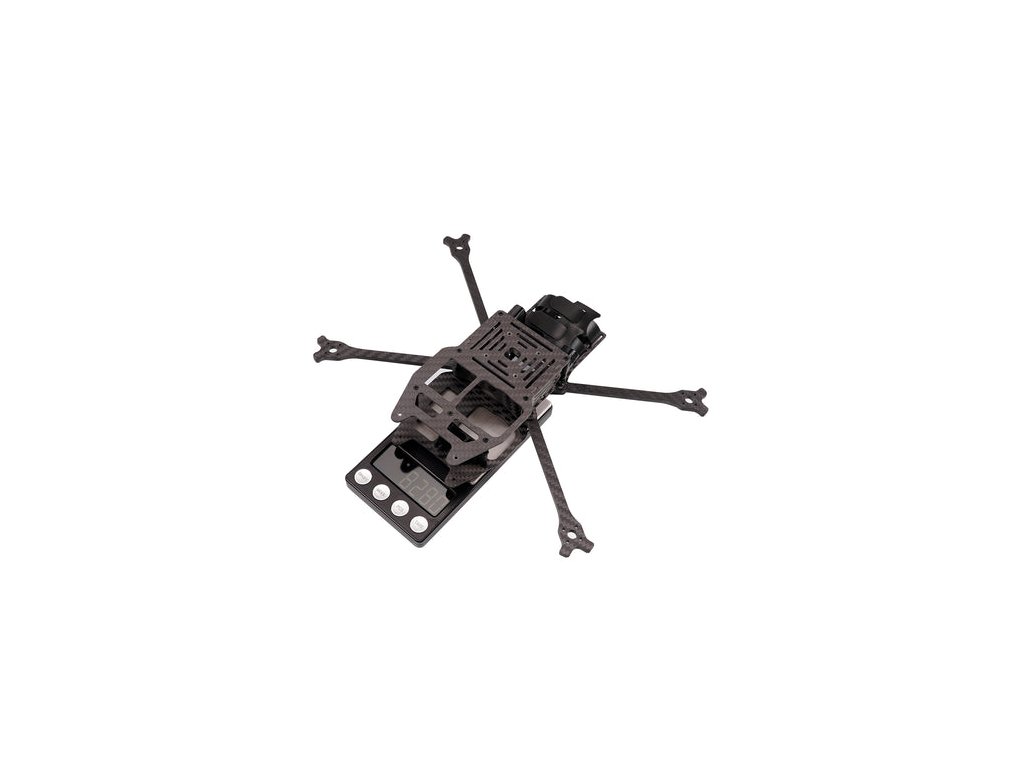

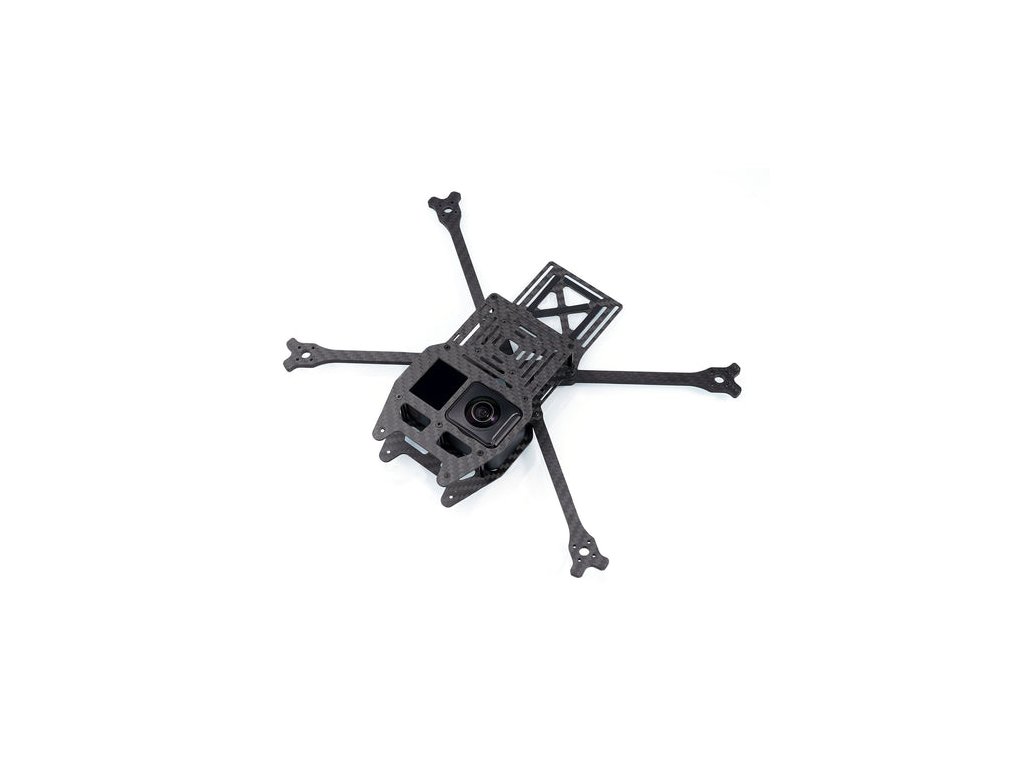

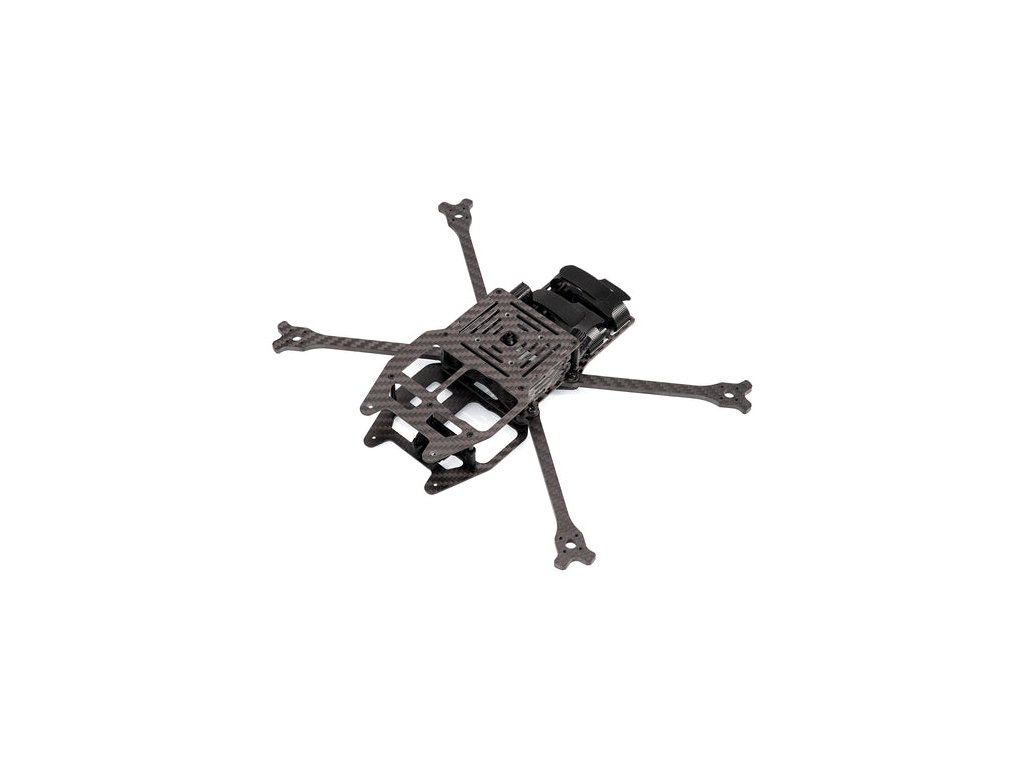

X-Knight 360 Frame kit

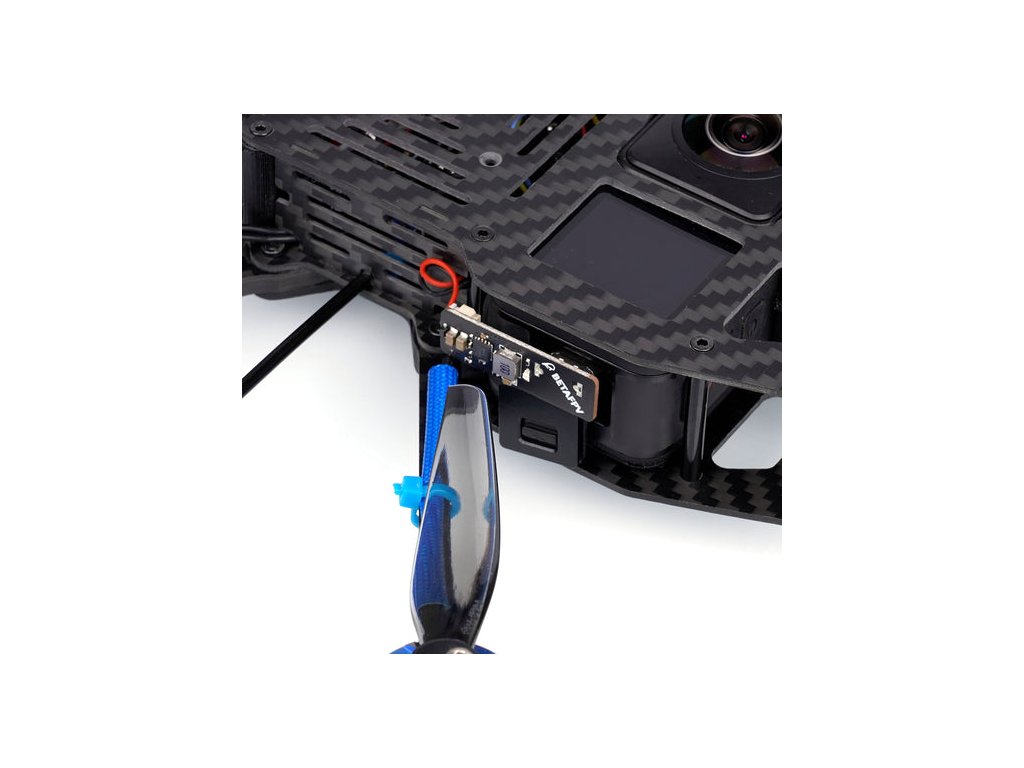

The X-Knight 360 Carbon Frame Kit is a versatile and innovative design crafted for seamless compatibility with Insta ONE R and GoPro MAX cameras. This kit allows pilots to capture immersive airborne 360 views. The lightweight yet durable carbon fiber construction ensures optimal performance, and the flat design accommodates the 360 camera, battery, and Dji digital VTX for a balanced and precise flying experience. Additionally, it includes a specially designed BEC board for a direct charge power system, reducing weight and enhancing the FPV flying experience. With this kit, pilots can build their own invisible drones like  X-knight 360 FPV Quadcopter and X-knight 360 FPV Quadcopter(HD Digital VTX).

X-Knight 360 Carbon Frame Kit can be compatible with F4 AIO 35A toothpick FC, 1000mAh 4S battery, and 2004 brushless motors, which gives pilots the option to go faster while flying with 360 cams.

Specifications:
Item: X-Knight360 Frame Kit
Material: Carbon Fiber
Wheelbase: 250mm
Weight: 82.8g
Frame height: 30mm
Top plate thickness: 1.5mm
Bottom plate thickness: 2mm
Arm thickness: 4mm
Battery-protected plate thickness: 1.5mm
Motor mounting hole: 12x12mm
FC mounting hole: 26.5mm x 26.5mm

Recommended Parts:
Camera:  Insta360 ONE R / GoPro Max
Flight Controller: F4 35A AIO Brushless FC / F722 2-6S AIO Brushless FC
Compatible Propellers: Gemfan 5125 3-Blade props / HQ 5025 3-Blade Props
Battery: 4S 1000mAh Battery
Motor: 2004 3000KV Brushless Motors
VTX: M02 5.8G VTX / A02 25-800mW 5.8G VTX

Package:

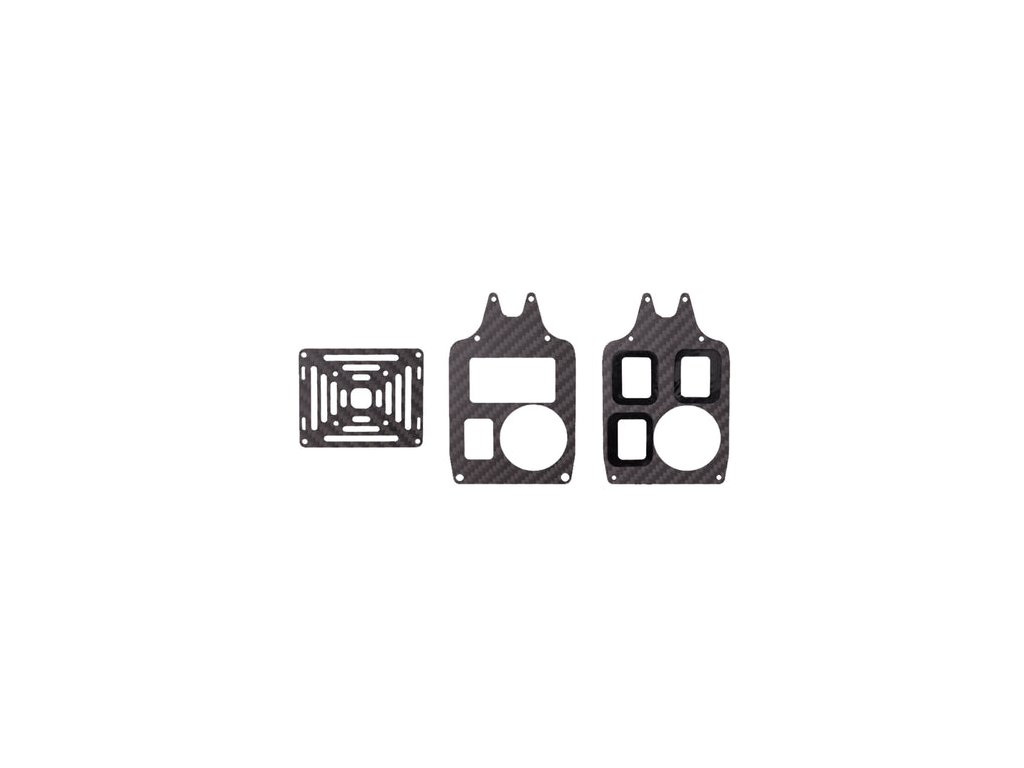

2 x Insta ONE R Top Plates
2 x Insta ONE R Bottom Plates
4 x Arms
2 x Side Plates
4 x Screw Bags
2 x Anti-slip Mats
1 x XT60 Power cable
3 x 3D Printouts
3 x Wires

Support GoPro Max Parts:
2 x GoPro MAX Top Plate
1 x GoPro MAX Bottom Plate
