VTX GEPRC RAD Tiny 5.8G 400mW
Code: GP106078Related products
Product detailed description

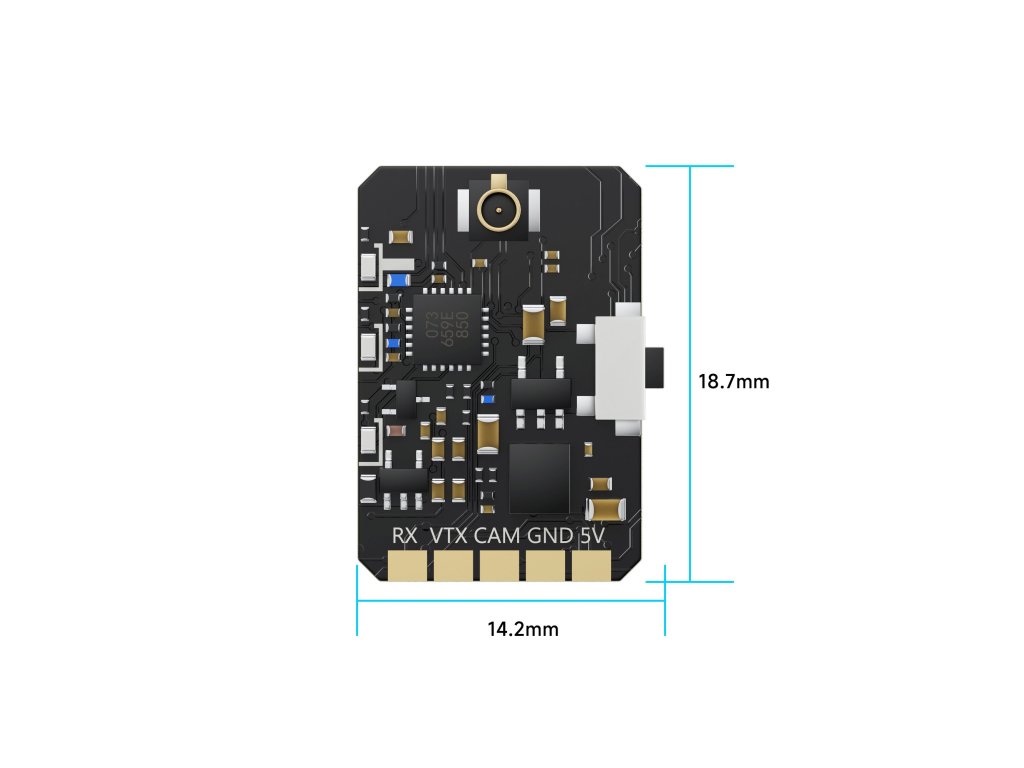

VTX GEPRC RAD Tiny 5.8G 400mW GEPRC RAD Tiny 5.8G 400mW VTX is compact and lightweight and can fit into tight spaces. It weighs only 1.1g (excluding antenna). It has 3 adjustable power levels, the maximum power is 400mW, and the signal is stable. With temperature control protection to prevent overheating and burning. IRC Tramp protocol, OSD quick parameter adjustment, one parameter adjustment button, three indicator lights, easy and fast operation. Features: - Compact size, more installation possibilities. - The 400mW power generates little heat and the signal is stable, suitable for medium and short distance flights. - With temperature control protection function to prevent high-temperature burning - DC 5V input, convenient for drawing power from the flight controller. Specifications Model: GEPRC RAD Tiny 5.8G 400mW VTX Input Voltage: DC 5V Output Voltage: 5V(Power supply 5V to camera) Input Impedance: 75Ω Control protocol: IRC Tramp Antenna: UFL Output power: 25mW/200mW/400mW/PIT MODE Channels: 48CH Video Format: PAL/NTSC Dimension: 14mmx18.5mm Weight: 1.1g (antenna not included) Package Includes: 1 x GEPRC RAD Tiny 5.8G 400mW VTX 1 x Black 1.13 copper tube antenna 1 x SH1.0-5P plug silicone cable 1 x SH1.0-3P plug silicone cable 1 x GEPRC RAD Tiny 5.8G 400mW VTX Manual
