VTX AKK FX3-Ultimate-DVR 5.8G 1W

Product detailed description

VTX AKK FX3-Ultimate-DVR

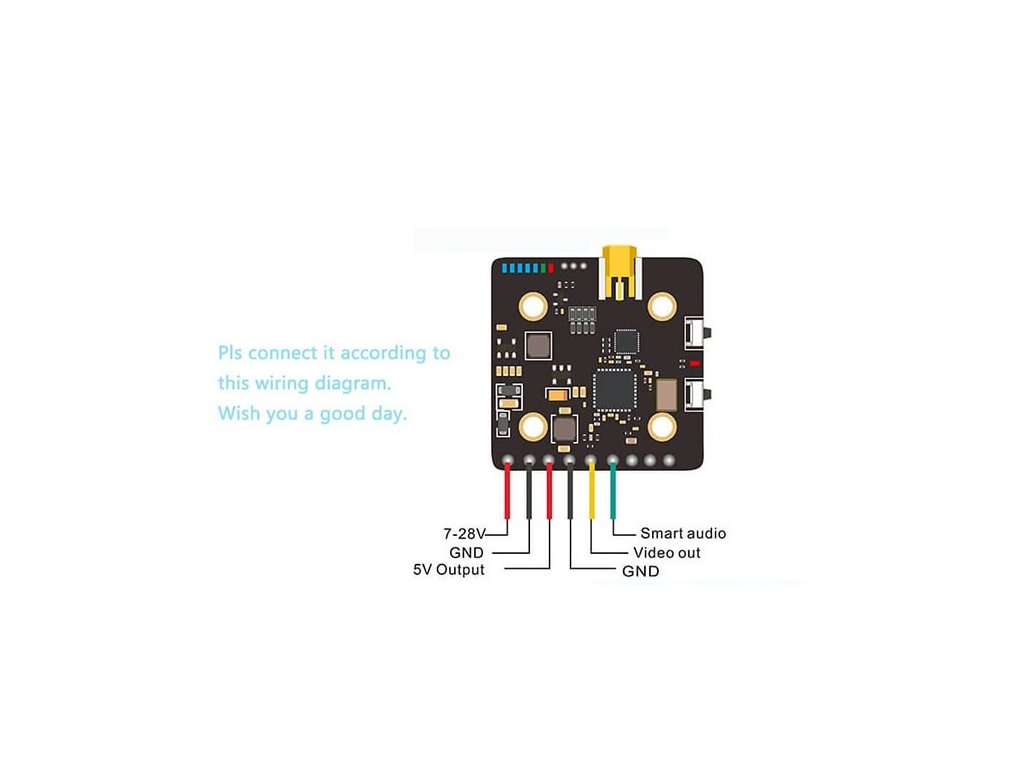

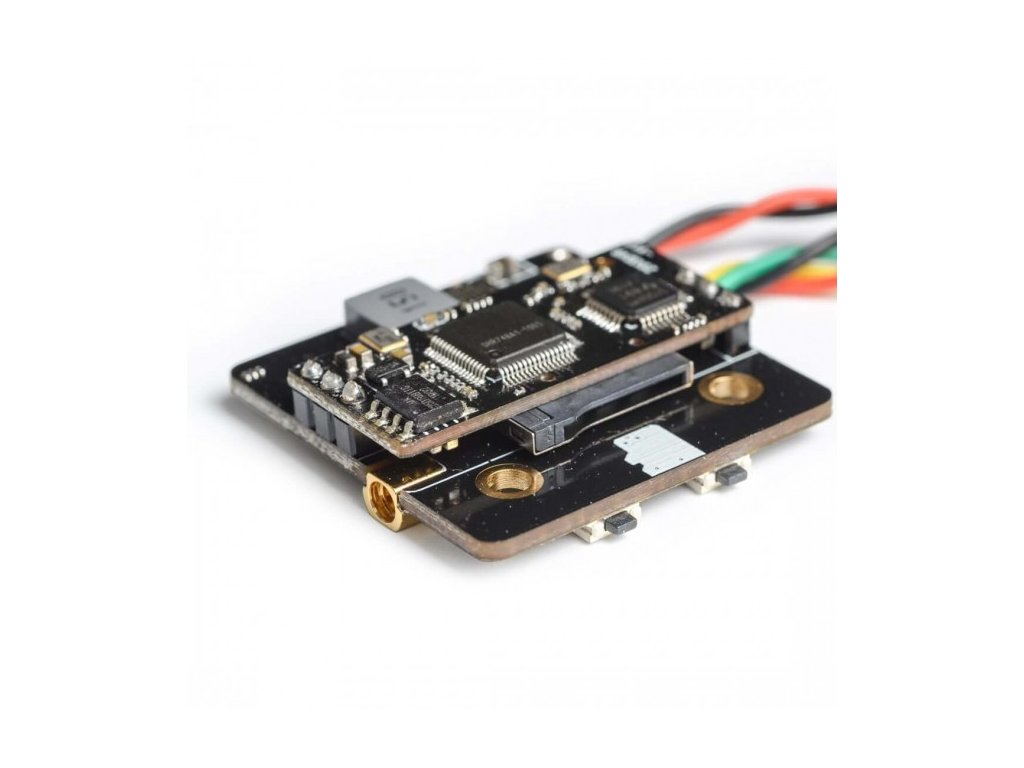

AKK FX3-Ultimate-DVR is a modified version of  AKK FX3-ultimate video transmitter. The main differences are increased power up to 1000mW and an additional DVR module, which is why the size of the board has increased to 30.5 x 30.5mm, but the wiring diagram remains the same as before 20 x 20mm. The DVR model has its own control button and LED indication.

The U.FL antenna output has been removed, now only the MMCX output is present on the board.

Features:

- Wide power range from 25mW to 1000mW
- Pit Mode support for clean frequency and power switching
- Built-in 5V BEC for analog camera connection
- Built-in microphone
- Built-in DVR module
- Ability to change settings from the radio remote control via OSD, when connected to the controller via UART

Specifications:
Power: 7-28V
Extra features: Smart audio, DVR
Output power: 25, 200, 600, 1000mW
BEC: 5V 0.3A
DVR Resolution: VGA, 640 x 480, NTSC 30fps/PAL 25fps.
Antenna connector: MMCX
Port connector: Solder pads
Mounting holes: 20 x 20 mm
Size: 30.5 x 30.4 mm
Stack height: 8mm
Weight with wires: 8.8g (without antenna)

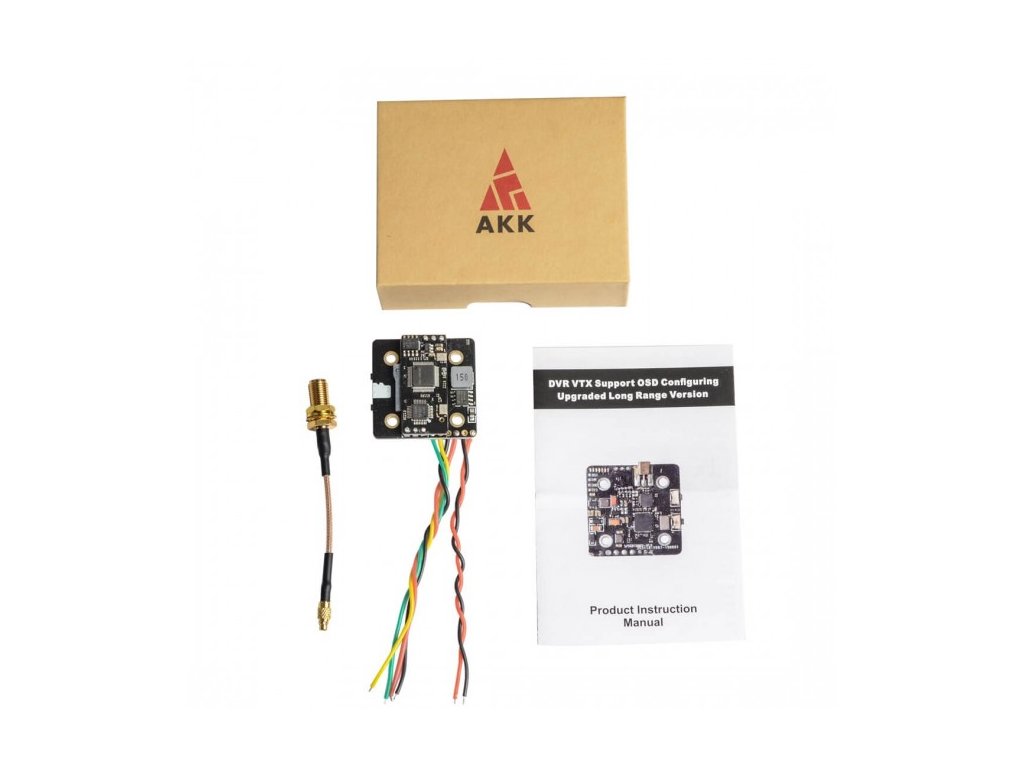

Package Includes:
1x VTX
1x Сable
1x Pigtail
