Antenna Partizan Triple Feed Patch Array 5.8G SMA
Code: 3950Product detailed description

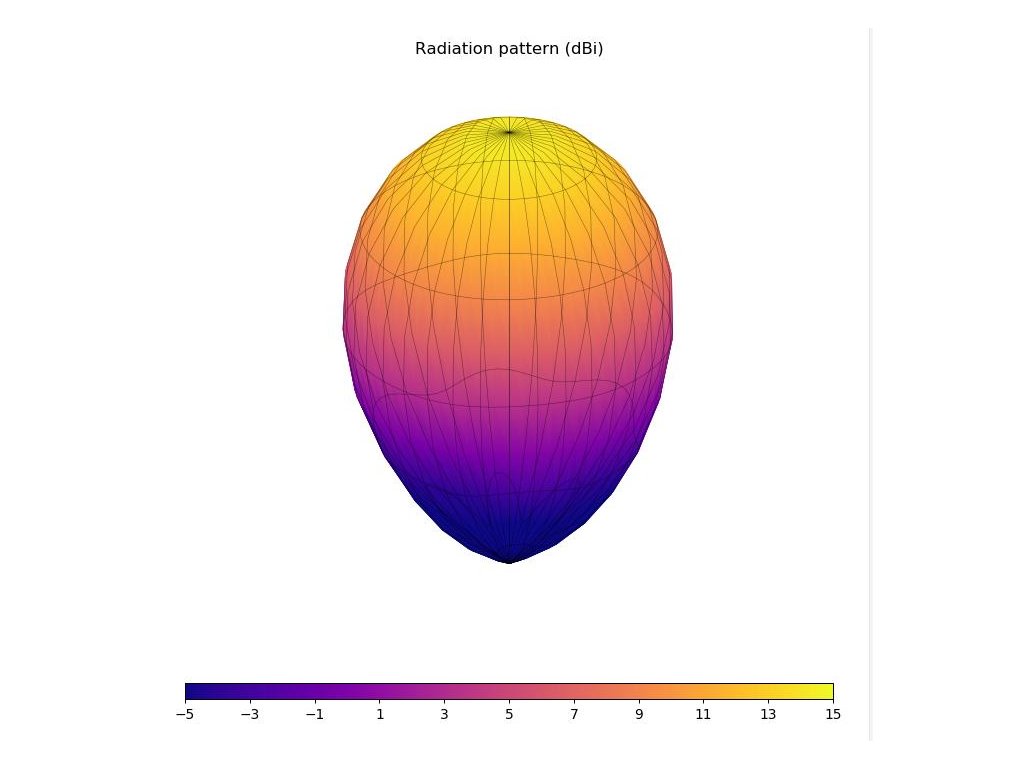

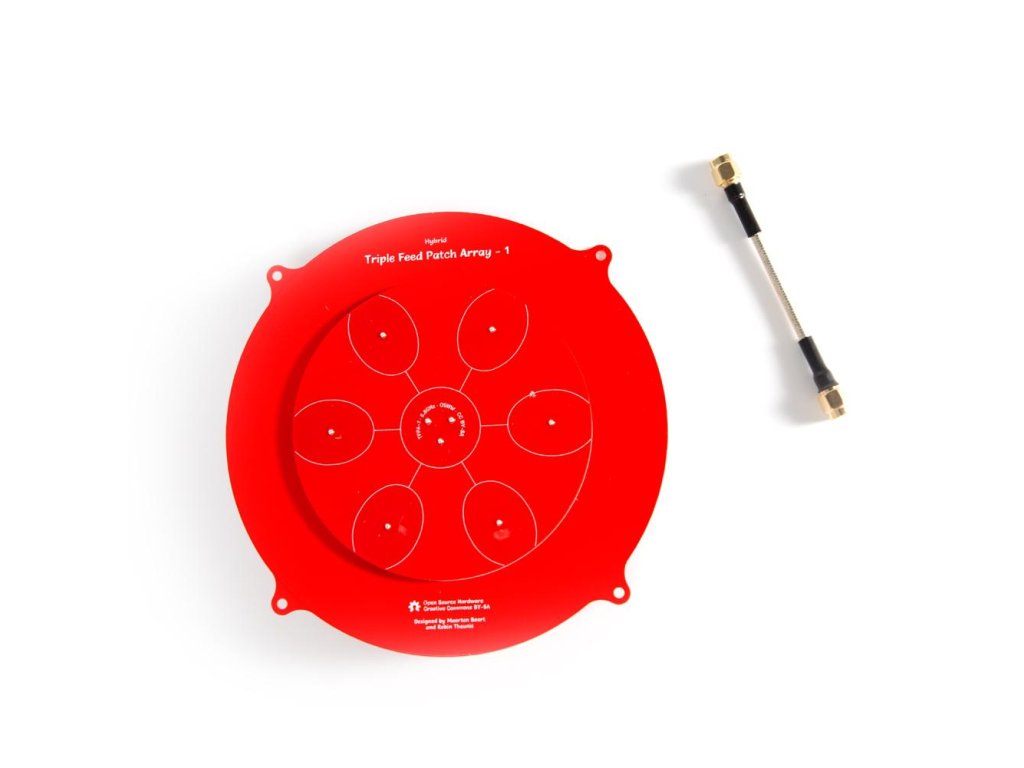

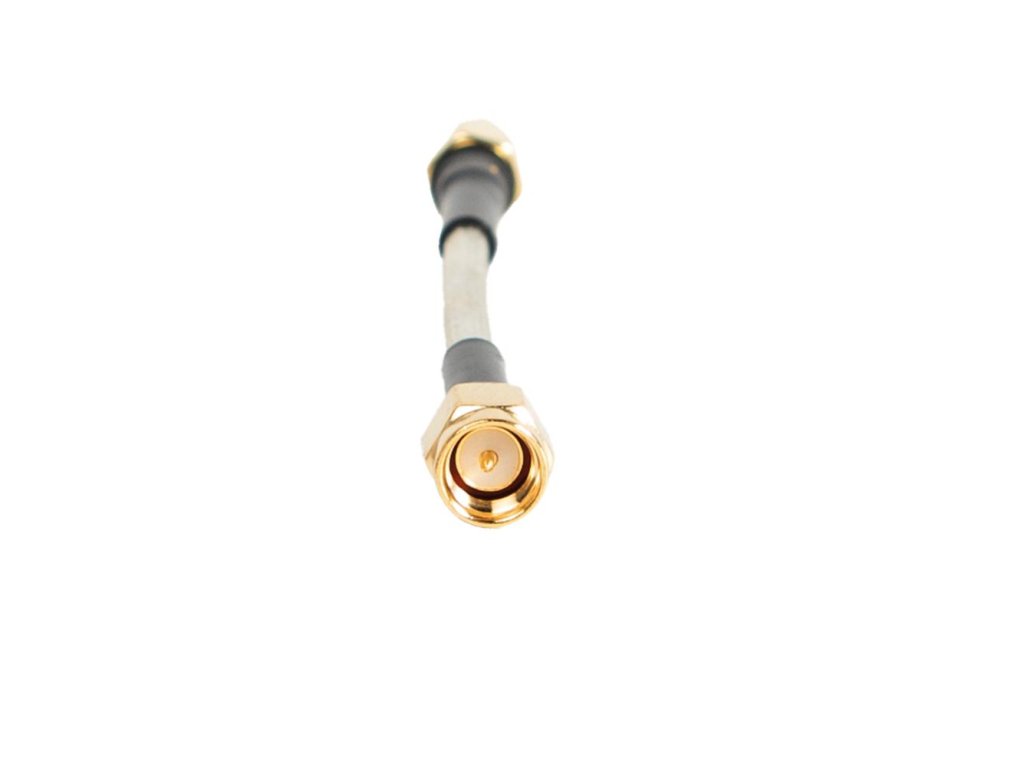

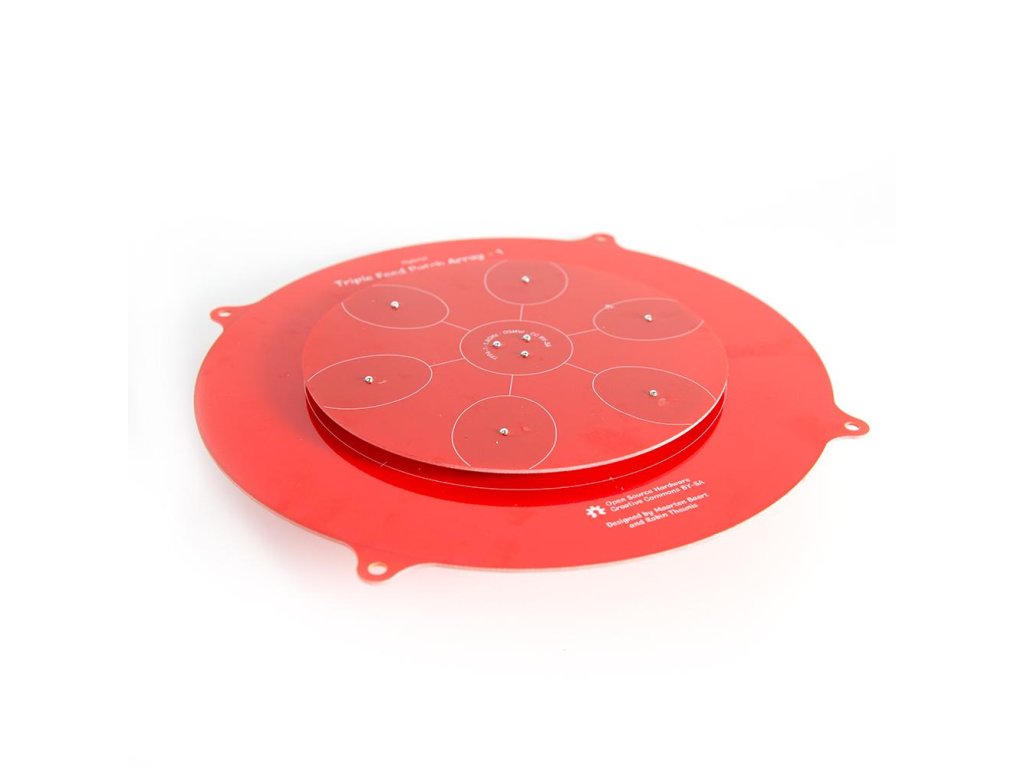

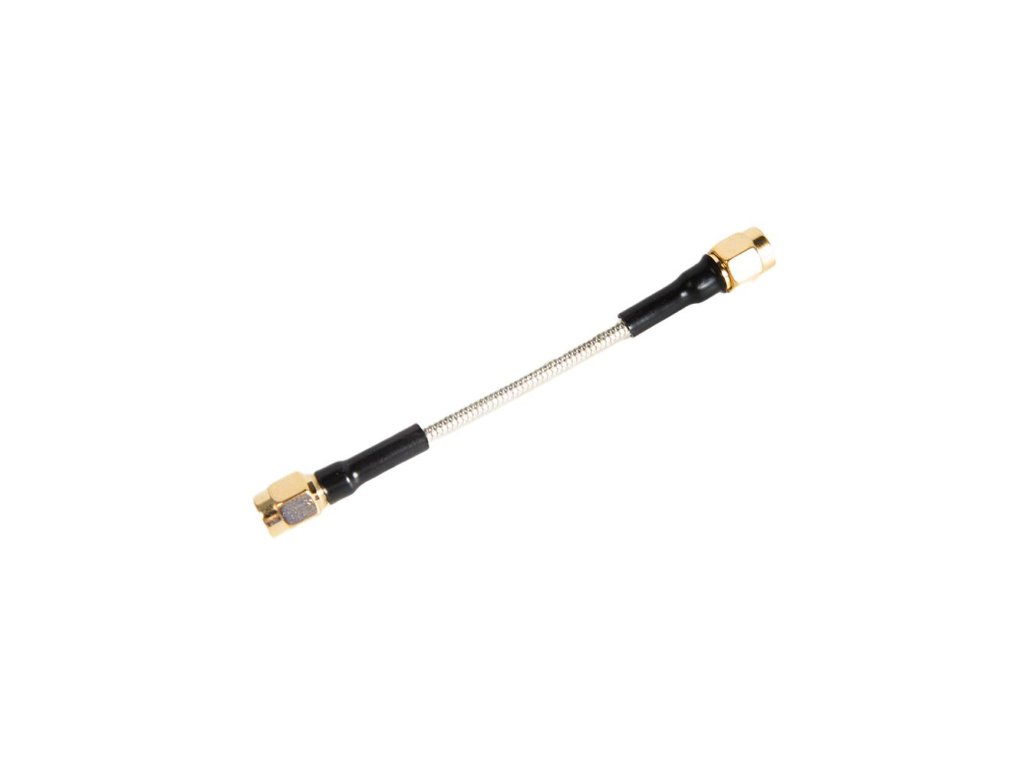

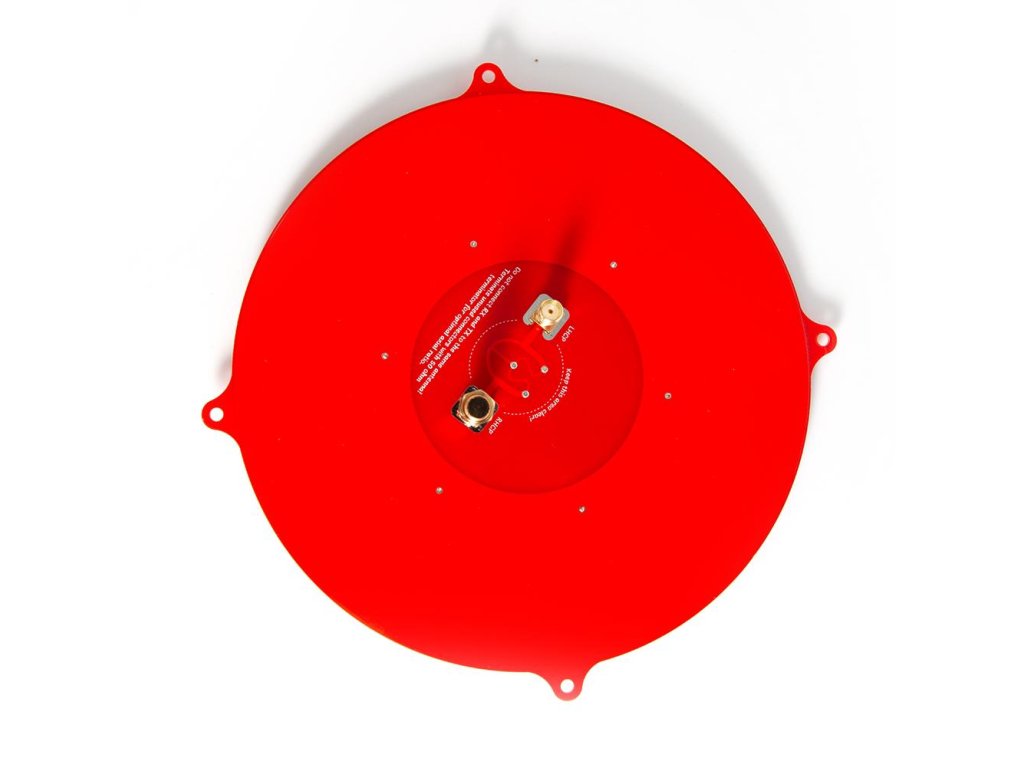

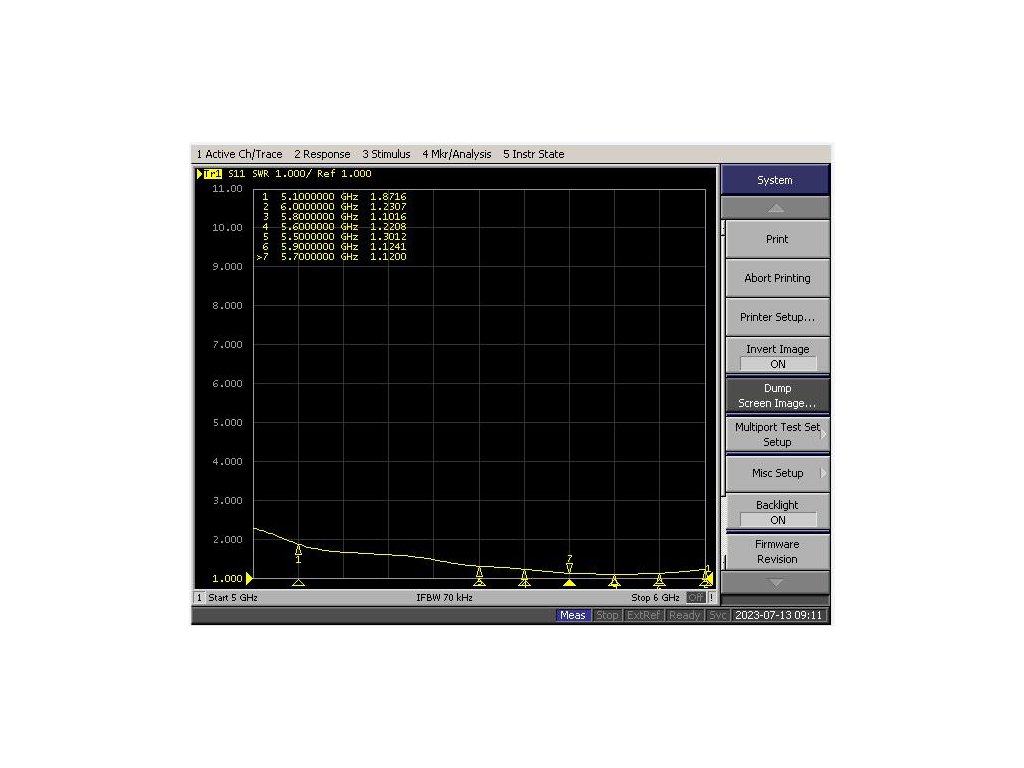

Triple Feed Patch Array 5.8G SMA The Triple Feed Patch Array 5.8G SMA is a high-performance antenna. It features a triple feed design for improved signal reception and transmission. With its SMA connector, it offers easy compatibility with various FPV systems. Specifications: Center frequency: 5.8 GHz Bandwidth: 5.1-6GHz VSWR: S11 <1.22(Center frequency) Axial ratio: 1.05 Antenna gain: 15dBi Half power beam width: 30(horizontal and vertical) Radiation efficiency: 75% Size: 150x150x5mm Antenna Connector: SMA Female Package includes: 1x Patch antenna 1x Cable
Additional parameters
| Category: | Goggle Antennas |
|---|---|
| Connector Type: | SMA |
| Frequency: | 5.8GHz |
| Polarization: | RHCP, LHCP |
