Frame iFlight Taurus X8 V3 O3 Cinelifter
Code: NR13022Related products
Product detailed description

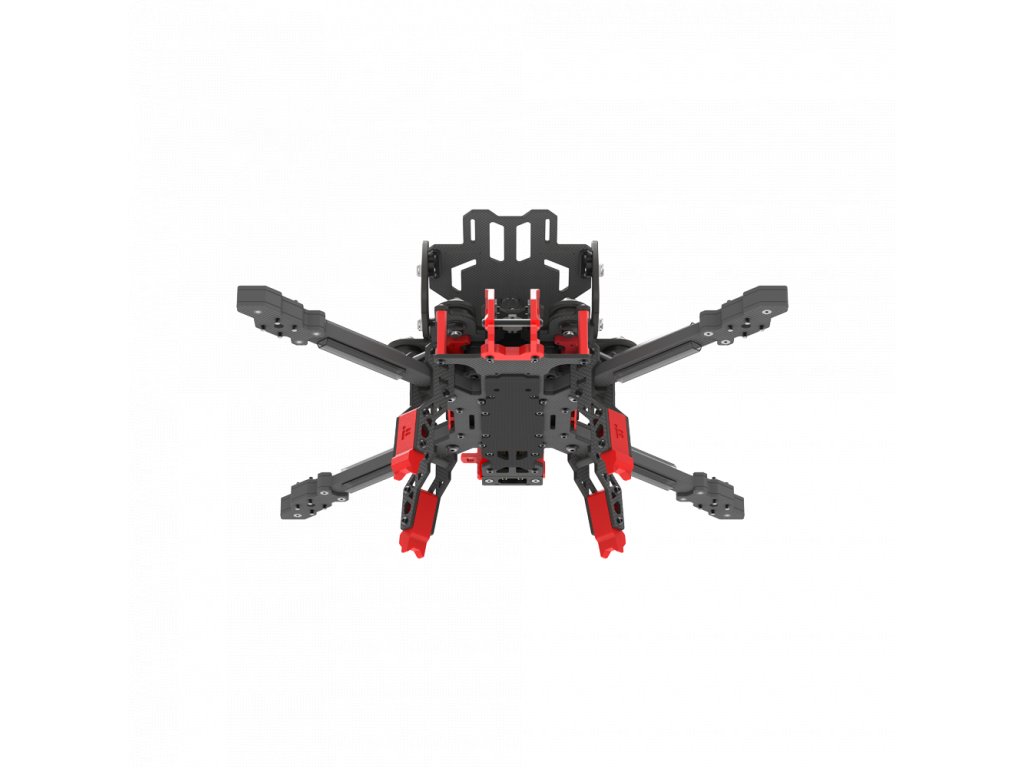

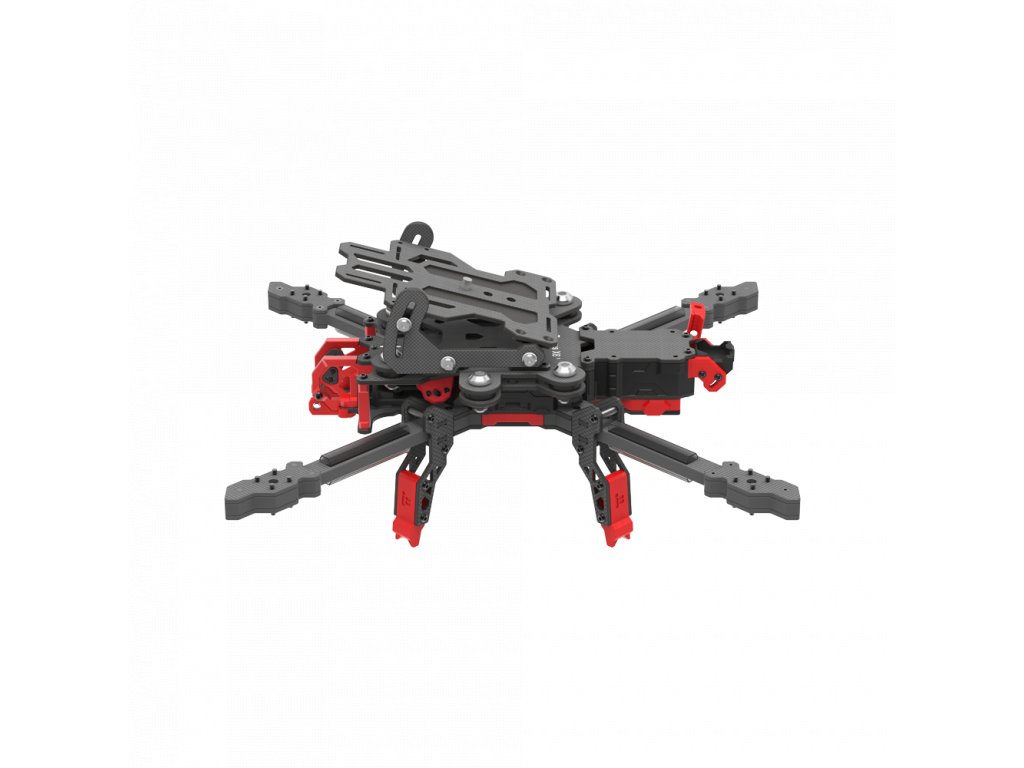

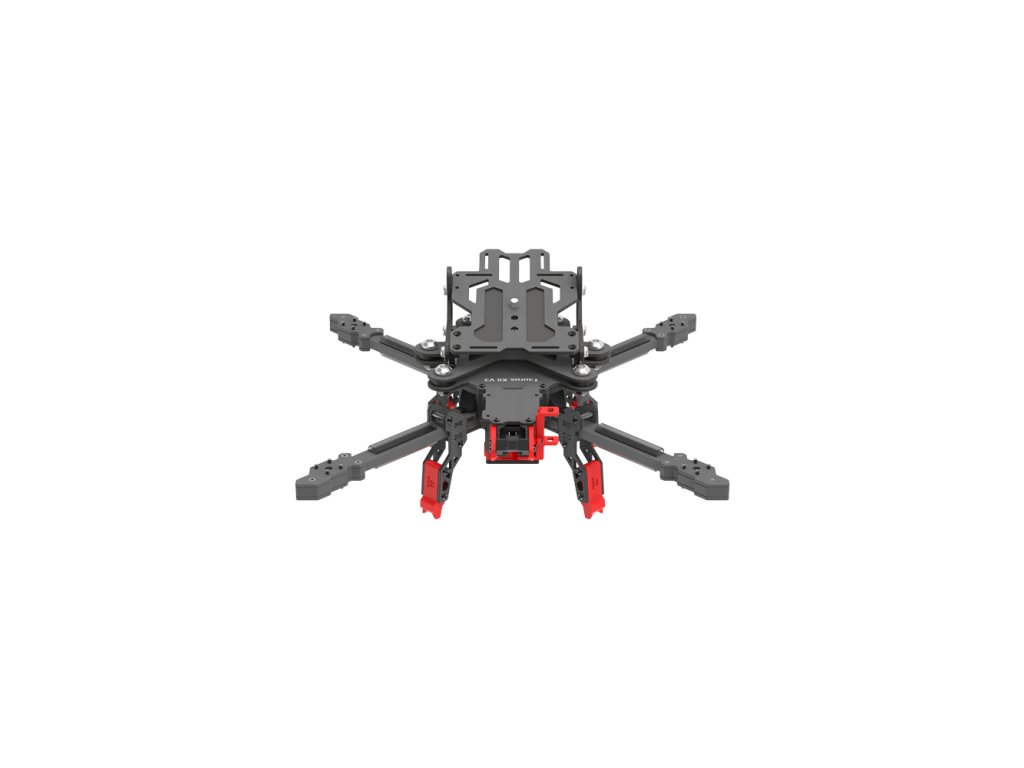

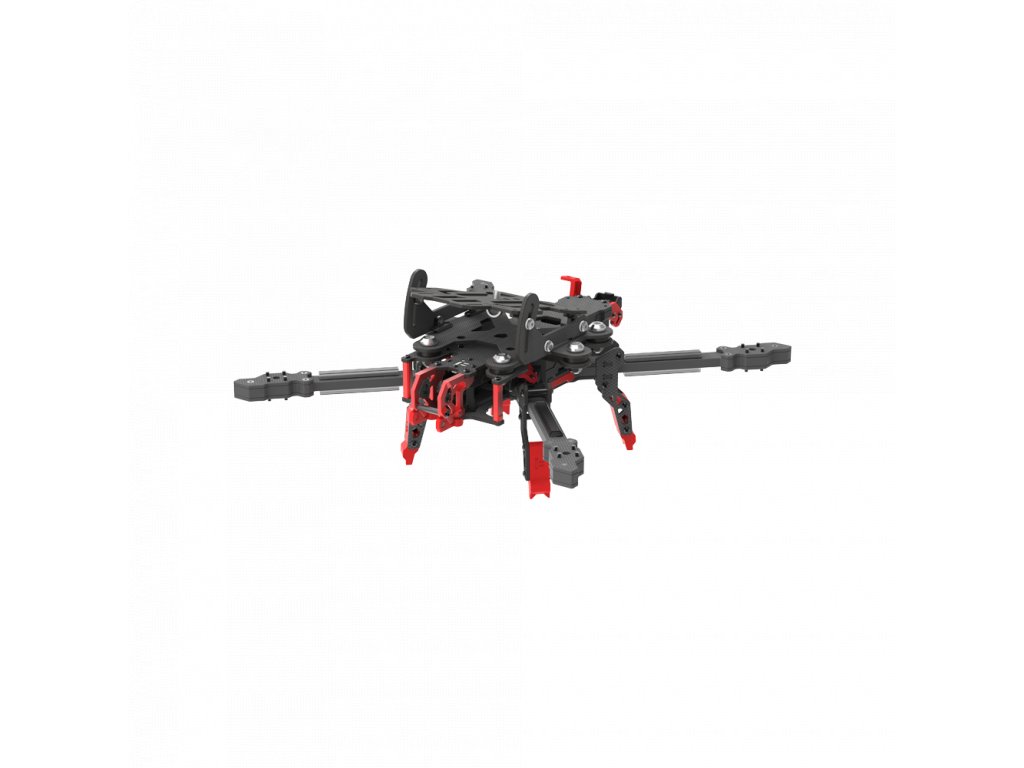

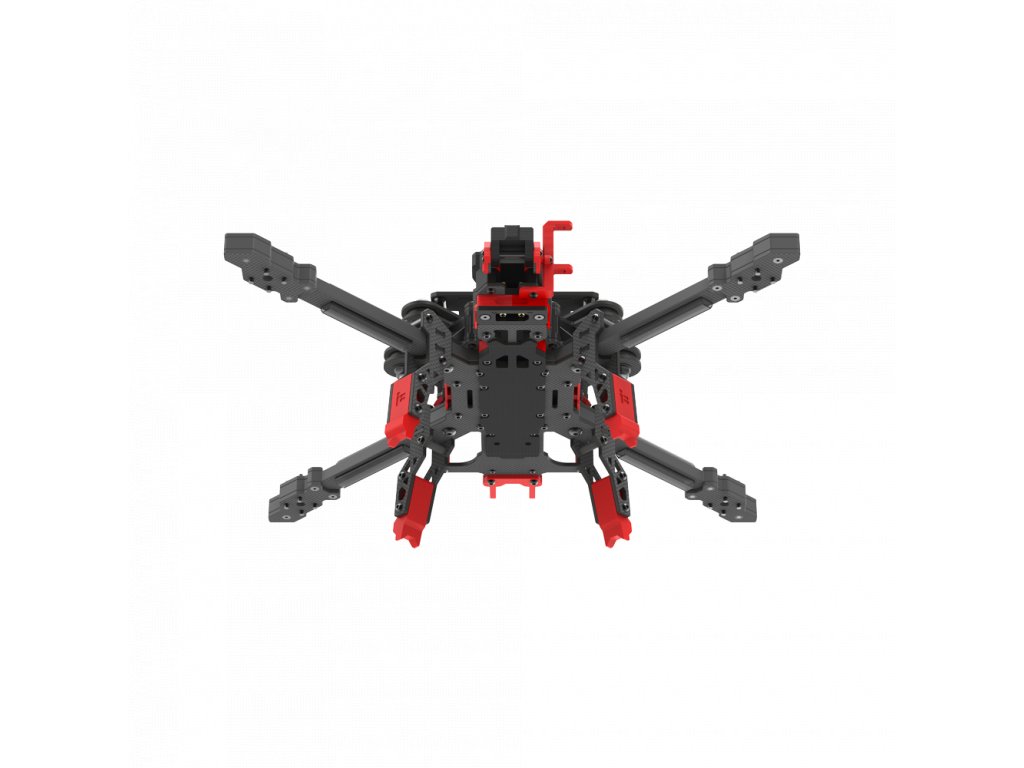

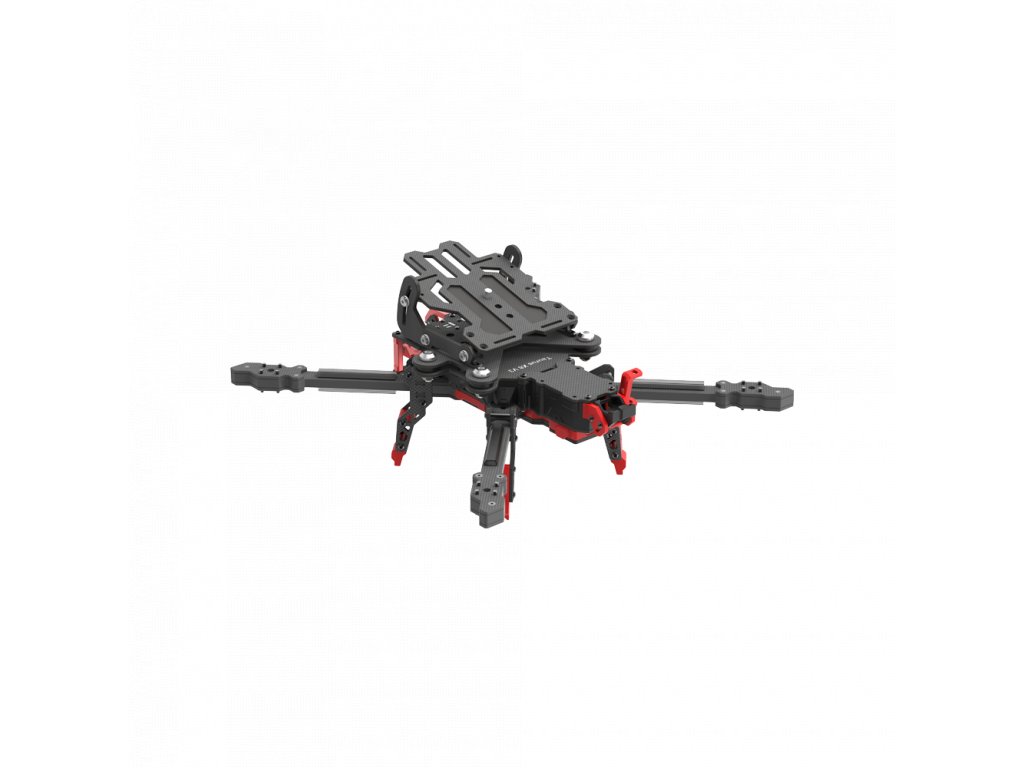

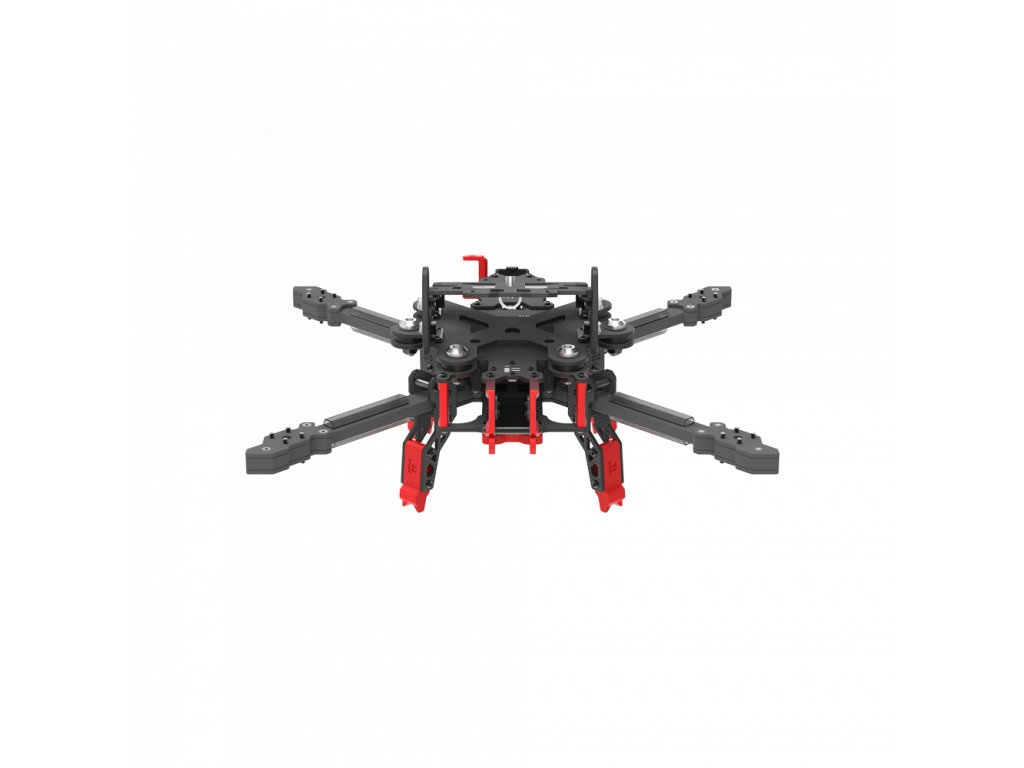

Taurus X8 V3 O3 Cinelifter Frame Kit The Taurus X8 V3 BNF Cinelifter Frame Kit is designed for heavy payloads, providing a stable platform for DSLR or cinema cameras such as Red Komodo, Zcam, BMPCC, and more. Starting from March 25, 2023, this frame kit is compatible with the DJI O3 air unit. Features - Optimized CG through the adjustable camera and battery mount - Stable silicon-ball decoupled camera CNC mount - Redundant ESC and motor configuration - 2kg max payload for various cinema and DSLR cameras - Lightweight Side Panels - Keep Your Rig Clean Specifications Product Name: Taurus V3 X8 HD Cinelifter Frame Wheelbase: 320mm Diagonal Distance: 120 mm Frame Dimension: L283*W393*H30 mm Arm Thickness: 8mm Bottom Plate Thickness: 3mm Top Plate Thickness:3mm Upper Plate Thickness: 3mm Camera Plate Thickness: 3mm Motor Mounting: 19x19mm VTX Mounting: 30.5*30.5mm Weight: 940grams (Included no TPU Parts) Packing included 1 x Taurus V3 X8 HD Cinelifter Frame 2 x 20x300mm battery strap (Color May Vary) 2 x 20x400mm battery strap (Color May Vary) 2 x 20x500mm battery strap (Color May Vary) 1 x Aluminum Quick Release Camera Clamp 1 x Taurus X8 Hardware Accessories Kit 1 x CNC Aluminum Alloy Cam Mount 1 x DJI Air unit mount TPU 1 x 3d Printed Parts Kit 2 x Battery Pad 1 x LED mount 10 x Dampers 2 x Battery Anti-slip pads
Additional parameters
Category: | FPV Frames |
---|---|
Camera Mounting: | Mini (21mm) |
Drone Type: | Cinelifter |
Material: | Carbon fiber |
Motor Size: | 3110 |
Size: | 8 inch |
Wheelbase: | 320mm |
The item has been sold out… |
