FPV Drone iFlight TaurusX8 V3 HD O3 Air Unit 6S BNF (TBS)

Product detailed description

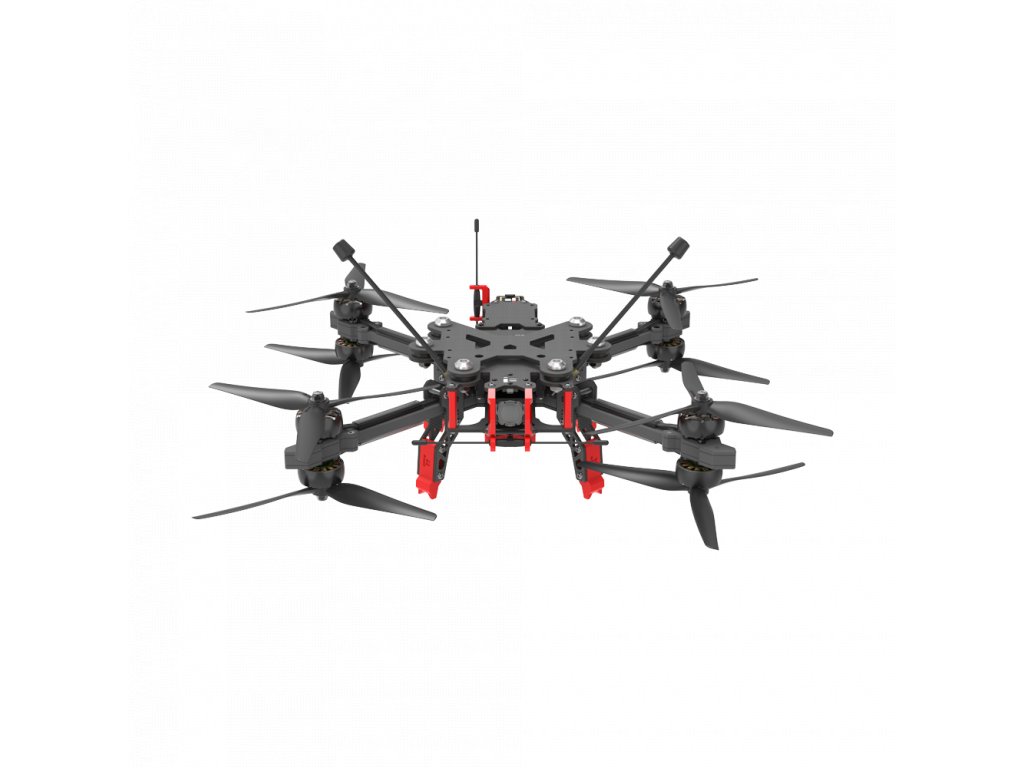

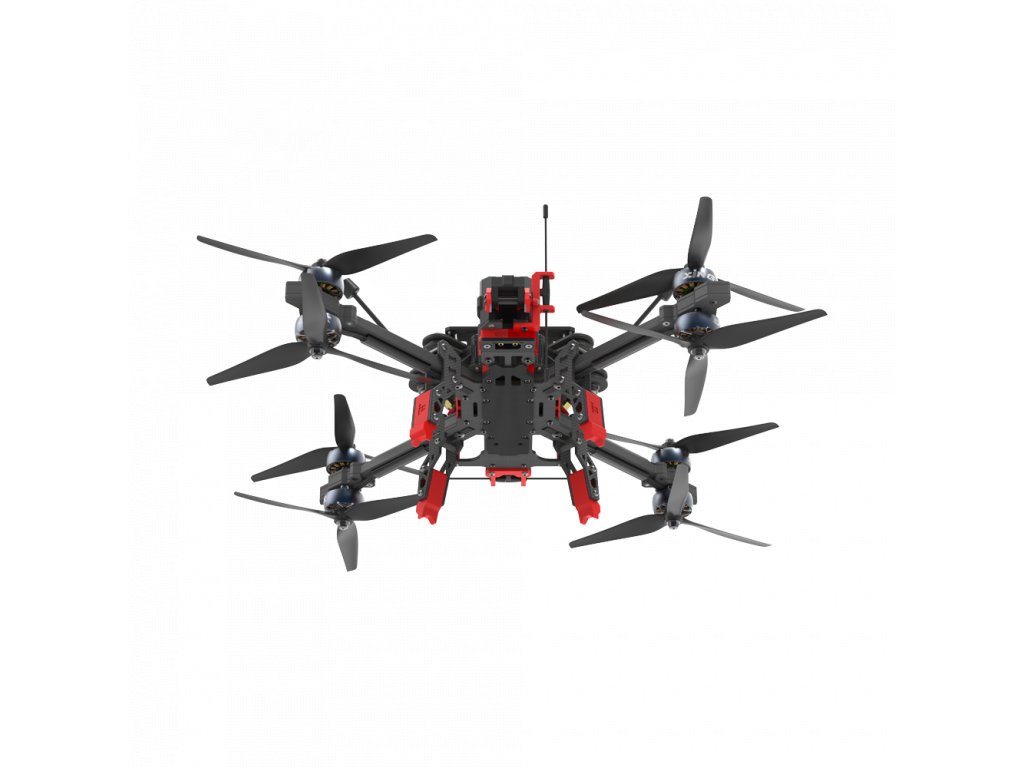

Taurus X8 V3 HD O3 Air Unit 6S BNF (TBS)

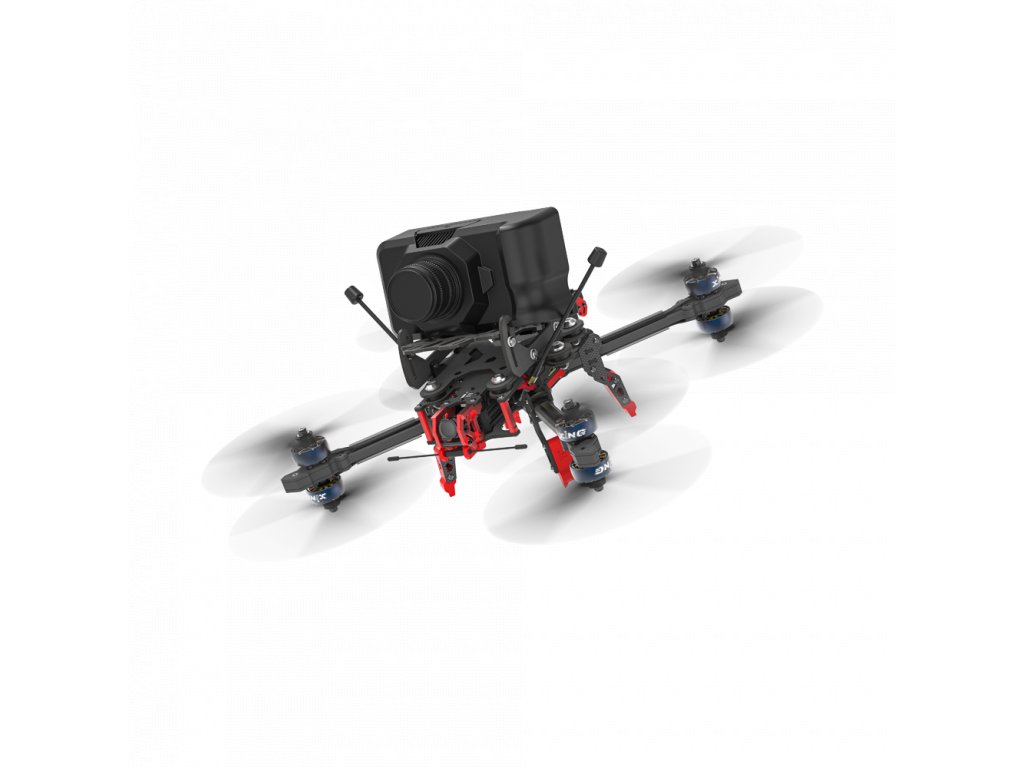

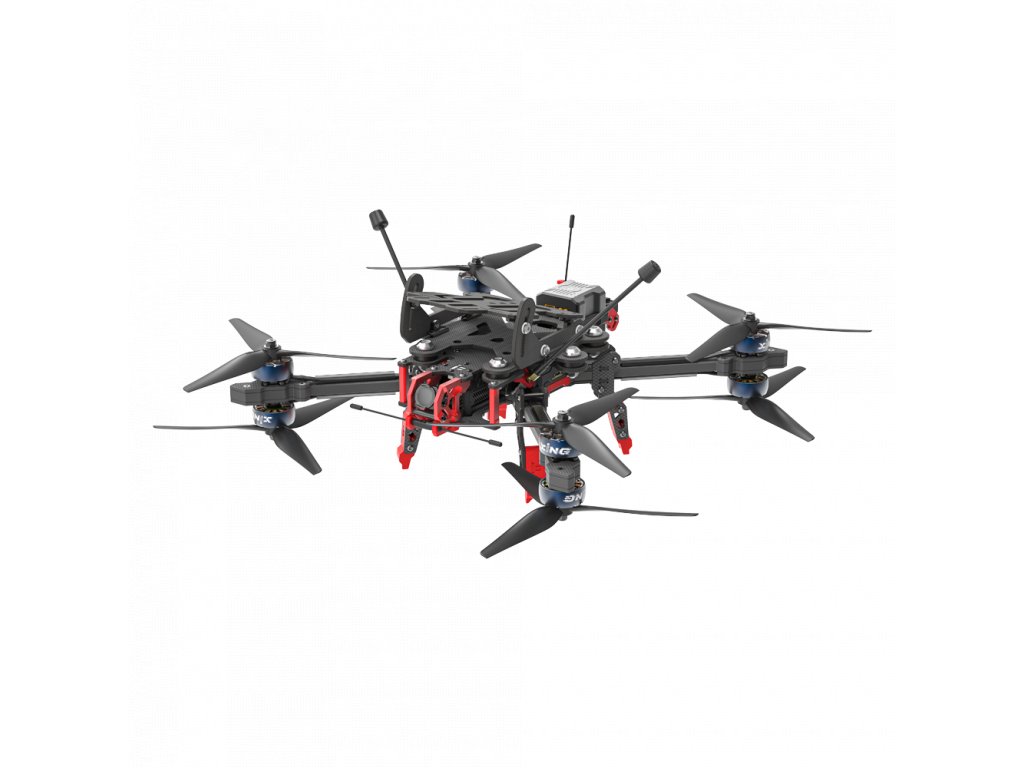

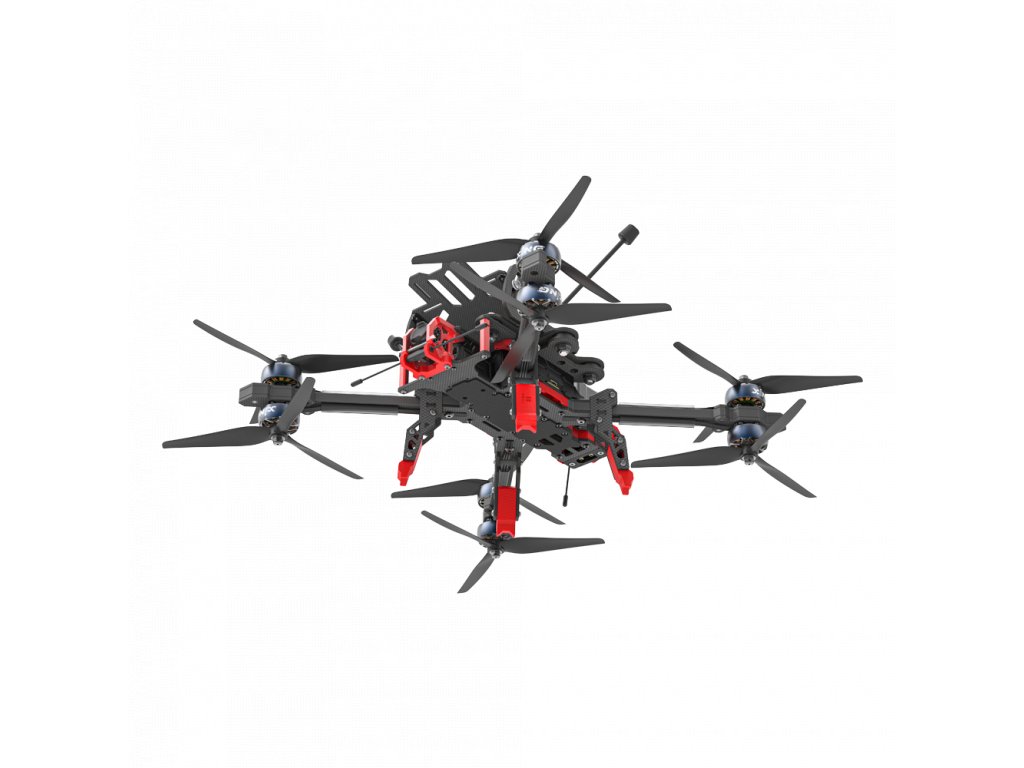

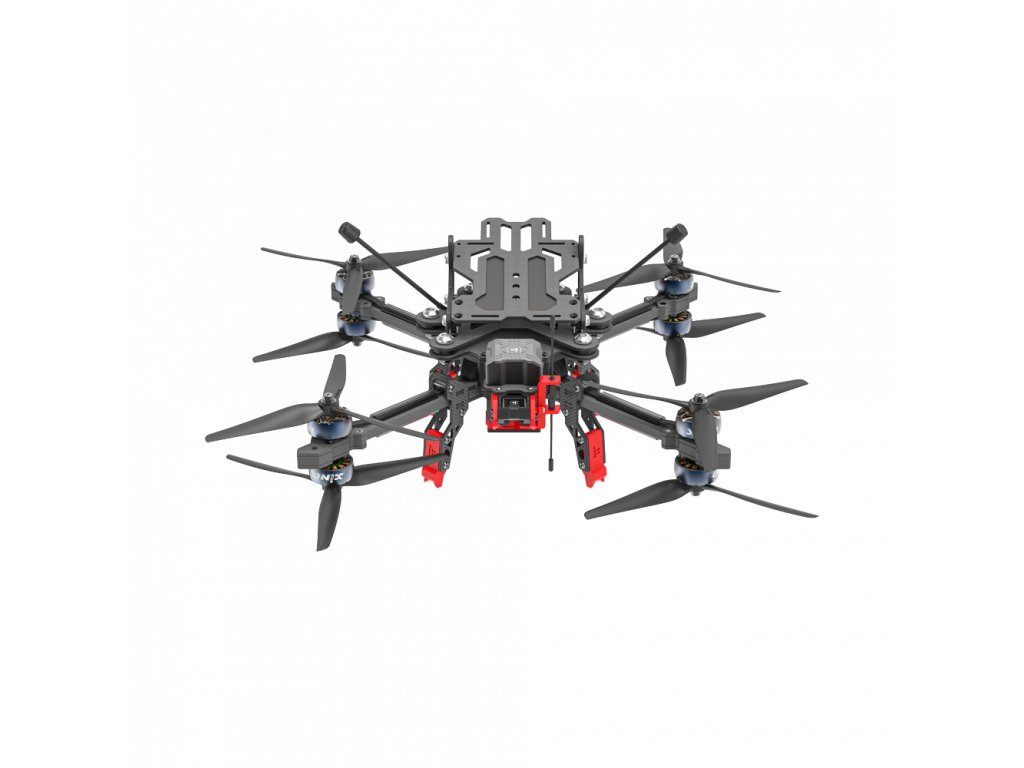

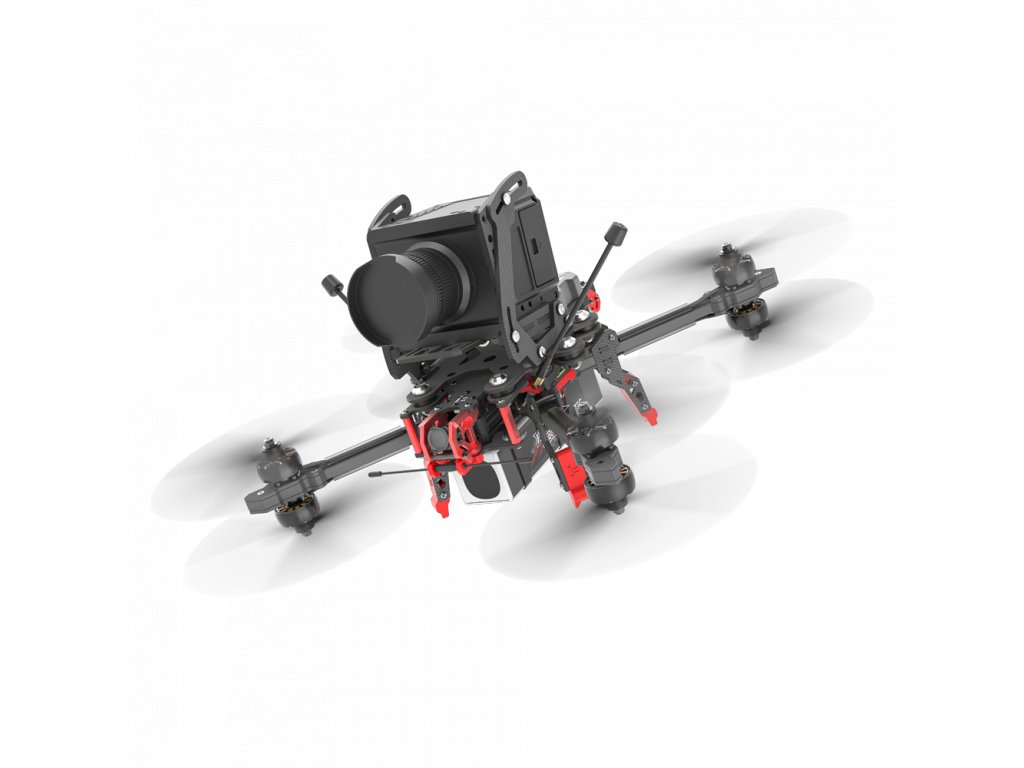

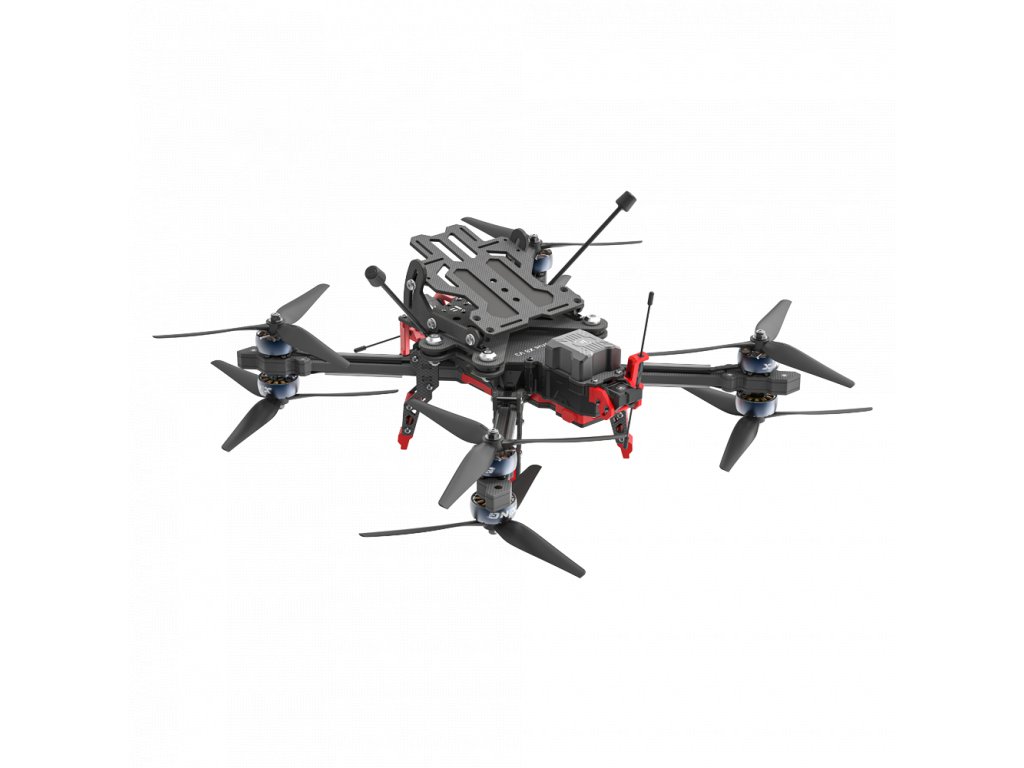

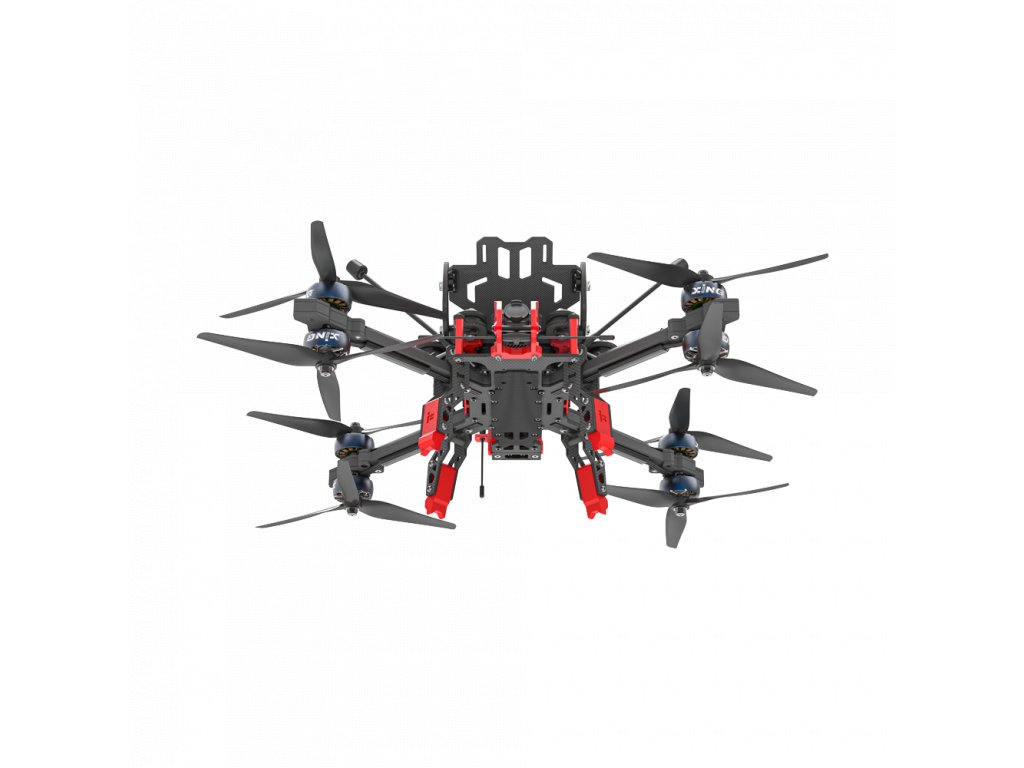

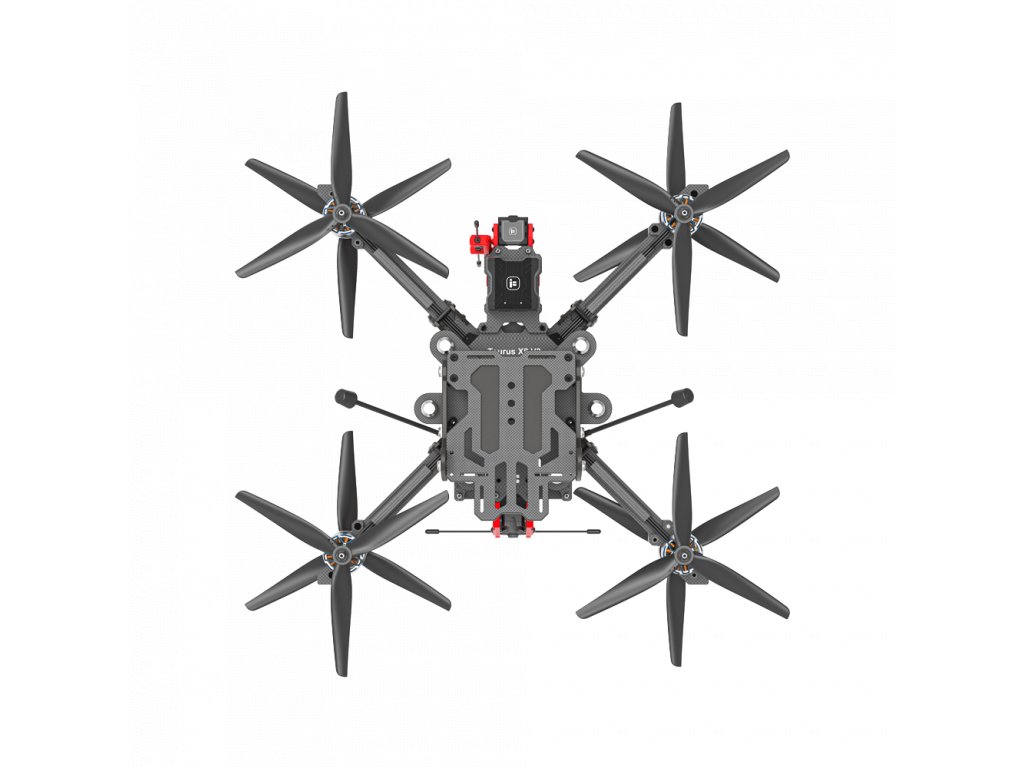

The iFlight Taurus X8 V3 O3 BNF with a maximum payload of 2kg is engineered for professionals, offering a soft-damped universal platform for DSLR or cinema cameras like Red Komodo, Zcam, BMPCC, etc., featuring DJI's FPV HD transmission system. It features a redundant ESC and motor setup for maximum performance and safety. The GPS rescue feature automatically takes over control in case of signal interference, radio signal loss, or complete FPV transmission failure. The integrated TPU landing gear provides height and protection during landings. With a adjustable mount angles, and a silicon-ball dampened carbon camera base, it ensures stable shots without vibration. Additional software stabilization or hardware modules like SteadXP are recommended for perfect cinematic shots.

Features:
- Big size XING2 3110 // The power motors with extreme lift and flight performance
- Redundant ESC and motor configuration
- GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
- DJI O3 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle
- Universal camera mount and accessories for a wide range of cameras to install
- The standard battery is changed to Fullsend 5600mAh 95C battery

Specifications:

Product Name: Taurus X8 V3 O3
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 2-8S 80A 4-IN-1 ESC(without CNC Alum Cover)
Video Transmission: DJI O3 AIR Unit
Frame: 400mm wheelbase
Motor: XING2 3110 1250KV  motors
Prop: HQ 8043 propellers
Receiver option: TBS Crossfire Diversity NANO RX
Weight: 1634±10g
Takeoff Weight: Approx. 2486±20g (With 6S 4500mAh Battery)
Dimensions (L×W×H): 283×283×112 mm
Diagonal Distance: 400 mm
Max Speed: 150 Km/H (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 5 mins with 1.5KG load and 6S 4500mAh battery
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS + Galileo

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (headband included)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm
Communication Bandwidth:  Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

End-to-End Latency

With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Package includes:
1 x Taurus X8 V3 O3 BNF
8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 Male to XT60 Female Adapter Wire
1 x FullSend 5600mAh 95C 6S XT90 battery
2 x iFlight Lipo Strap 20*400mm (Black)
2 x iFlight Lipo Strap 20*500mm (Black)
1 x CNC Aluminum alloy cam mount
1 x XT90 Smart Smoke Stopper
1 x Prop Wrench
