FPV Drone iFlight Taurus X8 Pro HD O3 Air Unit 8S BNF (TBS, Without battery)

Product detailed description

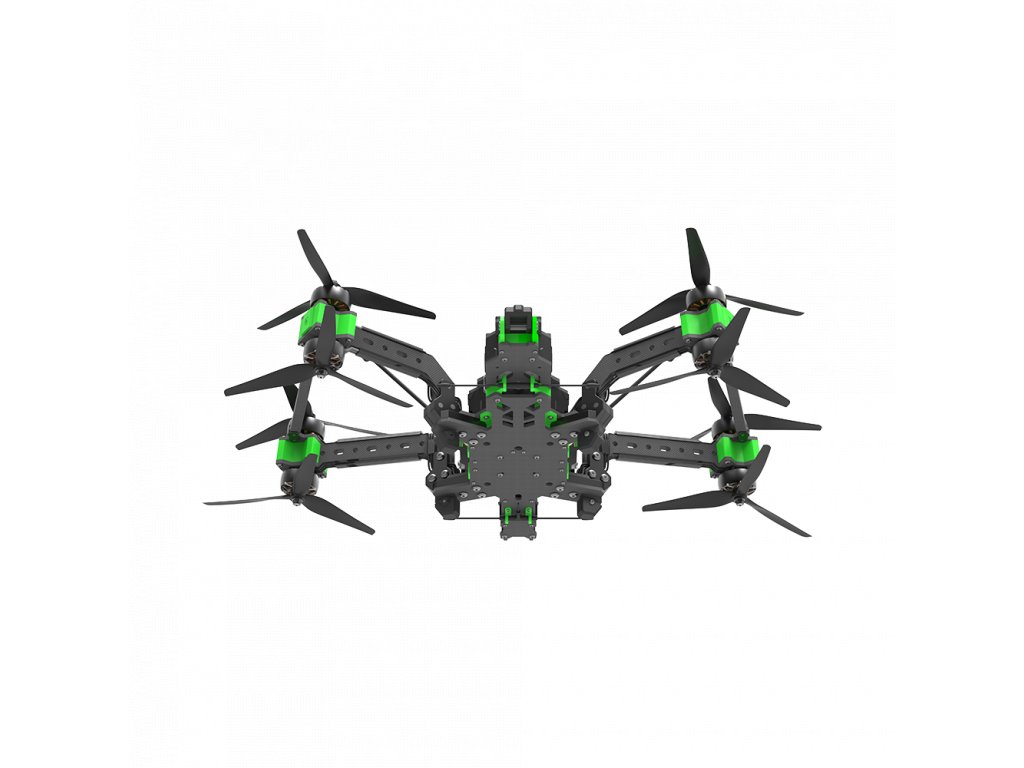

Taurus X8 Pro HD O3 Air Unit 8S BNF (TBS, Without battery)

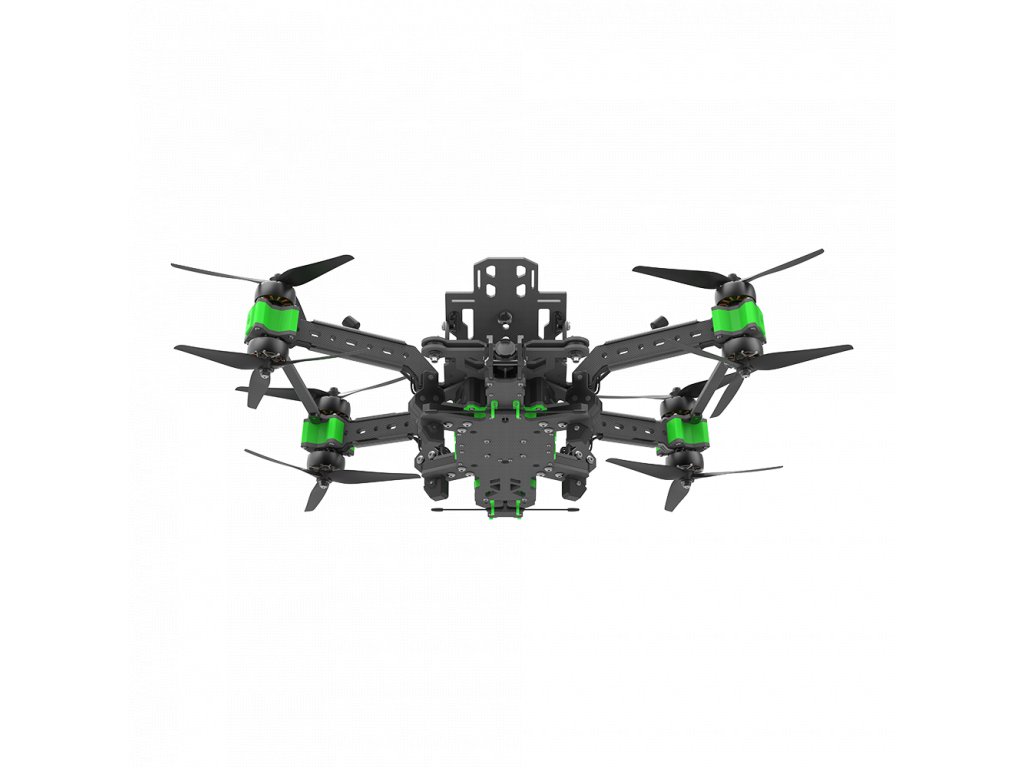

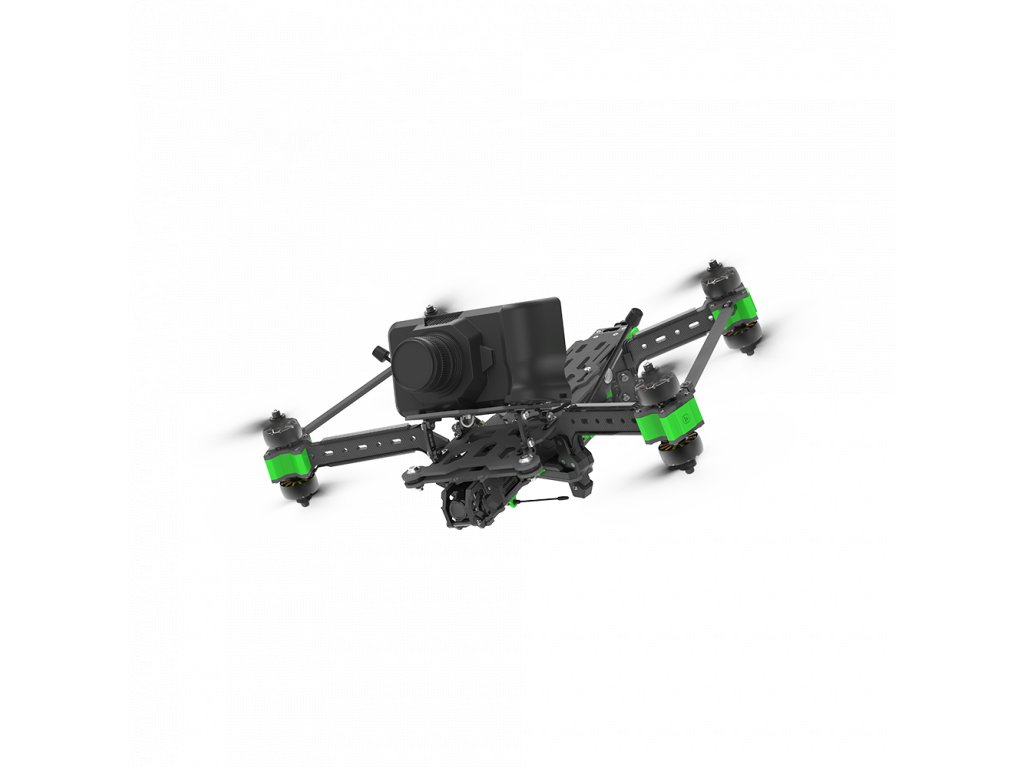

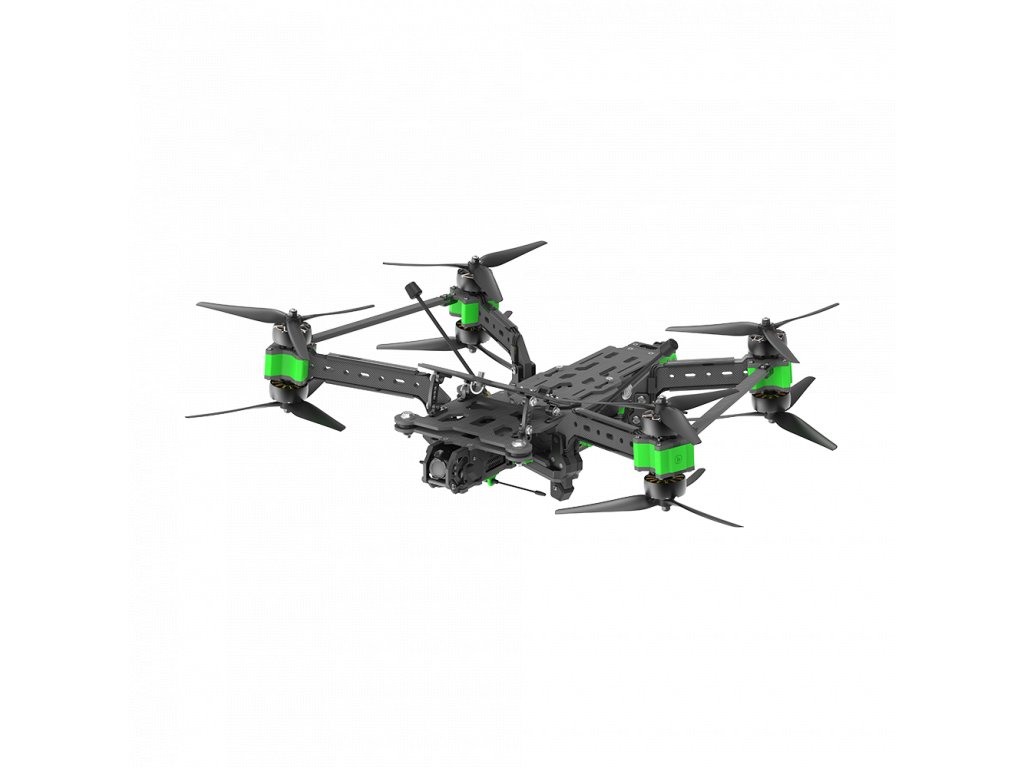

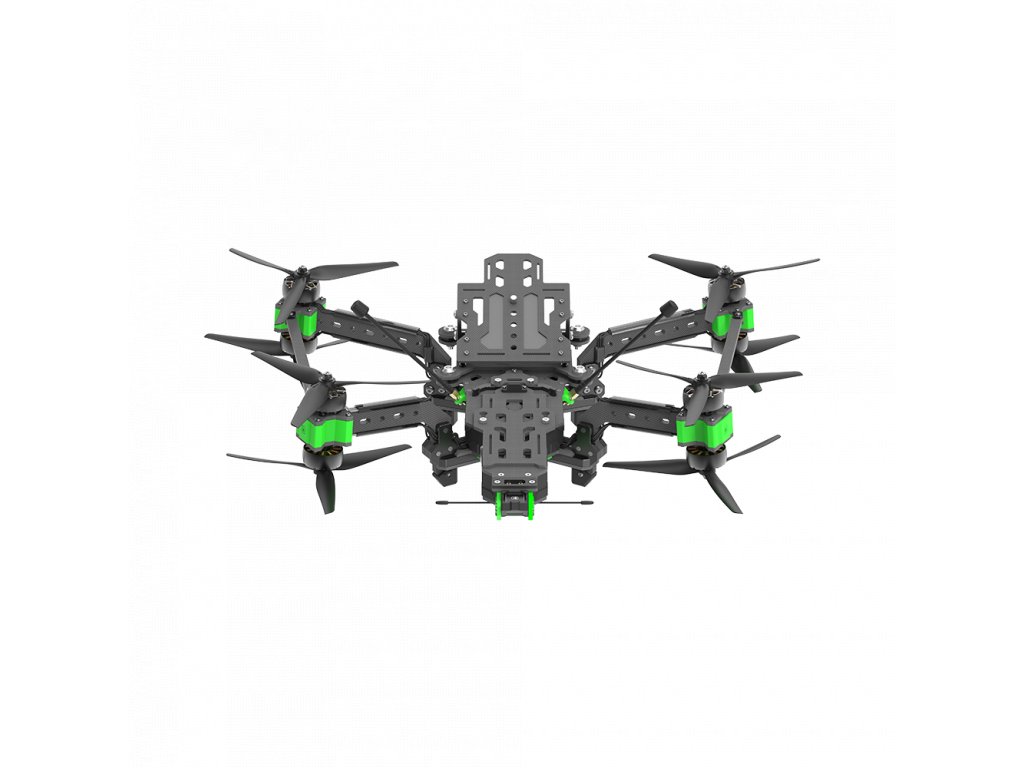

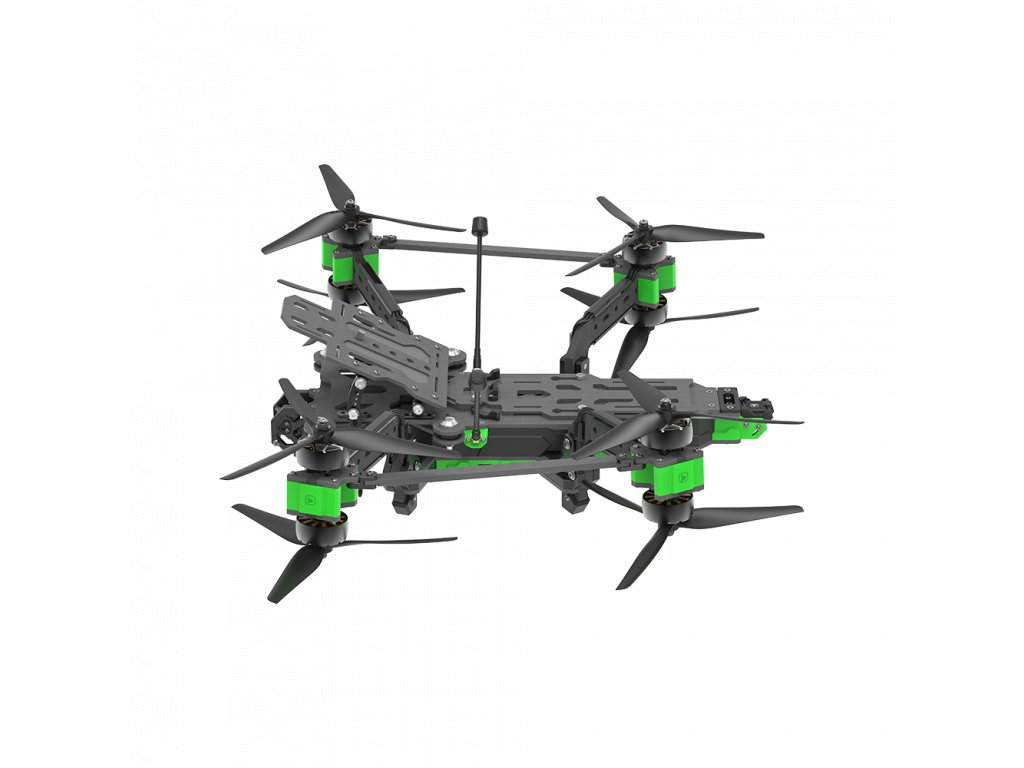

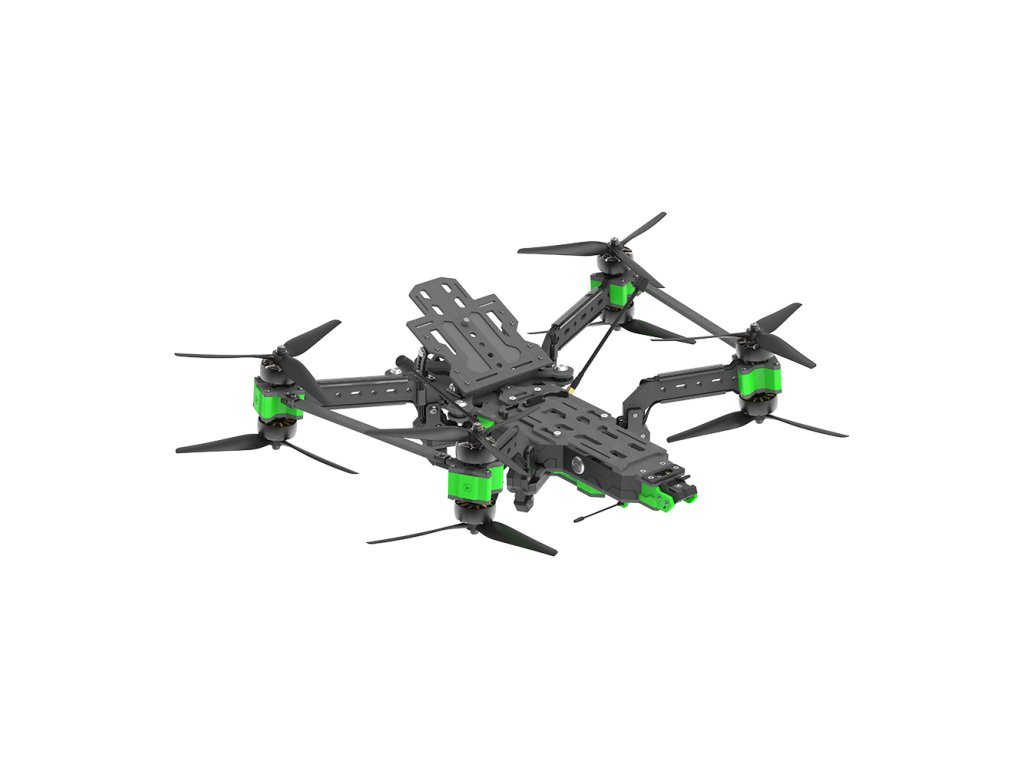

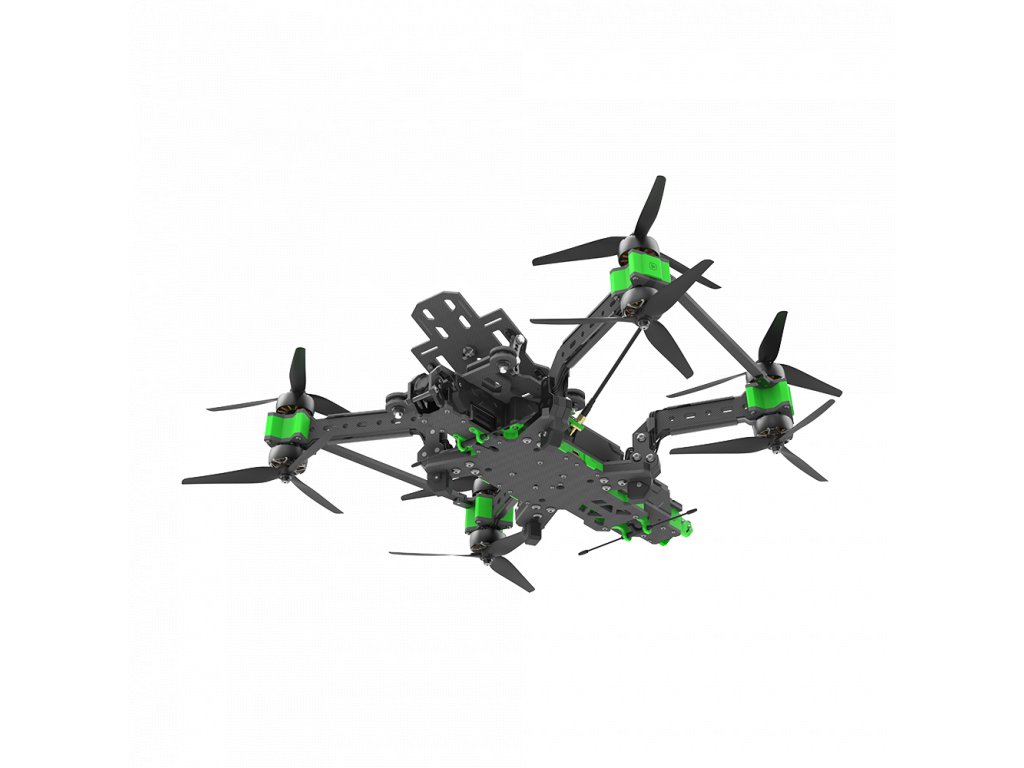

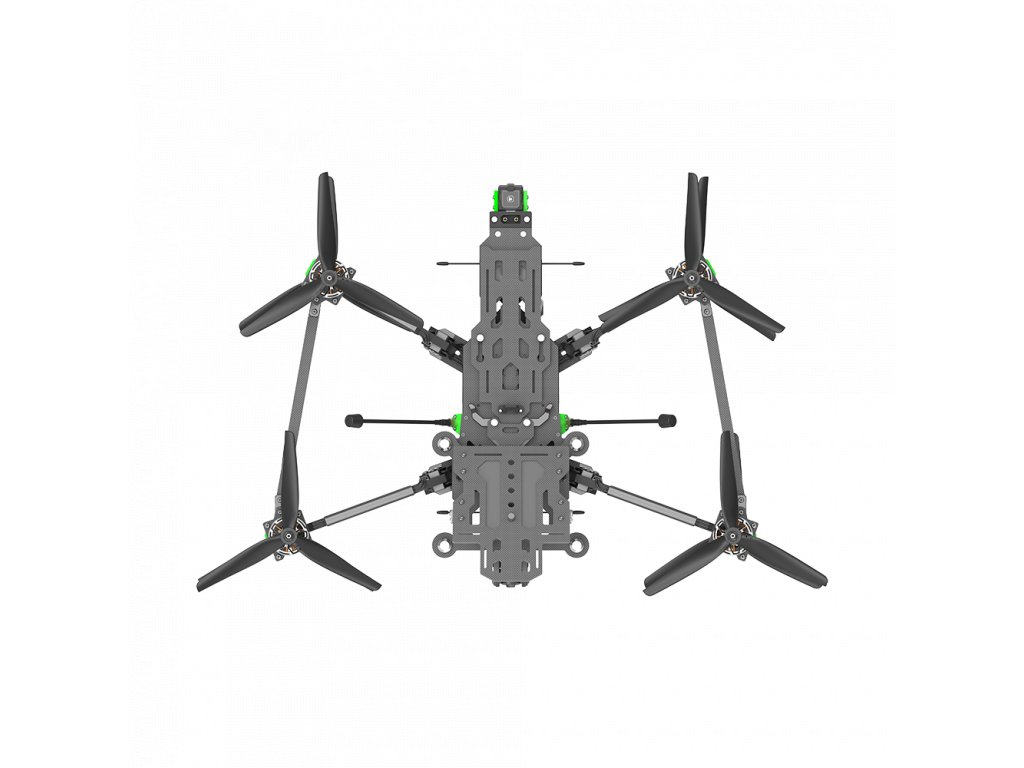

The new iFlight Taurus X8 Pro O3 BNF is designed to carry heavy payloads, providing a stable platform for DSLR or cinema cameras like Red Komodo, Zcam, BMPCC, etc., with DJI's FPV HD transmission system. With 8 single X-Class grade ESCs, it ensures maximum reliability and power, crucial for expensive cinema gear. The GPS rescue feature automatically takes over control in case of signal interference or loss, guiding the drone back to your liftoff location. The integrated TPU landing gear offers height and protection during landings.

Its maximum payload of 2kg and adjustable mount angles, ensures a perfectly balanced CG. The top-mounted 8S battery acts as a power source and counterweight. The CNC aluminum camera mount offers secure positioning for consistent results. Our silicon-ball dampened carbon camera base reduces vibration for smooth shots. For the perfect cinematic shot, recommended additional software stabilization (Reelsteady, Gyroflow, etc.) or a hardware module (for example SteadXP).

Features:
- Big size XING2 3314 // The power motors with extreme lift and flight performance
- 8S power system // More power and speed
- 8x single X-Class grade ESC motor drivers for more reliability
- Redundant iFlight ESC Commander PCB // Power distribution board with high capacitance, filtering and heat dissipation
- GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
- DJI O3 HD Air Unit Low-Latency Digital Transmission// 4K Stabilized Video with 155° Ultra-Wide Angle
- Secured Battery Plug with Anti-Spark Filter
- Universal camera mount and accessories for a wide range of cameras to install

Specifications:

Product Name: Taurus X8 Pro O3
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 Single ESC (with CNC Alum Cover)
Video Transmission: DJI O3 AIR Unit
Diagonal Distance: 464±2 mm(wheelbase)
Motor: XING2 3314 900KV motors
Prop: HQ 8*4*3 propellers
Receiver option: TBS Crossfire Diversity NANO RX
Weight: 2356±10g
Takeoff Weight: Approx. 3494±20g (With 8S 5000mAh Battery)
Dimensions (L×W×H): 428×249×74 mm
Max Speed: 150 Km/H
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 5 mins with 8S 5000mAh battery and 1.5KG load.
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS: GPS + Galileo

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (headband included)
Dimensions (L×W×H): L32.5 * W20.5 * H 14.5mm
Refresh Rate: Up to 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range：10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V

Package includes:
1 x Pre-built and Tested Taurus X8 Pro O3 BNF
8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CCW propeller (Color may vary)
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 Male to XT60 Female Adapter Wire
2 x iFlight Lipo Strap 20*400mm (Black)
2 x iFlight Lipo Strap 20*500mm (Black)
1 x CNC Aluminum alloy cam mount
1 x XT90 Smart Smoke Stopper
1 x Prop Wrench

*Battery is not included
