Antenna TrueRC STUBBY Singularity RP-SMA RHCP CLEAR
Code: 0608597253115Product detailed description

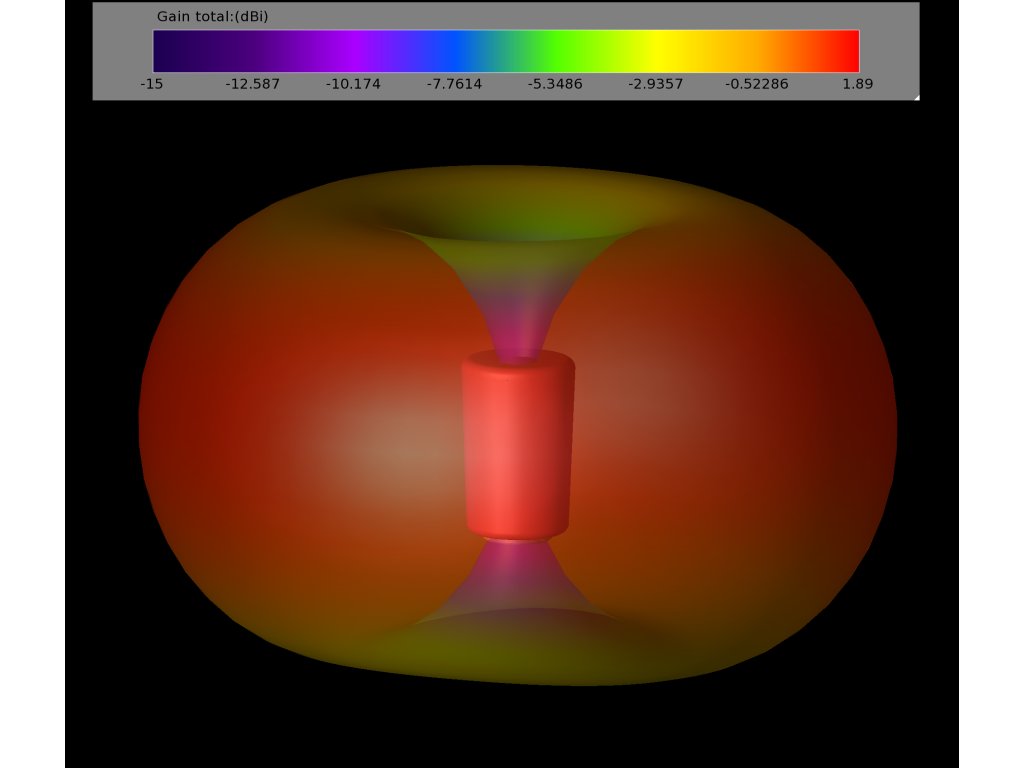

STUBBY Singularity RP-SMA RHCP CLEAR Singularity 5.8 stubby was made especially for the DJI FPV system goggles. Antenna is a direct fit with a much lower profile than stock and over 50% more range. Available in two variations: RHCP or LHCP (Stock DJI is LHCP). Specifications: Color: Clear Gain: 1.9dbic Polarization: RHCP Cross-Polar Rejection: -15 to -30dB (1.9%) Bandwidth: 5.6GHz-6.0GHz Radiation Efficiency: 99% SWR: <=1.5:1 Weight: 3.7 g Size: 12.7mm x 20mm (PDF) Connector: RP-SMA Includes: 1x Singularity 5.8 stubby (RP-SMA)
Additional parameters
| Category: | Goggle Antennas |
|---|---|
| Connector Type: | RP-SMA |
| Frequency: | 5.8GHz |
| Length: | 20mm |
| Polarization: | RHCP |
| The item has been sold out… | |
