Antenna TrueRC STUBBY Singularity RP-SMA LHCP CLEAR

Code: 0608597253108
Not rated
Brand: TrueRC
€21,09 €17,43 excl. VAT
Upon request
Delivery offer
The item has been sold out…

Detailed information

Product detailed description

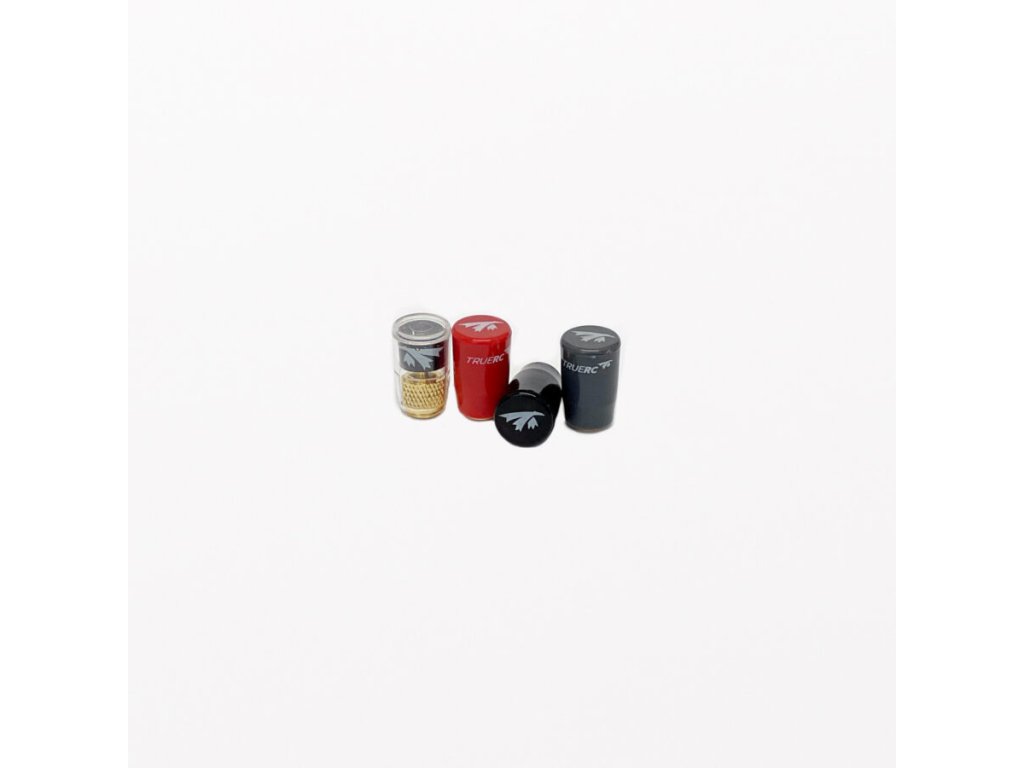

STUBBY Singularity RP-SMA LHCP CLEAR

Singularity 5.8 stubby was made especially for the DJI FPV system goggles. Antenna is a direct fit with a much lower profile than stock and over 50% more range. Available in two variations: RHCP or LHCP (Stock DJI is LHCP).

Specifications:
Color: Clear

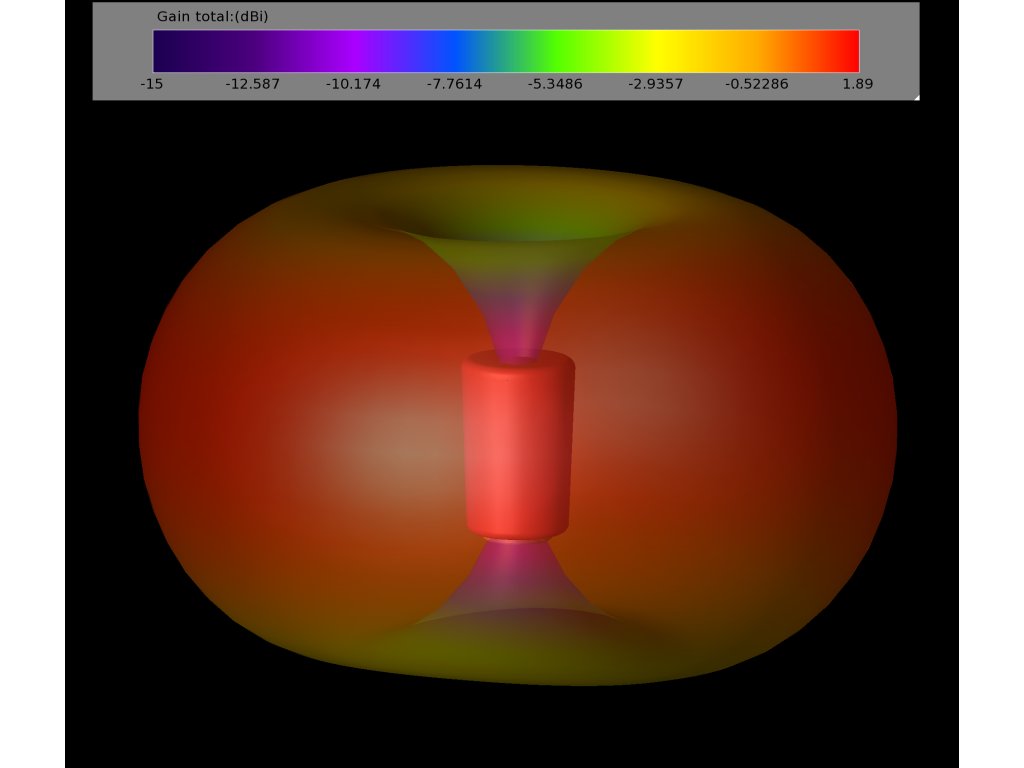

Gain: 1.9dbic
Polarization: LHCP
Cross-Polar Rejection: -15 to -30dB (1.9%)
Bandwidth: 5.6GHz-6.0GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Weight: 3.7 g
Size: 12.7mm x 20mm (PDF)
Connector: RP-SMA

Includes:
1x Singularity 5.8 stubby (RP-SMA)

Additional parameters

Category: Goggle Antennas
Connector Type: RP-SMA
Frequency: 5.8GHz
Length: 20mm
Polarization: LHCP
