Stack SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC

Product detailed description

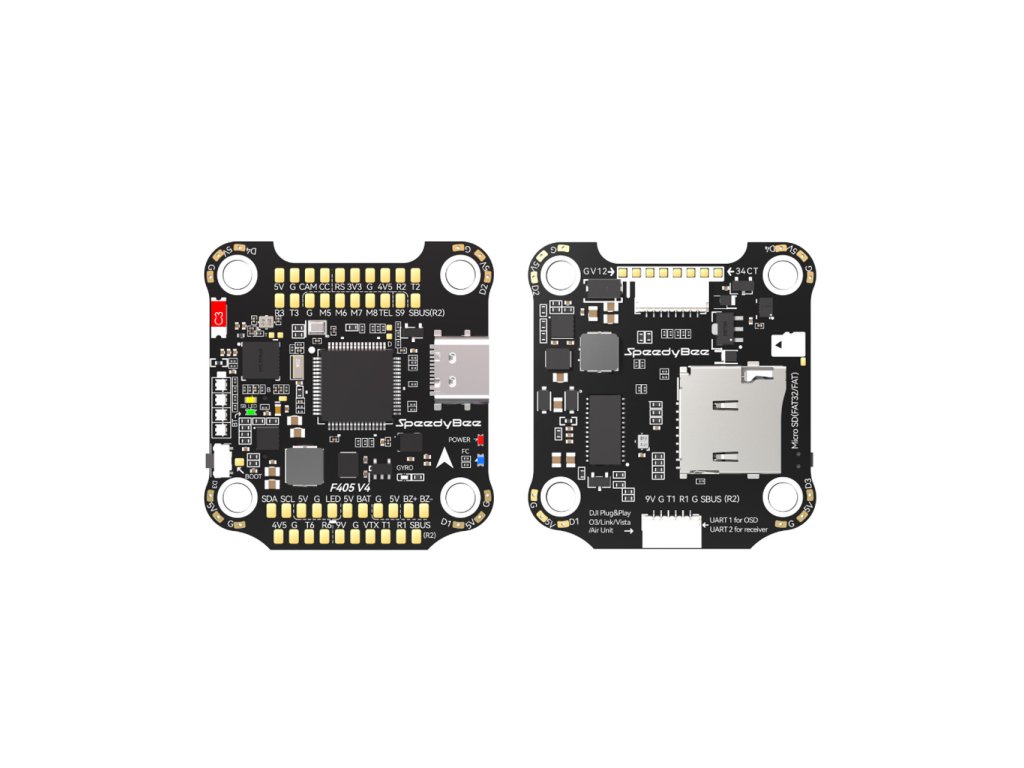

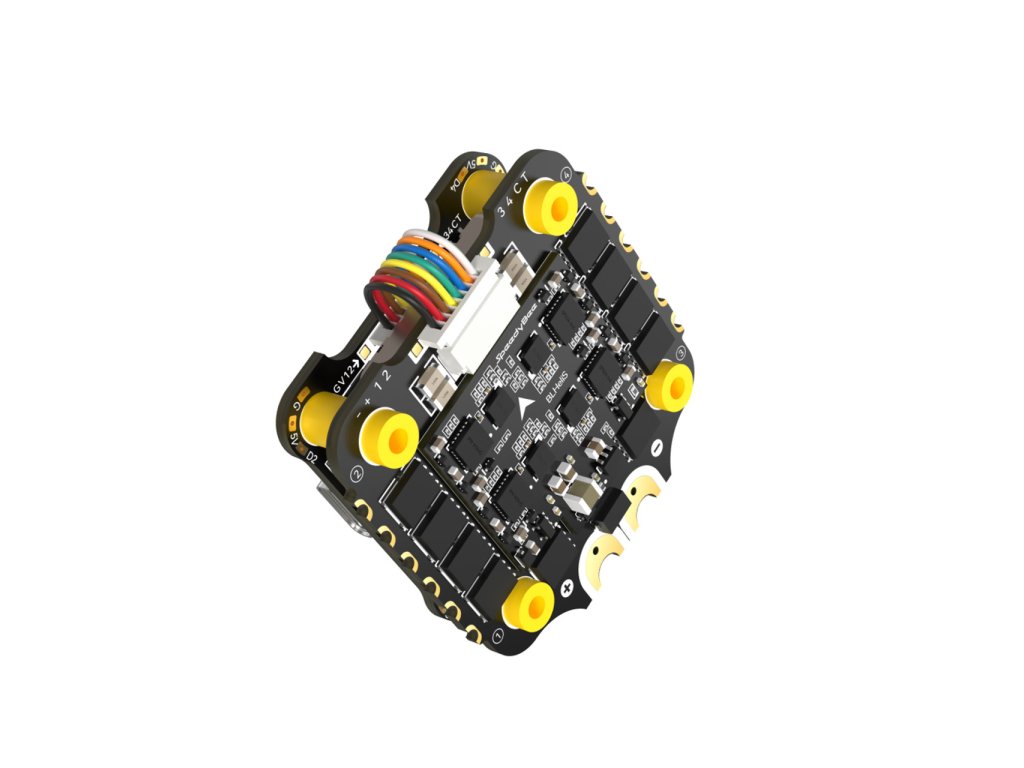

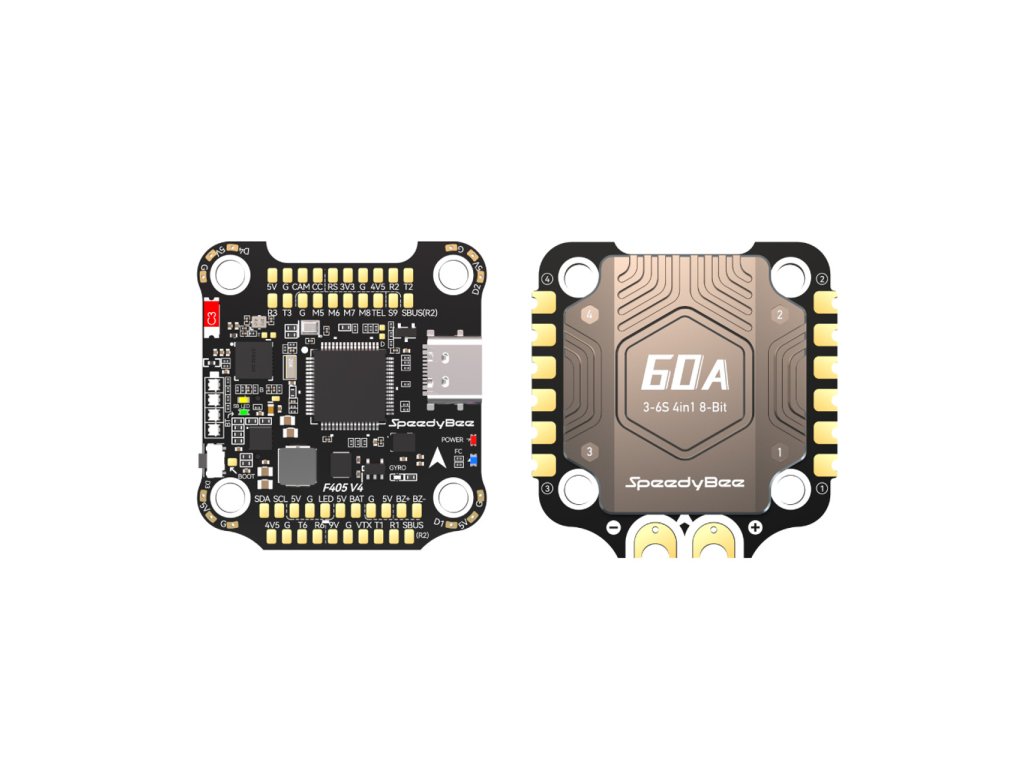

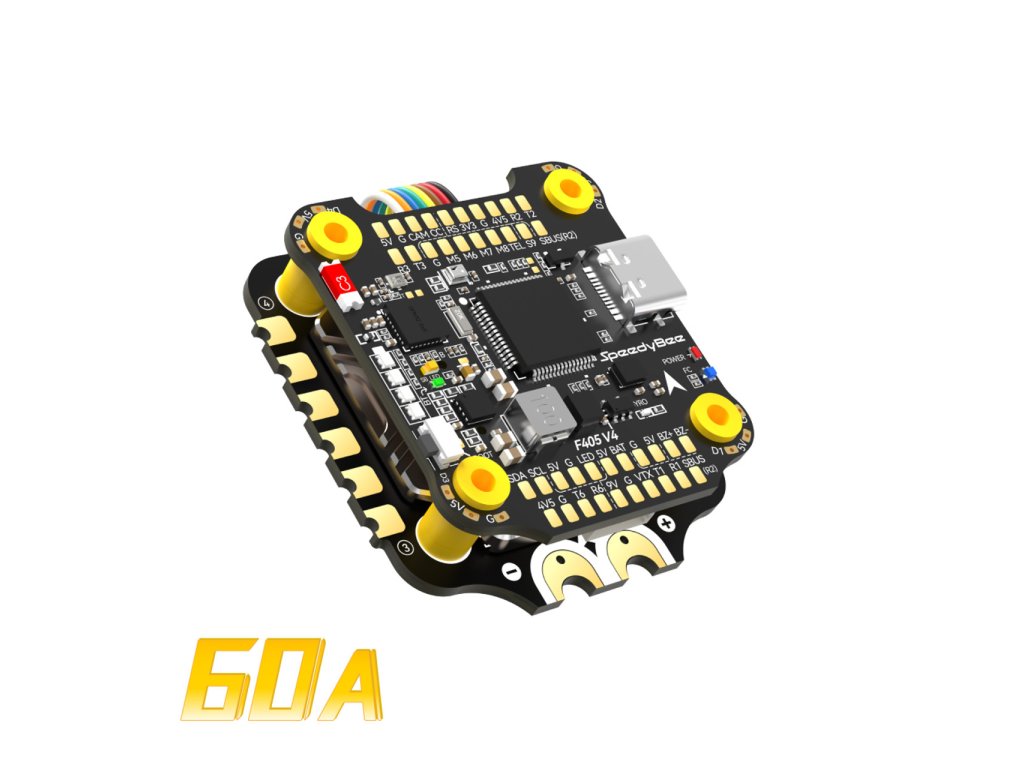

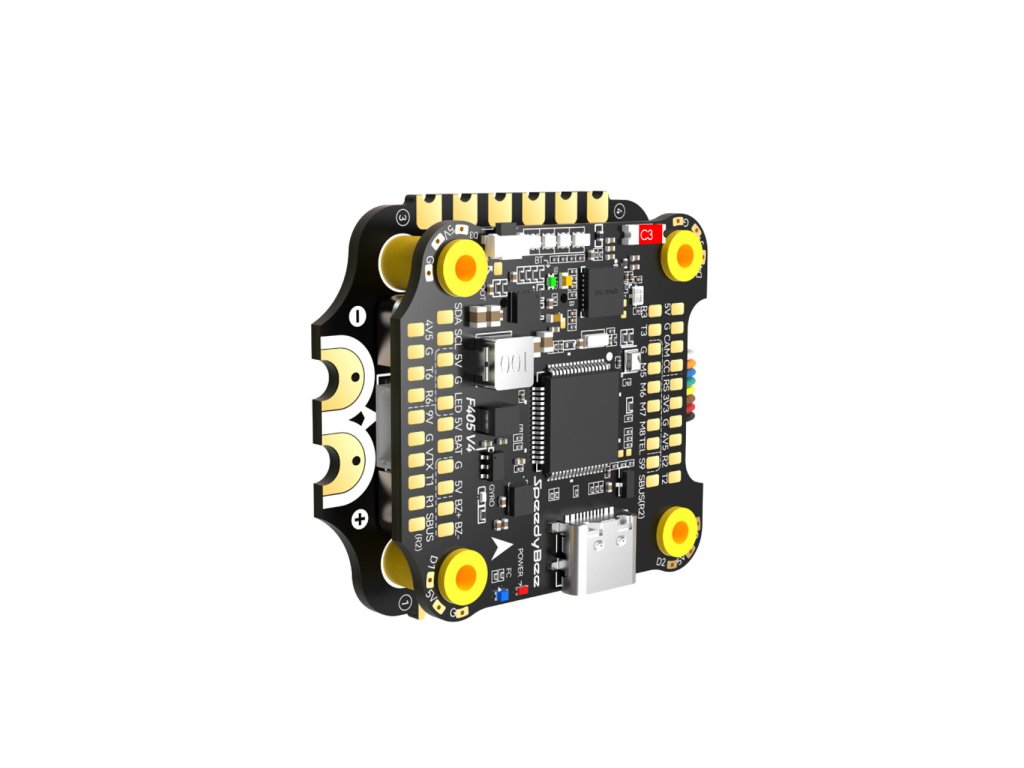

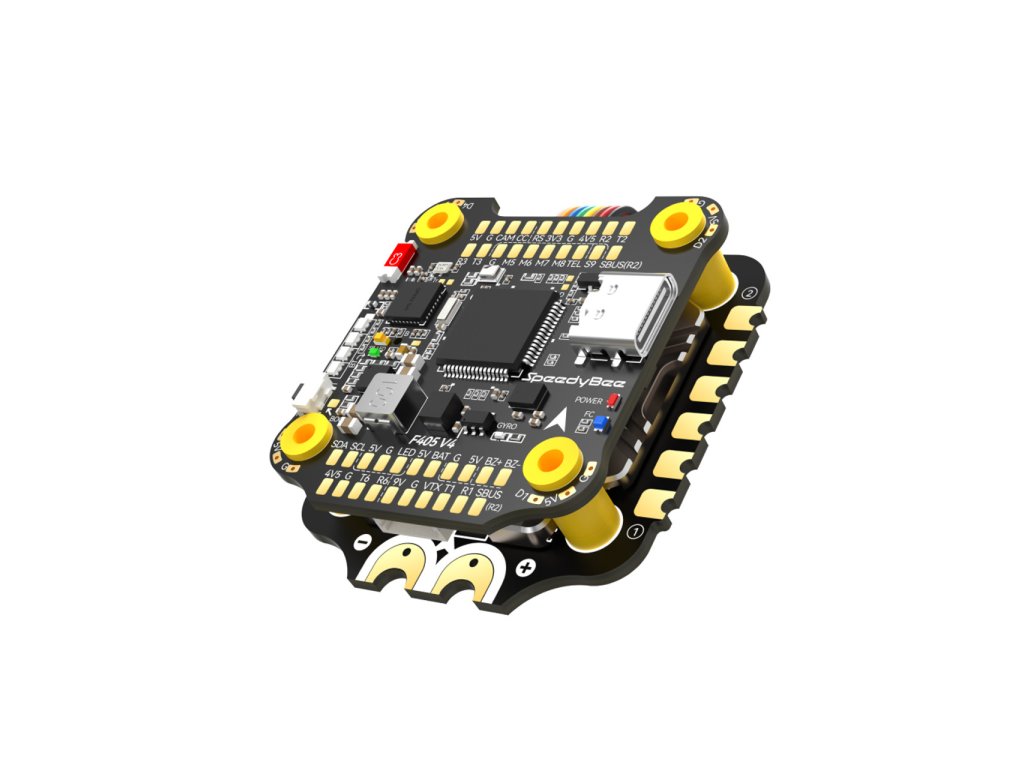

Stack SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC

The fourth version of the SpeedyBee stack includes an FC F405 and a BLHeli_S 60A ESC. The 30x30mm stack can support up to eight motors, is configured via Bluetooth, has a built-in barometer and ICM42688P gyro. With its advanced gyroscopic sensors and intelligent flight algorithms, this stack provides unmatched stability and control, allowing you to execute precise maneuvers with confidence and precision. Featuring a standard 30x30mm form factor, the SpeedyBee stack fits effortlessly into most drone frames, ensuring hassle-free installation and setup.

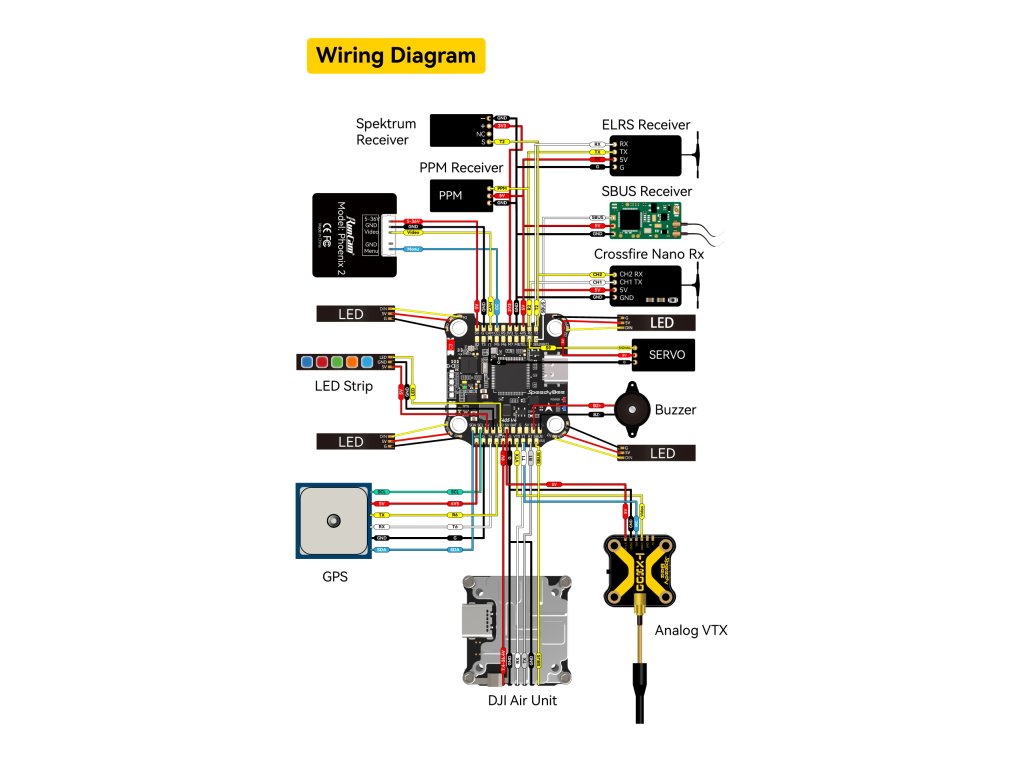

Specifications:

Product Name: SpeedyBee F405 V4 30x30 Flight Controller
MCU: STM32F405
IMU(Gyro): ICM42688P
USB Port Type: Type-C
Barometer: Built-in
OSD Chip: AT7456E chip
BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
WIFI: Not supported
DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering.
6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.
Blackbox MicroSD Card Slot: Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High Capacity (SDHC), so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also, the card MUST be formatted with the FAT16 or FAT32 (recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum.
Current Sensor Input: Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0.
Power Input: 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)
5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for Buzzer) on the front side, and 4x LED 5V pads. The total current load is 3A.
9V Output: 2 groups of 9V output, one +9V pad on the front side and the other included in a connector on the bottom side. The total current load is 3A.
3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
4.5V Output: Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.
ESC Signal: M1 - M4 on bottom side and M5-M8 on front side.
UART: 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5 (Dedicated for ESC telemetry),UART6
ESC Telemetry: UART R5
I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.
Buzzer: BZ+ and BZ- pad used for 5V Buzzer
BOOT Button: Supported
RSSI Input: Supported. Named as RS on the front side.
Smart Port / F.Port: Not supported
Supported Flight Controller Firmware: BetaFlight(Default), INAV
Firmware Target Name: SPEEDYBEEF405V4
Mounting: 30.5 x 30.5mm( 4mm hole diameter)
Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm
Weight: 10.5g

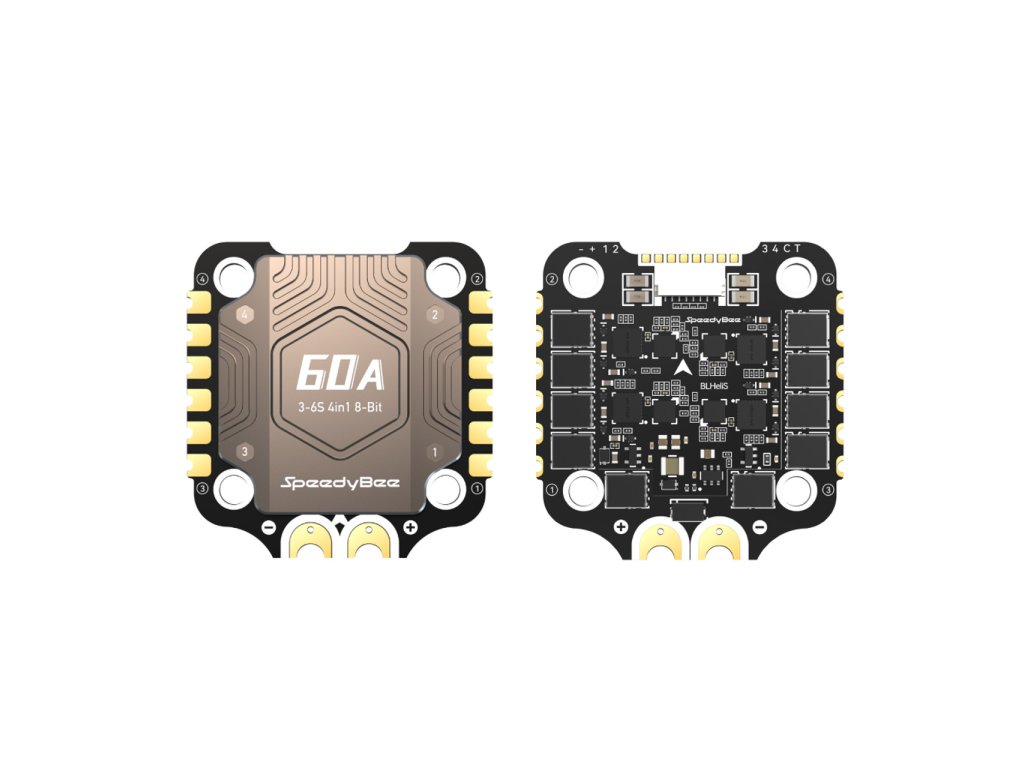

Product Name: SpeedyBee BLS 60A 30x30 4-in-1 ESC
Firmware: BLHeli_S J-H-40
PC Configurator Download Link: https://esc-configurator.com/
Continuous Current: 60A * 4
Burst Current: 80A(10 sec)
TVS Protective diode: Yes
External Capacitor: 1000uF Low ESR Capacitor(In the package)
ESC Protocol: DSHOT300/600
Power Input: 3-6S LiPo
Power Output: VBAT
Current Sensor: Support (Scale=400 Offset=0)
ESC Telemetry: Not supported
Mounting: 30.5 x 30.5mm( 4mm hole diameter)
Dimension: 45.6(L) * 44(W) *8mm(H)
Weight: 23.5g

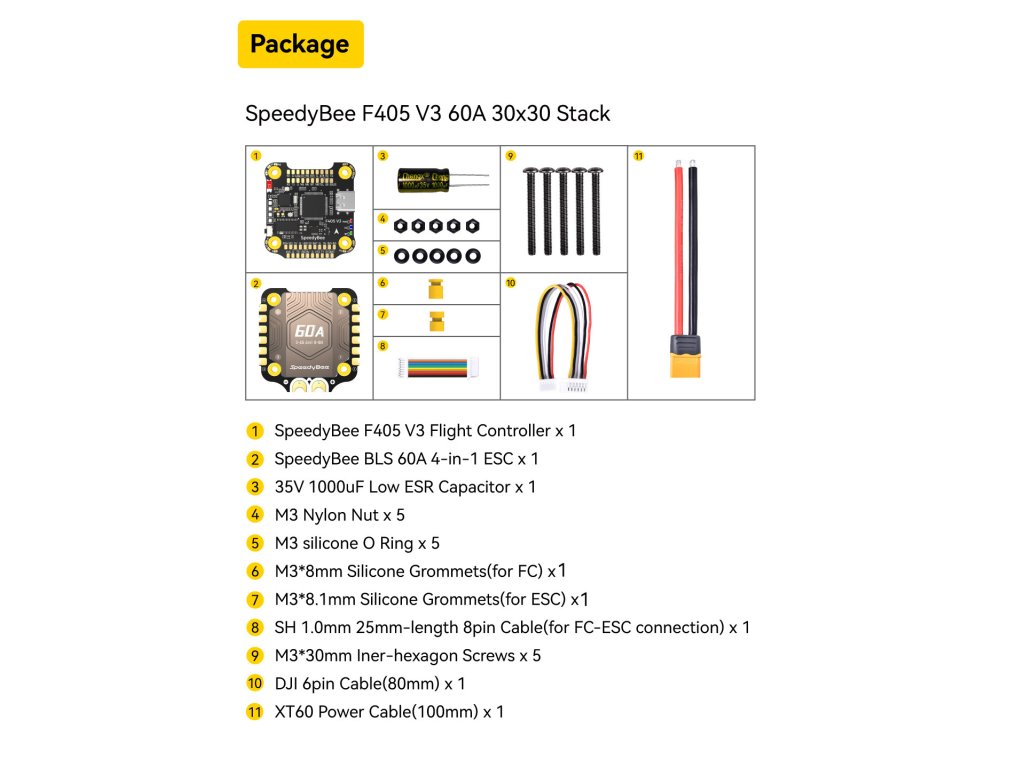

Package includes:
1x SpeedyBee F405 V4 Flight Controller
1x SpeedyBee BLS 60A 4-in-1 ESC
1x 35V 1000uF Low ESR Capacitor
5x M3 Nylon Nut
5x M3 silicone O Ring
1x M3*8mm Silicone Grommets(for FC)
1x M3*8.1mm Silicone Grommets (for ESC)
1x SH 1.0mm 25mm-length 8pin Cable(for FC-ESC connection)
5x M3*30mm Iner-hexagon Screws
1x DJI 6pin Cable(80mm)
1x XT60 Power Cable(100mm)
