Stack Pilotix F722 V2&Bettle 3060 AM32 60A
Code: 5103Product detailed description

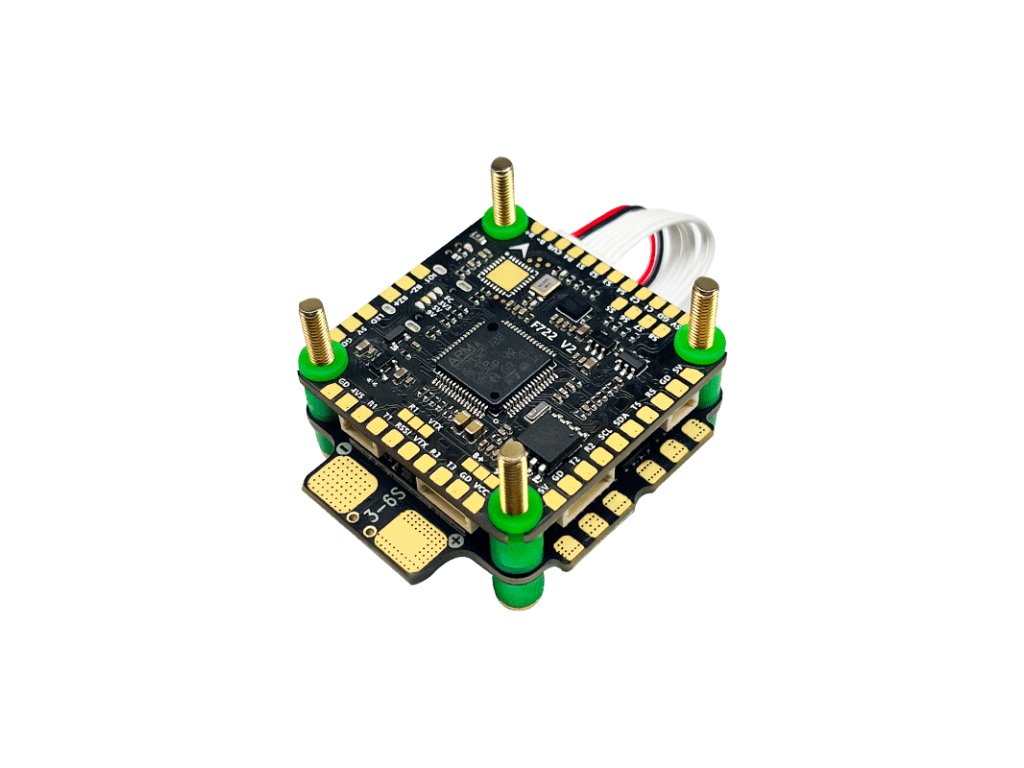

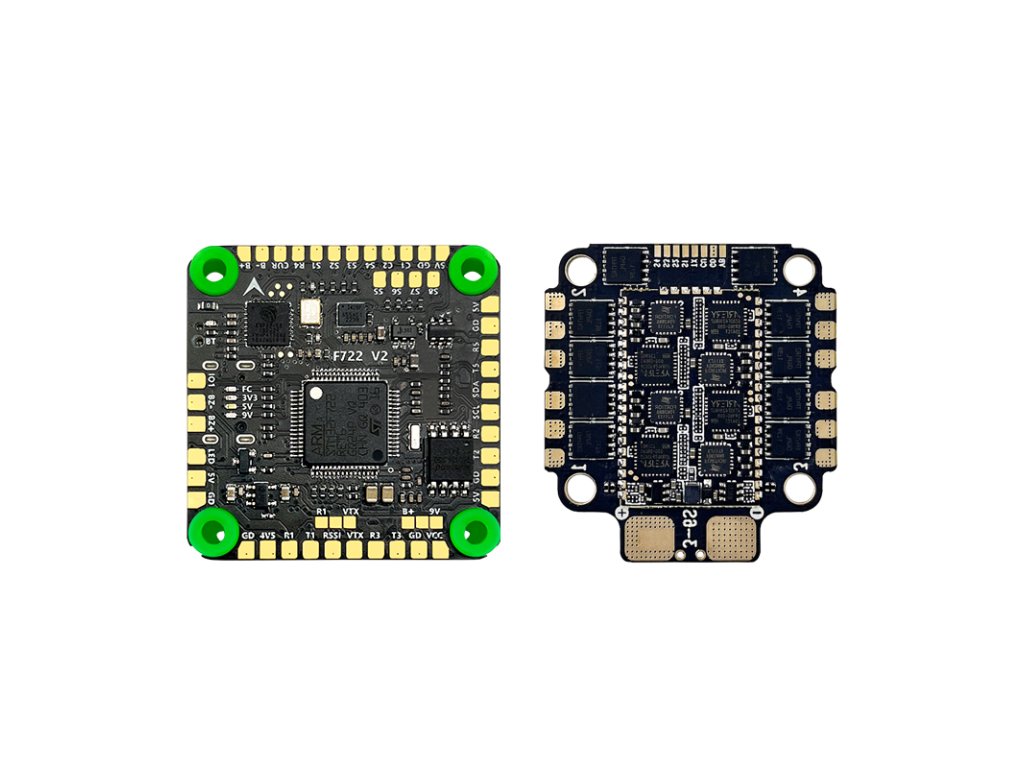

Stack Pilotix F722 V2&Bettle 3060 AM32 60A
-

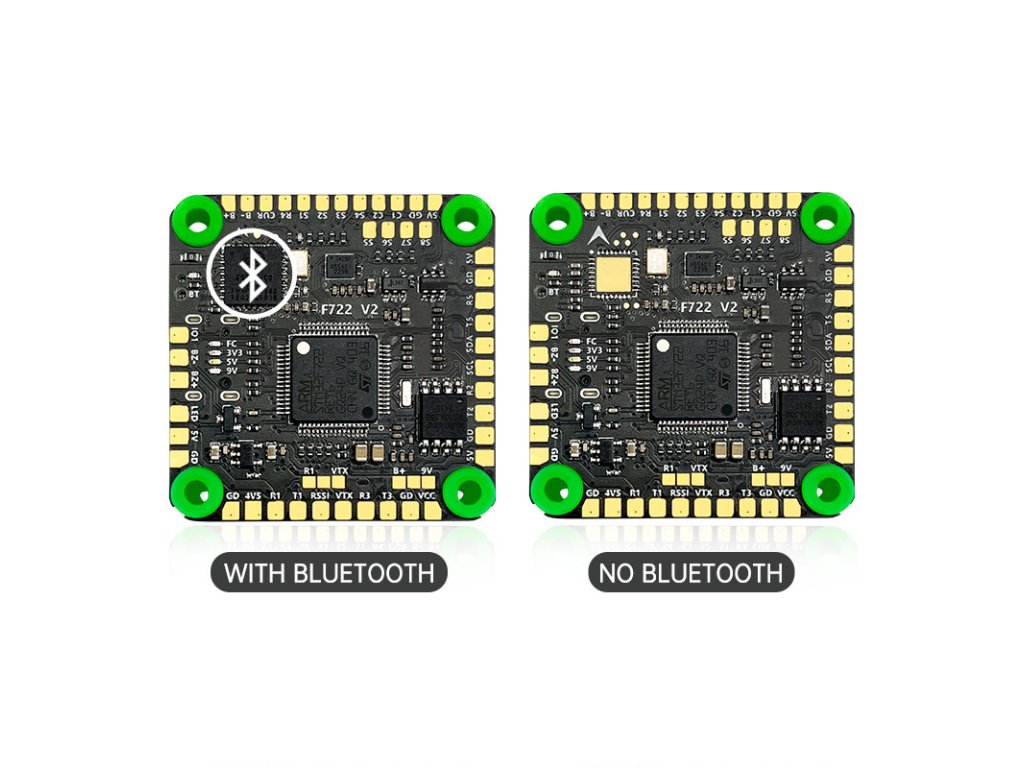

F722 V2 Flight Controller (FC)
- CPU: STM32F722RET6
- Gyro: ICM42688P
- Barometer: BMP280
- Black Box: 16MB
- OSD: Yes
- Motor Output: 8 channels
- UART: 5 channels
- LED Strip: Yes
- Buzzer: Yes
- BEC Output: 4.5V/2A, 5V/2.5A, 9V/3A
- Receiver: ELRS/CRSF/S.BUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX

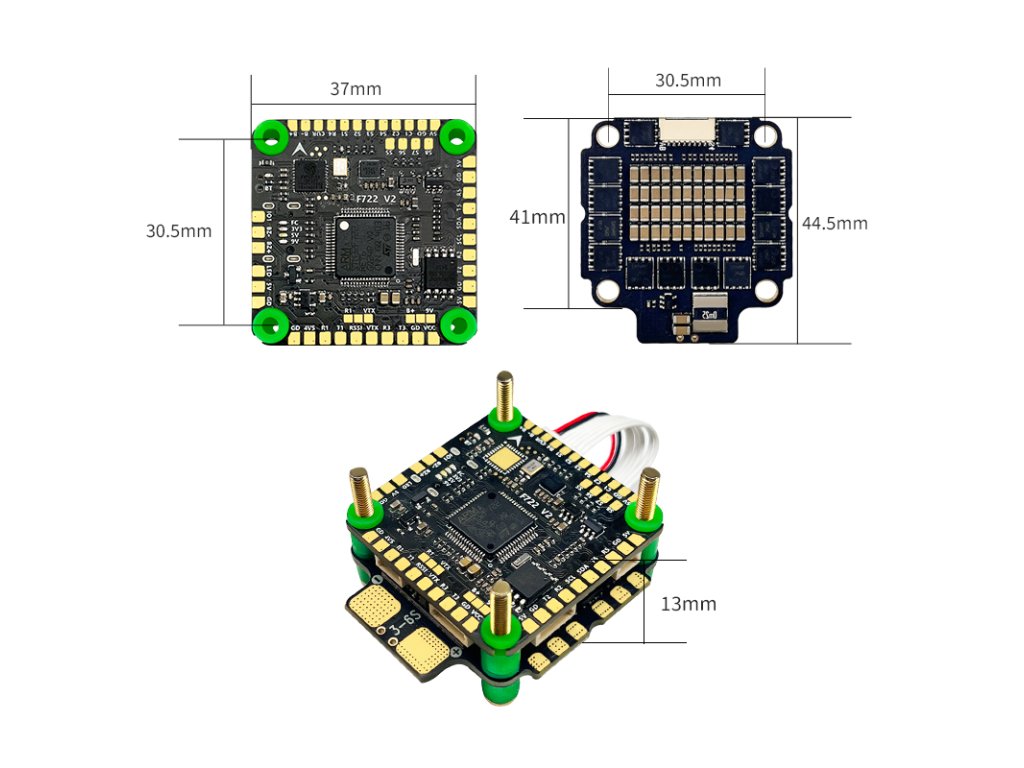

- Dimensions: 37mm x 37mm
- Weight: 9.4g
- Mounting Holes: 30.5mm x 30.5mm
- Firmware: AOCODARCF722V2
3060 Electronic Speed Controller (ESC)
- Continuous Current: 60A x4
- Burst Peak Current: 70A x4
- Input Signal: Dshot300/Dshot600/PWM/Bi-directional Dshot
- Telemetry: Supported
- Current Meter: Supported
- Input Voltage: 3-6S Lipo
- Firmware Name: AM32_AORC_AT421A
- Operating Temperature: 20°C ~ +85°C
- Operating Humidity: 20% ~ 95%
- Storage Temperature: 20°C ~ +70°C
- Weight: 13.9g
- Mounting Holes: M3 30.5mm x 30.5mm
- Dimensions: 41mm x 44.5mm
Packaging Lists
- 1x F722 V2 Flight Controller (FC)
- 1x Bettle 3060 ESC
- 2x 8PIN SH1.0 Connection Cables
Additional parameters
| Category: | Stacks |
|---|---|
| Mounting Size: | 30.5x30.5 mm |
| Power Supply: | 3-6S |
| Continuous Current: | 60A |
| Processor Type: | F722 |
