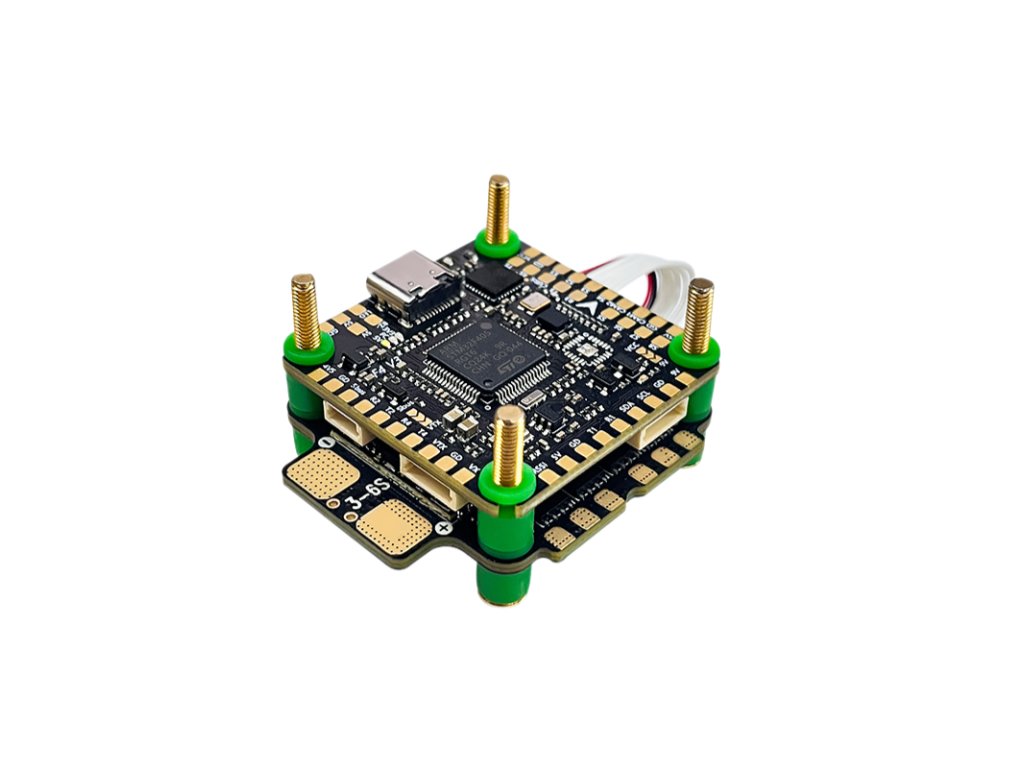

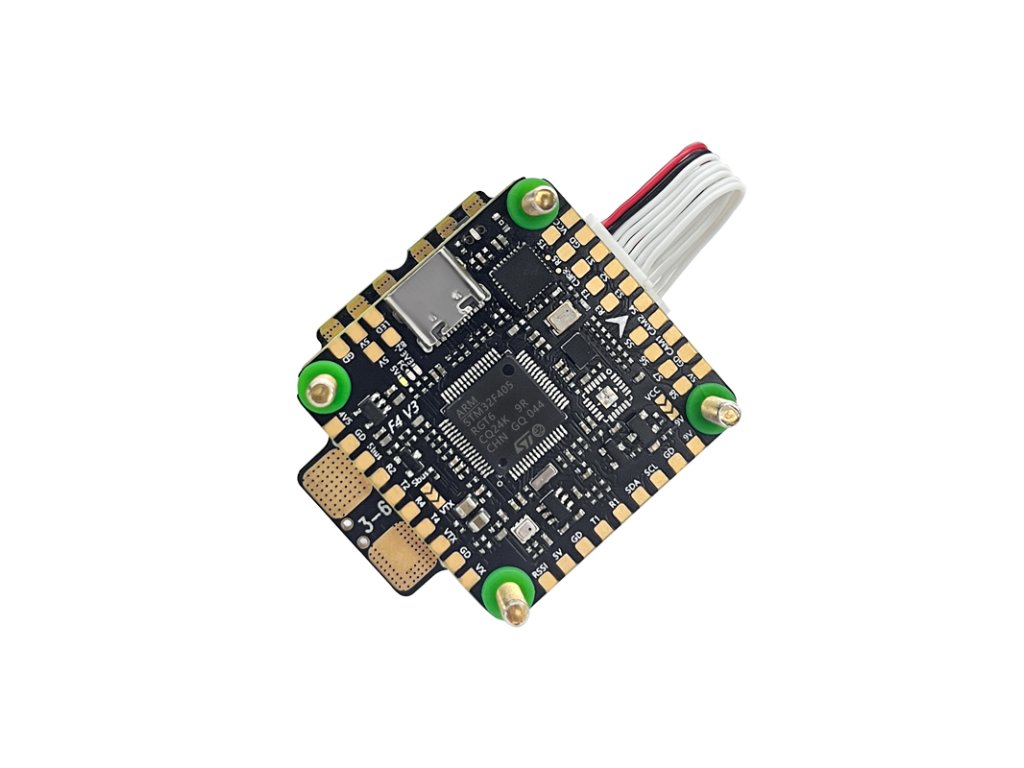

Stack Pilotix F405 V3 ICM42688 AM32 60A v1.0
The Pilotix F405 V3 60A Stack is an advanced FC and electronic speed controller (ESC) combination designed for high-performance drones. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides ample power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance. This version includes soldering for two cameras.
Specifications:
-FC-
CPU: STM32F405RGT6
Gyro: ICM42688
Barometer: SPL06
OSD: support
Black box: 16MB/microSD
Motor output: 8CH
LED light strip: support
Buzzer: support
Receiver Protocol: ELRS/CRSF/SBUS/Frsky/Futaba/Flysky/TBS Crossfire/DSMX
Universal serial port: 5-way optional
Output power supply: 5V/2.5A,9V/3A
USB Connector: Type-C
DJl/Vista Digital sky End: support
Camera switching: support
Sbus and VTX jumper switching: support
9V and VCC jumper switching: support

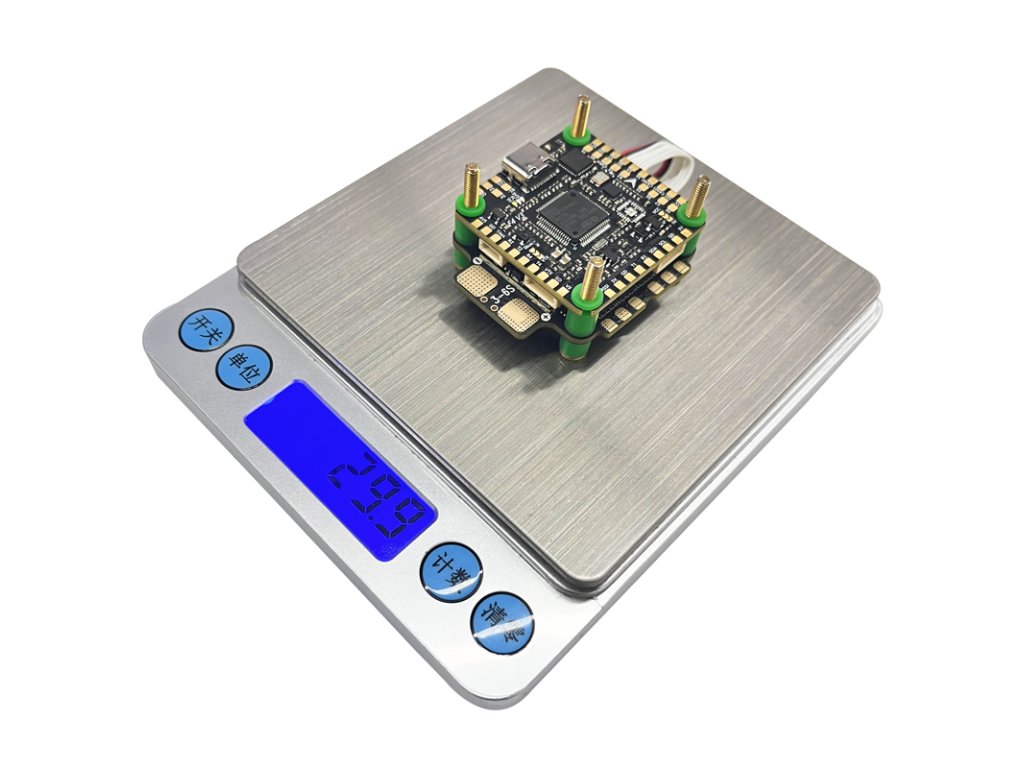

Weight: 9.6g

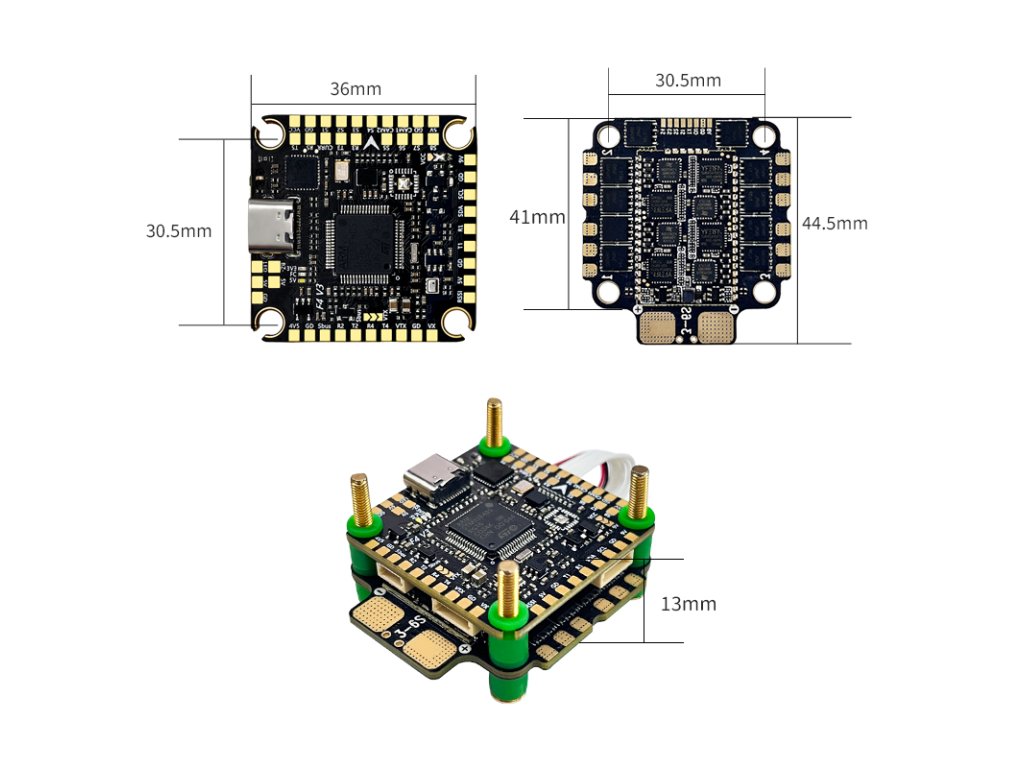

Size: 36mmx36mm
Mounting Hole: 30.5mmx30.5mm
Firmware Name: F405V3/F405V3SD
-ESC-
Continuous maximum current: 60AX4
Instantaneous maximum current: 70AX4
Input voltage: 3-6S Lipo
Electric dispatch protocol: Dshot300/Dshot600/PWM/Bi-directional Dshot
MCU: AT32F421K8U7
Onboard ammeter: support
ESC Telemetry: Support
Firmware: AM32_AT32PB4_540_F421 _2.12.hex
Weight: 13.9 g
Size: 40x 40.7mm
Mounting Hole: M3 30.5x30.5mm
Package includes:
1x Stack Pilotix F405 V3 ICM42688 AM32 60A v1.0
Additional parameters
Category: | Stacks |
---|---|
Continuous Current: | 60A |
Mounting Size: | 30.5x30.5mm |
Power Supply: | 3-6S |
Processor Type: | F405 |
