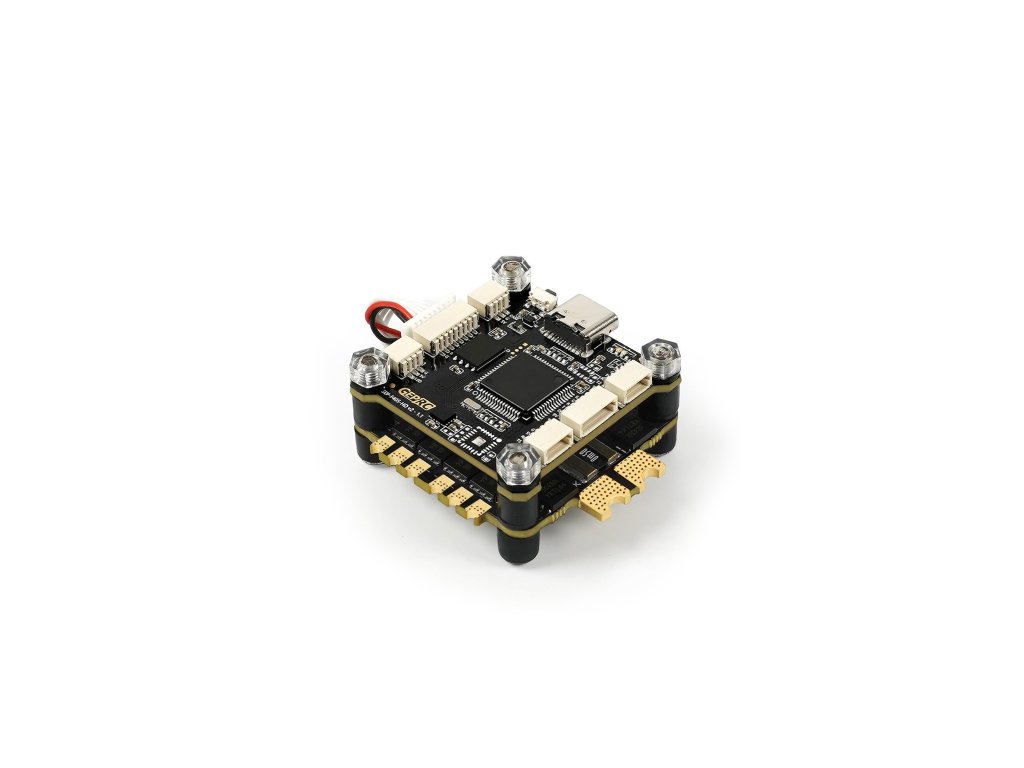

Stack GEPRC TAKER F405 BLS 60A
Code: GP106163Product detailed description

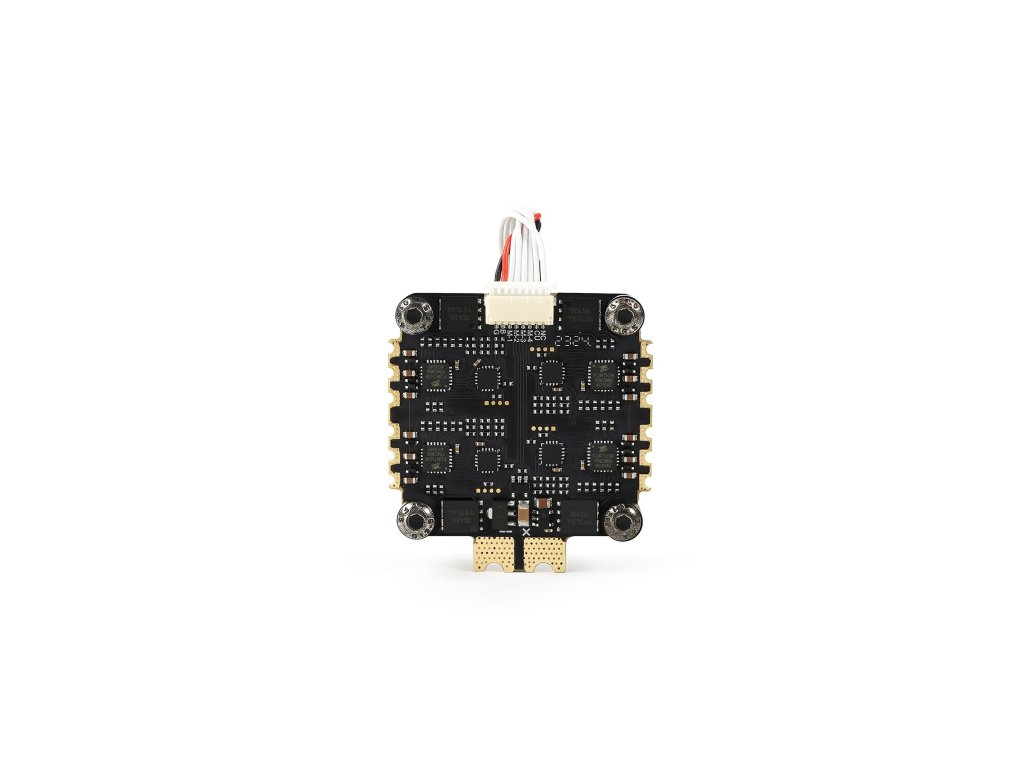

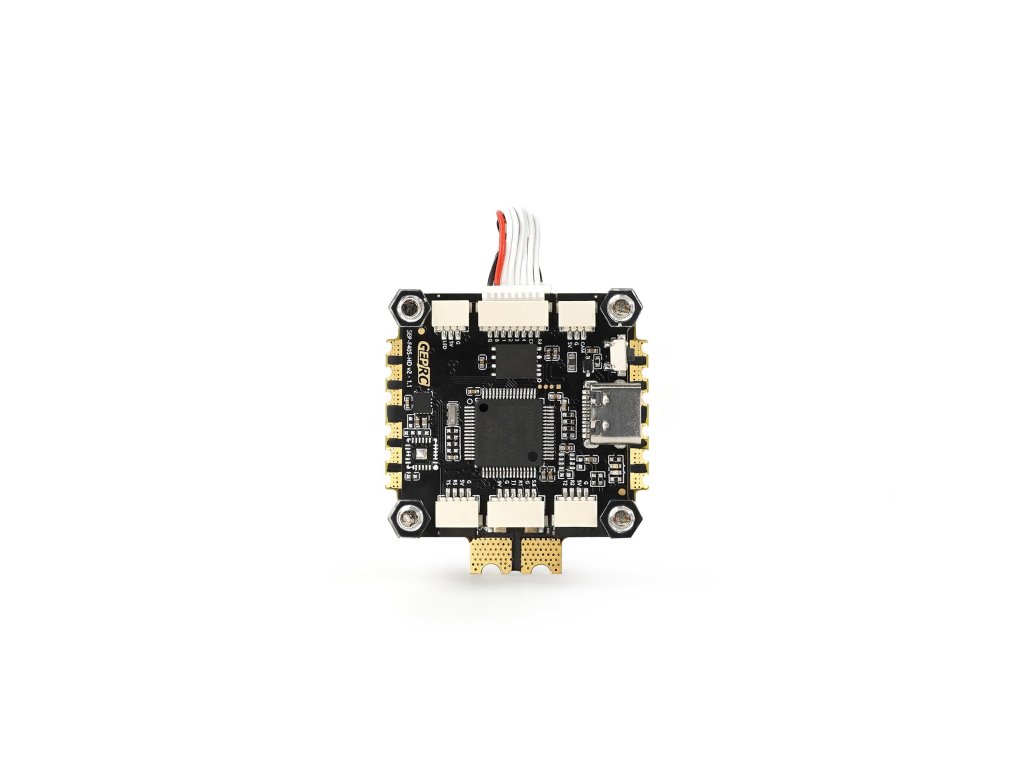

Stack GEPRC TAKER F405 BLS 60A GEPRC TAKER F405 BLS 60A STACK is a plug-and-play flying tower system specially designed for the DJI Air Unit. Used STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box, and GEP-BLS60A-4IN1 ESC to have a more delicate hand-feeling experience. The TAKER F405 BLS 60A STACK can be directly plugged into the DJI Air Unit, which can save the trouble of welding. Upgrade the type-C USB interface, which greatly improves the service life of the socket and reduces the risk of poor contact. 9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices. Features: - Use mainstream STM32F405 chip - Equipped with the latest 42688-P gyroscope - 16M black box storage - Integrated LC filter - Upgrade type-C USB interface - Directly plugged into the DJI Air Unit - With GEP-BLS60A-4IN1 ESC, the flying feel is silky - A simple and reasonable installation method, the shock absorber can make the gyroscope work very stably - 9V@2.5A + 5V@3A dual independent BEC Specifications: GEP-F405-HD v2 Flight Controller MCU: STM32F405 IMU: ICM42688-P(SPI) Air Unit Connection: Direct plugging into DJI Air Unit Black Box: 16M onboard USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,9V@2.5A dual BEC Firmware Target: GEPRCF405 Size: 36.8×36.8mm, hole 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle. Input Voltage: 3-6S LiPo UART: 6 Power Filter: Integrated LC filter Weight: 7.7g GEP-BLS60A-4IN1 ESC Input Voltage: 3-6S Lipo Galvanometer: Support Continuous Current: 60A Burst Current: 65A (5 seconds) Support Protocol: Dshot 150/300/600 Size: 42.9×39.7mm, hole 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing circle. Weight: 13.7g Target: G_H_30 Package Includes: 1 x Flight Controller 1 x ESC 1 x Capacitor 1 x DJI Air Unit Adapter Cable 1 x Flight Controller Adapter Cable 1 x XT60 Power cable 4 x M3*30 Screws 4 x M3*25 Screws 8 x Nylon nuts 8 x Silicone grommets 2 x sh1.0 4pinsilicone cable 1 x Camera connection cable
Additional parameters
| Category: | Stacks |
|---|---|
| Continuous Current: | 60A |
| Mounting Size: | 30.5x30.5mm |
| Power Supply: | 3-6S |
| Processor Type: | F405 |
Be the first who will post an article to this item!
Add a comment
GEPRC is a team of over 100 specialists who are committed to providing users with high-quality FPV drones. There are drones for fun, freestyle, racing, and commercial purposes. Through years of experience accumulation, GEPRC has developed a variety of products, and the company is committed to creating high-quality FPV drones and parts (electronics, motors, frames, etc.) to help more people get into the FPV hobby.
